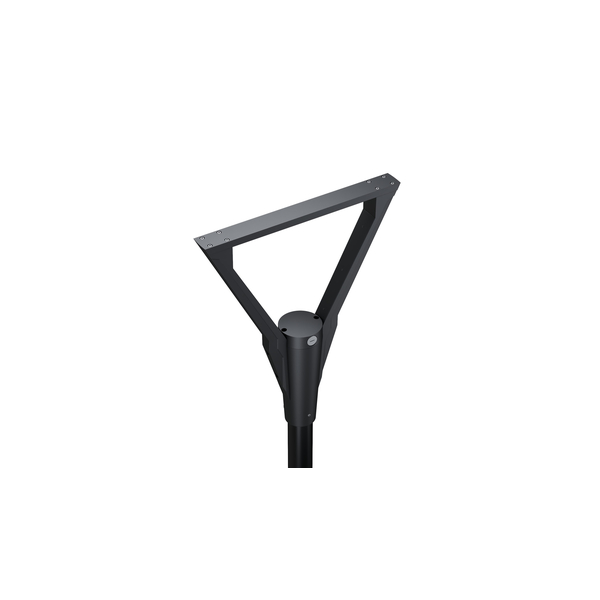

LED Post Top Luminaire V1 Series 3000/3500/4000K 20/40/60W IP66 165lm

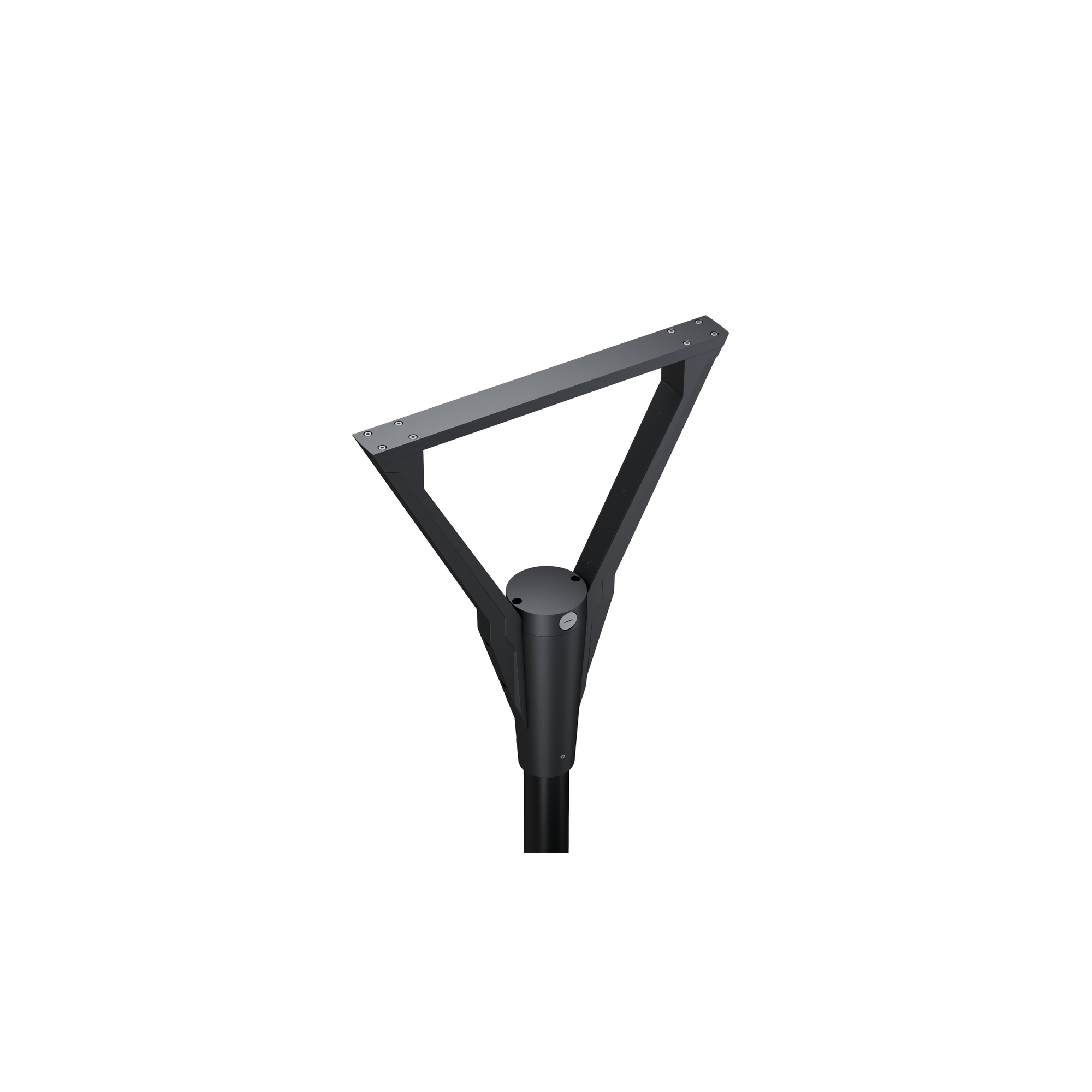

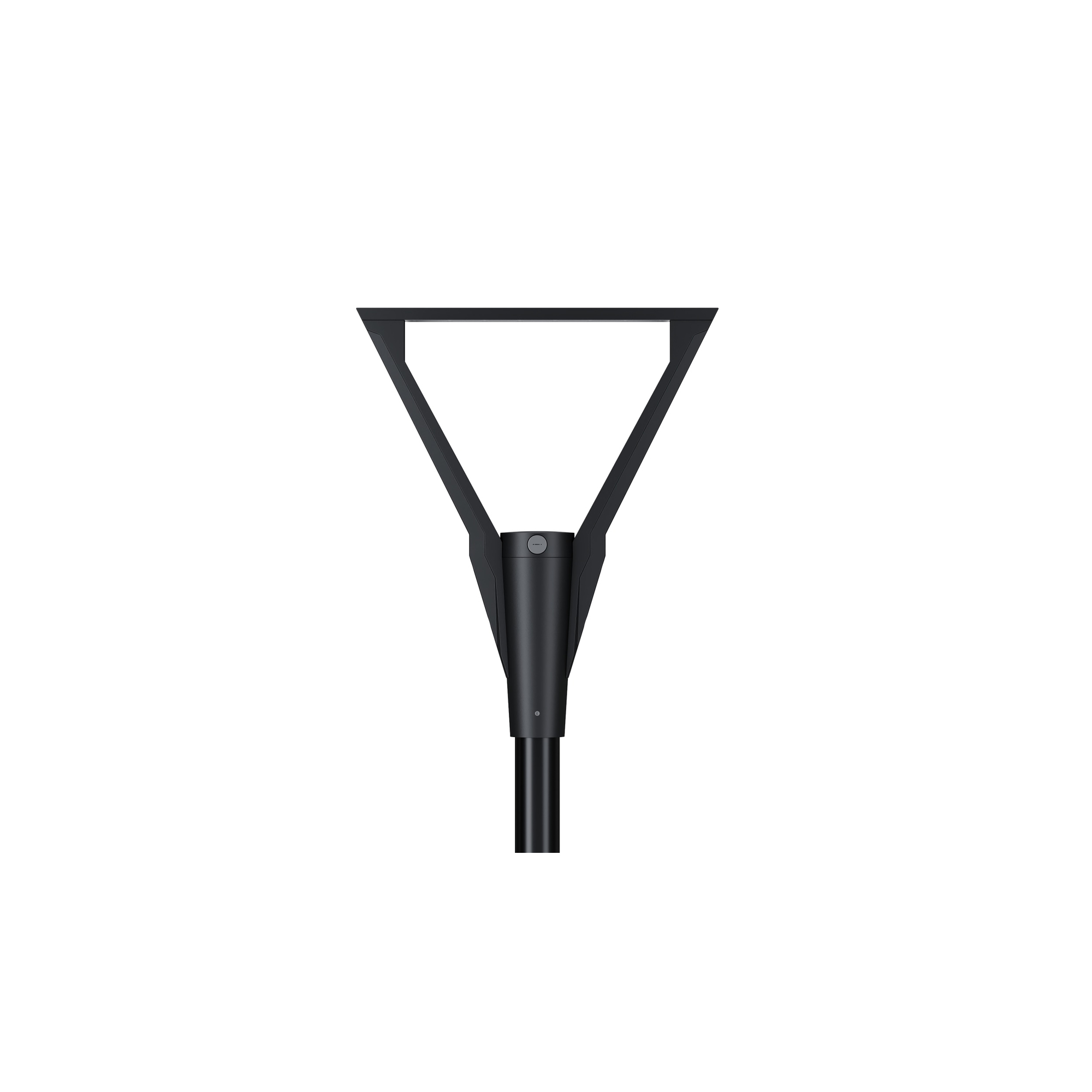

LED Post Top Luminaire V1 Series – V-shape (double arm, single lamp head)

20/40/60 W and 3000/3500/4000 K by switch · Type V · IP66 · up to 9,900 lm

This LED post top luminaire combines clean design with very practical technology. Two small switches inside let you choose colour temperature and power – one product therefore covers several applications and you need fewer different luminaires in stock. For controllable installations the luminaire is also available as a DALI version on request. It can then be dimmed steplessly, switched in groups and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Colour temperature 3000 / 3500 / 4000 K by switch, 1800 K optional on request
• Power 20 W / 40 W / 60 W selectable by switch
• All-round Type V light distribution for evenly illuminated areas
• Optionally available with DALI dimming on request
• Pluggable lamp head and pluggable driver for quick maintenance
• LED module and driver available as spare parts – repair instead of replace
• Lumileds 2835 LEDs and Sosen driver for reliable continuous operation
• Die-cast aluminium housing, IP66, IK08, 10 kV surge protection
• Suitable for poles with Ø 60 mm and Ø 76 mm

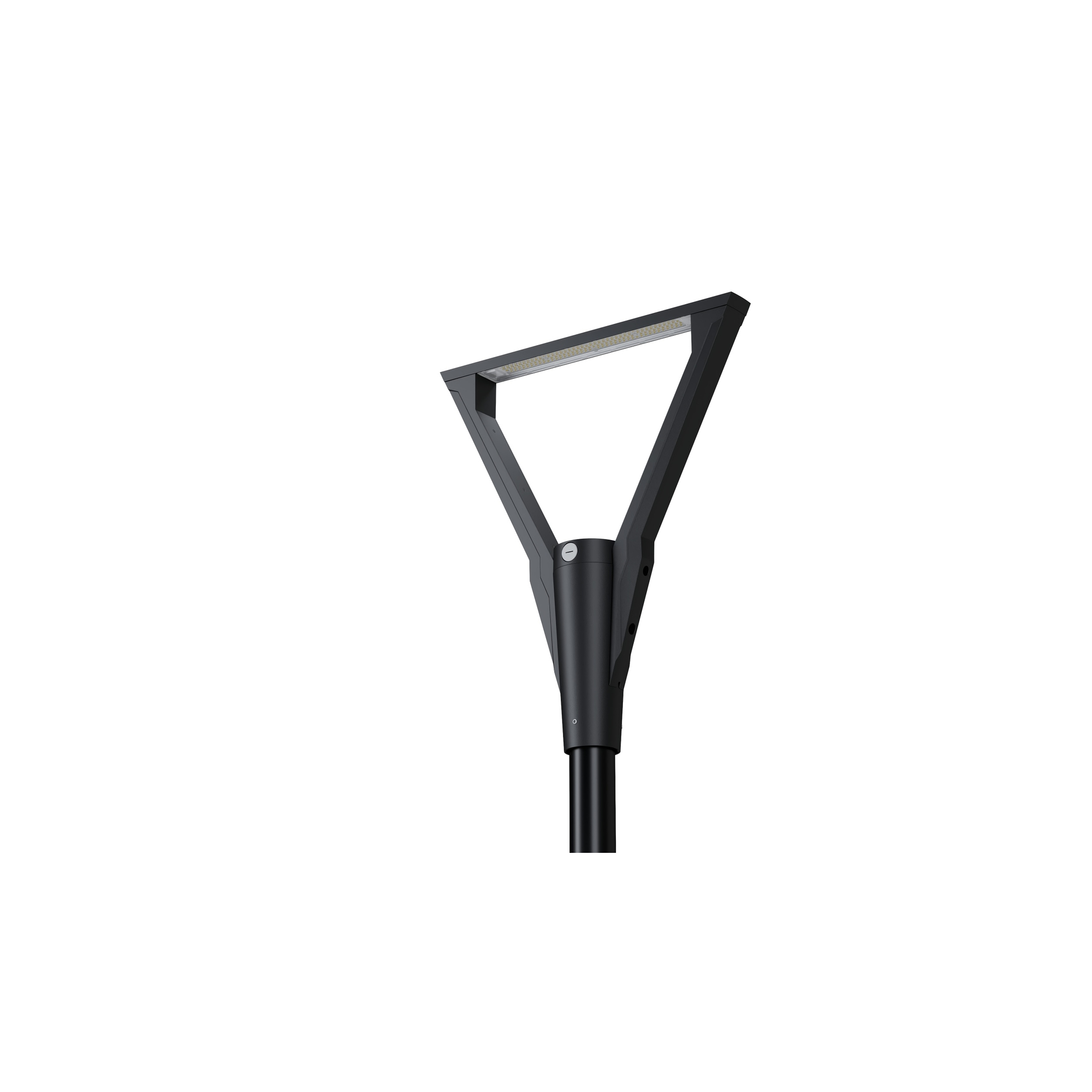

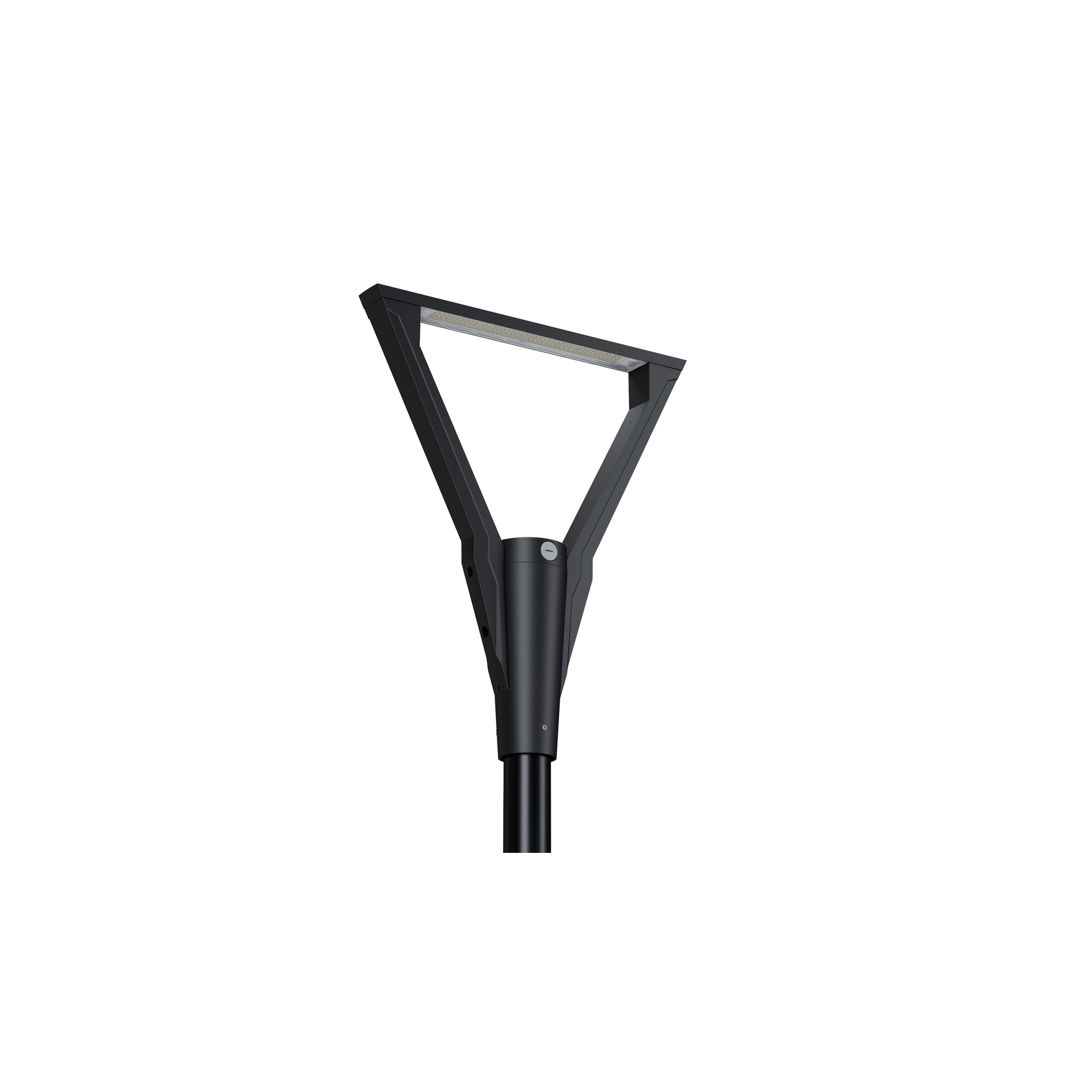

Lamp head: flat lamp head

The lamp head is a slim, straight band of light. It looks technical and understated and fits well into modern architecture. The light-emitting surface sits protected behind a clear cover so that light is directed downwards onto the path or square.

Setting the colour temperature by switch

Instead of committing in advance, you set the colour temperature during installation. Available are 3000 K, 3500 K and 4000 K – from warm and inviting to neutral and crisp. The switch sits within easy reach under the cover. If you need particularly insect-friendly lighting, 1800 K can be ordered on request.

Setting the power by switch

Power is adjustable too: a second switch lets you choose between three wattage steps. That is practical because the same luminaire needs less light on a narrow footpath than on a car park. You buy one model and adapt it on site – reducing both energy consumption and stock keeping.

Type V light distribution – even light all around

The light distribution used is Type V – an all-round characteristic. Light spreads in a circle around the pole instead of shining in one direction only. That is exactly what open areas need: squares, courtyards, parks and parking bays are lit evenly, without dark zones appearing between the poles.

As standard the luminaire is supplied exclusively with the Type V optic. For larger projects, however, other light distributions can be arranged: from a corresponding order quantity onwards we manufacture the luminaire with a directional optic on request, for example for narrow paths or areas that need to be lit from one side. Simply get in touch with your planned quantity and we will check what can be realised for your project.

Not sure whether this luminaire suits your project? Get in touch – we are happy to advise you on pole height, pole spacing and the power you need.

Modular design: quick installation, easy maintenance

The modular concept of this series saves time during installation and maintenance. Lamp head and arm are joined by plug connection and screwed together; nothing has to be stripped or terminated. Incorrect connection is practically impossible. Likewise the driver can be replaced individually thanks to plug contacts, instead of replacing the whole luminaire.

Brand components: Lumileds LEDs and Sosen driver

Two components largely determine how long an outdoor luminaire lasts: the LEDs and the driver. The luminaire uses Lumileds 2835 LEDs, known for their consistent light quality and long service life. They are powered by a Sosen driver – a manufacturer whose drivers have proven themselves in harsh outdoor conditions for years. This combination ensures consistent brightness across many years of operation.

Spare parts available – LED module and driver individually replaceable

Spare part availability is a real cost factor with outdoor luminaires. With this luminaire you can obtain both the LED module and the driver individually – both are pluggable and replaced in a short time, with no wiring work at all. Instead of scrapping the entire luminaire after a defect, you replace only the affected component. That saves money, conserves resources and keeps your installation consistent for many years.

Long service life – L70, L80 and L90 explained

The lifetime figures L70B50: 100,000 h, L80B50: 76,000 h and L90B50: 52,000 h describe how slowly brightness declines over the years. After around 100,000 operating hours the luminaire still delivers about 70 % of its original luminous flux. For operators that means predictable maintenance, no regular lamp changes and an even lighting result over a long time.

Ruggedly built for outdoor use

The luminaire is made for continuous outdoor operation. The die-cast aluminium housing dissipates heat well and is powder coated, the cover is made of impact-resistant polycarbonate. With IP66 the luminaire is dust-tight and protected against water jets, with IK08 insensitive to impact. Operation is approved from −30 °C to +50 °C, and 10 kV protection absorbs surges.

Mounting on the pole

A standard lighting pole is all you need for installation: the supplied adapter fits 60 mm and 76 mm pole diameters. This makes the luminaire well suited to replacing old post top fittings without changing the poles themselves. Connection at 100–277 V, Safety Class I.

Technical data

Applications

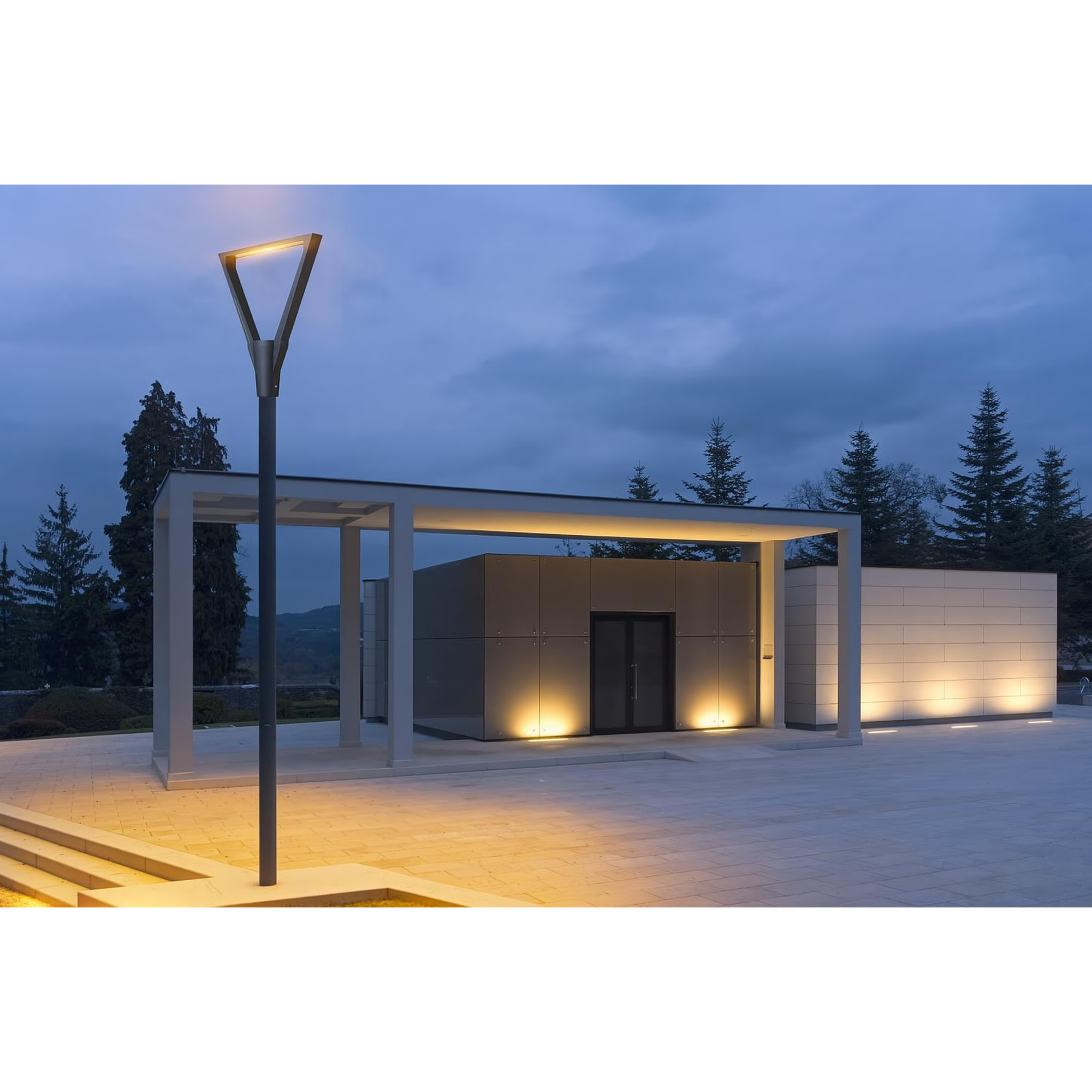

This luminaire is made for outdoor lighting: parks and green spaces, footpaths and cycle paths, residential areas and courtyards, car parks, driveways and building forecourts. At roundabouts, pedestrian crossings and in residential streets it also provides even light without harsh shadows.

Scope of delivery

• 1× LED post top luminaire V1 Series (V-shape (double arm, single lamp head))
• Pole adapter for Ø 60 mm and Ø 76 mm
• Installation instructions
