LED Post Top Luminaire V3 Series 3000/3500/4000K 20/40/60W IP66 165lm

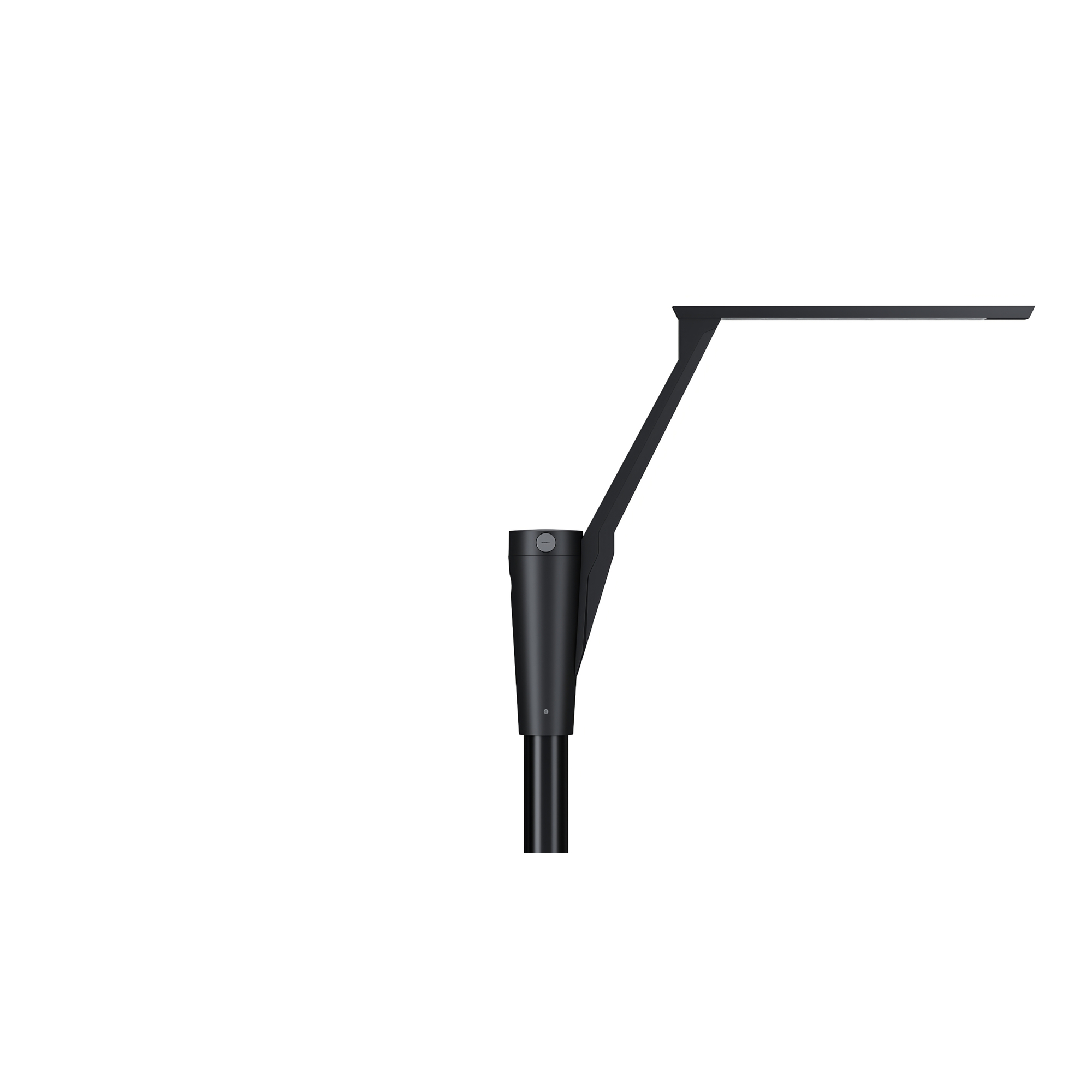

LED Post Top Luminaire V3 Series – Curved arm (single arm)

20/40/60 W and 3000/3500/4000 K by switch · Type V · IP66 · up to 9,900 lm

This LED post top luminaire combines clean design with very practical technology. Two small switches inside let you choose colour temperature and power – one product therefore covers several applications and you need fewer different luminaires in stock. For controllable installations the luminaire is also available as a DALI version on request. It can then be dimmed steplessly, switched in groups and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Colour temperature 3000 / 3500 / 4000 K by switch, 1800 K optional on request
• Power 20 W / 40 W / 60 W selectable by switch
• All-round Type V light distribution for evenly illuminated areas
• Optionally available with DALI dimming on request
• Pluggable lamp head and pluggable driver for quick maintenance
• LED module and driver available as spare parts – repair instead of replace
• Lumileds 2835 LEDs and Sosen driver for reliable continuous operation
• Die-cast aluminium housing, IP66, IK08, 10 kV surge protection
• Suitable for poles with Ø 60 mm and Ø 76 mm

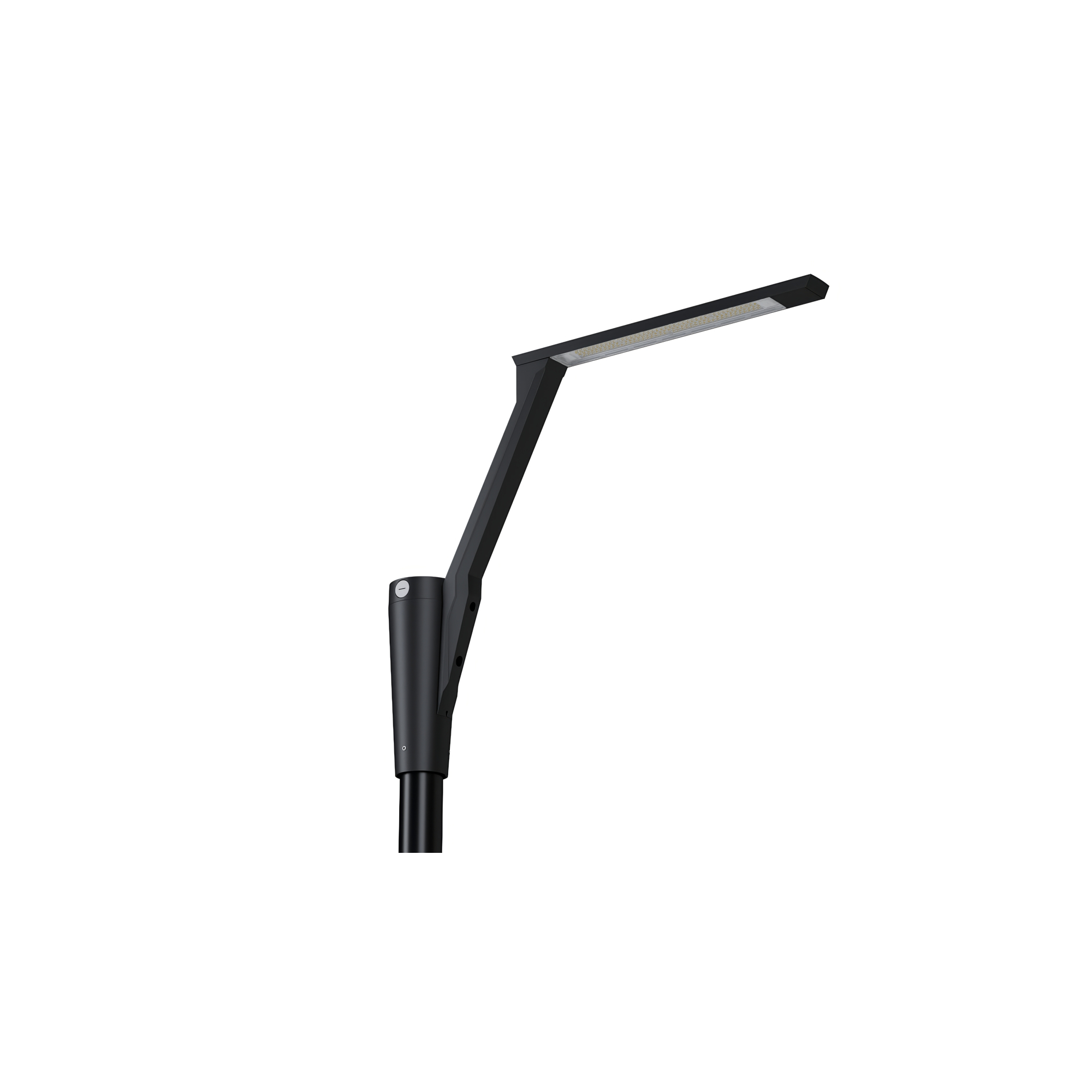

Lamp head: flat lamp head

A linear, flat lamp head defines the appearance. This shape suits businesslike, modern surroundings in particular – on office buildings, company premises or newly designed squares. Light is directed downwards and illuminates the area evenly.

Setting the colour temperature by switch

Three colour temperatures in one luminaire: 3000 K (warm white) for a cosy atmosphere in residential areas, 3500 K as a balanced middle ground and 4000 K (neutral white) for good visibility on paths and car parks. Switching is done at the luminaire. In addition we offer 1800 K on request – a warm amber tone that is particularly insect-friendly.

Setting the power by switch

Three power steps in one luminaire: you decide during installation how bright it should be. If a path later needs more or less light, simply change the step instead of replacing the luminaire. That keeps planning flexible and saves energy in the long run.

Type V light distribution – even light all around

This luminaire uses a Type V light distribution. This means light is emitted evenly all around, reaching equally far in every direction. This distribution is the right choice when the luminaire stands in the middle of an area – on squares, in courtyards, on car parks or at path junctions. The beam fades out softly so that no hard light-and-dark edges appear and dark corners are avoided.

As standard the luminaire is supplied exclusively with the Type V optic. For larger projects, however, other light distributions can be arranged: from a corresponding order quantity onwards we manufacture the luminaire with a directional optic on request, for example for narrow paths or areas that need to be lit from one side. Simply get in touch with your planned quantity and we will check what can be realised for your project.

Not sure whether this luminaire suits your project? Get in touch – we are happy to advise you on pole height, pole spacing and the power you need.

Modular design: quick installation, easy maintenance

The modular concept of this series saves time during installation and maintenance. Lamp head and arm are joined by plug connection and screwed together; nothing has to be stripped or terminated. Incorrect connection is practically impossible. Likewise the driver can be replaced individually thanks to plug contacts, instead of replacing the whole luminaire.

Brand components: Lumileds LEDs and Sosen driver

It is worth looking at the components fitted: the light source consists of Lumileds 2835 LEDs, the driver comes from Sosen. Lumileds is among the world's leading LED manufacturers, Sosen specialises in rugged control gear for outdoor lighting. Good components cost a little more to buy – but over their service life they save many times that in maintenance and downtime.

Spare parts available – LED module and driver individually replaceable

An often overlooked point: spare parts for this luminaire are available individually. Both the LED module and the driver can be reordered separately and replaced by you – without replacing the complete luminaire. Both components are connected via plug connectors, so nothing has to be stripped or rewired. If a driver fails after years, the luminaire is back in operation within minutes instead of requiring a complete replacement. This considerably reduces follow-up costs and is the far more sustainable solution.

Long service life – L70, L80 and L90 explained

The lifetime figures L70B50: 100,000 h, L80B50: 76,000 h and L90B50: 52,000 h describe how slowly brightness declines over the years. After around 100,000 operating hours the luminaire still delivers about 70 % of its original luminous flux. For operators that means predictable maintenance, no regular lamp changes and an even lighting result over a long time.

Ruggedly built for outdoor use

The luminaire is made for continuous outdoor operation. The die-cast aluminium housing dissipates heat well and is powder coated, the cover is made of impact-resistant polycarbonate. With IP66 the luminaire is dust-tight and protected against water jets, with IK08 insensitive to impact. Operation is approved from −30 °C to +50 °C, and 10 kV protection absorbs surges.

Mounting on the pole

The luminaire is mounted directly on a lighting pole. The adapter fits poles with both 60 mm and 76 mm diameter, so it suits most existing poles. Connection is Safety Class I with protective earth at 100–277 V AC.

Technical data

Applications

Typical locations are public parks, walking and cycle paths, housing estates, courtyards, company premises, car parks and hotel grounds. Because colour temperature and power are adjustable, the same luminaire suits both a quiet residential street and a car park that needs bright lighting.

Scope of delivery

• 1× LED post top luminaire V3 Series (curved arm (single arm))
• Pole adapter for Ø 60 mm and Ø 76 mm
• Installation instructions
