LED Stehleuchte NEO TD 80W direkt/indirekt Ra>95 2700-5000K

NEO TD – LED Office Floor Lamp 100 W, Direct/Indirect, UGR < 13, Tunable White

9,000 lm · 2700–5000 K · Ra > 95 · touch dimming · motion and daylight sensor

Office luminaires today have to do two things: put enough light on the desk without glaring. This floor lamp solves that by splitting into indirect and direct light. The greater part goes to the ceiling and is scattered back from there, a smaller part falls directly onto the working surface. Place it, plug it in, work. And because an office luminaire is in view all day, it is deliberately kept simple: clean edges, a narrow silhouette and three housing colours to choose from – a design that fits contemporary offices.

Key benefits at a glance

Features in detail

• Direct/indirect luminaire with 70 W upward and 30 W downward
• Glare limitation UGR < 13 through micro-reflector optics
• Colour temperature 2700–5000 K steplessly adjustable (tunable white)
• Colour rendering Ra > 95 with R9 > 95
• Touch dimming
• Motion sensor and daylight sensor as standard
• BOKE driver, full-spectrum SMD 2835 LEDs
• Housing available in silver, black or white

Direct and indirect light: why the split?

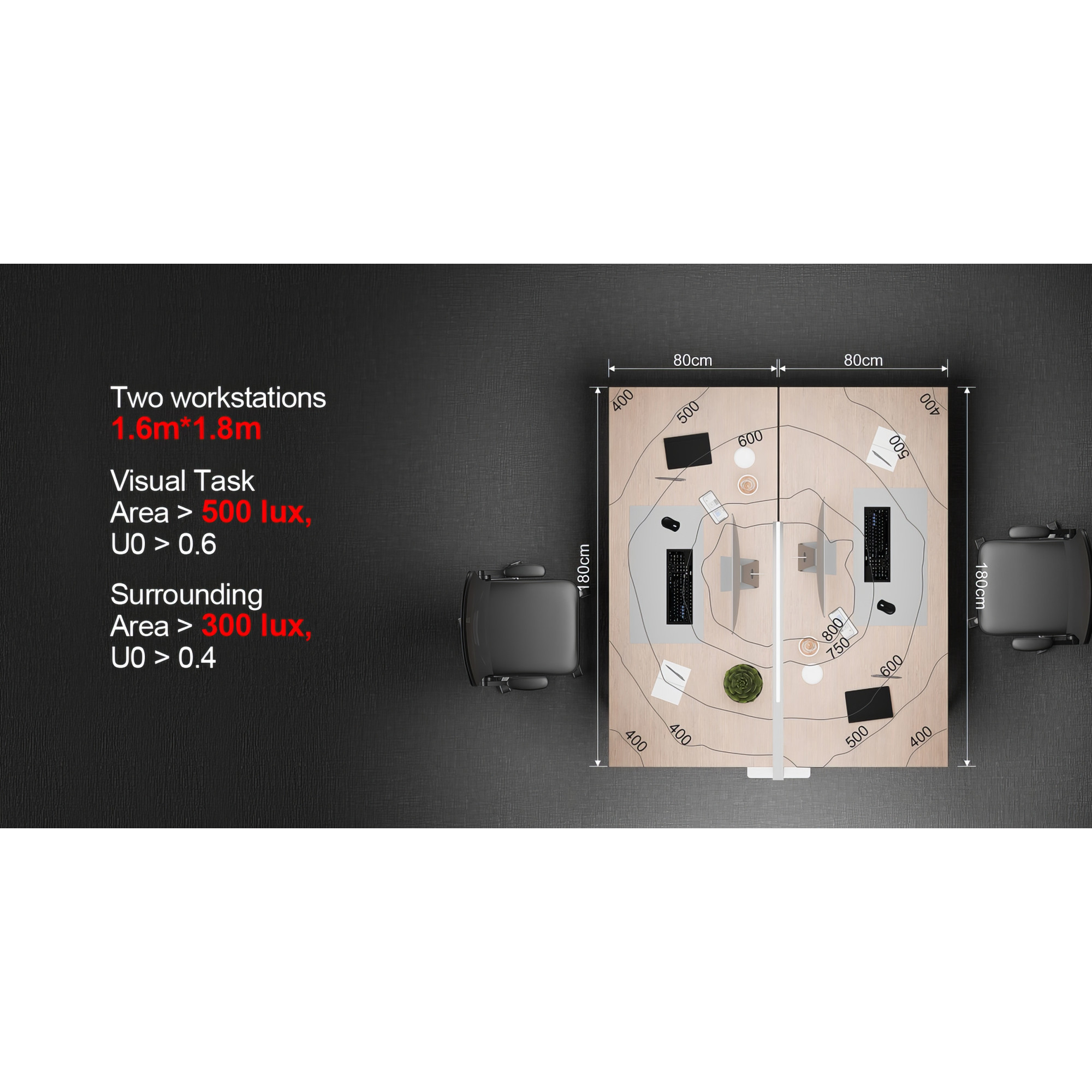

Why direct and indirect at all? Purely direct light from above creates harsh shadows and easily reflects in the screen. Purely indirect light looks soft but often puts too little brightness on the desk. This luminaire therefore splits its output: 70 watts shine upwards to the ceiling, 30 watts directly downwards. The ceiling acts as a large reflector that scatters the light and creates base brightness in the room. The direct share ensures the necessary illuminance arrives on the working surface.

UGR < 13 – what it means for screen work

The UGR value describes how strongly a luminaire glares – the lower, the more comfortable. For screen workplaces, workplace regulations usually require a value below 19. This luminaire sits considerably lower at UGR below 13. That is achieved with micro-reflector optics that direct light downwards and limit sideways emission. Looking towards the luminaire while seated, you do not look into bright points of light.

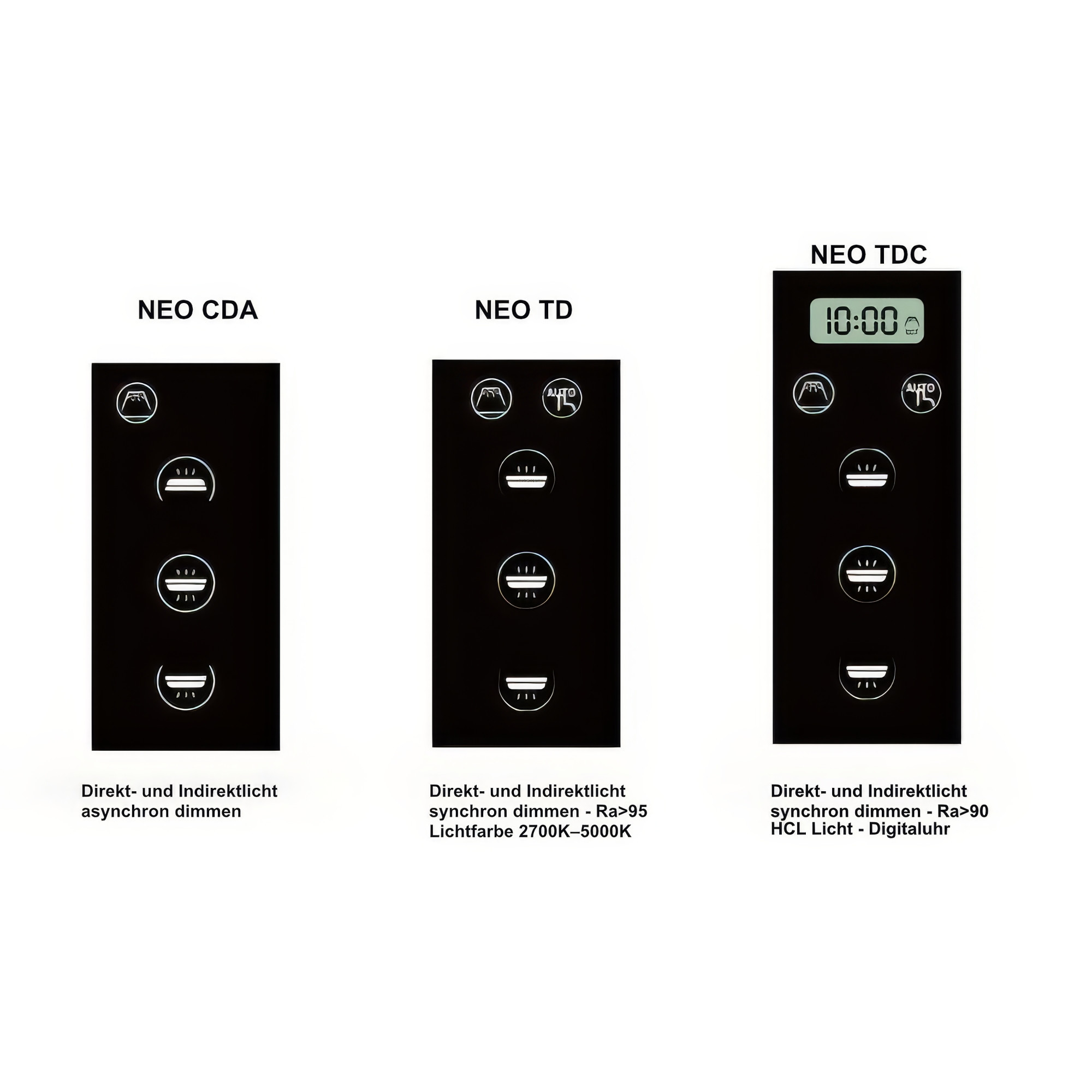

Touch control with synchronous dimming

The luminaire is operated via touch buttons on the housing: a short tap switches direct or indirect light, holding dims steplessly. Dimming is synchronous – the direct and indirect shares change their brightness together, and the set ratio of 70 % upwards and 30 % downwards is maintained. The buttons also change the colour temperature, from warm to cool white.

Motion sensor and daylight sensor

Two sensors are built in. The motion sensor detects whether someone is present: if no movement is registered for 20 minutes, the luminaire dims to 30 percent; after a further 10 minutes it switches off. When someone returns, it comes on again immediately. The daylight sensor additionally measures incoming daylight and compensates: when the sun shines into the office it dims, when it clouds over it brightens again. Together these noticeably reduce consumption without anyone having to think about a switch.

Tunable white – colour temperature 2700–5000 K

Tunable white means the colour temperature can be adjusted – on this luminaire across 2700–5000 K. Warm light feels calm and is perceived as more pleasant in the evening, cooler light supports alertness and suits concentrated work in the morning. Instead of committing to one colour temperature at purchase, you simply change it during the day or according to the task.

Full-spectrum LED with Ra > 95 and R9 > 95

This version works with full-spectrum LEDs and achieves a colour rendering index above Ra 95 with an R9 value above 95. The general Ra value describes how natural colours look overall; R9 stands specifically for saturated red – the range where simple LEDs are weakest. Both values above 95 mean light that comes very close to daylight. For workplaces where colours are assessed – graphics, printing, textiles, medicine or cosmetics – this is the decisive difference. The price for it is slightly lower efficacy, as a full spectrum requires more energy.

Service life and colour consistency

Service life is stated as L80(B10) at 50,000 hours. It reads awkwardly but simply means: after 50,000 operating hours at most 10 percent of the luminaires emit less than 80 percent of their original brightness. In typical office use of around 2,500 hours a year that corresponds to roughly 20 years. Lamp replacement is eliminated entirely.

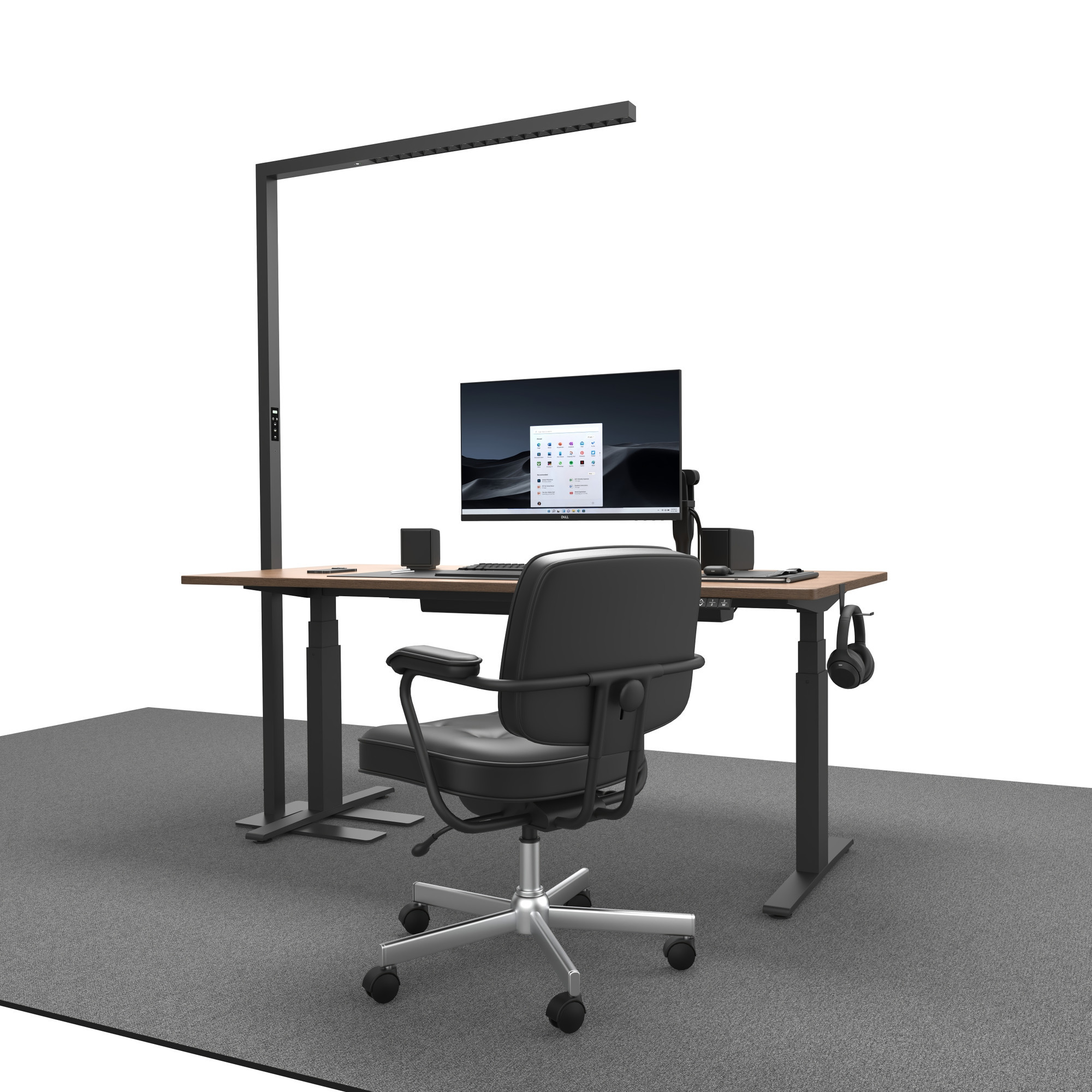

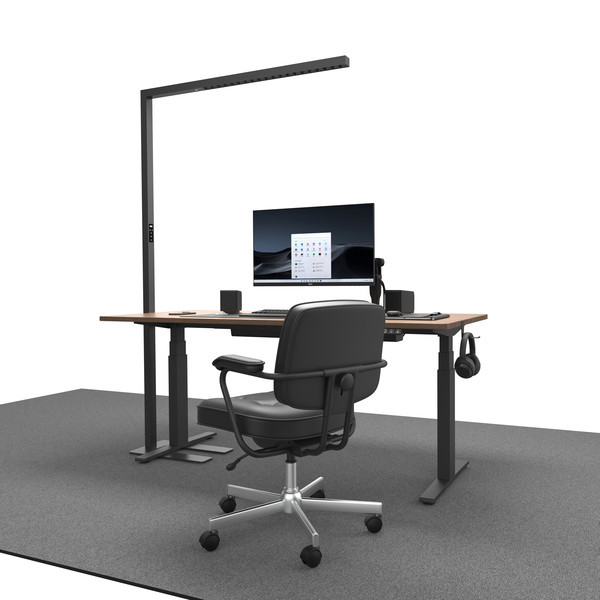

Placed instead of installed

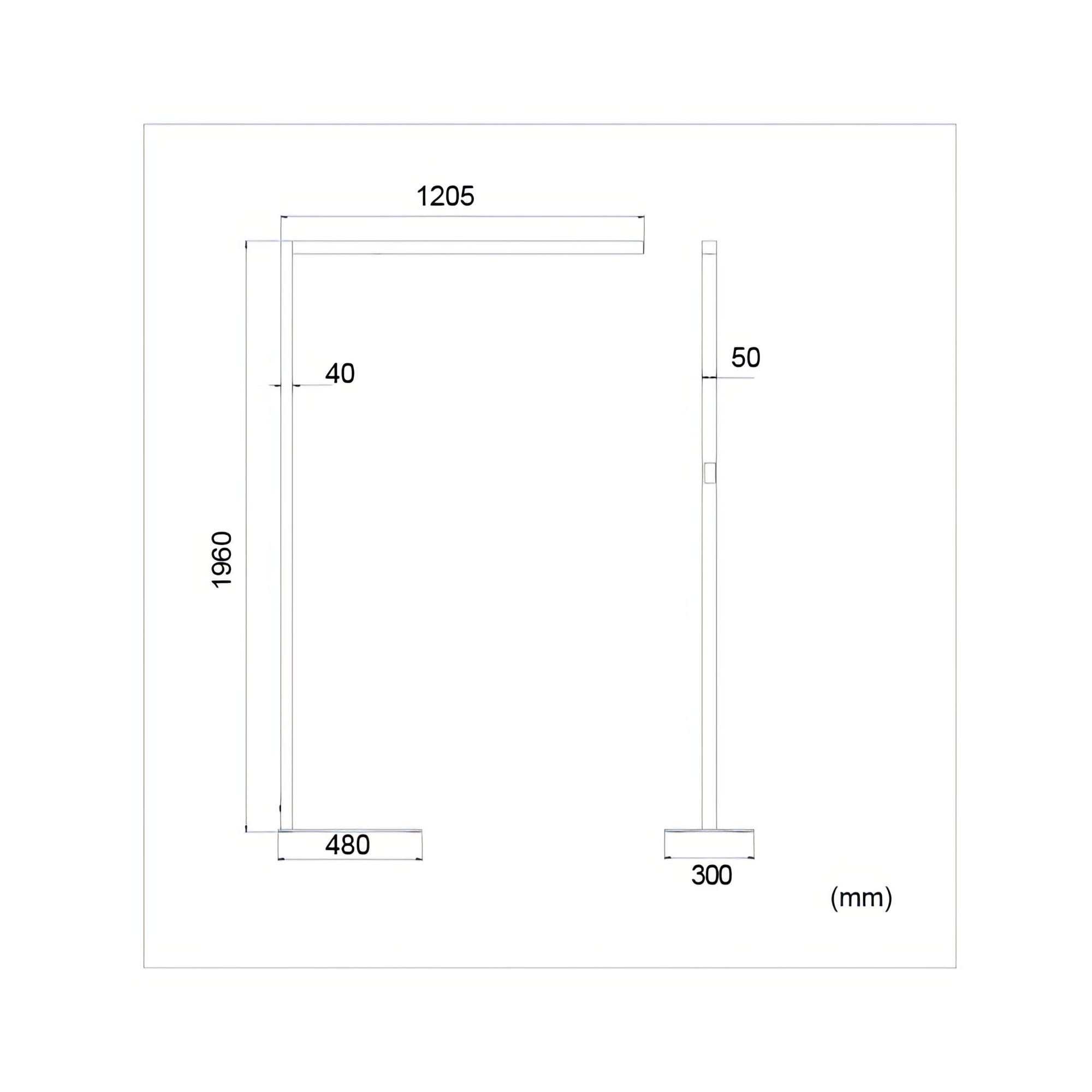

The big advantage of a floor luminaire lies in setup: there is nothing to install. The base measuring 480 × 300 millimetres stands securely beside the desk, the pole carries the lamp head at a height of 1,960 millimetres. You plug the luminaire into an ordinary socket and can move it elsewhere at any time. In rented premises, with changing team sizes or in offices with concrete ceilings this is often the only practical solution – and in every case the quickest.

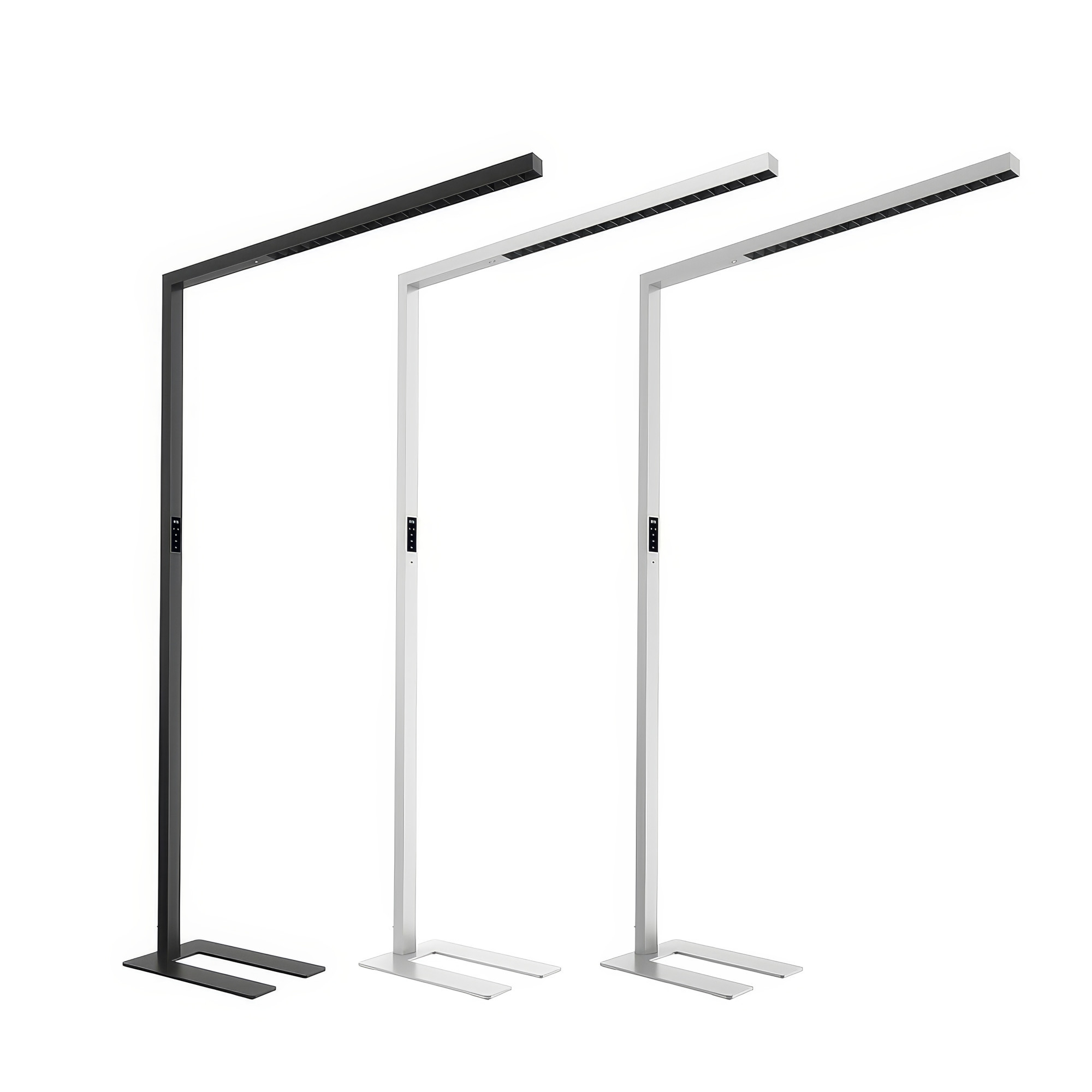

Housing colour: silver, black or white

The luminaire is available in three housing colours: silver, black and white. Silver looks neutral and suits metal frames and classic office equipment, black sets a modern accent and emphasises the straight lines, white blends discreetly into bright rooms. Technically all three versions are identical – simply choose the colour that suits your interior.

Technical data

Applications

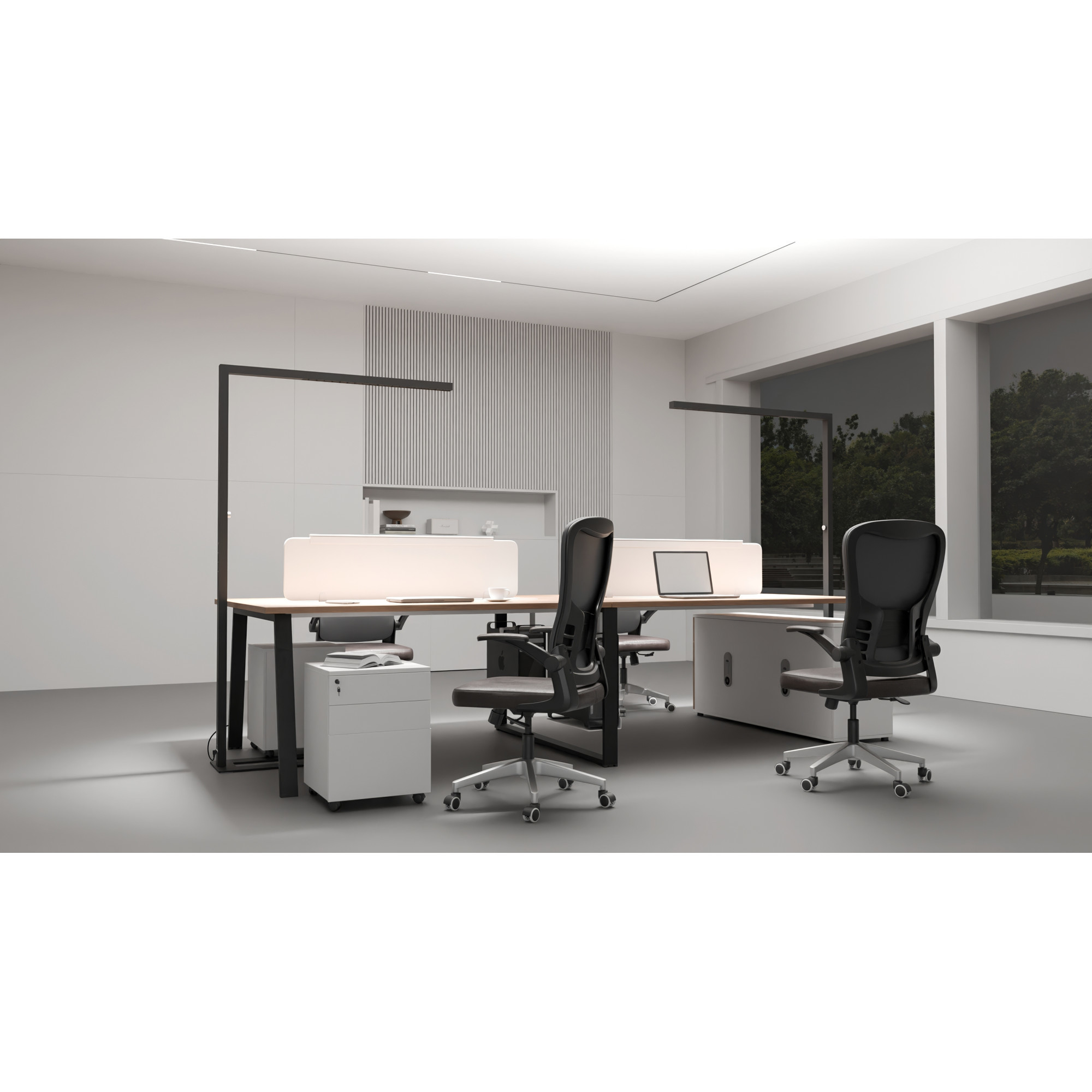

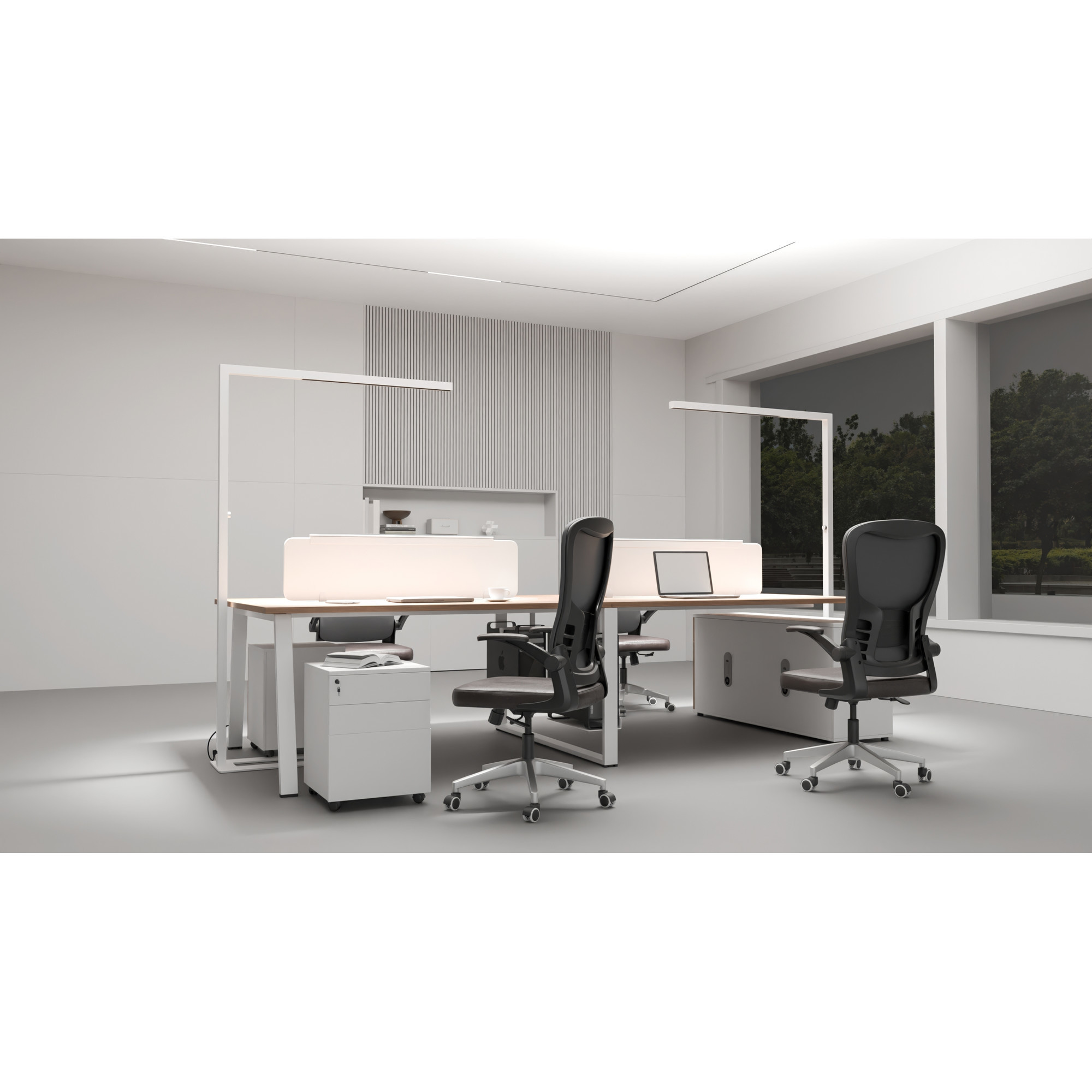

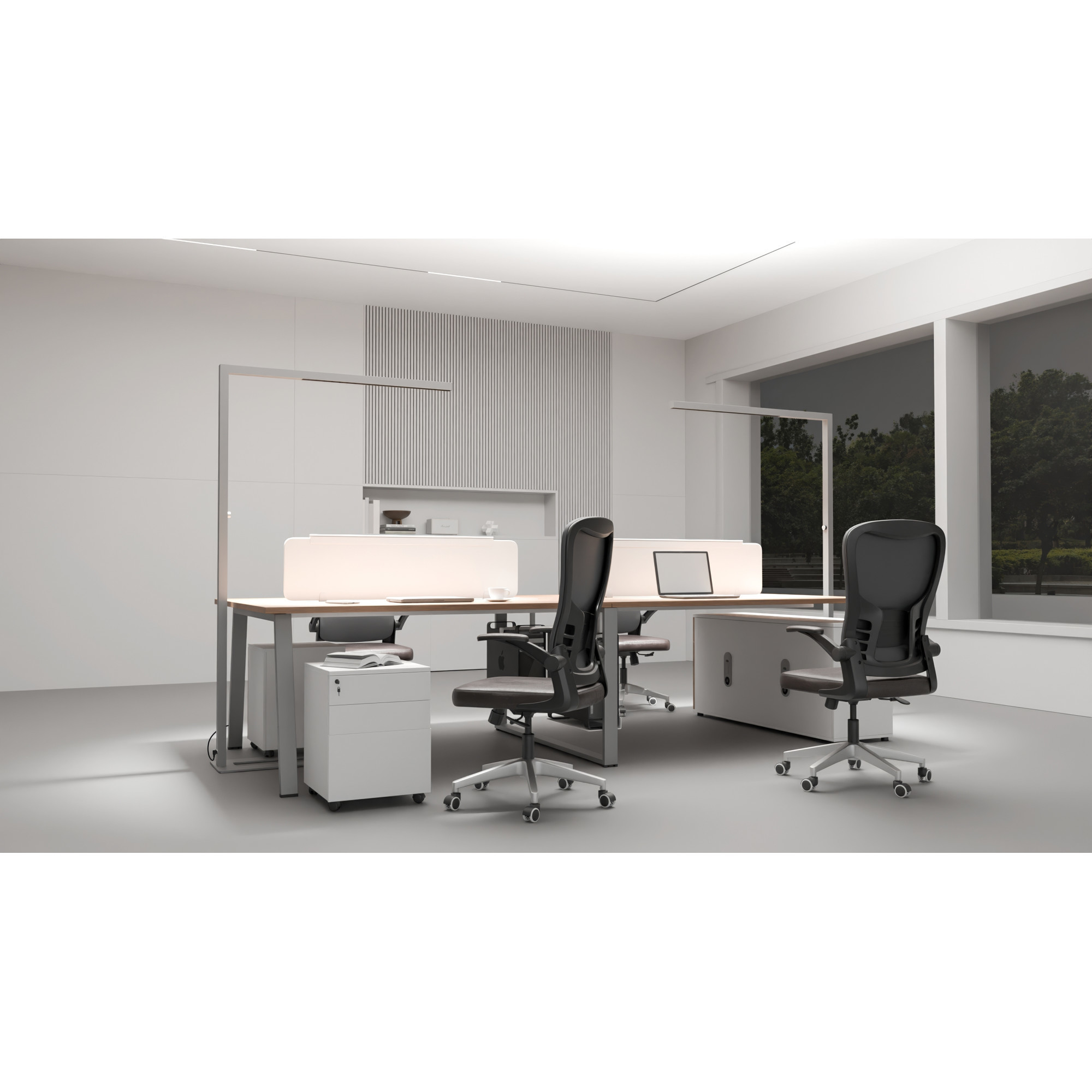

The luminaire is used in private offices, open-plan offices, coworking spaces, meeting rooms and home offices. Wherever people work at screens and the existing ceiling lighting is insufficient or glares too much, it noticeably improves the situation – with no electrical work. It is also a sensible addition to existing lighting at individual, particularly demanding workplaces.

Scope of delivery

• 1× LED floor luminaire with lamp head, pole and base
• Connection cable with plug
• Installation and operating instructions
