LED Tischleuchte NEO T-TD 80W direkt/indirekt 3000-6000K UGR>13 Silber

Description

NEO T-TD – LED Desk Lamp 80 W, Direct/Indirect, UGR < 13, Tunable White – silver housing

10,400 lm · 3000–6000 K · Ra > 80 · touch dimming · motion and daylight sensor · silver housing

80 W10,400 lmUGR < 133000–6000 KRa > 80touch dimmingsensorstunable whitesilver housing

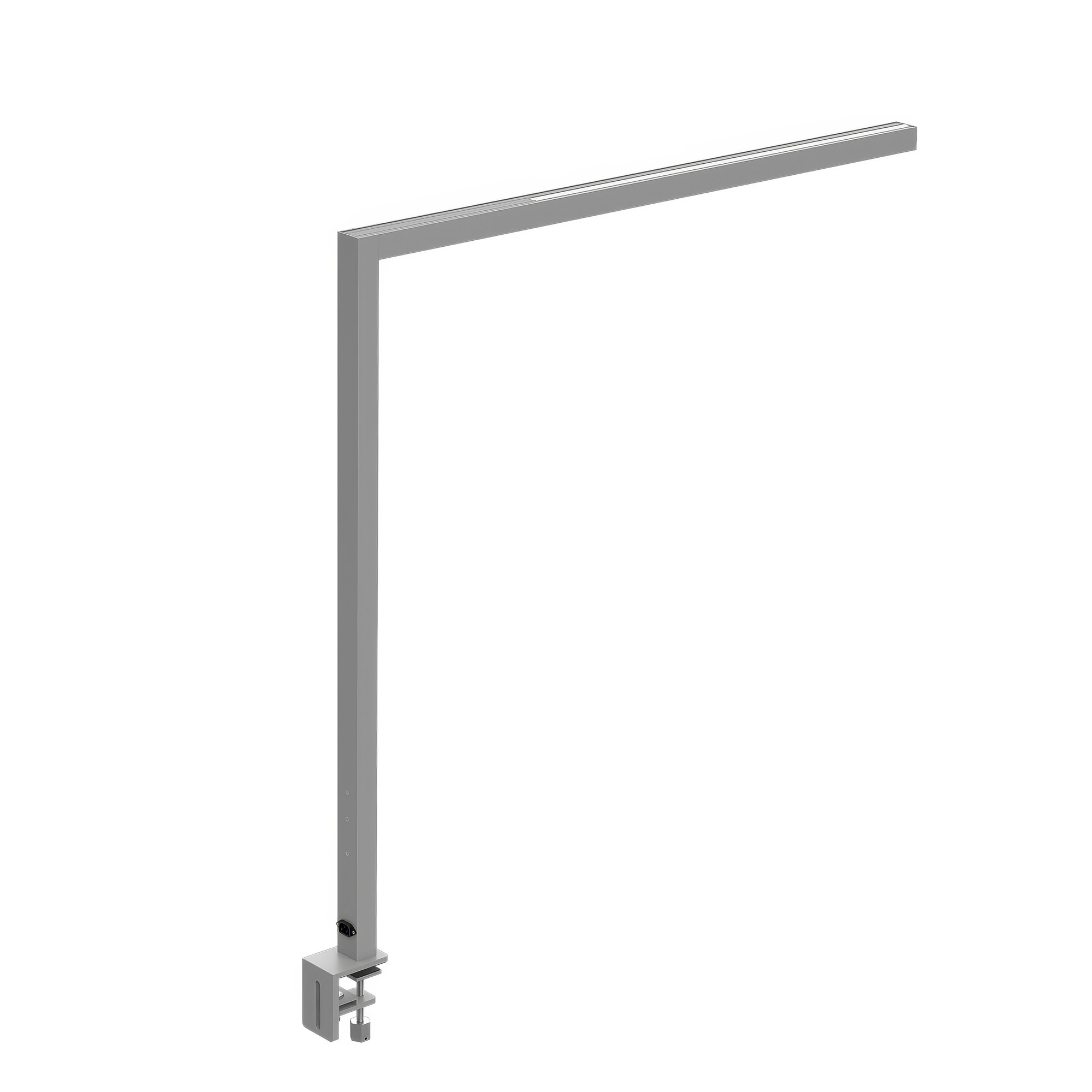

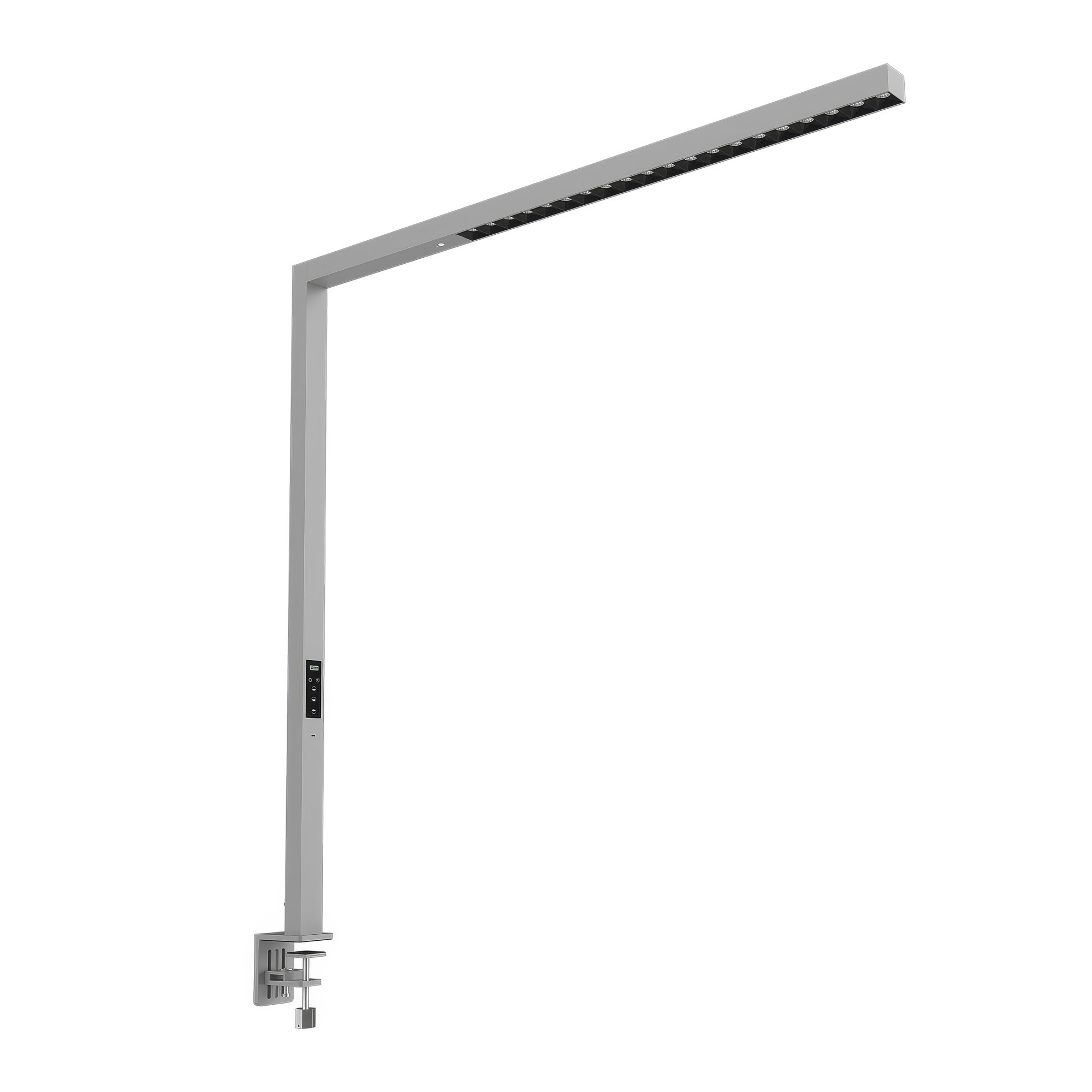

This luminaire is made for workplaces with many hours of screen work – and without room next to the desk: it is fixed directly to the desktop with a clamp fixture, with no base and no floor footprint. The large upward share provides even room brightness via the ceiling, the direct share lights the working surface glare-free and without reflections in the monitor. The result is the same light quality as a floor lamp – without its space requirement. Visually it stays pleasantly restrained with its flat head and slender pole.

Key benefits at a glance

Glare-free to standard UGR < 13 – well below the limit for screen work.	Direct and indirect 60 W via the ceiling, 20 W straight onto the desk.
No drilling Clamped to the desk – no work on the ceiling.	Sensors included Motion and daylight sensors reduce consumption.
Tunable white Colour temperature 3000–6000 K steplessly adjustable.	Long service life L80(B10) at 50,000 h, no lamp changes.

Features in detail

Direct/indirect luminaire with 60 W upward and 20 W downward

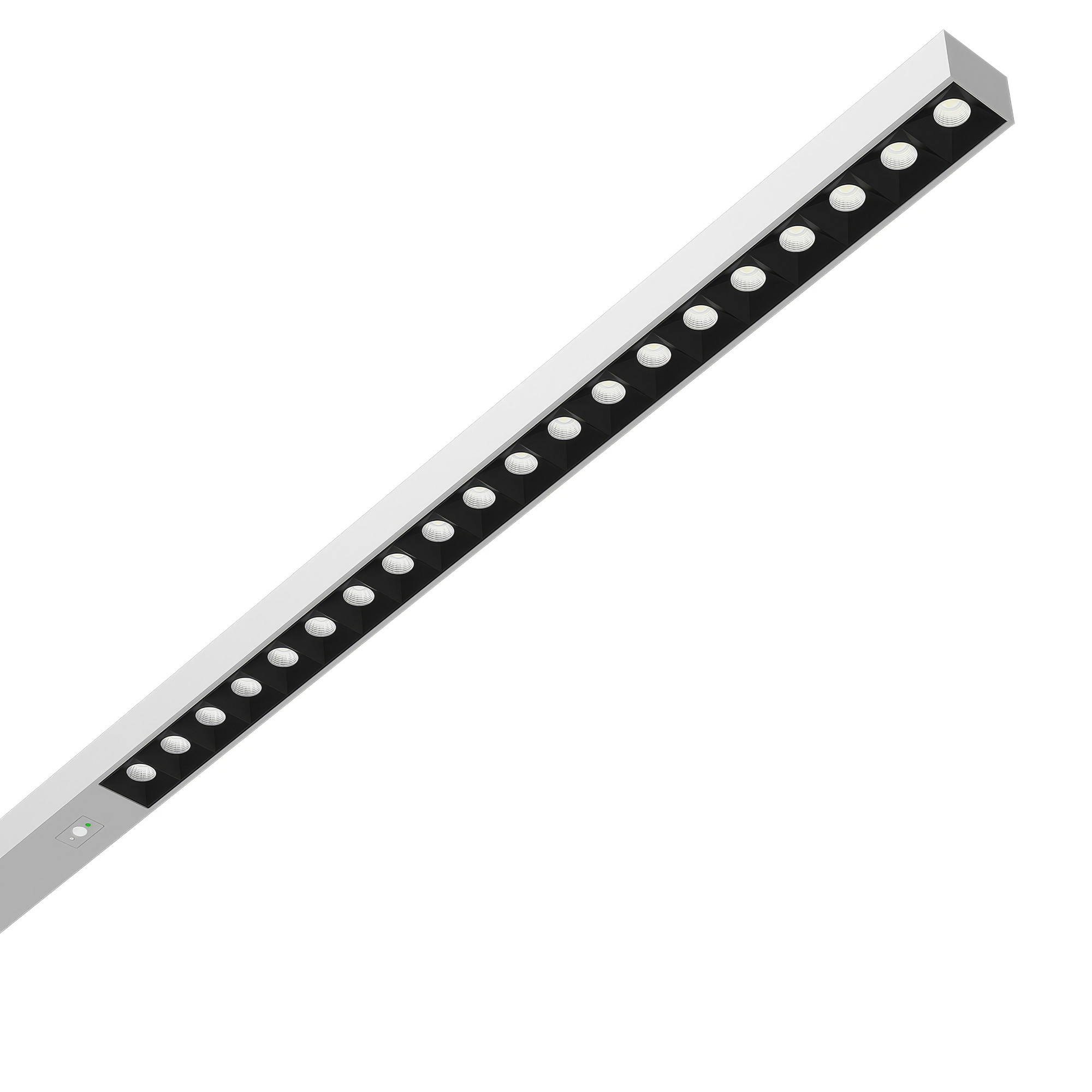

Glare limitation UGR < 13 through micro-reflector optics
Colour temperature 3000–6000 K steplessly adjustable (tunable white)
Colour rendering Ra > 80
Touch dimming
Motion sensor and daylight sensor as standard
BOKE driver, SMD 2835 LEDs
Housing available in silver, black or white

Direct and indirect light: why the split?

The output is split into two directions: 60 watts go upwards, 20 watts downwards. The principle is simple: light arriving via the ceiling looks soft and low in shadow because it comes from a large area rather than a point. So that enough still reaches the desk, the direct share supplements the lighting from above. In practice this means bright working light without harsh contrasts and without reflections in the monitor.

UGR < 13 – what it means for screen work

UGR stands for Unified Glare Rating and is the measure of glare. Ordinary office luminaires must stay below 19; this luminaire reaches a value below 13 and therefore sits in the range recommended for demanding visual tasks. This is made possible by precise micro-reflector optics with a defined cut-off angle: light is focused downwards instead of scattering widely into the room.

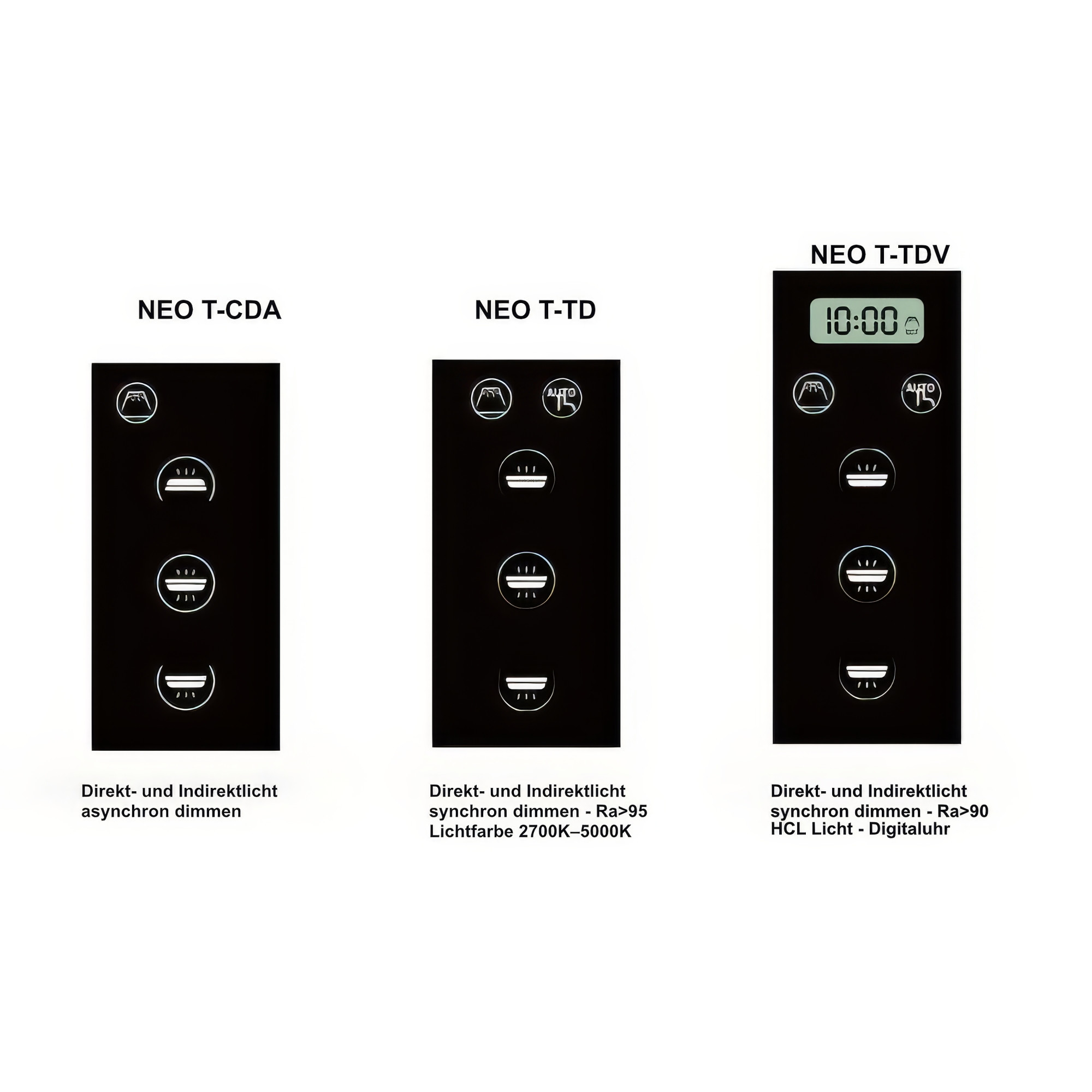

Touch control with synchronous dimming

Operation is via touch-sensitive buttons on the lamp head. Direct and indirect light are switched individually; dimming is synchronous, so both change together in one movement and the light distribution in the room always stays balanced. Holding a button additionally sets the colour temperature. Both controls – brightness and colour – are therefore right on the luminaire, with no remote or app needed.

Motion sensor and daylight sensor

The luminaire works with motion and daylight sensors. The motion sensor monitors the area in front of the luminaire; if it stays empty for 20 minutes, brightness drops to 30 percent, and after a further 10 minutes the luminaire switches off. As soon as someone approaches again it switches on automatically. The daylight sensor memorises the brightness once set as a target value and keeps it constant by compensating for incoming daylight. On bright days the luminaire therefore runs at lower power.

Tunable white – colour temperature 3000–6000 K

The colour temperature is adjustable and covers the range 3000–6000 K. That is more than a comfort feature: cooler, more blue-rich light in the morning supports alertness, while warmer light in the afternoon and evening has a calming effect. If you prefer not to control the change yourself, the automatic mode follows the course of daylight.

Service life and colour consistency

L80(B10) at 50,000 hours describes how reliably brightness is retained over the years: after this operating period at least 90 percent of the luminaires still deliver over 80 percent of their initial luminous flux. Added to this is tight colour consistency of SDCM 3 – neighbouring luminaires in an office therefore show no visible colour differences.

Clamped instead of placed

The luminaire is fixed to the desk edge via its clamp fixture and is ready for use within minutes – power cable into the socket, done. Floor and desk surface stay clear, and ceiling cabling is not needed at all. Especially in small offices and at double workstations, the space-saving mounting pays off.

Housing colour: silver

The housing of this variant is silver. The light metallic tone is unobtrusive and suits almost any environment – from open-plan offices to the study at home. If you are looking for a discreet, timeless appearance, silver is the right choice; alternatively the luminaire is also available in black and white.

Technical data

Model	NEO T-TD
Type	desk luminaire with clamp mount, direct and indirect light
Power	80 W (60 W upward / 20 W downward)
Luminous flux	10,400 lm
Efficacy	130 lm/W
Colour temperature	3000–6000 K (adjustable)
Colour rendering	Ra > 80
Glare rating	UGR < 13
Colour consistency	SDCM 3
Beam angle	140° upward / 80° downward
LED	SMD 2835
Driver	BOKE
Voltage	AC 200–240 V
Power factor	≥ 0.9
Dimming	touch dimming, synchronous; direct and indirect switch individually
Sensors	motion sensor and daylight sensor
Tunable white	yes, colour temperature steplessly adjustable
Service life	L80(B10) 50,000 h
Housing colour	silver
Mounting	clamp fixture for desktops from 0 to 75 mm thick

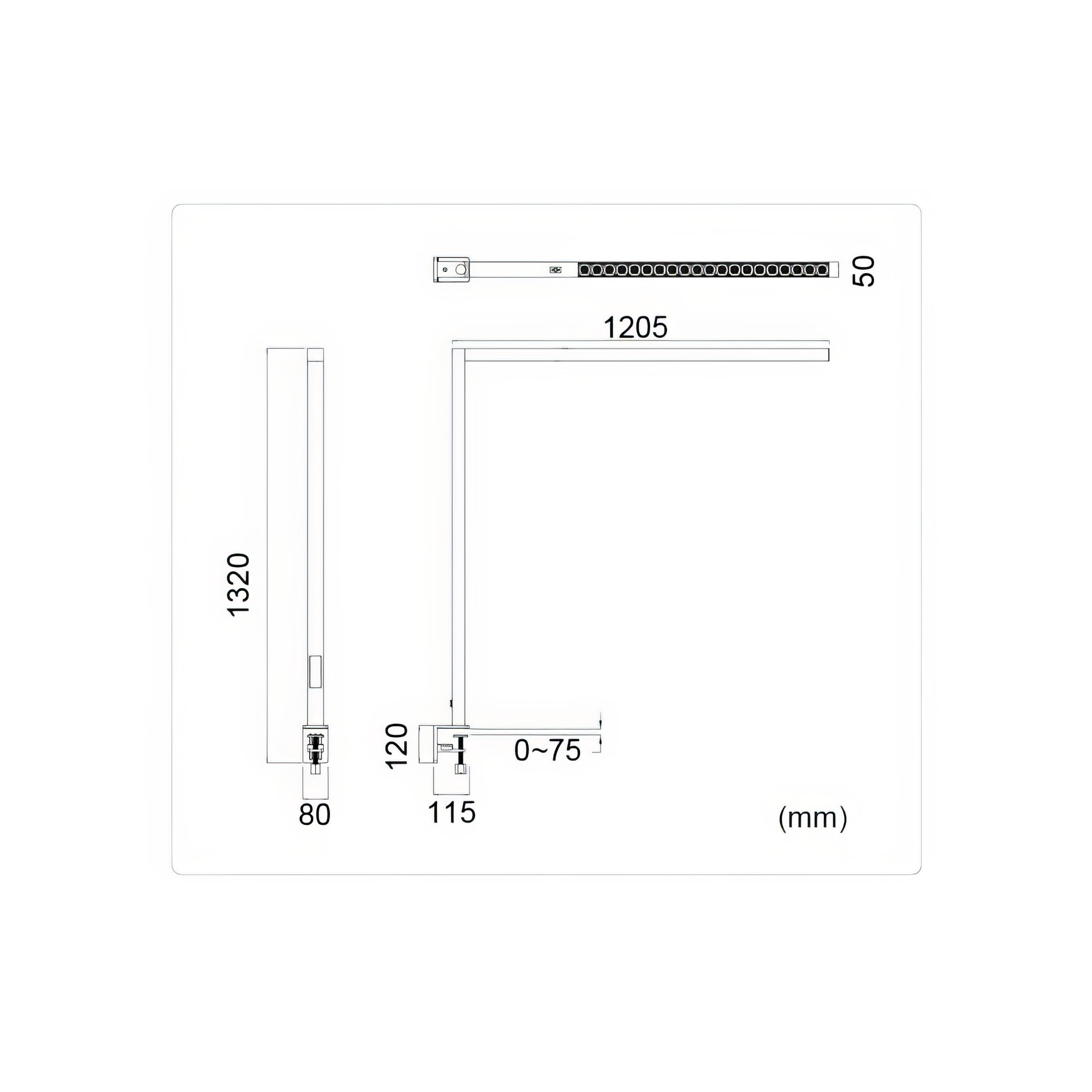

Dimensions	lamp head 1,205 × 50 × 40 mm · pole 1,320 mm · clamp 115 × 120 mm
Energy efficiency class	E (EU scale A–G, EU 2019/2015)

Applications

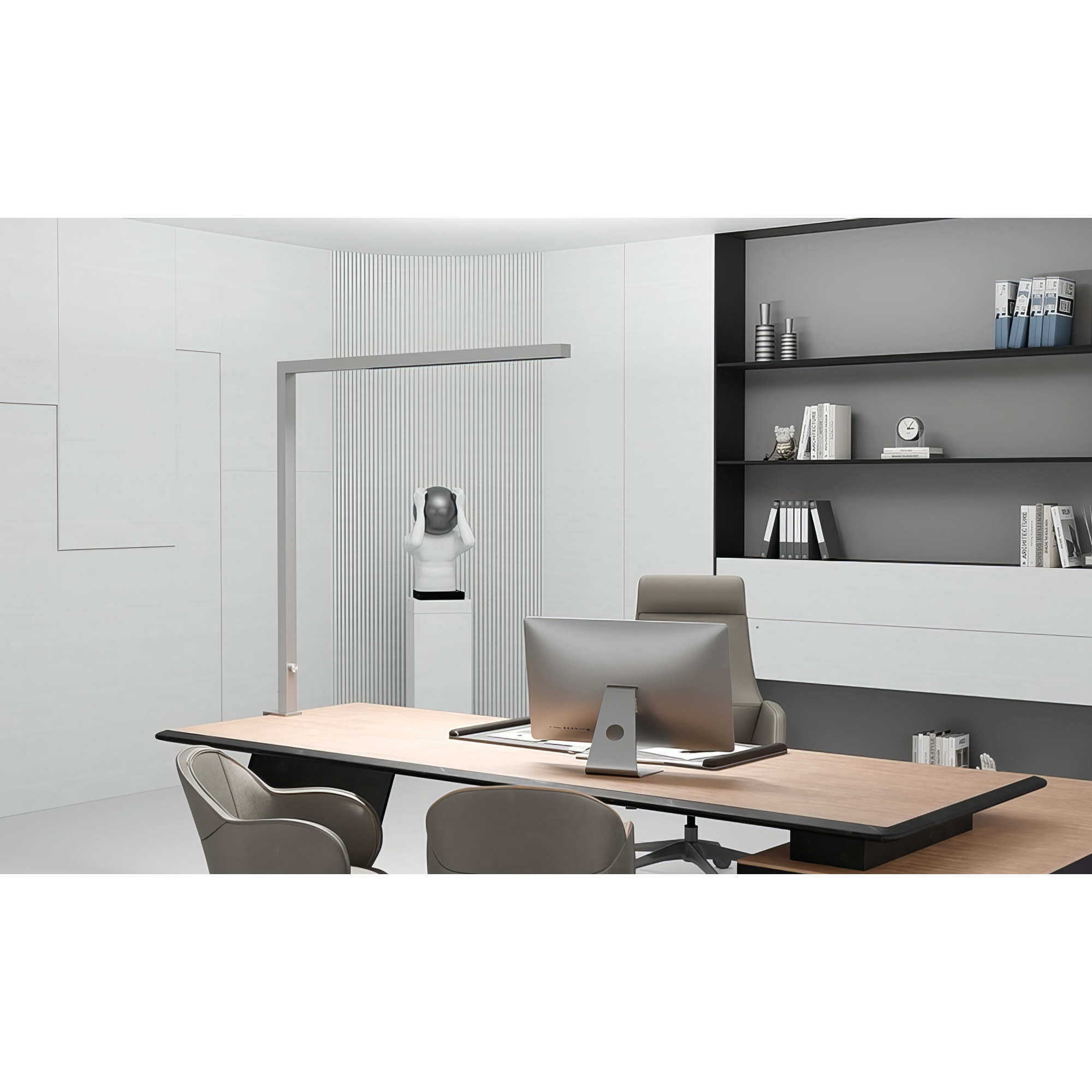

Typical locations are office workplaces of all kinds: private office, open space, coworking, conference room and home office. The luminaire is particularly useful in rooms with concrete ceilings or in rented premises where ceiling luminaires may not be installed. It equally suits situations where individual workplaces need better light than the rest of the room – at design, inspection or graphics stations, for example.

Scope of delivery

1× LED desk luminaire with lamp head, pole and clamp fixture
Connection cable with plug
Installation and operating instructions
