Description

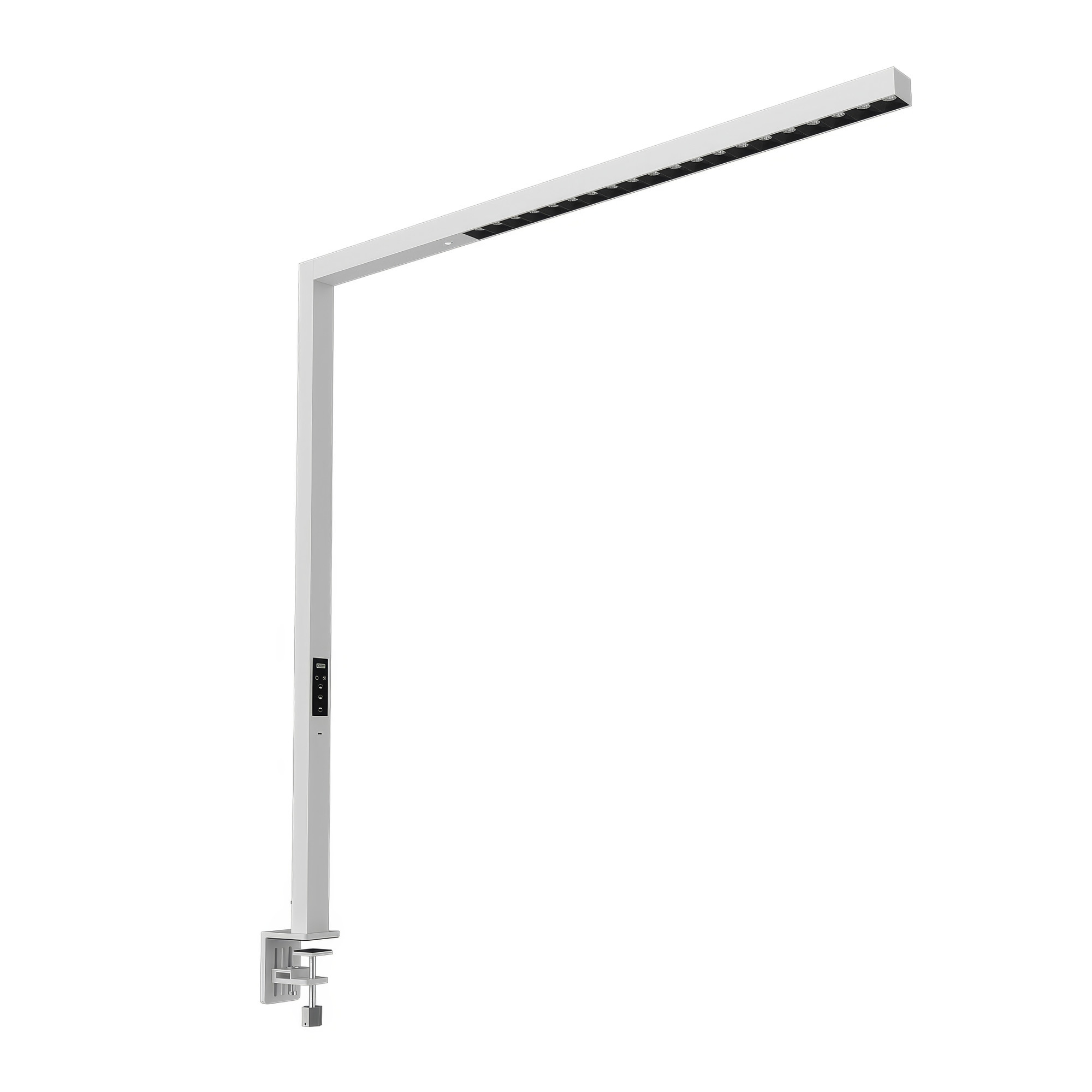

NEO T-TD – LED Desk Lamp 80 W, Direct/Indirect, UGR < 13, Tunable White – white housing
10,400 lm · 3000–6000 K · Ra > 80 · touch dimming · motion and daylight sensor · white housing
An office luminaire that costs not a centimetre of floor space: this version is mounted to the desktop with a clamp fixture and lights the workplace from two sides – indirectly via the ceiling for calm ambient brightness, directly downwards for sufficient light on the desk. Clamp it, plug it in, done; no drilling or ceiling work required. If the workplace moves, the luminaire simply moves along. The narrow, straight design looks tidy and suits contemporary workspaces.
Key benefits at a glance
Glare-free to standard UGR < 13 – well below the limit for screen work. | Direct and indirect 60 W via the ceiling, 20 W straight onto the desk. |
No drilling Clamped to the desk – no work on the ceiling. | Sensors included Motion and daylight sensors reduce consumption. |
Tunable white Colour temperature 3000–6000 K steplessly adjustable. | Long service life L80(B10) at 50,000 h, no lamp changes. |
Features in detail
- Direct/indirect luminaire with 60 W upward and 20 W downward
- Glare limitation UGR < 13 through micro-reflector optics
- Colour temperature 3000–6000 K steplessly adjustable (tunable white)
- Colour rendering Ra > 80
- Touch dimming
- Motion sensor and daylight sensor as standard
- BOKE driver, SMD 2835 LEDs
- Housing available in silver, black or white
Direct and indirect light: why the split?
The output is split into two directions: 60 watts go upwards, 20 watts downwards. The principle is simple: light arriving via the ceiling looks soft and low in shadow because it comes from a large area rather than a point. So that enough still reaches the desk, the direct share supplements the lighting from above. In practice this means bright working light without harsh contrasts and without reflections in the monitor.
UGR < 13 – what it means for screen work
UGR stands for Unified Glare Rating and is the measure of glare. Ordinary office luminaires must stay below 19; this luminaire reaches a value below 13 and therefore sits in the range recommended for demanding visual tasks. This is made possible by precise micro-reflector optics with a defined cut-off angle: light is focused downwards instead of scattering widely into the room.

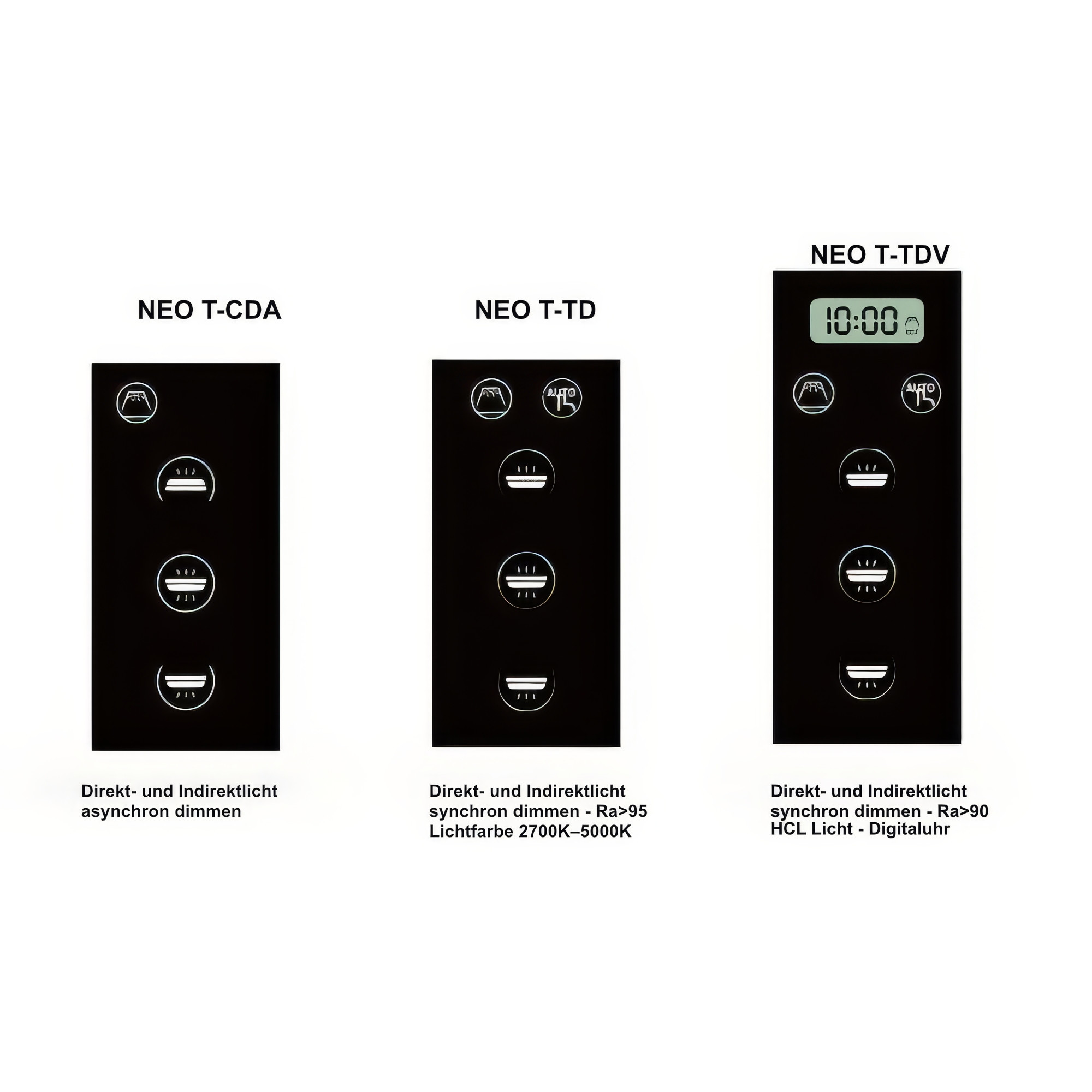

Touch control with synchronous dimming
Operation is via touch-sensitive buttons on the lamp head. Direct and indirect light are switched individually; dimming is synchronous, so both change together in one movement and the light distribution in the room always stays balanced. Holding a button additionally sets the colour temperature. Both controls – brightness and colour – are therefore right on the luminaire, with no remote or app needed.
Motion sensor and daylight sensor
The luminaire works with motion and daylight sensors. The motion sensor monitors the area in front of the luminaire; if it stays empty for 20 minutes, brightness drops to 30 percent, and after a further 10 minutes the luminaire switches off. As soon as someone approaches again it switches on automatically. The daylight sensor memorises the brightness once set as a target value and keeps it constant by compensating for incoming daylight. On bright days the luminaire therefore runs at lower power.
Tunable white – colour temperature 3000–6000 K
The colour temperature is adjustable and covers the range 3000–6000 K. That is more than a comfort feature: cooler, more blue-rich light in the morning supports alertness, while warmer light in the afternoon and evening has a calming effect. If you prefer not to control the change yourself, the automatic mode follows the course of daylight.
Service life and colour consistency
L80(B10) at 50,000 hours describes how reliably brightness is retained over the years: after this operating period at least 90 percent of the luminaires still deliver over 80 percent of their initial luminous flux. Added to this is tight colour consistency of SDCM 3 – neighbouring luminaires in an office therefore show no visible colour differences.
Clamped instead of placed
The luminaire is fixed to the desk edge via its clamp fixture and is ready for use within minutes – power cable into the socket, done. Floor and desk surface stay clear, and ceiling cabling is not needed at all. Especially in small offices and at double workstations, the space-saving mounting pays off.
Housing colour: white
The housing of this variant is white. The light colour makes the luminaire appear light and unobtrusive and particularly suits friendly, bright office environments and Scandinavian-inspired interiors; alternatively the luminaire is also available in silver and black.
Technical data
| Model | NEO T-TD |
| Type | desk luminaire with clamp mount, direct and indirect light |
| Power | 80 W (60 W upward / 20 W downward) |
| Luminous flux | 10,400 lm |
| Efficacy | 130 lm/W |
| Colour temperature | 3000–6000 K (adjustable) |
| Colour rendering | Ra > 80 |
| Glare rating | UGR < 13 |
| Colour consistency | SDCM 3 |
| Beam angle | 140° upward / 80° downward |
| LED | SMD 2835 |
| Driver | BOKE |
| Voltage | AC 200–240 V |
| Power factor | ≥ 0.9 |
| Dimming | touch dimming, synchronous; direct and indirect switch individually |
| Sensors | motion sensor and daylight sensor |
| Tunable white | yes, colour temperature steplessly adjustable |
| Service life | L80(B10) 50,000 h |
| Housing colour | white |
| Mounting | clamp fixture for desktops from 0 to 75 mm thick |

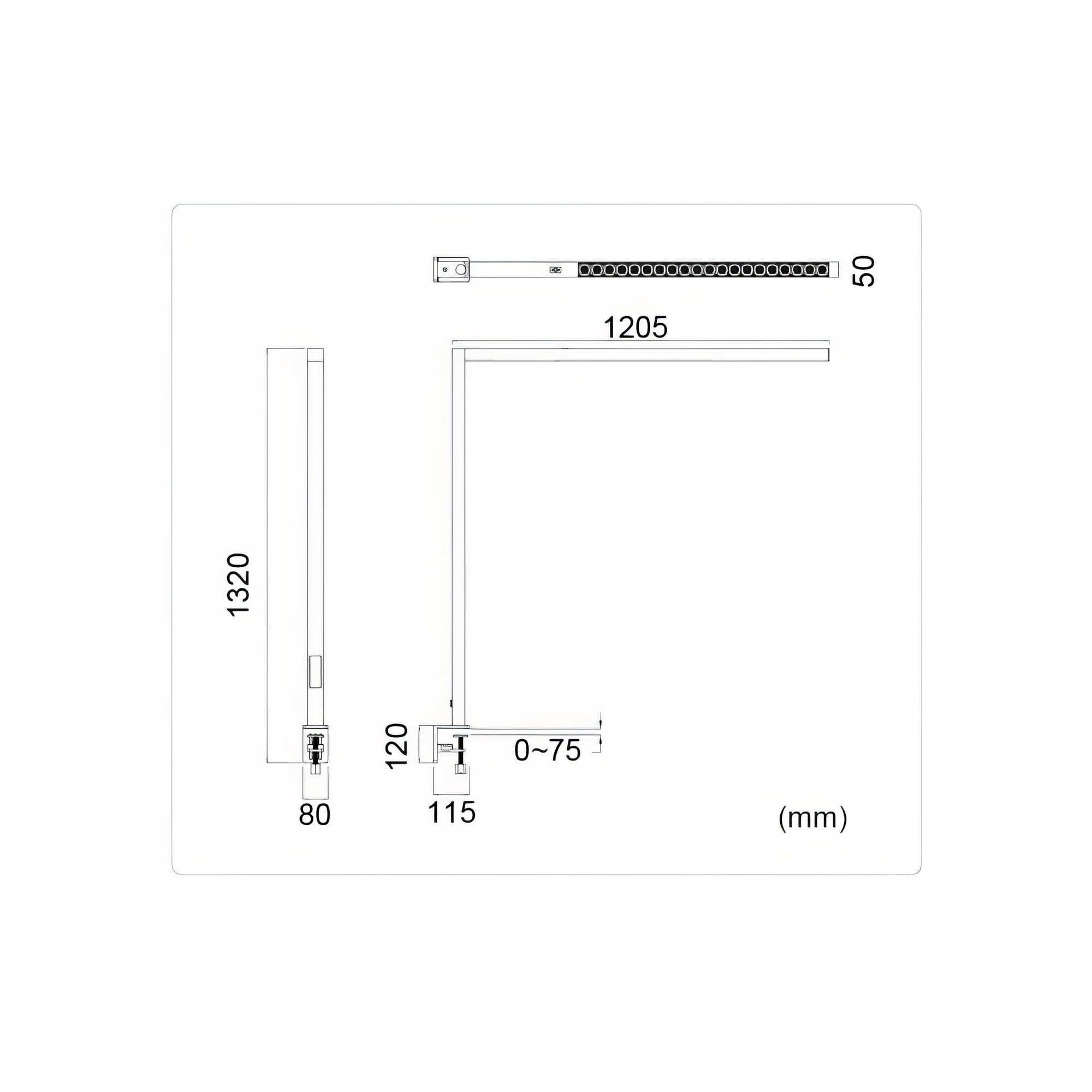

| Dimensions | lamp head 1,205 × 50 × 40 mm · pole 1,320 mm · clamp 115 × 120 mm |
| Energy efficiency class | E (EU scale A–G, EU 2019/2015) |
Applications
Typical locations are office workplaces of all kinds: private office, open space, coworking, conference room and home office. The luminaire is particularly useful in rooms with concrete ceilings or in rented premises where ceiling luminaires may not be installed. It equally suits situations where individual workplaces need better light than the rest of the room – at design, inspection or graphics stations, for example.
Scope of delivery
- 1× LED desk luminaire with lamp head, pole and clamp fixture
- Connection cable with plug
- Installation and operating instructions
