LED Tischleuchte NEO T-TD 80W direkt/indirekt 3000-6000K UGR>13

Description

NEO T-TD – LED Desk Lamp 80 W, Direct/Indirect, UGR < 13, Tunable White

10,400 lm · 3000–6000 K · Ra > 80 · touch dimming · motion and daylight sensor

80 W10,400 lmUGR < 133000–6000 KRa > 80touch dimmingsensorstunable white

An office luminaire that costs not a centimetre of floor space: this version is mounted to the desktop with a clamp fixture and lights the workplace from two sides – indirectly via the ceiling for calm ambient brightness, directly downwards for sufficient light on the desk. Clamp it, plug it in, done; no drilling or ceiling work required. If the workplace moves, the luminaire simply moves along. The narrow, straight design looks tidy and suits contemporary workspaces.

Key benefits at a glance

Glare-free to standard UGR < 13 – well below the limit for screen work.	Direct and indirect 60 W via the ceiling, 20 W straight onto the desk.
No drilling Clamped to the desk – no work on the ceiling.	Sensors included Motion and daylight sensors reduce consumption.
Tunable white Colour temperature 3000–6000 K steplessly adjustable.	Long service life L80(B10) at 50,000 h, no lamp changes.

Features in detail

Direct/indirect luminaire with 60 W upward and 20 W downward
Glare limitation UGR < 13 through micro-reflector optics
Colour temperature 3000–6000 K steplessly adjustable (tunable white)
Colour rendering Ra > 80
Touch dimming
Motion sensor and daylight sensor as standard
BOKE driver, SMD 2835 LEDs
Housing available in silver, black or white

Direct and indirect light: why the split?

Why direct and indirect at all? Purely direct light from above creates harsh shadows and easily reflects in the screen. Purely indirect light looks soft but often puts too little brightness on the desk. This luminaire therefore splits its output: 60 watts shine upwards to the ceiling, 20 watts directly downwards. The ceiling acts as a large reflector that scatters the light and creates base brightness in the room. The direct share ensures the necessary illuminance arrives on the working surface.

UGR < 13 – what it means for screen work

The UGR value describes how strongly a luminaire glares – the lower, the more comfortable. For screen workplaces, workplace regulations usually require a value below 19. This luminaire sits considerably lower at UGR below 13. That is achieved with micro-reflector optics that direct light downwards and limit sideways emission. Looking towards the luminaire while seated, you do not look into bright points of light.

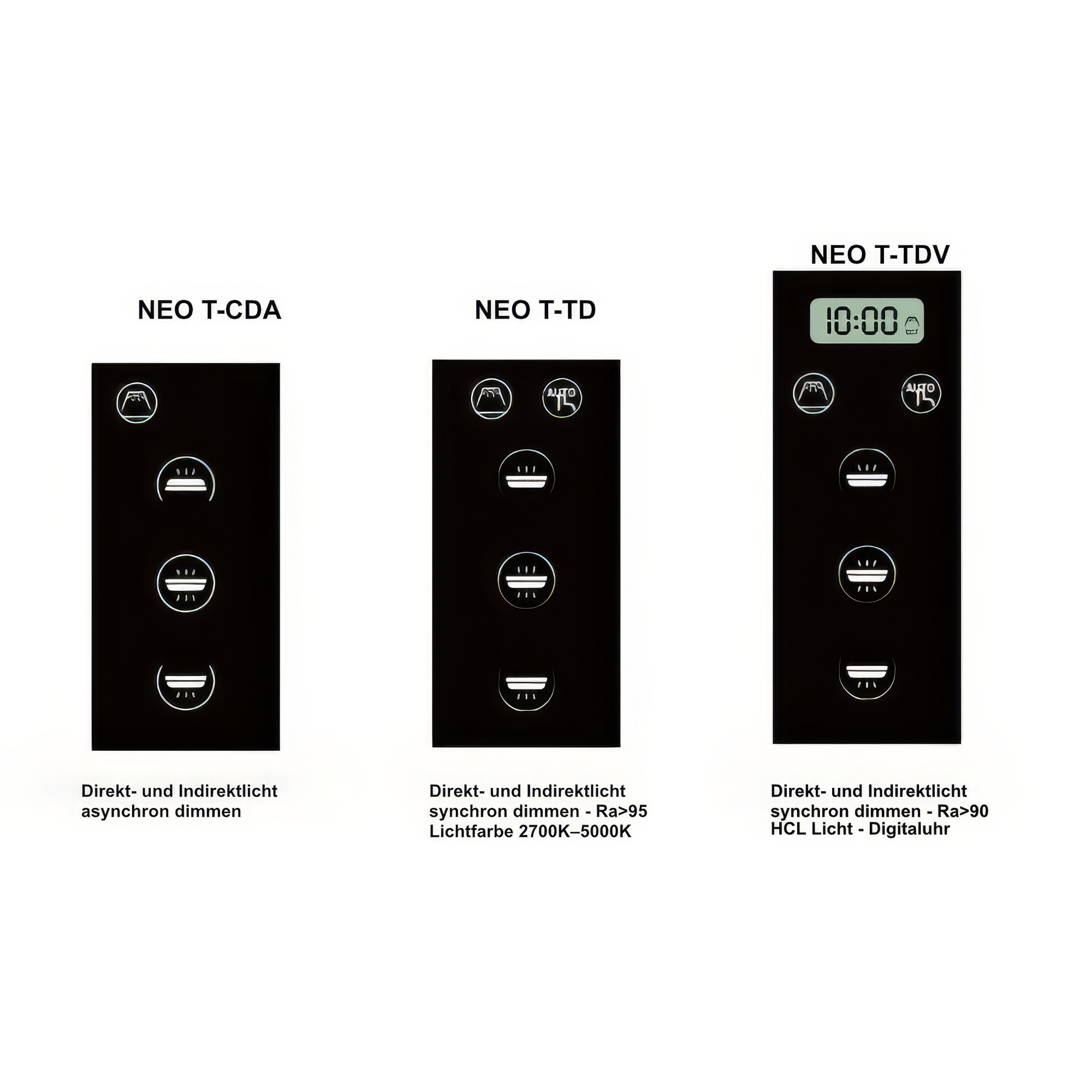

Touch control with synchronous dimming

The luminaire is operated via touch buttons on the housing: a short tap switches direct or indirect light, holding dims steplessly. Dimming is synchronous – the direct and indirect shares change their brightness together, and the set ratio of 75 % upwards and 25 % downwards is maintained. The buttons also change the colour temperature, from warm to cool white.

Motion sensor and daylight sensor

Two sensors are built in. The motion sensor detects whether someone is present: if no movement is registered for 20 minutes, the luminaire dims to 30 percent; after a further 10 minutes it switches off. When someone returns, it comes on again immediately. The daylight sensor additionally measures incoming daylight and compensates: when the sun shines into the office it dims, when it clouds over it brightens again. Together these noticeably reduce consumption without anyone having to think about a switch.

Tunable white – colour temperature 3000–6000 K

Tunable white means the colour temperature can be adjusted – on this luminaire across 3000–6000 K. Warm light feels calm and is perceived as more pleasant in the evening, cooler light supports alertness and suits concentrated work in the morning. Instead of committing to one colour temperature at purchase, you simply change it during the day or according to the task.

Service life and colour consistency

Service life is stated as L80(B10) at 50,000 hours. It reads awkwardly but simply means: after 50,000 operating hours at most 10 percent of the luminaires emit less than 80 percent of their original brightness. In typical office use of around 2,500 hours a year that corresponds to roughly 20 years. Lamp replacement is eliminated entirely.

Clamped instead of placed

The big advantage of this design lies in the mounting: the clamp fixture is tightened onto the desktop and fits tops of up to 75 mm thickness – no drilling, no work on ceiling or wall. The pole sits firmly at the edge of the desk and the lamp head floats above the workplace without occupying space on the floor or the desk. If the workplace moves, the clamp is released and refitted to the new desk.

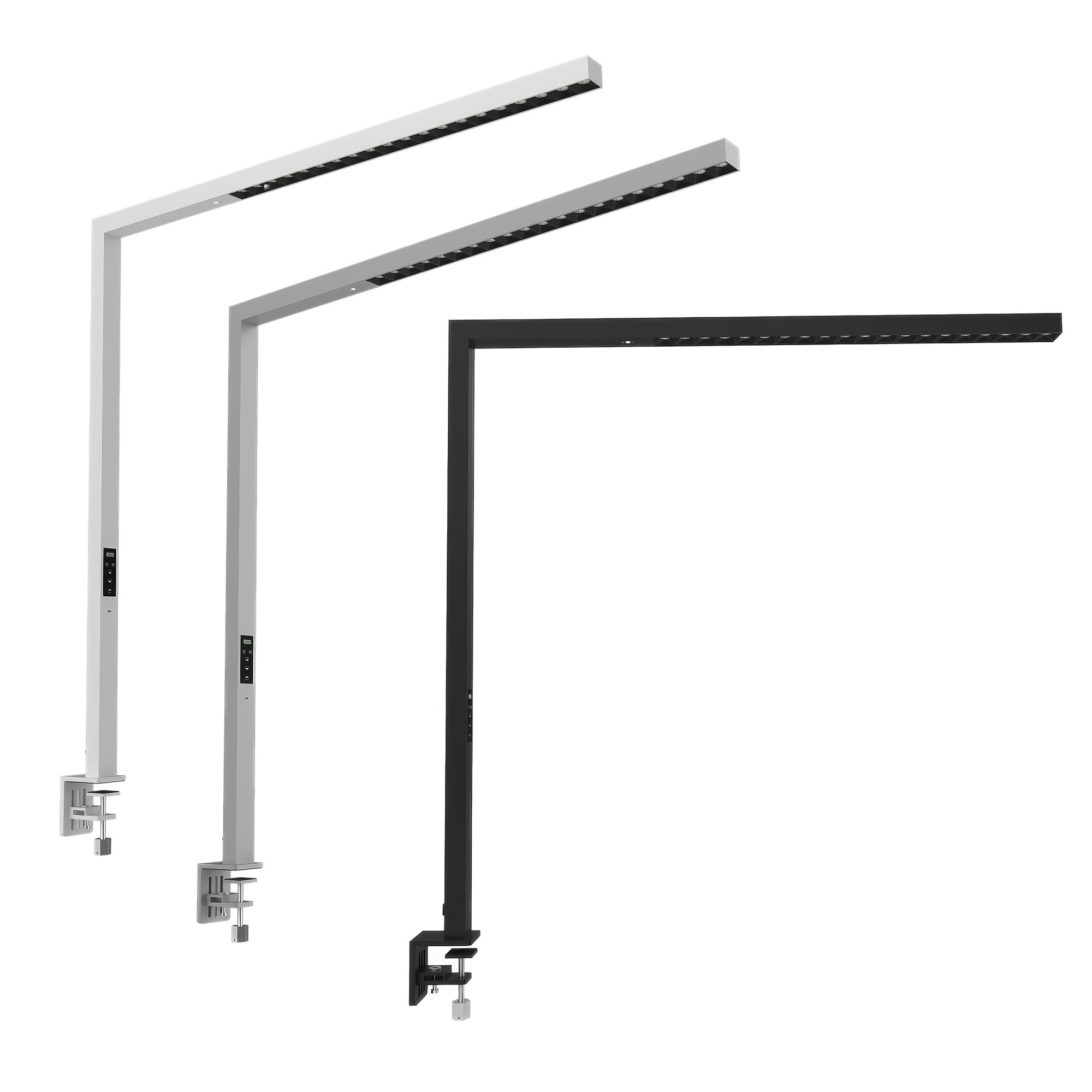

Housing colour: silver, black or white

The luminaire is available in three housing colours: silver, black and white. Silver looks neutral and suits metal frames and classic office equipment, black sets a modern accent and emphasises the straight lines, white blends discreetly into bright rooms. Technically all three versions are identical – simply choose the colour that suits your interior.

Technical data

Model	NEO T-TD
Type	desk luminaire with clamp mount, direct and indirect light
Power	80 W (60 W upward / 20 W downward)
Luminous flux	10,400 lm
Efficacy	130 lm/W
Colour temperature	3000–6000 K (adjustable)
Colour rendering	Ra > 80
Glare rating	UGR < 13
Colour consistency	SDCM 3
Beam angle	140° upward / 80° downward
LED	SMD 2835
Driver	BOKE
Voltage	AC 200–240 V
Power factor	≥ 0.9
Dimming	touch dimming, synchronous; direct and indirect switch individually
Sensors	motion sensor and daylight sensor
Tunable white	yes, colour temperature steplessly adjustable
Service life	L80(B10) 50,000 h
Housing colour	silver, black or white
Mounting	clamp fixture for desktops from 0 to 75 mm thick

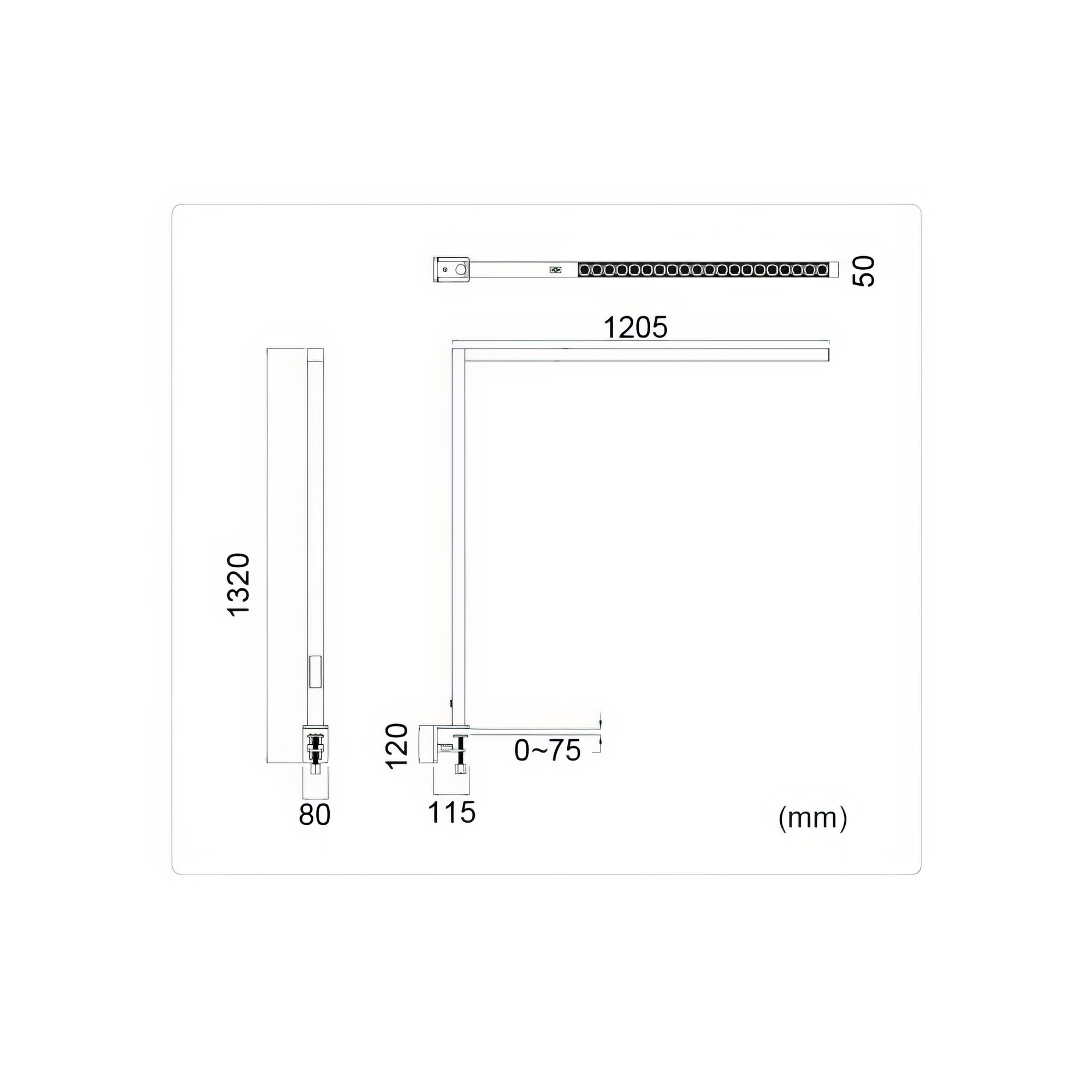

Dimensions	lamp head 1,205 × 50 × 40 mm · pole 1,320 mm · clamp 115 × 120 mm
Energy efficiency class	E (EU scale A–G, EU 2019/2015)

Applications

The luminaire is used in private offices, open-plan offices, coworking spaces, meeting rooms and home offices. Wherever people work at screens and the existing ceiling lighting is insufficient or glares too much, it noticeably improves the situation – with no electrical work. It is also a sensible addition to existing lighting at individual, particularly demanding workplaces.

Scope of delivery

1× LED desk luminaire with lamp head, pole and clamp fixture
Connection cable with plug
Installation and operating instructions
