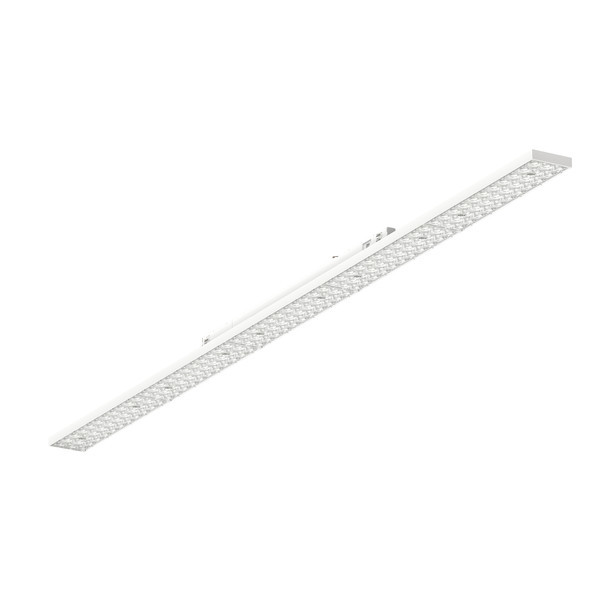

LED VU1 linear light 30° adjustable 1152mm white 175lm CRI>80 5000K

Item number: VU1C811WV-3

Category: VU1 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

99,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	94,90 €
12	89,90 €

Available

Shipping time: 15 - 16 workdays

Description

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

1152 mm · white · 5000 K daylight white · CRI > 80 · 120°

1152 mmwhiteCRI > 805000 K120°0–30° tiltable175 lm/WL80 100,000 h

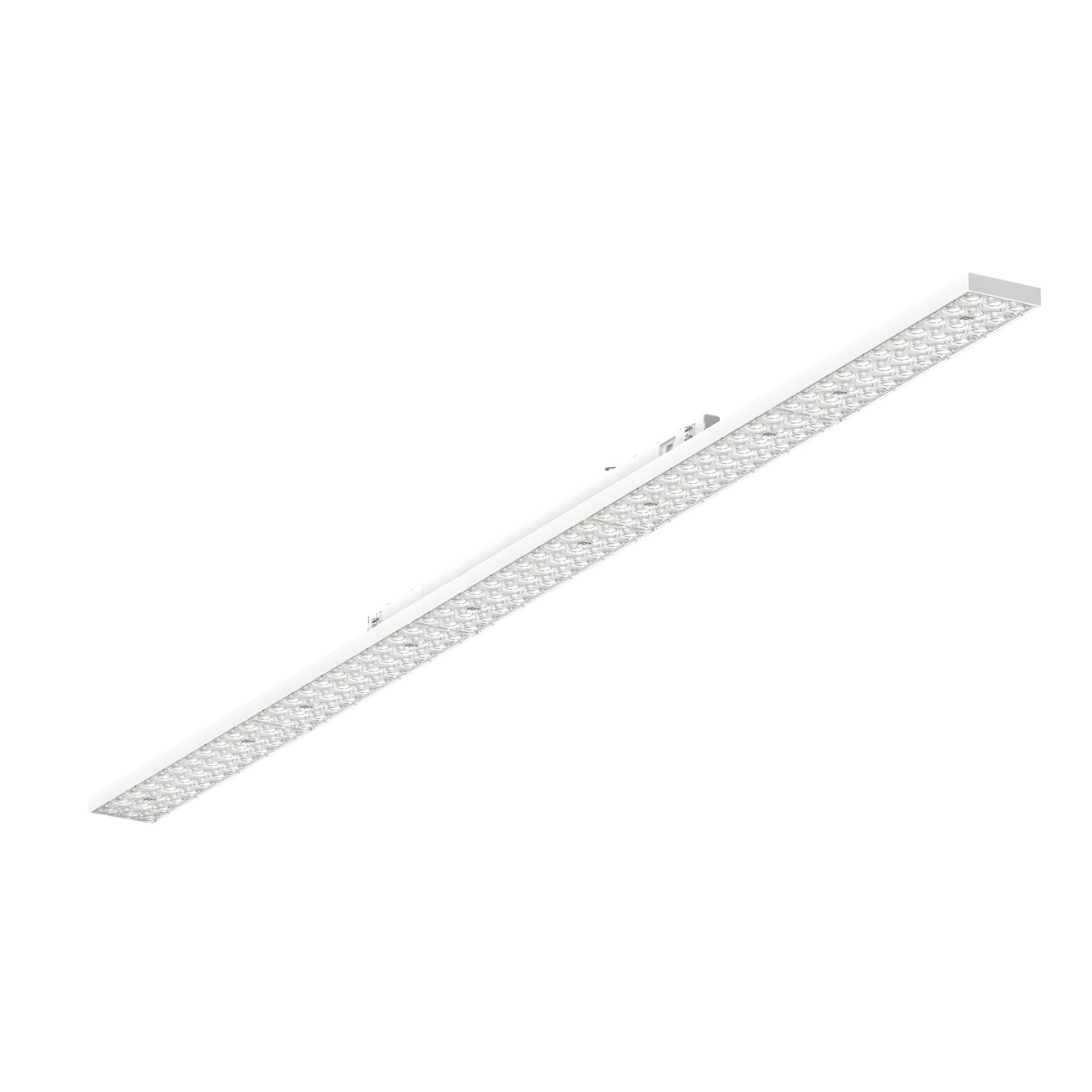

The LED VU1 linear luminaire is a slim linear spotlight for the 3-phase track. With a 120° beam it delivers soft, wide-area light, and it can be folded down and tilted individually by up to 30° to the left or right. That way you light surfaces evenly and aim the light at shelves, goods or walls whenever needed. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

120° beam angle Wide, soft light for evenly illuminated surfaces.	Individually tiltable Folds down and turns 0–30° to the left or right.
Switchable power 48 W / 40 W / 34 W / 27 W – selectable at the switch.	High efficiency 175 lm/W – up to 8,400 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 – pleasant for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

120° standard optic, further beam angles optionally available on request
Fold-down design, individually tiltable 0–30°
Colour rendering CRI > 80 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Slim aluminium housing in white, PMMA lens, IK04

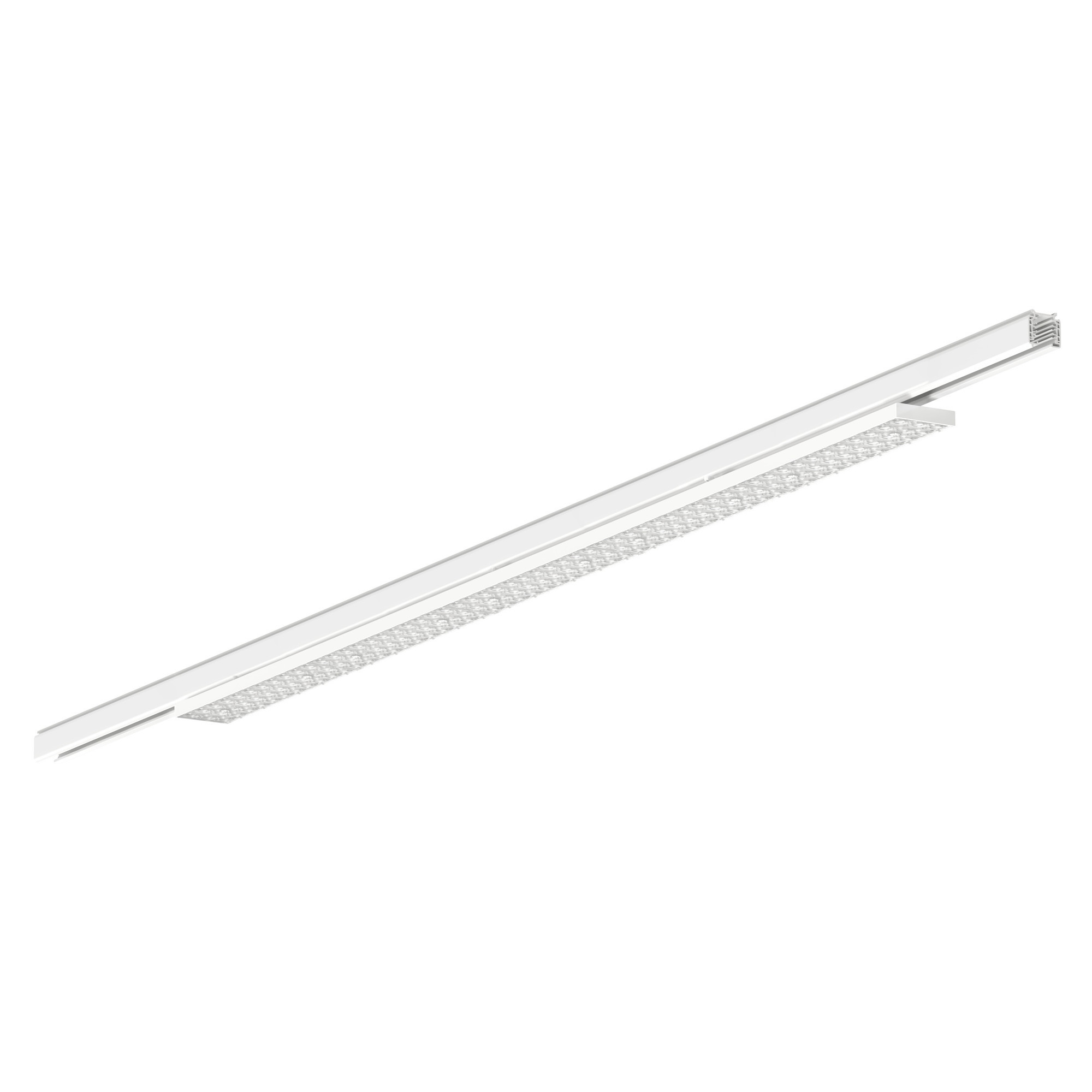

Individually tiltable: light exactly where you need it

Individually tiltable means each luminaire can be folded down out of the track and then turned steplessly between 0° and 30° to the left or right. So you aim the light exactly where it is needed – at a shelf wall, a display or a workstation. This is especially handy when the interior changes: instead of rebuilding, you simply re-aim the luminaires.

Beam angles: which one suits your application?

The standard beam angle is 120°: wide, soft and ideal for general room lighting. If you want to use light more selectively, other lenses are optionally available. The following overview explains which angle best fits which purpose:

120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: bright and economical

The CRI > 80 version offers good, natural colour rendering with the best possible economy. At 175 lm/W you get a lot of light from every watt – ideal when large areas need to stay bright permanently and energy costs matter, for example in markets, warehouses, offices and workshops.

Long service life – L80 at 100,000 hours

What does L80 / 100,000 hours mean? Simply this: after 100,000 hours of operation the luminaire still delivers at least 80 % of its day-one brightness. At ten hours of use per day that is more than 27 years. Illumination therefore stays virtually constant for a very long time.

High-quality LED chips by Sanan

We deliberately rely on chips by Sanan as the light source. Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is regarded as the LED chip market leader in China as well as one of the three largest manufacturers worldwide. The company runs its own epitaxy and chip production, invests continuously in research and development and holds more than a thousand patents; its customers include well-known international lighting and technology brands. In practical terms this origin means: plenty of light per watt, precisely maintained colour temperatures and a service life that delivers on its promise even in continuous operation.

Mounting & track compatibility

All you need for installation is a 3-phase busbar – the VU1 is placed with its adapter and locks in immediately. You can change the position and number of luminaires at any time, without electrical rework at the ceiling. Thanks to L1/L2/L3 phase selection you switch lighting groups separately. The luminaire is compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard (Safety Class I).

Colour temperature 5000 K – daylight white

Daylight white light looks crisp and alert – ideal for assembly, technical work, labs and areas that require close inspection.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	48 W	8,400 lm
Step 2	40 W	7,000 lm
Step 3	34 W	5,950 lm
Step 4 (minimum)	27 W	4,725 lm

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	1152 mm
Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	8,400 lm / 7,000 lm / 5,950 lm / 4,725 lm
Efficacy	175 lm/W
Colour temperature	5000 K (daylight white)
Colour rendering	CRI > 80
Beam angle	120° (standard); optionally 90°, 60°, 30°, 25° double, 25° asymmetric L/R or opal cover 120° on request
Tilt range	fold-down, individually 0° to 30° left or right
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens (opal cover: PC)
Housing colour	White (RAL 9016)
Height	17 mm (lens) / 29.5 mm (opal cover), width 63.5 mm
Weight	1.10 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

The VU1 is a true all-rounder for interiors with a track system. In retail it lights sales floors and shelf aisles evenly and highlights individual merchandise areas with tilted luminaires. In the office it provides pleasant working light above desks and meeting islands. In galleries, exhibitions and showrooms the light can be flexibly aimed at changing exhibits. Corridors, reception areas, workshops and car dealerships also benefit from the mix of wide base light and individually tiltable luminaires.

Scope of delivery

1× LED VU1 linear luminaire with 3-phase adapter
Installation instructions
