LED VU2 linear light 30°x90°V-tiltable 1200mm black 135lm CRI>90

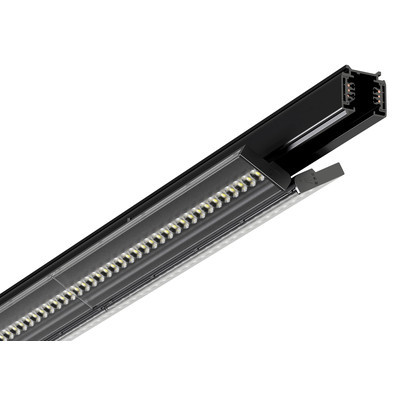

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1200 mm · black housing · CRI > 90 · 30° × 90° · 3-phase track

With the LED VU2 linear luminaire you get a track spotlight that adapts to the room instead of the other way round. The two light wings move individually and can be aimed together or in opposite directions. One row of luminaires can light a wide aisle, two shelf fronts or a single wall. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 90 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in black with PMMA lens, IP20, IK04

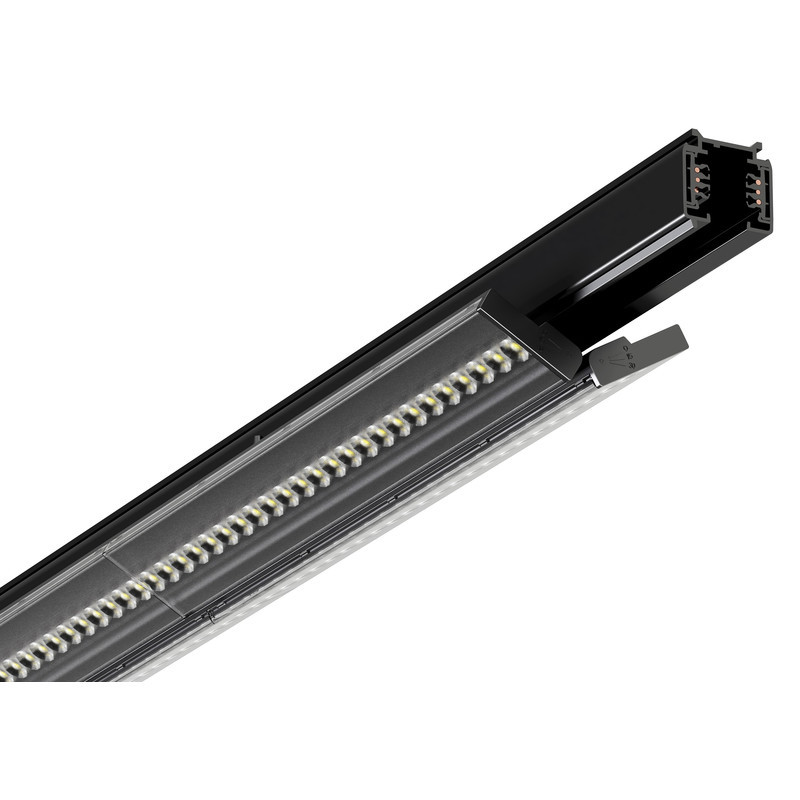

Two tiltable wings: one luminaire, many lighting effects

The two movable wings are the heart of this luminaire. Each wing tilts individually from 0° to 30°. In the base position light falls straight down and lights the aisle evenly. Tilt the wings in opposite directions and you cover a shelf row on the left and right – without installing a second row of luminaires. That saves fixtures, installation time and energy.

Beam angles: which one suits your application?

Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

CRI > 90 means particularly true-to-life colour rendering. The light contains all colour components in balanced proportions, so even subtle gradations remain visible. Wherever goods have to convince through their colour – fashion, cosmetics, jewellery, delicatessen or art – this version is the one to choose.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

It is worth looking at the LED manufacturer: Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is today the largest producer of LED chips in China as well as one of the top suppliers worldwide. Manufacturing at that scale means strict quality control and very low variation. The VU2 benefits directly: plenty of light per watt, precisely maintained colour temperature and a light output that stays stable over the years.

Mounting & track compatibility

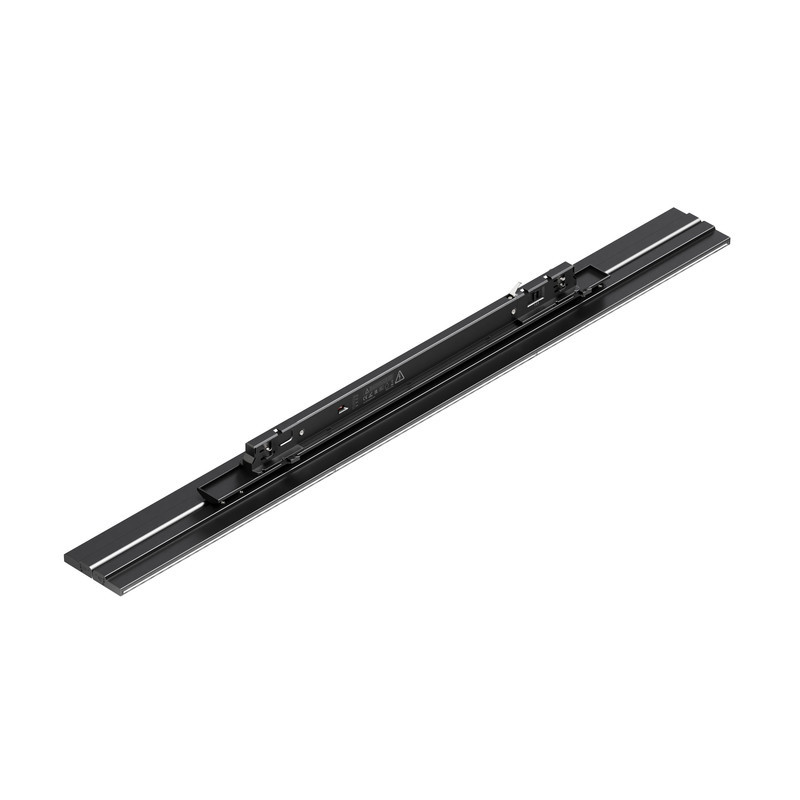

The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.

Choose your colour temperature

• 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
• 6000 K cool white – proven in warehouses, production and high spaces.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Why CRI > 90 delivers slightly fewer lumens

A look at the figures shows that the CRI 90 version is rated at fewer lumens than the CRI 80 one. There is a physical reason. Better colour rendering requires a broader spectrum containing more red. Our eyes, however, perceive red light more weakly than green or yellow, and the additional phosphor conversion costs energy. At the same wattage fewer lumens therefore come out – in return you get noticeably truer colours.

Black housing: luminous flux & look

Comparing the versions you will notice that the black one is rated at fewer lumens than the white. The reason lies inside the luminaire. Before the LED light exits, part of it hits housing and optic surfaces. Bright surfaces reflect this light almost completely back outwards, dark ones absorb a share and release it as heat. That is why luminous flux and efficacy (lm/W) are somewhat lower in black. In return you get a discreet look that barely stands out against dark ceilings and a softer, less glaring impression.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
