Description

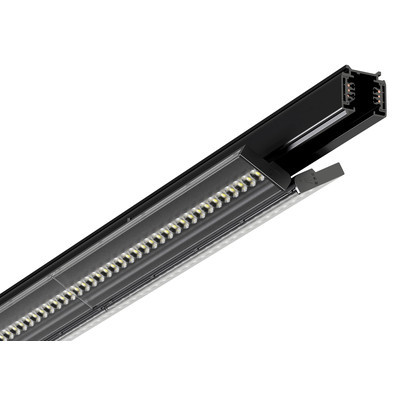

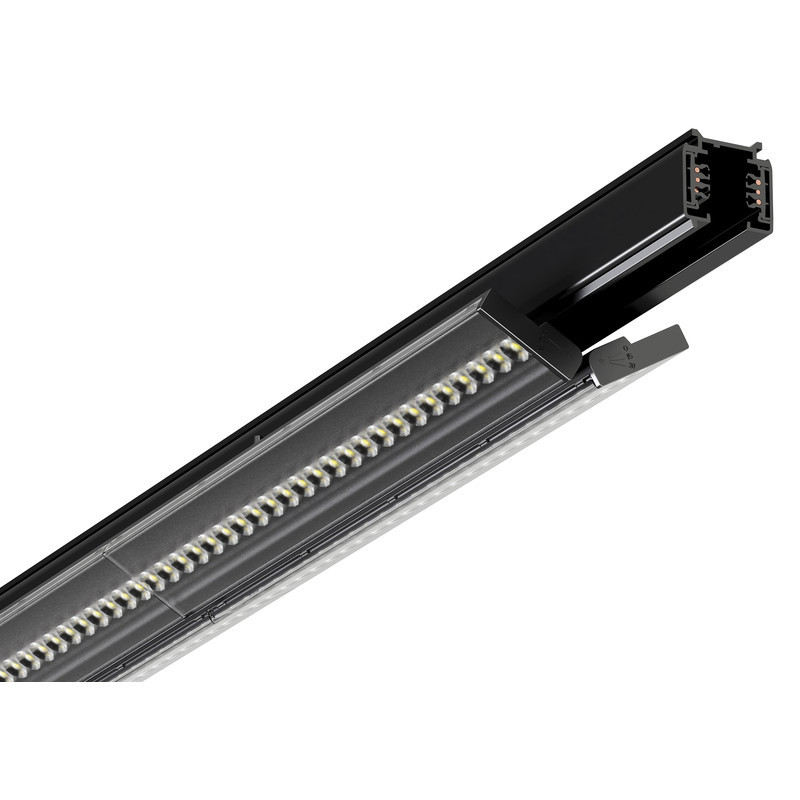

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings
1200 mm · black · 3000 K warm white · CRI > 90 · 30° × 90°
The LED VU2 linear luminaire is a track spotlight with two separately movable light wings. Both wings tilt independently by up to 30° – inwards, outwards or both in the same direction. A single luminaire can therefore cover opposite shelf rows or concentrate all of its light on one side. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.
Key benefits at a glance
Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire. | 30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 135 lm/W – up to 6,480 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras. | Long service life L80 at 100,000 h thanks to Sanan LED chips. |
Features in detail
- Two separately tiltable light wings, each adjustable 0° to 30°
- Beam angle 30° × 90°, 30° × 30° optionally available on request
- Colour rendering CRI > 90 for natural colours
- Switchable power in four steps without tools
- Optionally available with DALI-2 dimming on request
- For 3-phase track – compatible with common track systems
- Aluminium housing in black with PMMA lens, IP20, IK04
Two tiltable wings: one luminaire, many lighting effects
What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.
Beam angles: which one suits your application?
Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:
- 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
- 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
- Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.
As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.
Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.
CRI > 90: colours that are true
CRI > 90 means particularly true-to-life colour rendering. The light contains all colour components in balanced proportions, so even subtle gradations remain visible. Wherever goods have to convince through their colour – fashion, cosmetics, jewellery, delicatessen or art – this version is the one to choose.
Long service life – L80 at 100,000 hours
Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.
High-quality LED chips by Sanan
It is worth looking at the LED manufacturer: Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is today the largest producer of LED chips in China as well as one of the top suppliers worldwide. Manufacturing at that scale means strict quality control and very low variation. The VU2 benefits directly: plenty of light per watt, precisely maintained colour temperature and a light output that stays stable over the years.
Mounting & track compatibility
All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.
Colour temperature 3000 K – warm white
Warm white light feels cosy and inviting – proven in hospitality, hotels, boutiques and reception areas.
Why CRI > 90 delivers slightly fewer lumens
The fact that the CRI 90 version is a little dimmer is directly linked to its strength. To render colours true to life, the LED needs a fuller spectrum with more red. That red content counts for less in the lumen measurement because the eye responds less there, and phosphor conversion adds losses. The bottom line: a few lumens fewer, but colours that look in the shop as they do in sunlight.
Black housing: luminous flux & look
The difference in luminous flux between a black and a white housing is not a quality issue but simply physics. Inside the luminaire light is redirected several times before it exits. White surfaces reflect almost completely, black ones absorb a share and convert it into heat. The result: slightly fewer lumens and marginally lower efficacy. If an unobtrusive, elegant appearance matters more to you than the last lumen, black is the right choice.
Power steps & luminous flux
| Power step | Power | Luminous flux |
|---|---|---|
| Step 1 (maximum) | 48 W | 6,480 lm |
| Step 2 | 40 W | 5,400 lm |
| Step 3 | 34 W | 4,590 lm |
| Step 4 (minimum) | 27 W | 3,645 lm |
Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.
Technical data
| Length | 1200 mm |
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 6,480 lm / 5,400 lm / 4,590 lm / 3,645 lm |
| Efficacy | 135 lm/W |
| Colour temperature | 3000 K (warm white) |
| Colour rendering | CRI > 90 |
| Beam angle | 30° × 90° (standard); 30° × 30° optionally available on request |
| Tilt range | two wings, individually tiltable 0° to 30° |

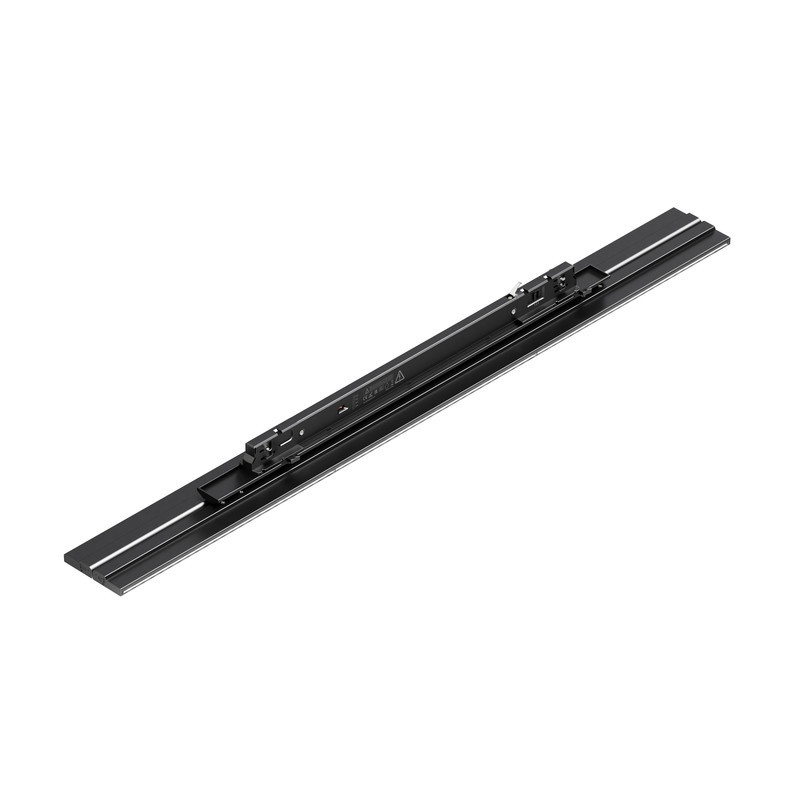

| Mounting | 3-phase track (via adapter), phase selection L1/L2/L3 |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC/DC 220–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Switching cycles | > 500,000 |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black |
| Dimensions | 1200 × 84.6 × 55 mm (L × W × H) |
| Weight | 2.20 kg |
| Ambient temperature | −20 °C to +40 °C |
| Storage temperature | −25 °C to +65 °C |
| Glow wire test | 650 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
Typical locations are shops, supermarkets, specialist stores, boutiques, showrooms, galleries, offices, workshops and exhibition areas. Because the two wings tilt independently, the luminaire adapts to different tasks: straight down for even aisles, spread outwards for shelf fronts left and right, swivelled together for an accented wall. If you change your layout, simply re-aim the light.
Scope of delivery
- 1× LED VU2 linear luminaire with 3-phase adapter
- Installation instructions
Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
