LED VU2 linear light 30°x90°V-tiltable 1200mm black 150lm CRI>80 4000K

Item number: VU2C812SV-2

Category: VU2 LED linear light

Lightcolor:: 3000K4000K5000K6000K

119,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	114,90 €
12	109,90 €

Available

Shipping time: 15 - 16 workdays

Description

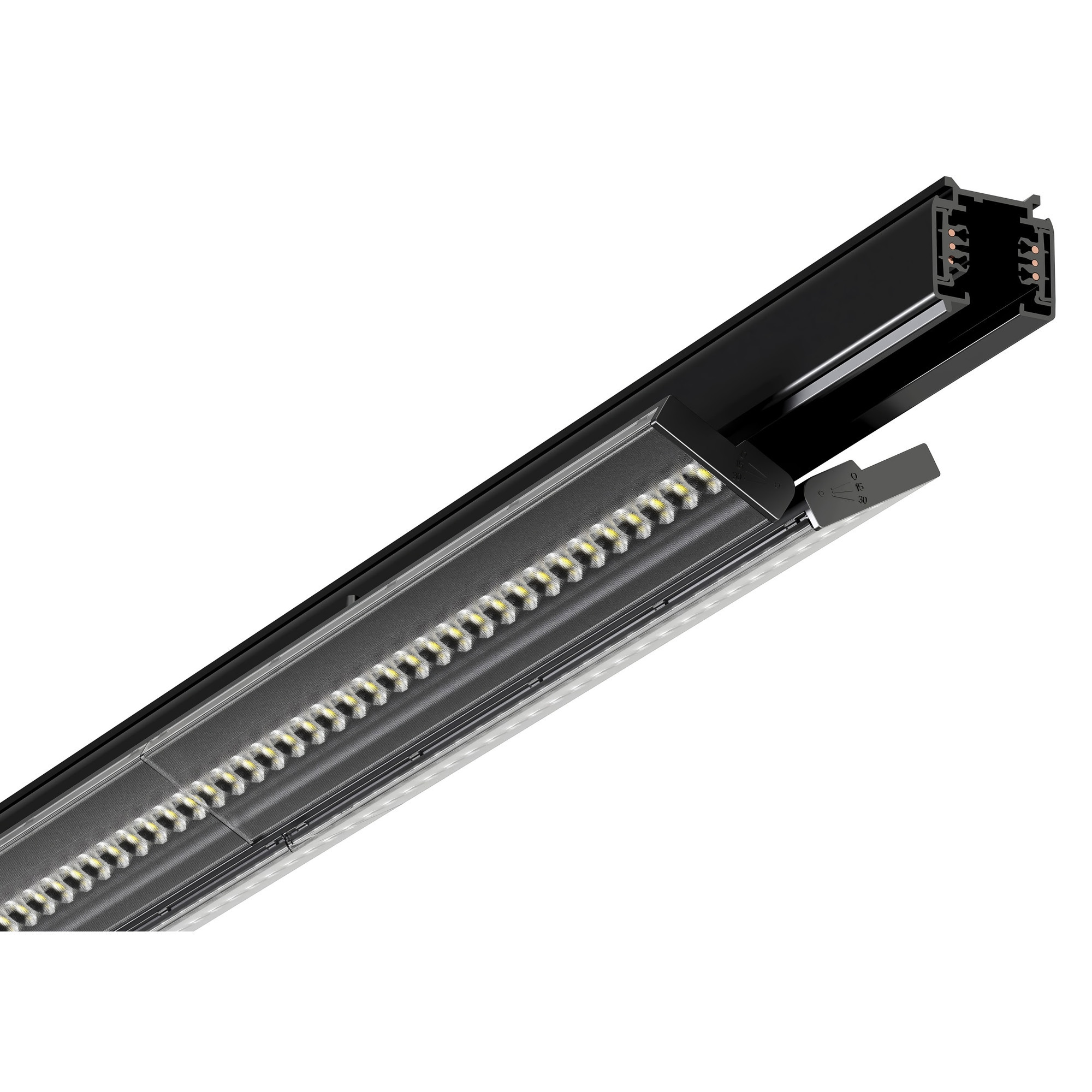

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1200 mm · black · 4000 K neutral white · CRI > 80 · 30° × 90°

1200 mmblackCRI > 804000 K30° × 90°2 wings 0–30°150 lm/WL80 100,000 h

Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire.	30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill.
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch.	High efficiency 150 lm/W – up to 7,200 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

Two separately tiltable light wings, each adjustable 0° to 30°
Beam angle 30° × 90°, 30° × 30° optionally available on request
Colour rendering CRI > 80 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Aluminium housing in black with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

The two movable wings are the heart of this luminaire. Each wing tilts individually from 0° to 30°. In the base position light falls straight down and lights the aisle evenly. Tilt the wings in opposite directions and you cover a shelf row on the left and right – without installing a second row of luminaires. That saves fixtures, installation time and energy.

Beam angles: which one suits your application?

The beam angle determines how widely light leaves the luminaire. The VU2 comes with 30° × 90° as standard; a narrower version is available on request. Here is what distinguishes the two optics:

30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: maximum light per euro

The CRI > 80 version renders colours naturally while running very economically: 150 lm/W means plenty of brightness from little power. For sales floors, warehouses, workshops and offices where large areas are lit for many hours a day, this is the most economical choice.

Long service life – L80 at 100,000 hours

Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

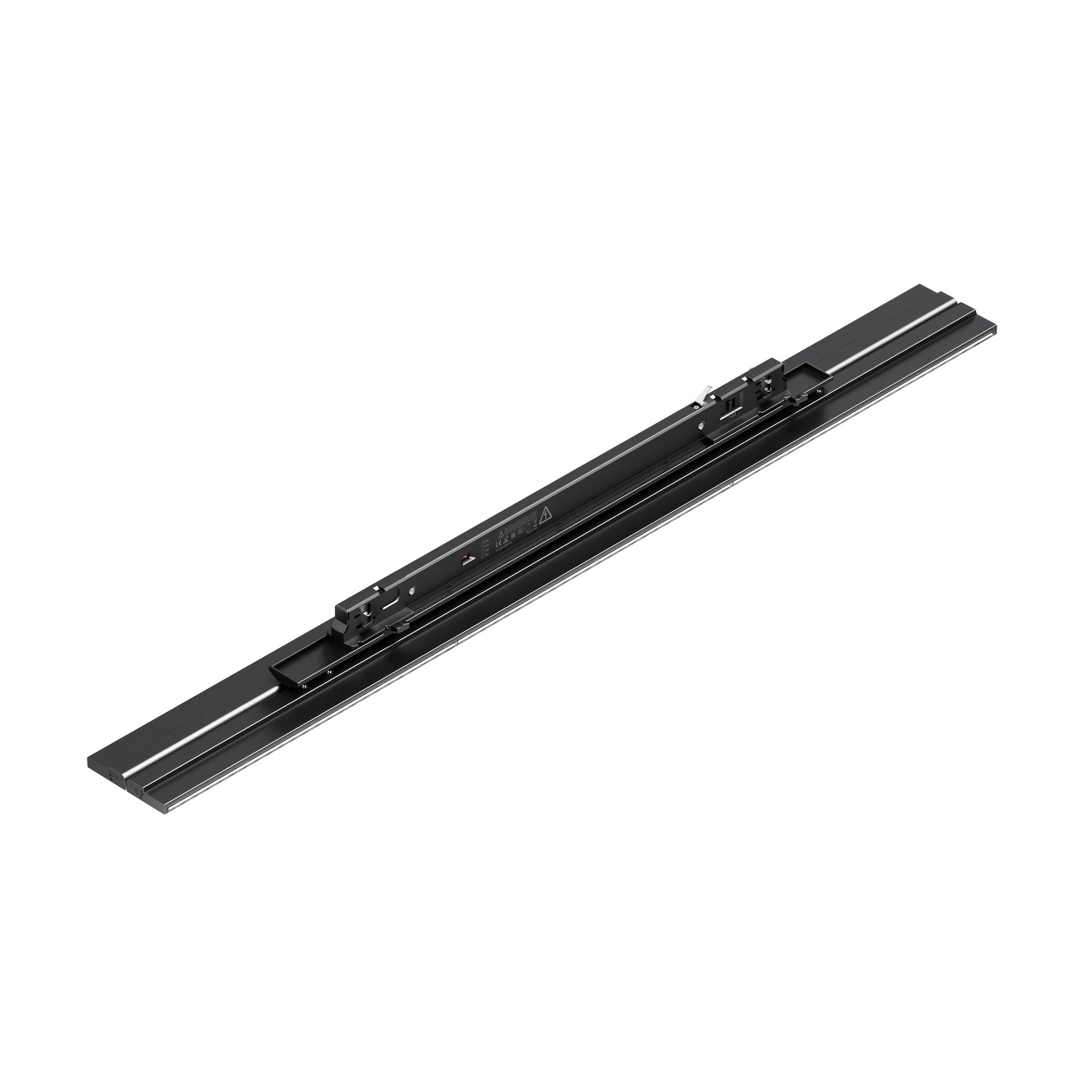

Mounting & track compatibility

All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.

Colour temperature 4000 K – neutral white

Neutral white light is bright and businesslike without feeling cold – the all-rounder for sales rooms, boutiques, offices and exhibitions.

Black housing: luminous flux & look

The difference in luminous flux between a black and a white housing is not a quality issue but simply physics. Inside the luminaire light is redirected several times before it exits. White surfaces reflect almost completely, black ones absorb a share and convert it into heat. The result: slightly fewer lumens and marginally lower efficacy. If an unobtrusive, elegant appearance matters more to you than the last lumen, black is the right choice.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	48 W	7,200 lm
Step 2	40 W	6,000 lm
Step 3	34 W	5,100 lm
Step 4 (minimum)	27 W	4,050 lm

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	1200 mm
Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	7,200 lm / 6,000 lm / 5,100 lm / 4,050 lm
Efficacy	150 lm/W
Colour temperature	4000 K (neutral white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (standard); 30° × 30° optionally available on request
Tilt range	two wings, individually tiltable 0° to 30°
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	Black
Dimensions	1200 × 84.6 × 55 mm (L × W × H)
Weight	2.20 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

1× LED VU2 linear luminaire with 3-phase adapter
Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
