LED VU2 linear light 30°x90°V-tiltable 1500mm black 135lm CRI>90

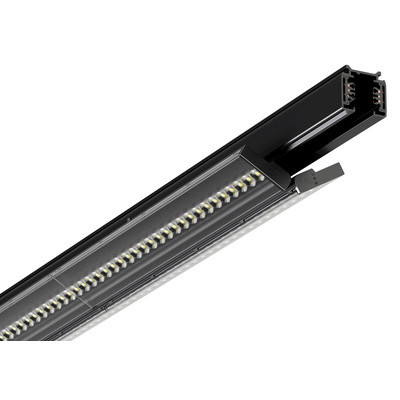

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1500 mm · black housing · CRI > 90 · 30° × 90° · 3-phase track

Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 90 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in black with PMMA lens, IP20, IK04

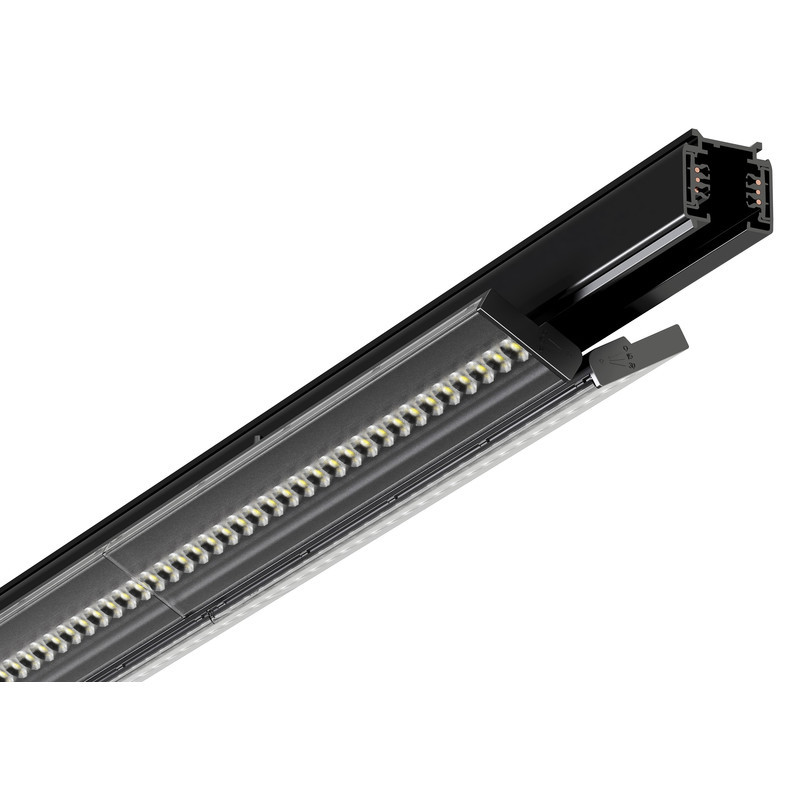

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

The colour rendering index describes how true colours look under a light source. At CRI > 90 the VU2 comes very close to daylight: fabrics show their real shade, wood and leather look warm rather than grey, food looks fresh. In boutiques, jewellers, bakeries and galleries this is often the difference between browsing and buying.

Long service life – L80 at 100,000 hours

Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

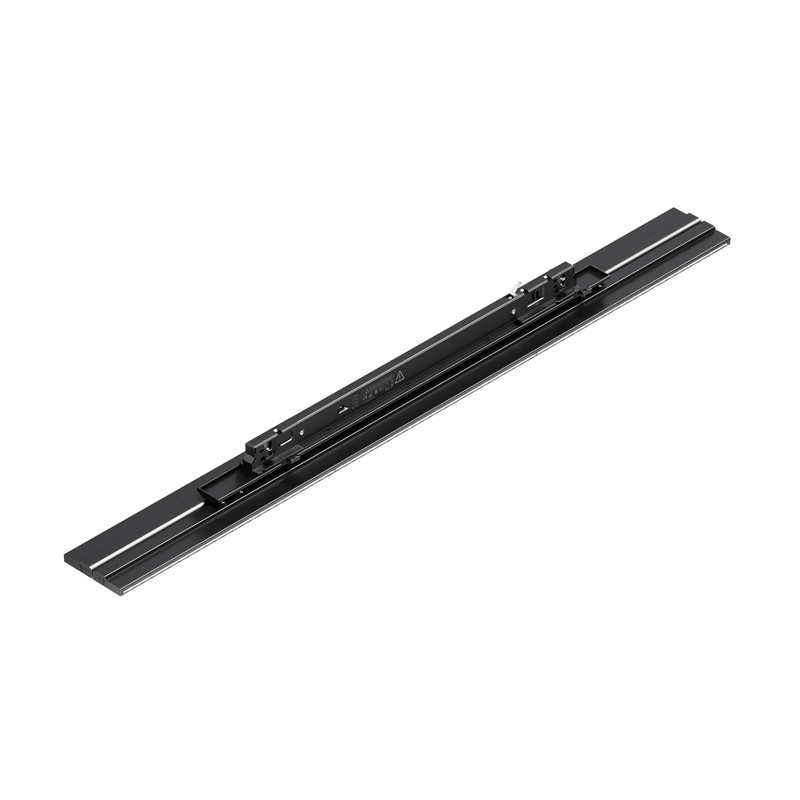

Mounting & track compatibility

All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.

Choose your colour temperature

• 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
• 6000 K cool white – proven in warehouses, production and high spaces.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Why CRI > 90 delivers slightly fewer lumens

Why does CRI > 90 deliver fewer lumens than CRI > 80? Better colour rendering calls for a more complete spectrum, especially a stronger red component. The human eye is less sensitive precisely in that range, so this portion of the light contributes little to measured brightness. Together with conversion losses this yields slightly lower efficacy – a trade worth making wherever colours must look exact.

Black housing: luminous flux & look

Why is a lower luminous flux stated for black than for white? It comes down to reflection: light hitting white surfaces inside the housing is directed outwards with almost no loss; black surfaces absorb part of it. Whatever is absorbed never leaves the luminaire and is missing from the lumen figure – efficacy in lm/W drops slightly as a result. In exchange, the black version blends unobtrusively into demanding store concepts and glares less.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

The VU2 is at home wherever a track system is in place and surfaces need even brightness. In retail it lights long aisles and shelf rows; thanks to the oppositely tiltable wings, one row of luminaires is often enough for two shelf fronts. In supermarkets and specialist stores it provides calm base lighting, in boutiques and showrooms accentuated product presentation. Offices, meeting rooms, galleries, workshops and exhibition halls also benefit from the flexible light control.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
