Description

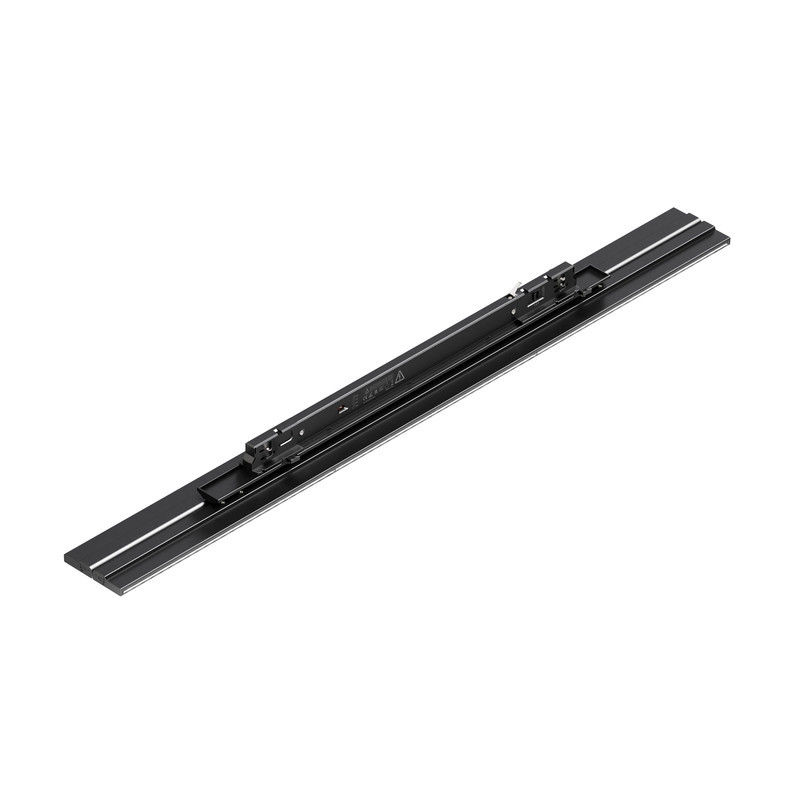

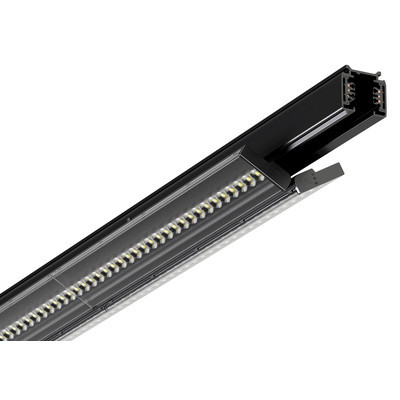

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings
1500 mm · black housing · CRI > 80 · 30° × 90° · 3-phase track
With the LED VU2 linear luminaire you get a track spotlight that adapts to the room instead of the other way round. The two light wings move individually and can be aimed together or in opposite directions. One row of luminaires can light a wide aisle, two shelf fronts or a single wall. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.
Key benefits at a glance
Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire. | 30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill. |
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch. | High efficiency 150 lm/W – up to 9,000 lm at 60 W. |
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras. | Long service life L80 at 100,000 h thanks to Sanan LED chips. |
Features in detail
- Two separately tiltable light wings, each adjustable 0° to 30°
- Beam angle 30° × 90°, 30° × 30° optionally available on request
- Colour rendering CRI > 80 for natural colours
- Switchable power in four steps without tools
- Optionally available with DALI-2 dimming on request
- For 3-phase track – compatible with common track systems
- Aluminium housing in black with PMMA lens, IP20, IK04

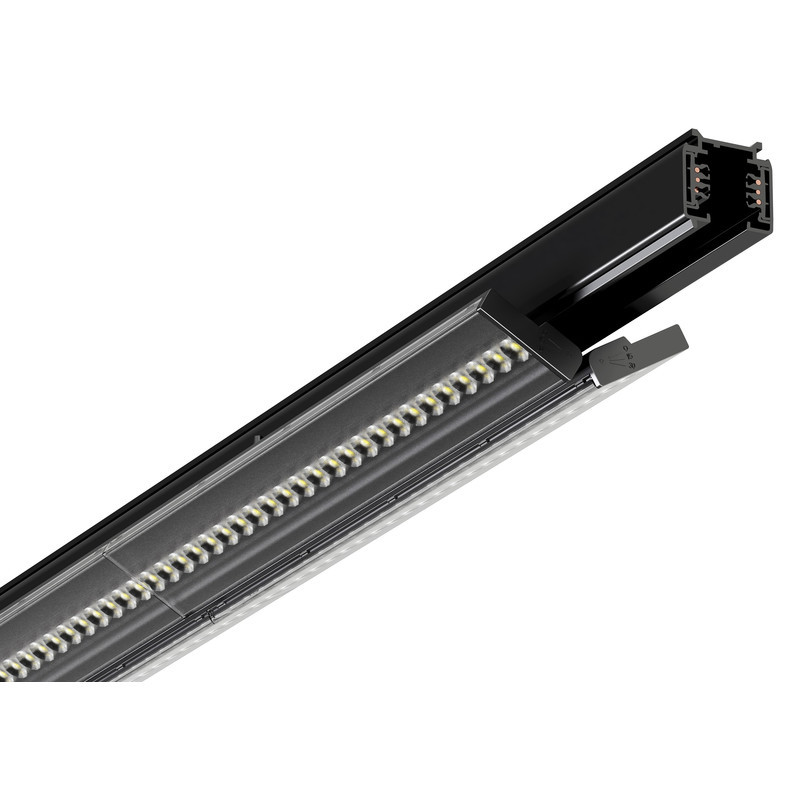

Two tiltable wings: one luminaire, many lighting effects
The two movable wings are the heart of this luminaire. Each wing tilts individually from 0° to 30°. In the base position light falls straight down and lights the aisle evenly. Tilt the wings in opposite directions and you cover a shelf row on the left and right – without installing a second row of luminaires. That saves fixtures, installation time and energy.
Beam angles: which one suits your application?
Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:
- 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
- 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
- Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.
As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.
Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.
CRI > 80: maximum light per euro
The CRI > 80 version renders colours naturally while running very economically: 150 lm/W means plenty of brightness from little power. For sales floors, warehouses, workshops and offices where large areas are lit for many hours a day, this is the most economical choice.
Long service life – L80 at 100,000 hours
L80 / 100,000 hours describes how the LEDs age. Only after this very long operating period does luminous flux drop below 80 % of the initial value – and even then the luminaire keeps working. For you that means no regular lamp changes, hardly any maintenance and a consistent lighting result over years.
High-quality LED chips by Sanan
It is worth looking at the LED manufacturer: Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is today the largest producer of LED chips in China as well as one of the top suppliers worldwide. Manufacturing at that scale means strict quality control and very low variation. The VU2 benefits directly: plenty of light per watt, precisely maintained colour temperature and a light output that stays stable over the years.
Mounting & track compatibility
All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.
Choose your colour temperature
- 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
- 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
- 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
- 6000 K cool white – proven in warehouses, production and high spaces.
This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.
Black housing: luminous flux & look
Comparing the versions you will notice that the black one is rated at fewer lumens than the white. The reason lies inside the luminaire. Before the LED light exits, part of it hits housing and optic surfaces. Bright surfaces reflect this light almost completely back outwards, dark ones absorb a share and release it as heat. That is why luminous flux and efficacy (lm/W) are somewhat lower in black. In return you get a discreet look that barely stands out against dark ceilings and a softer, less glaring impression.
Power steps & luminous flux
| Power step | Power | Luminous flux |
|---|---|---|
| Step 1 (maximum) | 60 W | 9,000 lm |
| Step 2 | 50 W | 7,500 lm |
| Step 3 | 42 W | 6,300 lm |
| Step 4 (minimum) | 34 W | 5,100 lm |
Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.
Technical data
| Length | 1500 mm |
| Power (switchable) | 60 W / 50 W / 42 W / 34 W (by switch) |
| Luminous flux | 9,000 lm / 7,500 lm / 6,300 lm / 5,100 lm |
| Efficacy | 150 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K – select your preferred colour temperature when ordering |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (standard); 30° × 30° optionally available on request |
| Tilt range | two wings, individually tiltable 0° to 30° |
| Mounting | 3-phase track (via adapter), phase selection L1/L2/L3 |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC/DC 220–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Switching cycles | > 500,000 |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black |
| Dimensions | 1500 × 84.6 × 55 mm (L × W × H) |
| Weight | 2.45 kg |
| Ambient temperature | −20 °C to +40 °C |
| Storage temperature | −25 °C to +65 °C |
| Glow wire test | 650 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
The VU2 is at home wherever a track system is in place and surfaces need even brightness. In retail it lights long aisles and shelf rows; thanks to the oppositely tiltable wings, one row of luminaires is often enough for two shelf fronts. In supermarkets and specialist stores it provides calm base lighting, in boutiques and showrooms accentuated product presentation. Offices, meeting rooms, galleries, workshops and exhibition halls also benefit from the flexible light control.
Scope of delivery
- 1× LED VU2 linear luminaire with 3-phase adapter
- Installation instructions
Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
