LED VU2 linear light 30°x90°V-tiltable 600mm black 135lm CRI>90 6000K

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

600 mm · black · 6000 K cool white · CRI > 90 · 30° × 90°

With the LED VU2 linear luminaire you get a track spotlight that adapts to the room instead of the other way round. The two light wings move individually and can be aimed together or in opposite directions. One row of luminaires can light a wide aisle, two shelf fronts or a single wall. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 90 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in black with PMMA lens, IP20, IK04

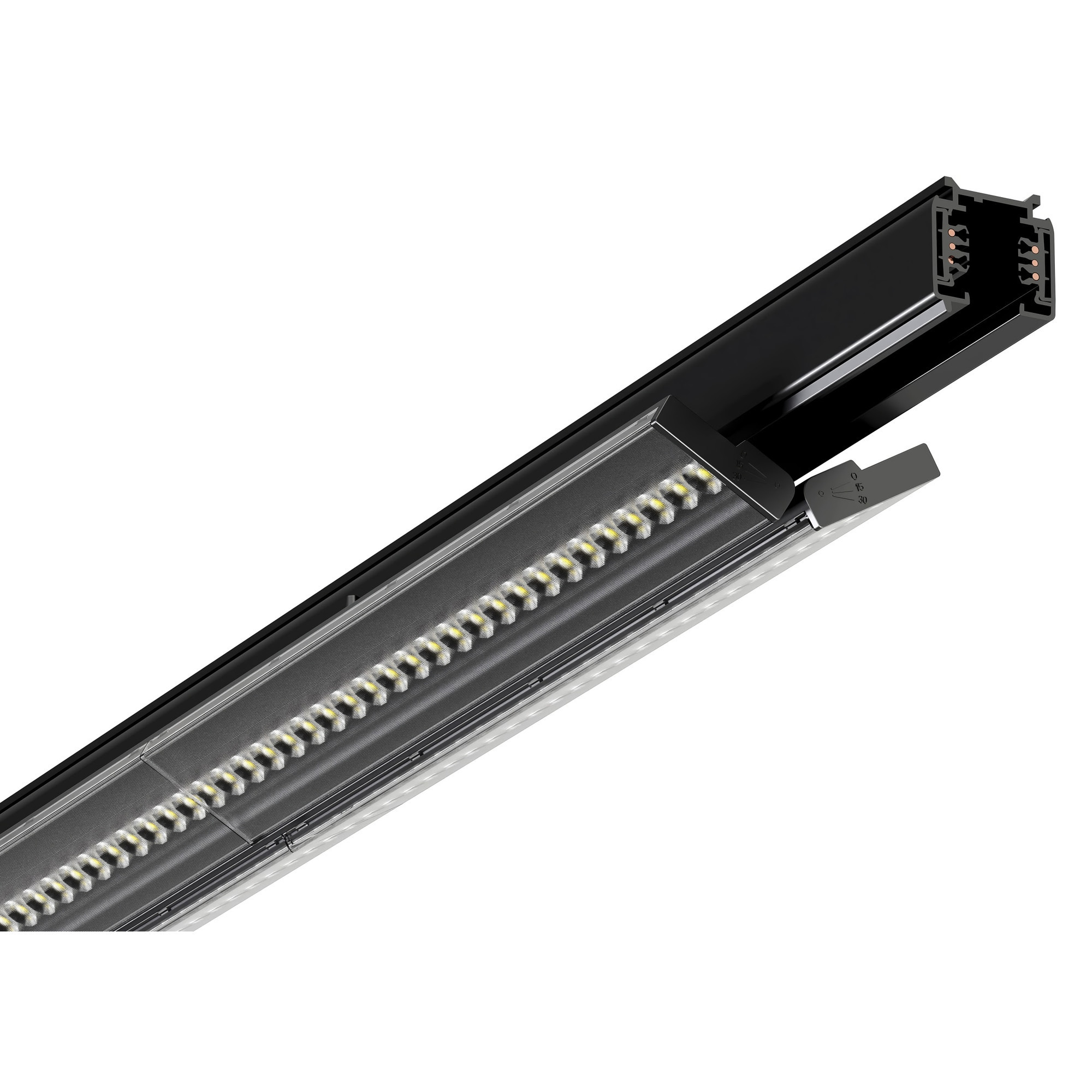

Two tiltable wings: one luminaire, many lighting effects

Two wings, many options: because both light rows of the VU2 tilt independently up to 30°, you change the light distribution in seconds. Straight down for even base light, spread outwards for two shelf sides at once, or both swivelled together for one strongly accented surface. If your store layout changes, simply re-aim them.

Beam angles: which one suits your application?

The beam angle determines how widely light leaves the luminaire. The VU2 comes with 30° × 90° as standard; a narrower version is available on request. Here is what distinguishes the two optics:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

When colour fidelity counts, CRI > 90 is the right choice. Simple LEDs make reds in particular look washed out; this version renders them strong and natural. Clothing looks the same in the shop as it later does at home in daylight – a point that prevents returns and eases the buying decision.

Long service life – L80 at 100,000 hours

Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

Mounting & track compatibility

The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.

Colour temperature 6000 K – cool white

Cool white light delivers maximum brightness and contrast – proven in warehouses, production and high spaces.

Why CRI > 90 delivers slightly fewer lumens

The fact that the CRI 90 version is a little dimmer is directly linked to its strength. To render colours true to life, the LED needs a fuller spectrum with more red. That red content counts for less in the lumen measurement because the eye responds less there, and phosphor conversion adds losses. The bottom line: a few lumens fewer, but colours that look in the shop as they do in sunlight.

Black housing: luminous flux & look

Why is a lower luminous flux stated for black than for white? It comes down to reflection: light hitting white surfaces inside the housing is directed outwards with almost no loss; black surfaces absorb part of it. Whatever is absorbed never leaves the luminaire and is missing from the lumen figure – efficacy in lm/W drops slightly as a result. In exchange, the black version blends unobtrusively into demanding store concepts and glares less.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Typical locations are shops, supermarkets, specialist stores, boutiques, showrooms, galleries, offices, workshops and exhibition areas. Because the two wings tilt independently, the luminaire adapts to different tasks: straight down for even aisles, spread outwards for shelf fronts left and right, swivelled together for an accented wall. If you change your layout, simply re-aim the light.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
