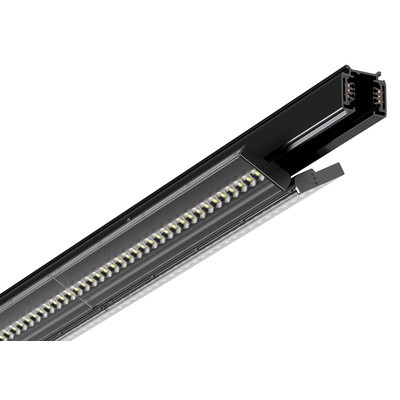

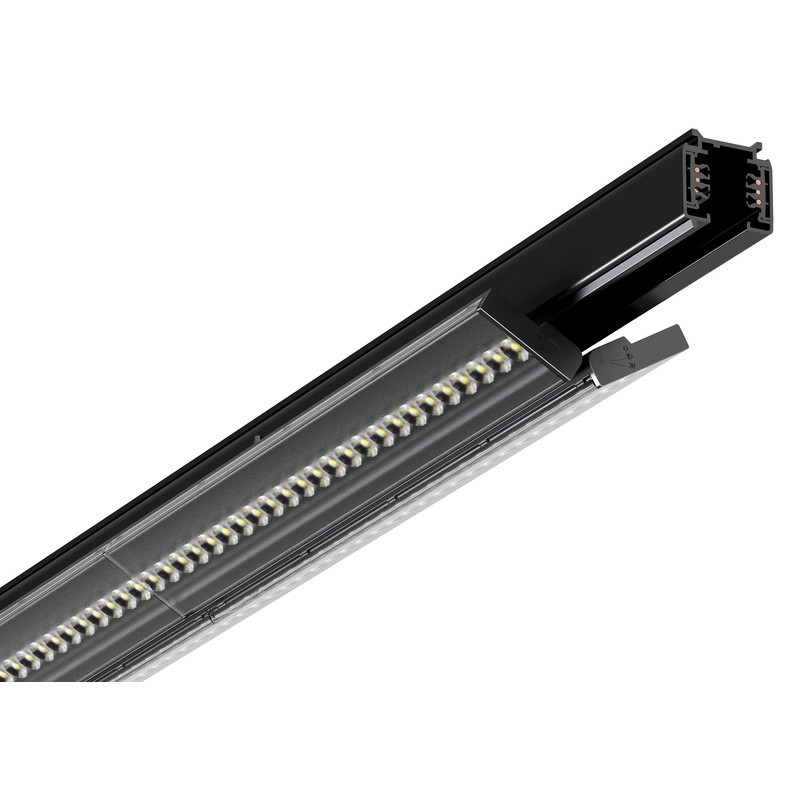

LED VU2 linear light 30°x90°V-tiltable 600mm black 150lm CRI>80

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

600 mm · black housing · CRI > 80 · 30° × 90° · 3-phase track

Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 80 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in black with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

Two wings, many options: because both light rows of the VU2 tilt independently up to 30°, you change the light distribution in seconds. Straight down for even base light, spread outwards for two shelf sides at once, or both swivelled together for one strongly accented surface. If your store layout changes, simply re-aim them.

Beam angles: which one suits your application?

The beam angle determines how widely light leaves the luminaire. The VU2 comes with 30° × 90° as standard; a narrower version is available on request. Here is what distinguishes the two optics:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: maximum light per euro

CRI > 80 is the proven standard in retail and industry. Colour rendering is good, while efficiency at 150 lm/W is considerably higher than in the CRI 90 version. Anyone running many luminaires noticeably reduces energy costs – with a light quality that is perfectly adequate for most applications.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

For the LEDs we deliberately avoid unbranded parts. Fitted are chips by Sanan Optoelectronics, the LED chip market leader in China and one of the world's leading manufacturers. The listed company from Xiamen makes everything itself, from wafer to finished chip, invests continuously in research and holds over a thousand patents; its customers include well-known international brands. This integrated production is the reason for consistent quality – and therefore for this luminaire's high efficiency and long service life.

Mounting & track compatibility

The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.

Choose your colour temperature

• 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
• 6000 K cool white – proven in warehouses, production and high spaces.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Black housing: luminous flux & look

Why is a lower luminous flux stated for black than for white? It comes down to reflection: light hitting white surfaces inside the housing is directed outwards with almost no loss; black surfaces absorb part of it. Whatever is absorbed never leaves the luminaire and is missing from the lumen figure – efficacy in lm/W drops slightly as a result. In exchange, the black version blends unobtrusively into demanding store concepts and glares less.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Typical locations are shops, supermarkets, specialist stores, boutiques, showrooms, galleries, offices, workshops and exhibition areas. Because the two wings tilt independently, the luminaire adapts to different tasks: straight down for even aisles, spread outwards for shelf fronts left and right, swivelled together for an accented wall. If you change your layout, simply re-aim the light.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
