LED VU2 linear light 30°x90°V-tiltable 600mm white 150lm CRI>90

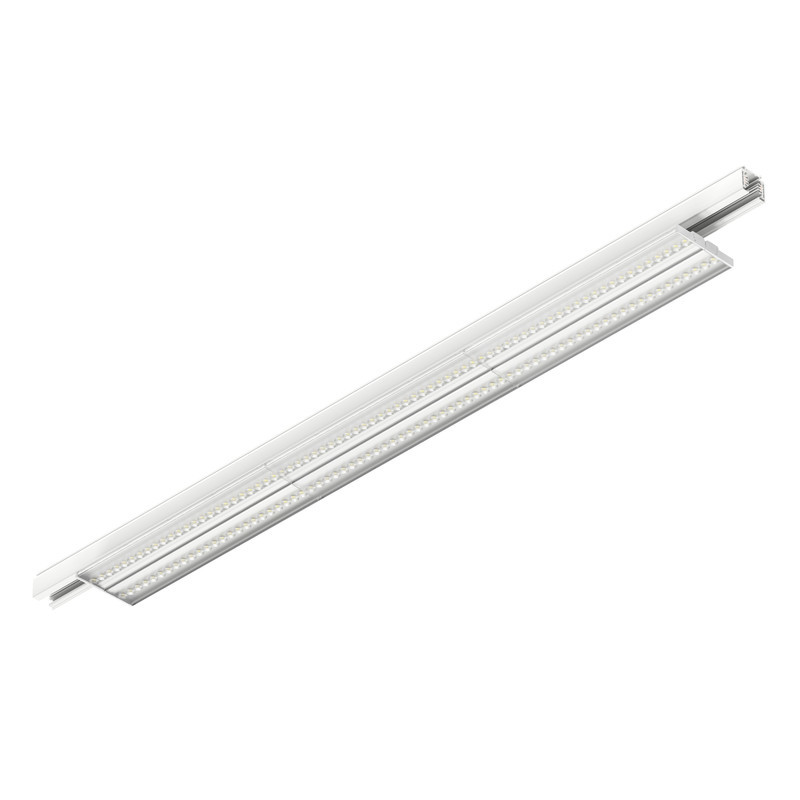

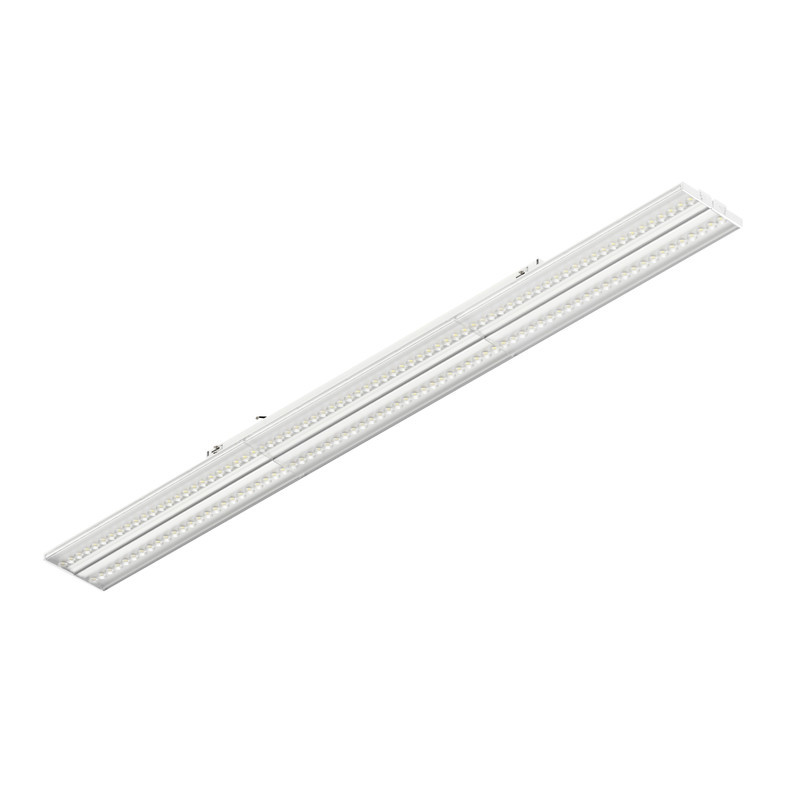

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

600 mm · white housing · CRI > 90 · 30° × 90° · 3-phase track

Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 90 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in white with PMMA lens, IP20, IK04

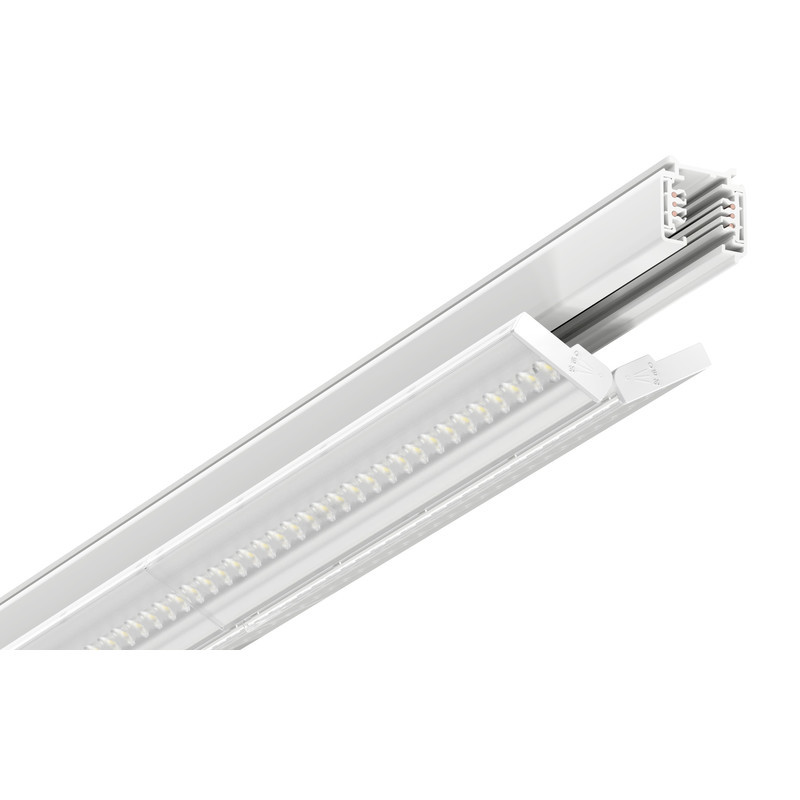

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

The colour rendering index describes how true colours look under a light source. At CRI > 90 the VU2 comes very close to daylight: fabrics show their real shade, wood and leather look warm rather than grey, food looks fresh. In boutiques, jewellers, bakeries and galleries this is often the difference between browsing and buying.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

For the LEDs we deliberately avoid unbranded parts. Fitted are chips by Sanan Optoelectronics, the LED chip market leader in China and one of the world's leading manufacturers. The listed company from Xiamen makes everything itself, from wafer to finished chip, invests continuously in research and holds over a thousand patents; its customers include well-known international brands. This integrated production is the reason for consistent quality – and therefore for this luminaire's high efficiency and long service life.

Mounting & track compatibility

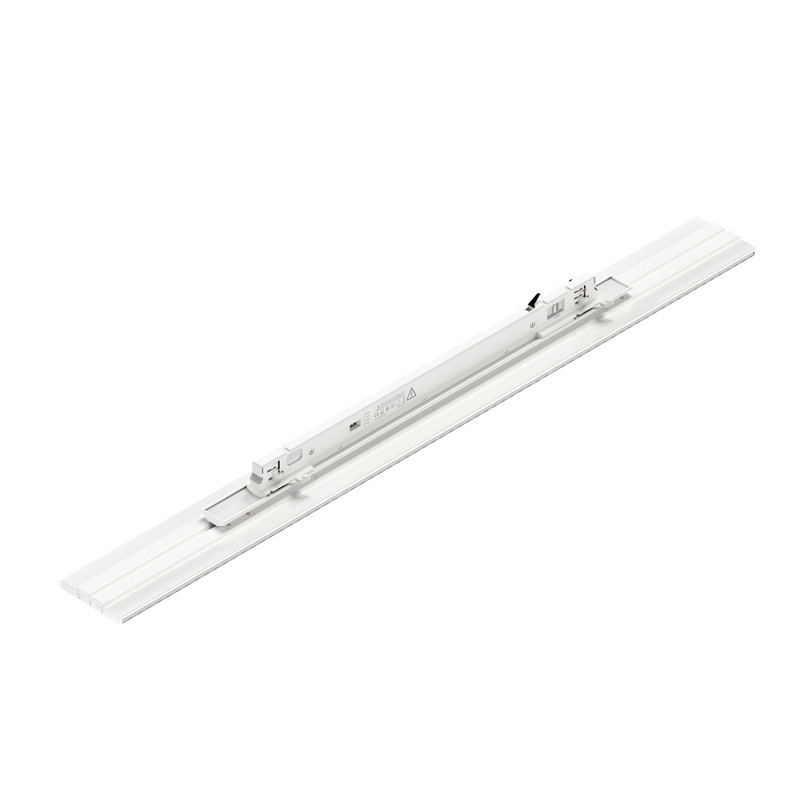

The VU2 is placed onto a 3-phase busbar using its adapter – insert, lock, done. No electrical work at the ceiling is required, and you can change the position and number of luminaires yourself at any time. The three phases (L1, L2, L3) let you switch several lighting groups separately, for example general lighting and shop window. The adapter is compatible with the common European systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard. The luminaire is Safety Class I with protective earth.

Choose your colour temperature

• 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
• 6000 K cool white – proven in warehouses, production and high spaces.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Why CRI > 90 delivers slightly fewer lumens

Why does CRI > 90 deliver fewer lumens than CRI > 80? Better colour rendering calls for a more complete spectrum, especially a stronger red component. The human eye is less sensitive precisely in that range, so this portion of the light contributes little to measured brightness. Together with conversion losses this yields slightly lower efficacy – a trade worth making wherever colours must look exact.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions
