Description

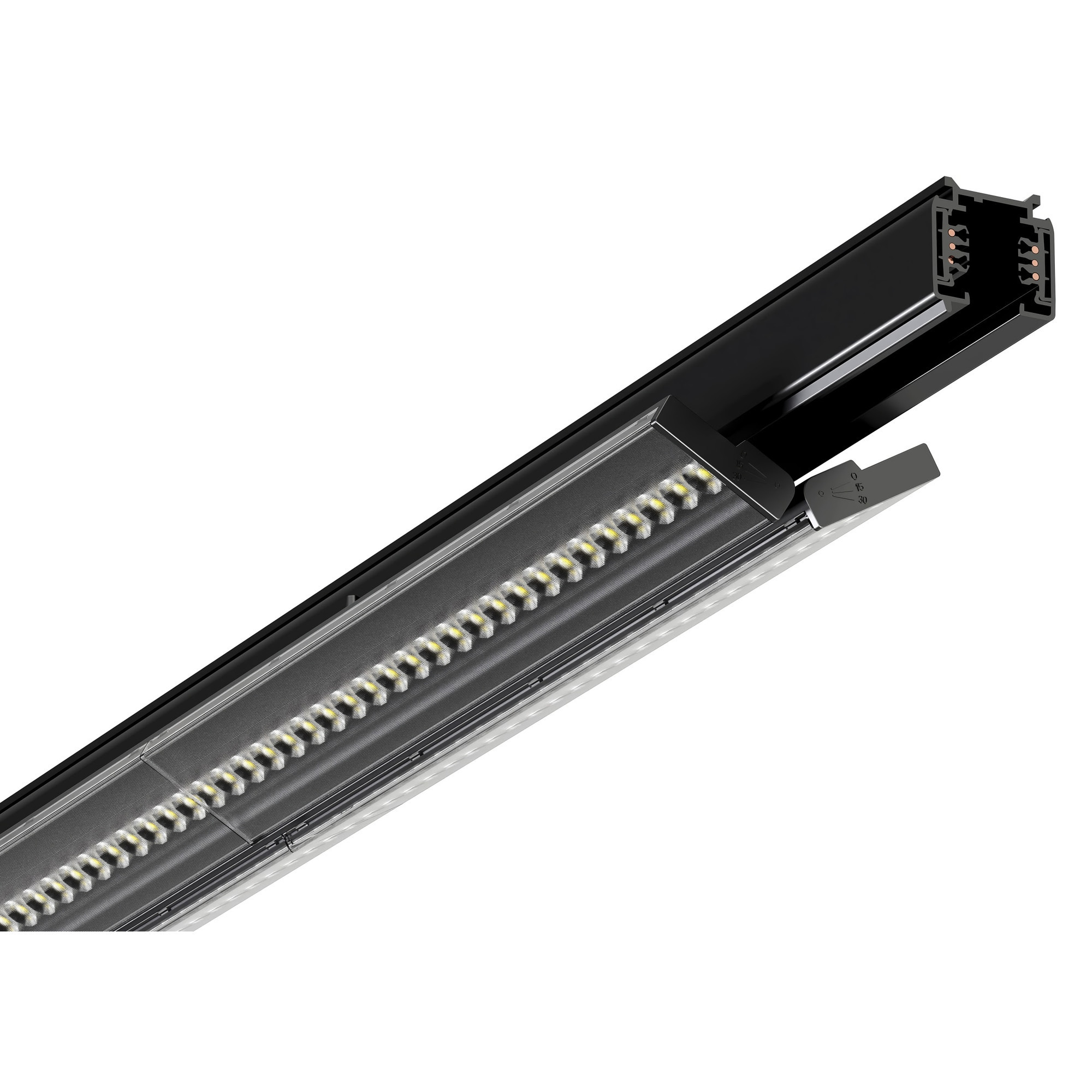

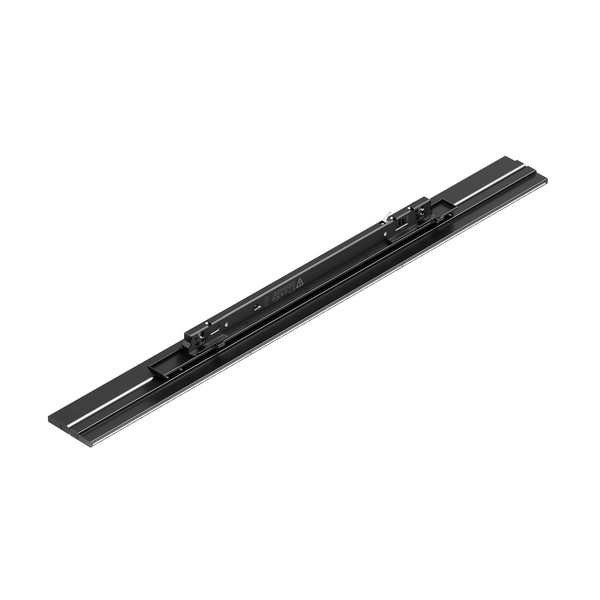

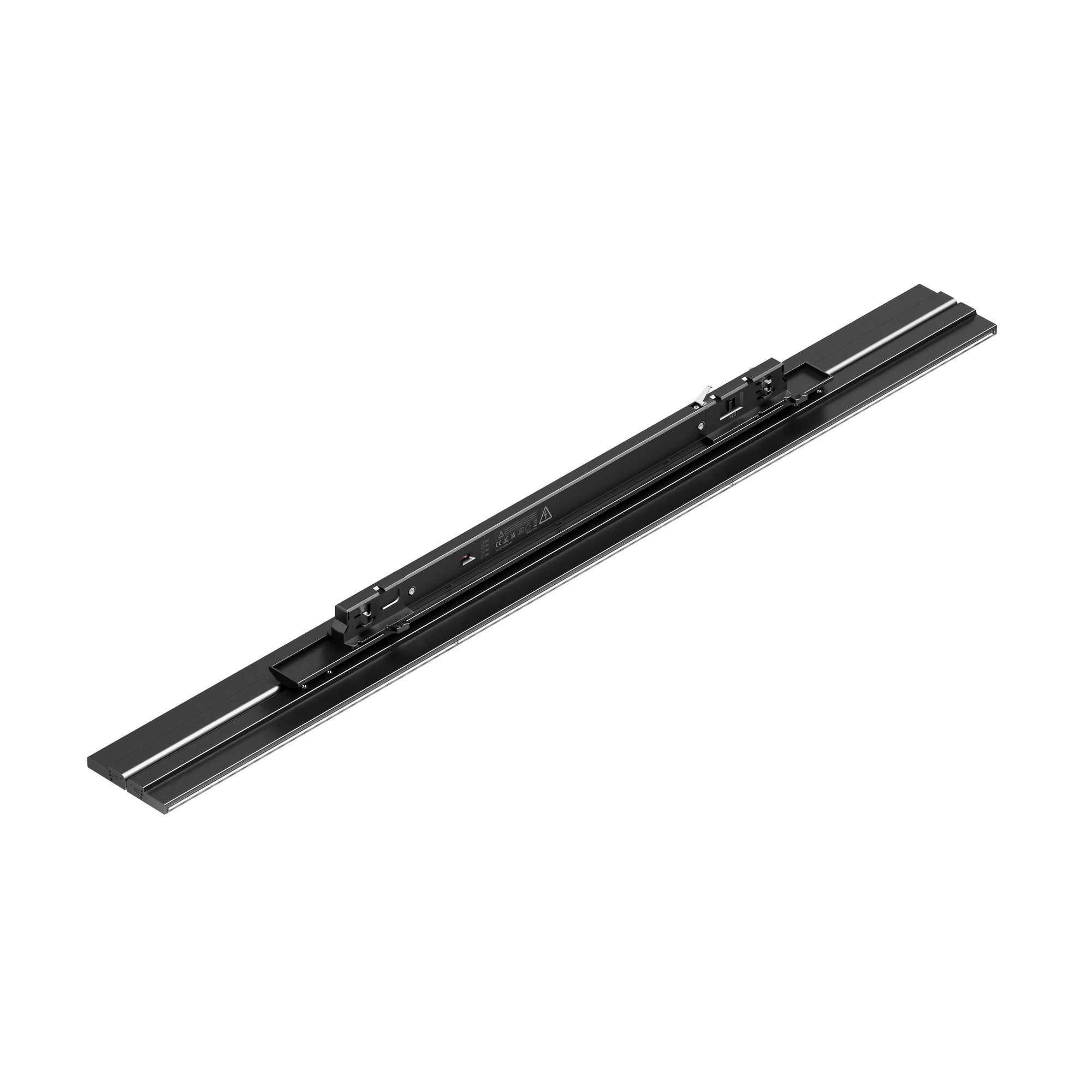

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings
900 mm · black · 3000 K warm white · CRI > 90 · 30° × 90°
The LED VU2 linear luminaire is a track spotlight with two separately movable light wings. Both wings tilt independently by up to 30° – inwards, outwards or both in the same direction. A single luminaire can therefore cover opposite shelf rows or concentrate all of its light on one side. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.
Key benefits at a glance
Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire. | 30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill. |
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch. | High efficiency 135 lm/W – up to 7,425 lm at 55 W. |
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras. | Long service life L80 at 100,000 h thanks to Sanan LED chips. |
Features in detail
- Two separately tiltable light wings, each adjustable 0° to 30°
- Beam angle 30° × 90°, 30° × 30° optionally available on request
- Colour rendering CRI > 90 for natural colours
- Switchable power in four steps without tools
- Optionally available with DALI-2 dimming on request
- For 3-phase track – compatible with common track systems
- Aluminium housing in black with PMMA lens, IP20, IK04
Two tiltable wings: one luminaire, many lighting effects
The two movable wings are the heart of this luminaire. Each wing tilts individually from 0° to 30°. In the base position light falls straight down and lights the aisle evenly. Tilt the wings in opposite directions and you cover a shelf row on the left and right – without installing a second row of luminaires. That saves fixtures, installation time and energy.
Beam angles: which one suits your application?
The beam angle determines how widely light leaves the luminaire. The VU2 comes with 30° × 90° as standard; a narrower version is available on request. Here is what distinguishes the two optics:
- 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
- 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
- Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.
As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.
Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.
CRI > 90: colours that are true
CRI > 90 means particularly true-to-life colour rendering. The light contains all colour components in balanced proportions, so even subtle gradations remain visible. Wherever goods have to convince through their colour – fashion, cosmetics, jewellery, delicatessen or art – this version is the one to choose.
Long service life – L80 at 100,000 hours
Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.
High-quality LED chips by Sanan
The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.
Mounting & track compatibility
The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.
Colour temperature 3000 K – warm white
Warm white light feels cosy and inviting – proven in hospitality, hotels, boutiques and reception areas.
Why CRI > 90 delivers slightly fewer lumens
The fact that the CRI 90 version is a little dimmer is directly linked to its strength. To render colours true to life, the LED needs a fuller spectrum with more red. That red content counts for less in the lumen measurement because the eye responds less there, and phosphor conversion adds losses. The bottom line: a few lumens fewer, but colours that look in the shop as they do in sunlight.
Black housing: luminous flux & look
The difference in luminous flux between a black and a white housing is not a quality issue but simply physics. Inside the luminaire light is redirected several times before it exits. White surfaces reflect almost completely, black ones absorb a share and convert it into heat. The result: slightly fewer lumens and marginally lower efficacy. If an unobtrusive, elegant appearance matters more to you than the last lumen, black is the right choice.
Power steps & luminous flux
| Power step | Power | Luminous flux |
|---|---|---|
| Step 1 (maximum) | 55 W | 7,425 lm |
| Step 2 | 47 W | 6,345 lm |
| Step 3 | 39 W | 5,265 lm |
| Step 4 (minimum) | 30 W | 4,050 lm |
Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.
Technical data
| Length | 900 mm |
| Power (switchable) | 55 W / 47 W / 39 W / 30 W (by switch) |
| Luminous flux | 7,425 lm / 6,345 lm / 5,265 lm / 4,050 lm |
| Efficacy | 135 lm/W |
| Colour temperature | 3000 K (warm white) |
| Colour rendering | CRI > 90 |
| Beam angle | 30° × 90° (standard); 30° × 30° optionally available on request |
| Tilt range | two wings, individually tiltable 0° to 30° |
| Mounting | 3-phase track (via adapter), phase selection L1/L2/L3 |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC/DC 220–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Switching cycles | > 500,000 |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black |
| Dimensions | 900 × 84.6 × 55 mm (L × W × H) |
| Weight | 2.08 kg |
| Ambient temperature | −20 °C to +40 °C |
| Storage temperature | −25 °C to +65 °C |
| Glow wire test | 650 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
The VU2 is at home wherever a track system is in place and surfaces need even brightness. In retail it lights long aisles and shelf rows; thanks to the oppositely tiltable wings, one row of luminaires is often enough for two shelf fronts. In supermarkets and specialist stores it provides calm base lighting, in boutiques and showrooms accentuated product presentation. Offices, meeting rooms, galleries, workshops and exhibition halls also benefit from the flexible light control.
Scope of delivery
- 1× LED VU2 linear luminaire with 3-phase adapter
- Installation instructions
Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
