LED VU2 linear light 30°x90°V-tiltable 900mm black 150lm CRI>80 4000K

Item number: VU2C89SV-2

Category: VU2 LED linear light

Lightcolor:: 3000K4000K5000K6000K

109,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	104,90 €
12	99,90 €

Available

Shipping time: 15 - 16 workdays

Description

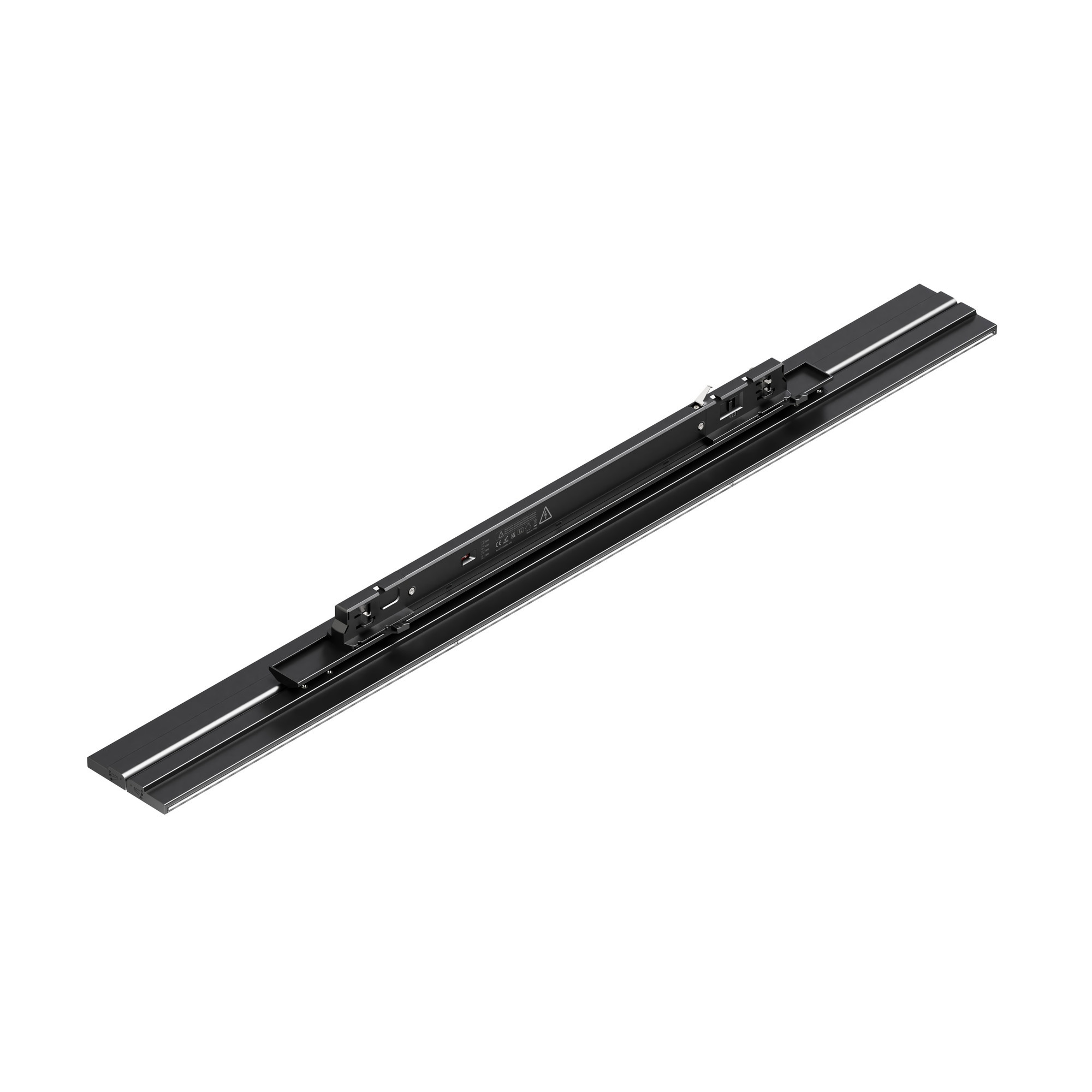

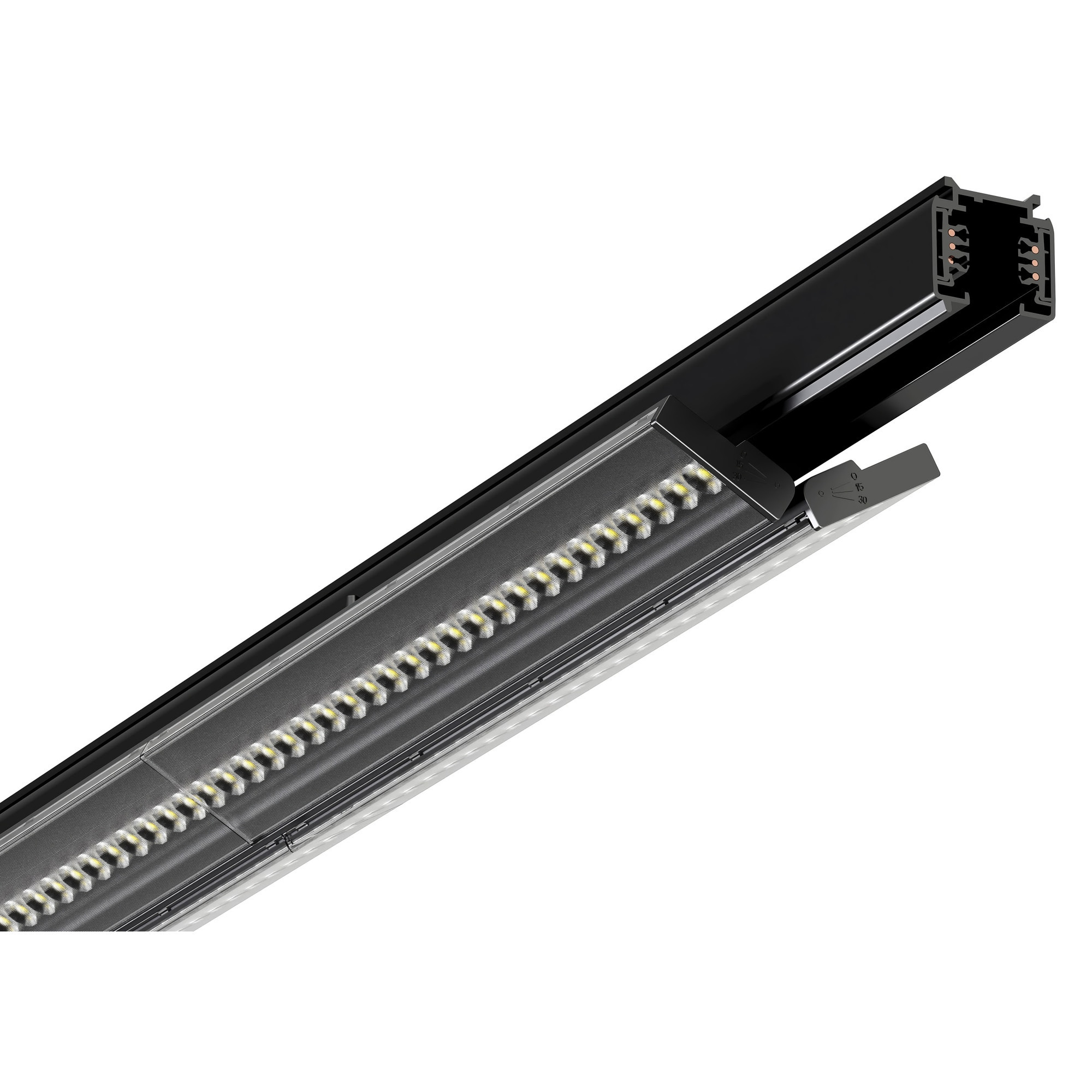

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

900 mm · black · 4000 K neutral white · CRI > 80 · 30° × 90°

900 mmblackCRI > 804000 K30° × 90°2 wings 0–30°150 lm/WL80 100,000 h

With the LED VU2 linear luminaire you get a track spotlight that adapts to the room instead of the other way round. The two light wings move individually and can be aimed together or in opposite directions. One row of luminaires can light a wide aisle, two shelf fronts or a single wall. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire.	30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill.
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch.	High efficiency 150 lm/W – up to 8,250 lm at 55 W.
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

Two separately tiltable light wings, each adjustable 0° to 30°
Beam angle 30° × 90°, 30° × 30° optionally available on request
Colour rendering CRI > 80 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Aluminium housing in black with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:

30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: maximum light per euro

CRI > 80 is the proven standard in retail and industry. Colour rendering is good, while efficiency at 150 lm/W is considerably higher than in the CRI 90 version. Anyone running many luminaires noticeably reduces energy costs – with a light quality that is perfectly adequate for most applications.

Long service life – L80 at 100,000 hours

Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.

High-quality LED chips by Sanan

For the LEDs we deliberately avoid unbranded parts. Fitted are chips by Sanan Optoelectronics, the LED chip market leader in China and one of the world's leading manufacturers. The listed company from Xiamen makes everything itself, from wafer to finished chip, invests continuously in research and holds over a thousand patents; its customers include well-known international brands. This integrated production is the reason for consistent quality – and therefore for this luminaire's high efficiency and long service life.

Mounting & track compatibility

All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.

Colour temperature 4000 K – neutral white

Neutral white light is bright and businesslike without feeling cold – the all-rounder for sales rooms, boutiques, offices and exhibitions.

Black housing: luminous flux & look

Why is a lower luminous flux stated for black than for white? It comes down to reflection: light hitting white surfaces inside the housing is directed outwards with almost no loss; black surfaces absorb part of it. Whatever is absorbed never leaves the luminaire and is missing from the lumen figure – efficacy in lm/W drops slightly as a result. In exchange, the black version blends unobtrusively into demanding store concepts and glares less.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	55 W	8,250 lm
Step 2	47 W	7,050 lm
Step 3	39 W	5,850 lm
Step 4 (minimum)	30 W	4,500 lm

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	900 mm
Power (switchable)	55 W / 47 W / 39 W / 30 W (by switch)
Luminous flux	8,250 lm / 7,050 lm / 5,850 lm / 4,500 lm
Efficacy	150 lm/W
Colour temperature	4000 K (neutral white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (standard); 30° × 30° optionally available on request
Tilt range	two wings, individually tiltable 0° to 30°
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	Black
Dimensions	900 × 84.6 × 55 mm (L × W × H)
Weight	2.08 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

Typical locations are shops, supermarkets, specialist stores, boutiques, showrooms, galleries, offices, workshops and exhibition areas. Because the two wings tilt independently, the luminaire adapts to different tasks: straight down for even aisles, spread outwards for shelf fronts left and right, swivelled together for an accented wall. If you change your layout, simply re-aim the light.

Scope of delivery

1× LED VU2 linear luminaire with 3-phase adapter
Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
