LED VU3-Linearleuchte schwenkbar 60cm schwarz 135lm CRI>90

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

600 mm · black housing · CRI > 90 · switchable power

A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 90 for natural, rich colours
• Switchable power 48 W / 40 W / 34 W / 27 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in black, PMMA lens, IK04

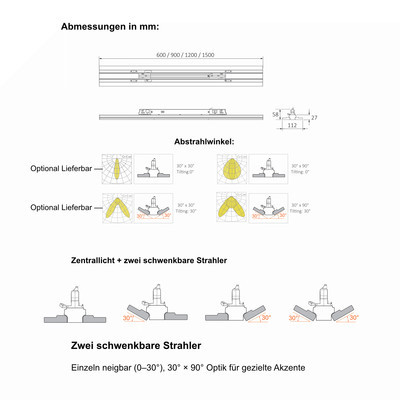

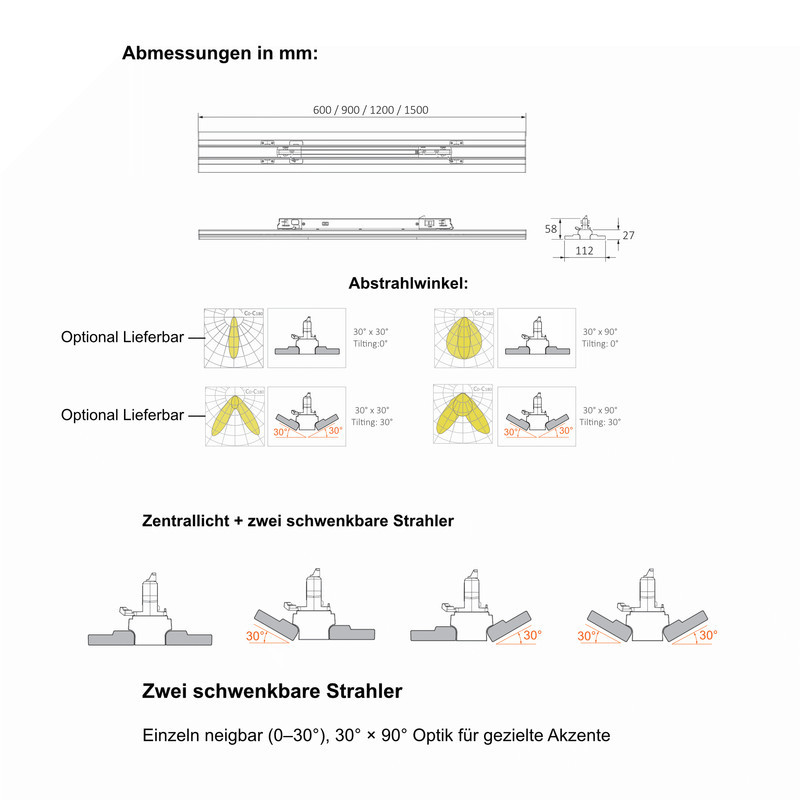

Central light + two tiltable spots

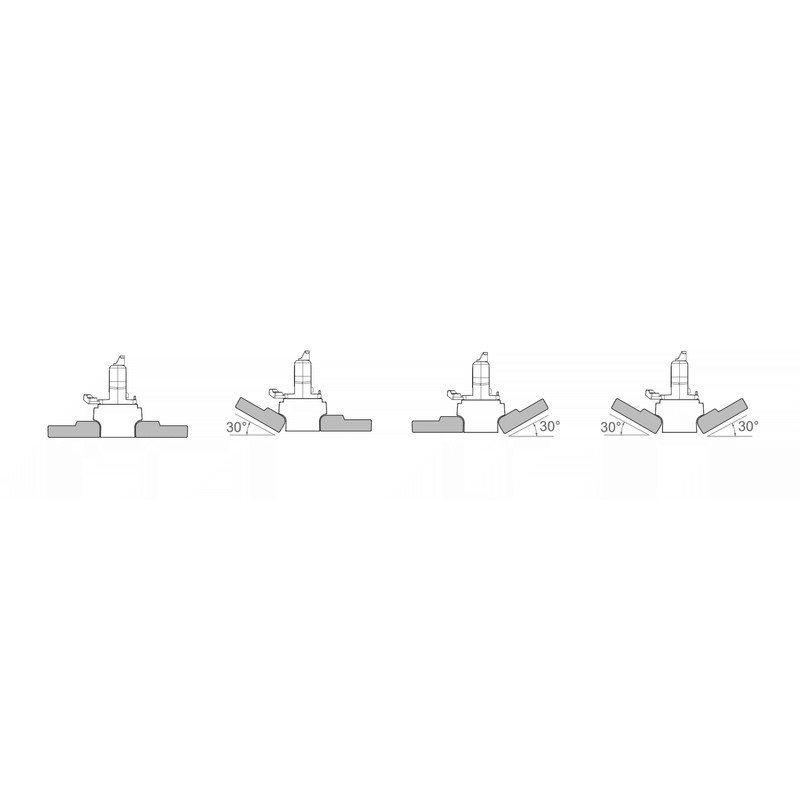

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

For shelf and aisle lighting the tiltable spots are ideal – the light can be aimed exactly at shelf boards and displays, presenting goods along the aisles bright and appealing.

Perfect colour rendering for retail & boutiques

With a colour rendering index of CRI > 90 this luminaire shows colours almost as they appear in daylight. Reds, skin tones and material shades stay rich and natural – a decisive advantage in boutiques, fashion stores, jewellers and anywhere goods need to look their best. Fabrics, food and displays appear more premium, actively supporting the buying decision.

Long service life – L80 at 100,000 hours

The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

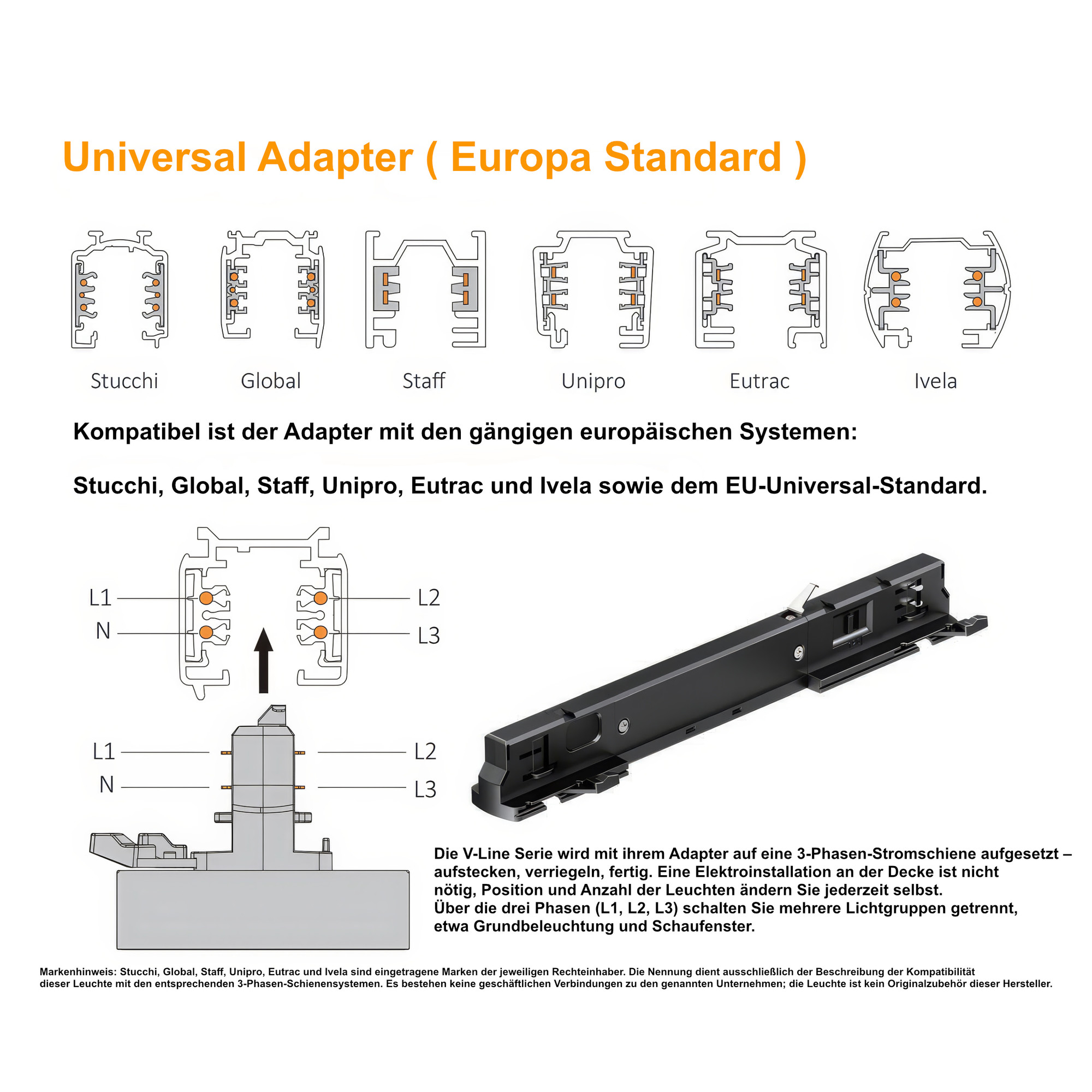

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Choose your colour temperature

• 3000 K warm white – suited to hospitality, boutiques, hotels and reception areas.
• 4000 K neutral white – the right choice for office, retail, boutiques, showrooms and workshops.
• 5000 K daylight white – ideal for technical work, assembly, labs and visually demanding areas.
• 6000 K cool white – proven in storage, production, work halls and high spaces.

This luminaire is available in four colour temperatures. Pick the variant that suits your application.

Why CRI > 90 delivers slightly fewer lumens

The fact that CRI > 90 delivers somewhat fewer lumens than CRI > 80 is directly linked to its better colour rendering. To render colours true to life, the LED needs a broader spectrum with an increased red share. This share contributes less to measured brightness because the eye is less responsive there, and the required conversion causes extra losses. The result is a slightly lower luminous flux and somewhat lower efficacy (lm/W) – a worthwhile trade wherever perfect colours matter more than the last lumen.

Black housing: luminous flux & look

The black housing delivers somewhat fewer lumens than the white one because of the different reflection inside the luminaire. Part of the LED light is redirected off the internal surfaces before it leaves the fixture. White surfaces reflect almost completely, whereas black surfaces absorb a share and release it as heat. As a result, luminous flux and efficacy (lm/W) are slightly lower with a black housing. The trade-off pays off wherever a discreet, low-glare and premium look matters more than the last lumen – for example in boutiques, shops and upscale interiors.

Technical data

Applications

At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Select the colour temperature to match each application.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
