Description

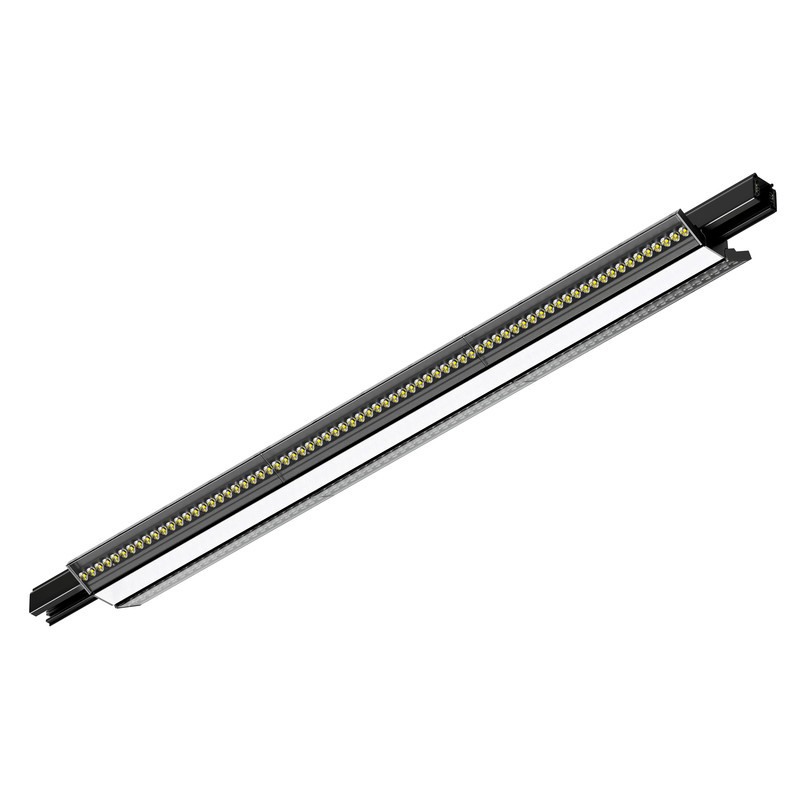

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
600 mm · black housing · CRI > 80 · switchable power
A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 145 lm/W – up to 6,960 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 80 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in black, PMMA lens, IK04
Central light + two tiltable spots

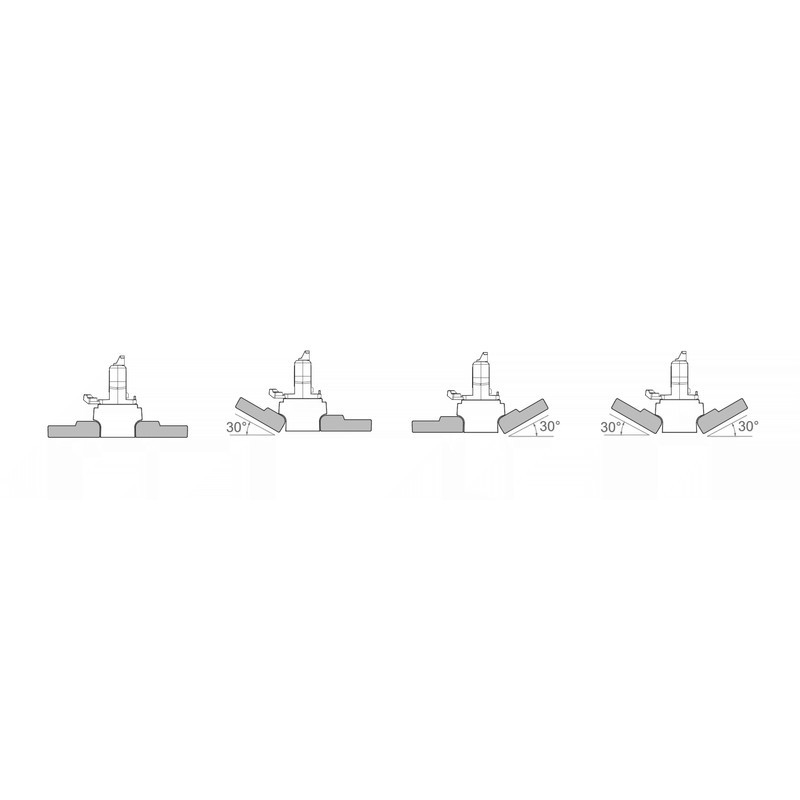

At its core is the mix of a 100° central module for flat illumination and two tiltable 30° × 90° spots. The 0° to 30° tilt directs light onto walls, displays or work surfaces – variable and adjustable at any time.
The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.
Efficient & bright
The CRI > 80 variant combines solid colour rendering with especially high efficiency (145 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.
Long service life – L80 at 100,000 hours
100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.
High-quality LED chips by Sanan
At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.
Mounting & track compatibility

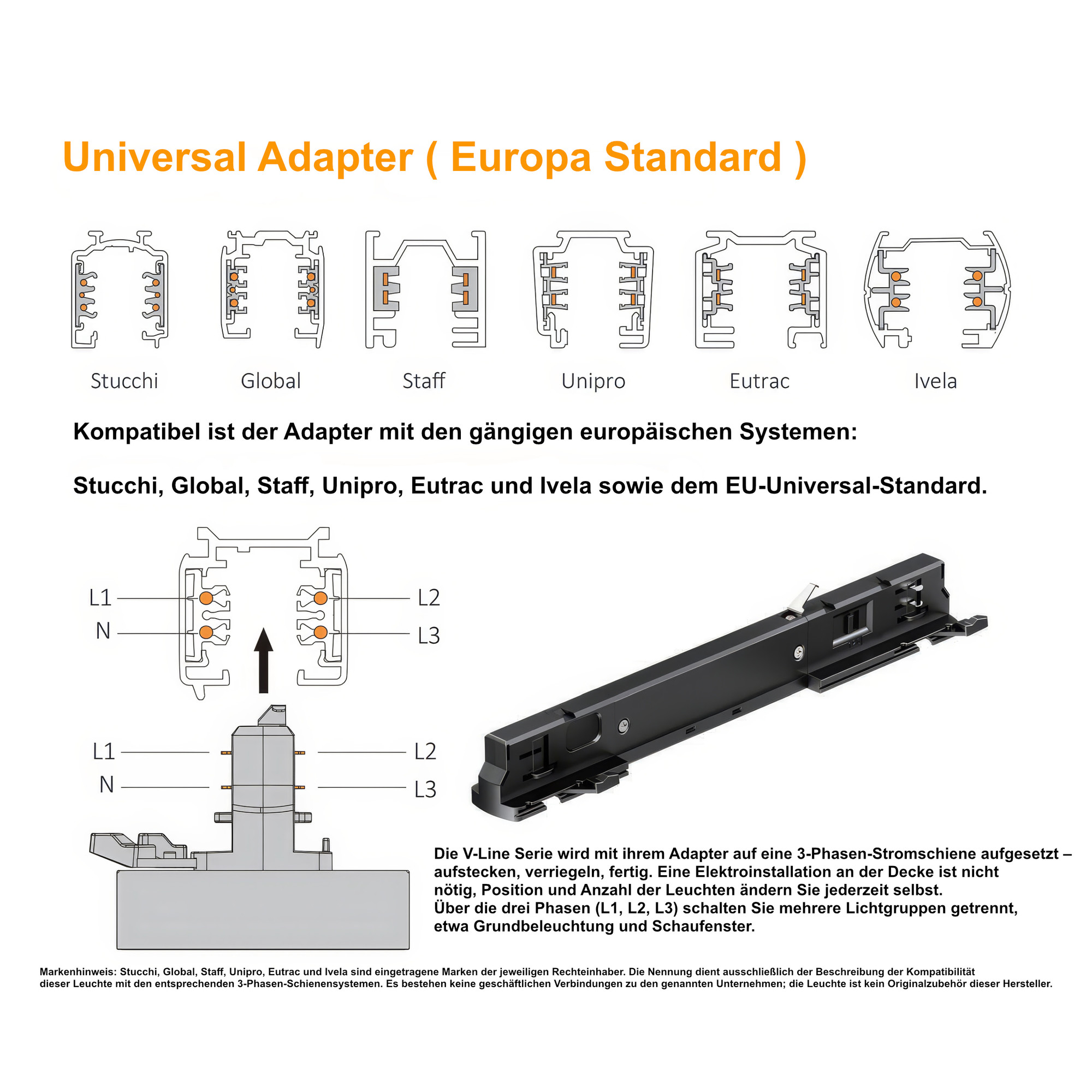

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 16 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.
Choose your colour temperature
- 3000 K warm white – suited to hospitality, boutiques, hotels and reception areas.
- 4000 K neutral white – the right choice for office, retail, boutiques, showrooms and workshops.
- 5000 K daylight white – ideal for technical work, assembly, labs and visually demanding areas.
- 6000 K cool white – proven in storage, production, work halls and high spaces.
This luminaire is available in four colour temperatures. Pick the variant that suits your application.
Black housing: luminous flux & look
The black-housing version intentionally reaches a slightly lower luminous flux than the white one – for a physical reason. Inside the luminaire, part of the light hits the housing and optic surfaces. White surfaces bounce this light back and outward with almost no loss, while black surfaces absorb some of it and turn it into heat. Less reflected light means a marginally lower lumen figure and slightly lower efficacy (lm/W). In exchange, the black version glares less and blends particularly elegantly and unobtrusively into demanding spaces such as boutiques and showrooms.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 6,960 lm / 40 W = 5,800 lm / 34 W = 4,930 lm / 27 W = 3,915 lm |
| Efficacy | 145 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K – select your preferred colour temperature when ordering |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black (matt) |

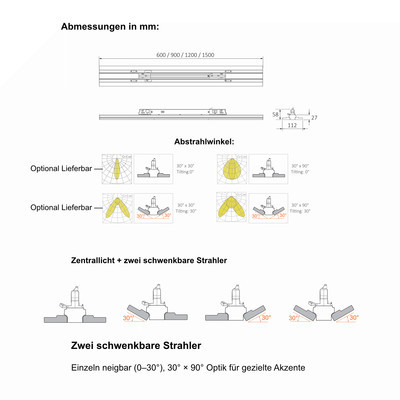

| Dimensions (L×W×H) | 588 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Select the colour temperature to match each application.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
