LED VU3-Linearleuchte schwenkbar 90cm schwarz 145lm CRI>80

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

900 mm · black housing · CRI > 80 · switchable power

A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 80 for natural, rich colours
• Switchable power 55 W / 47 W / 39 W / 30 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in black, PMMA lens, IK04

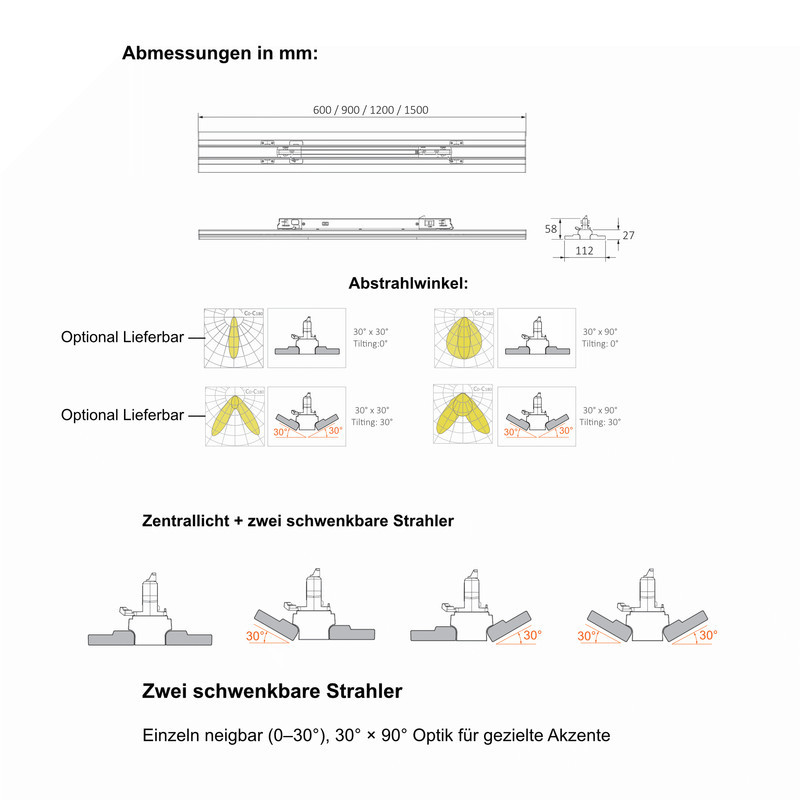

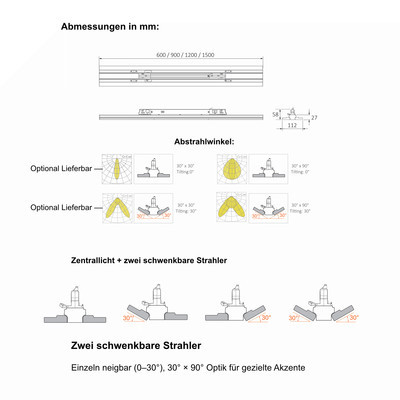

Central light + two tiltable spots

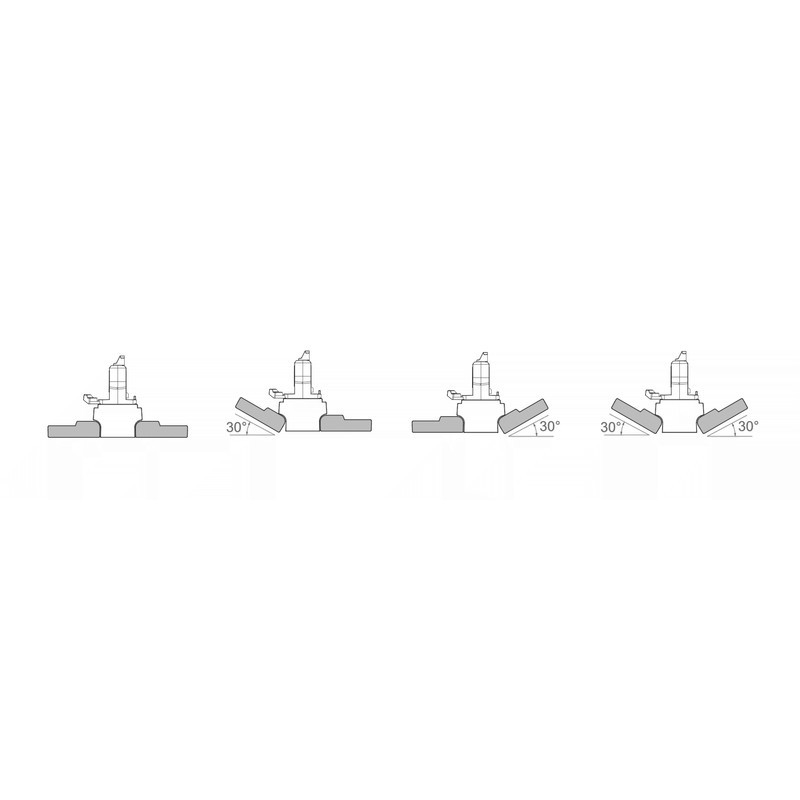

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 145 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

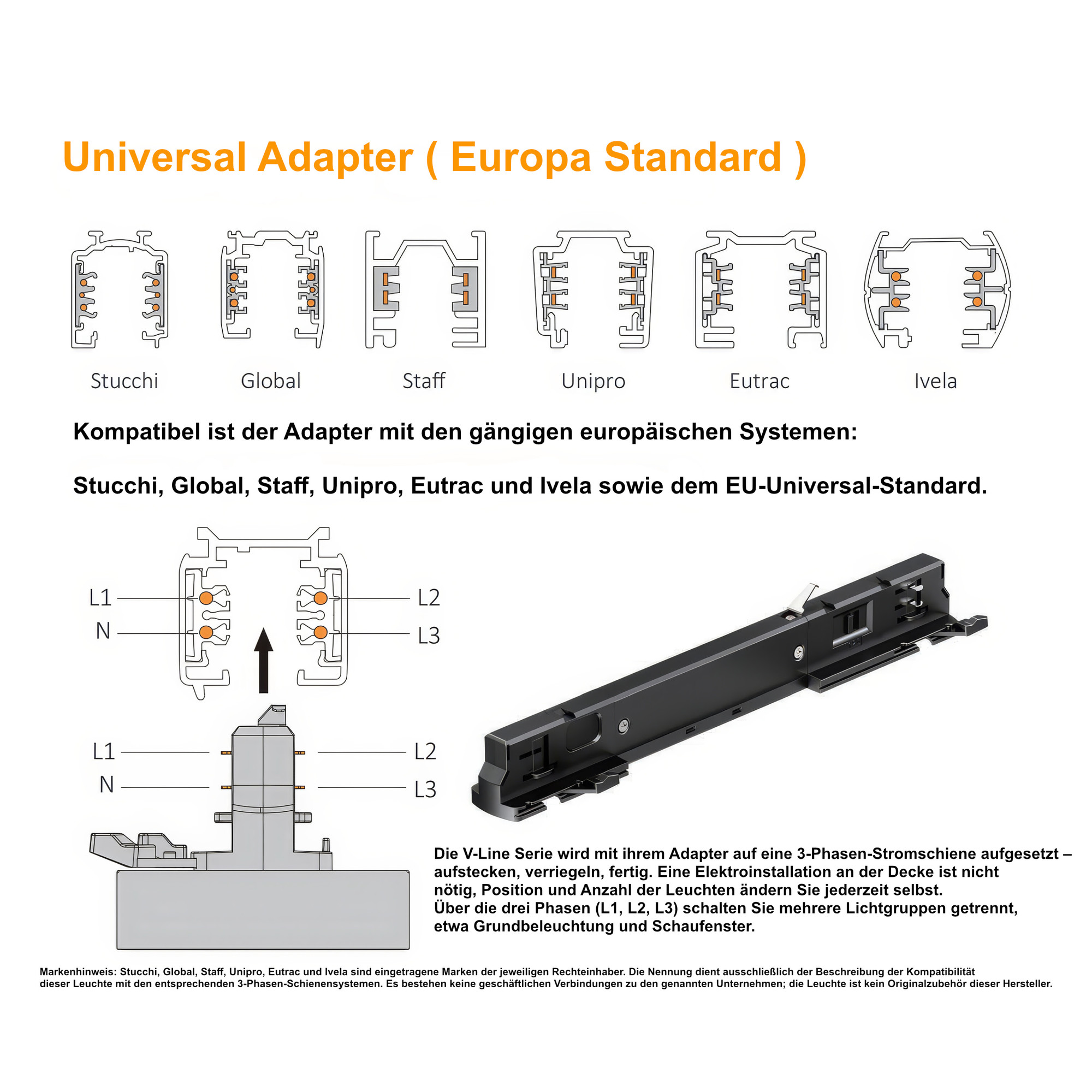

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 14 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Choose your colour temperature

• 3000 K warm white – suited to hospitality, boutiques, hotels and reception areas.
• 4000 K neutral white – the right choice for office, retail, boutiques, showrooms and workshops.
• 5000 K daylight white – ideal for technical work, assembly, labs and visually demanding areas.
• 6000 K cool white – proven in storage, production, work halls and high spaces.

This luminaire is available in four colour temperatures. Pick the variant that suits your application.

Black housing: luminous flux & look

Why does the black-housing version deliver slightly fewer lumens? The reason lies in the reflection inside the luminaire: bright, white surfaces reflect the generated light very efficiently and direct almost all of it outward. Dark or black surfaces, by contrast, absorb part of the light that hits the internal surfaces – this portion does not leave the luminaire and is lost as heat. That is why the luminous flux, and therefore the efficacy in lm/W, is somewhat lower with a black housing than with a white one. In return, the black version appears less glaring and more discreet – a deliberately chosen advantage in boutiques, shops and premium settings where an understated, elegant look is desired.

Technical data

Applications

At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Select the colour temperature to match each application.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
