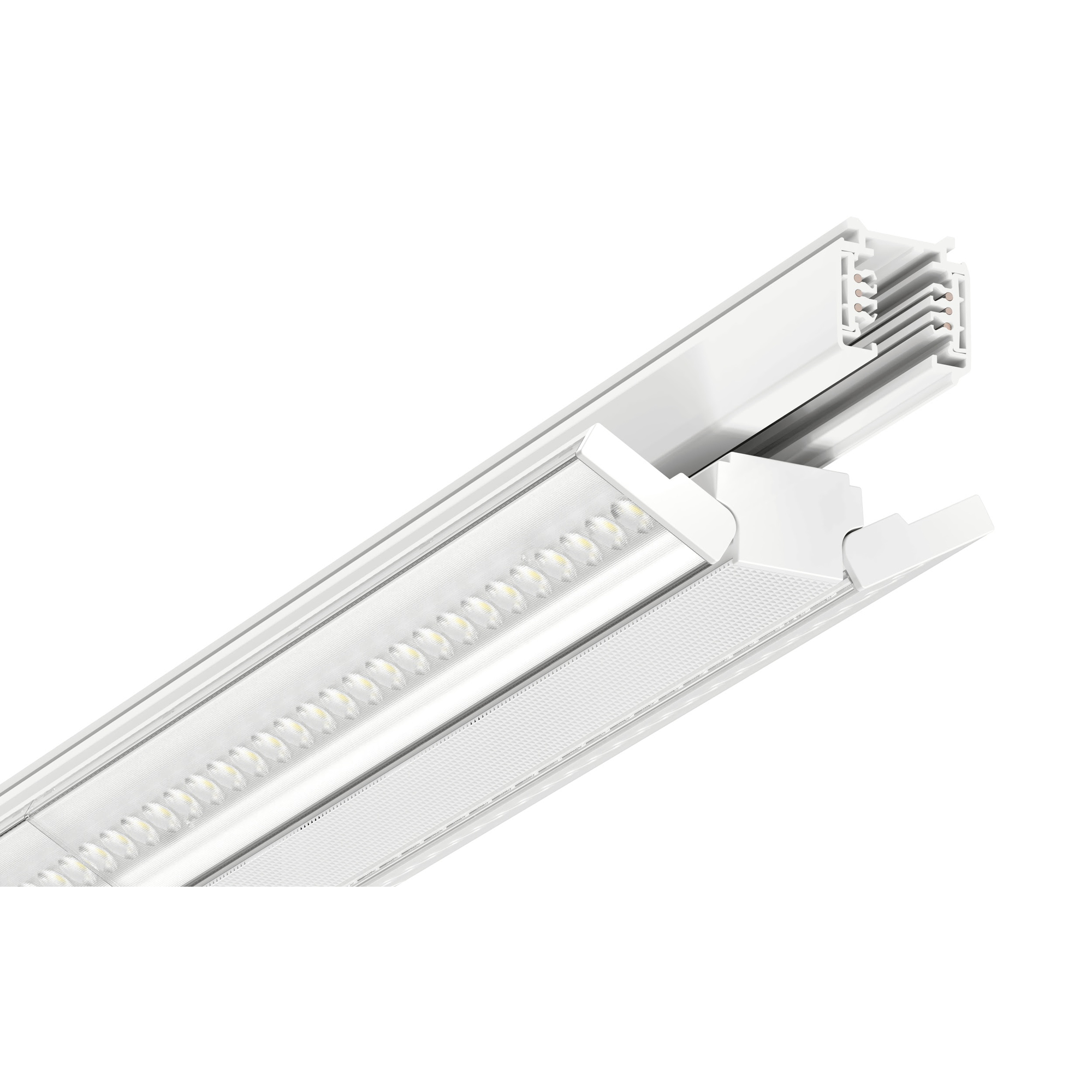

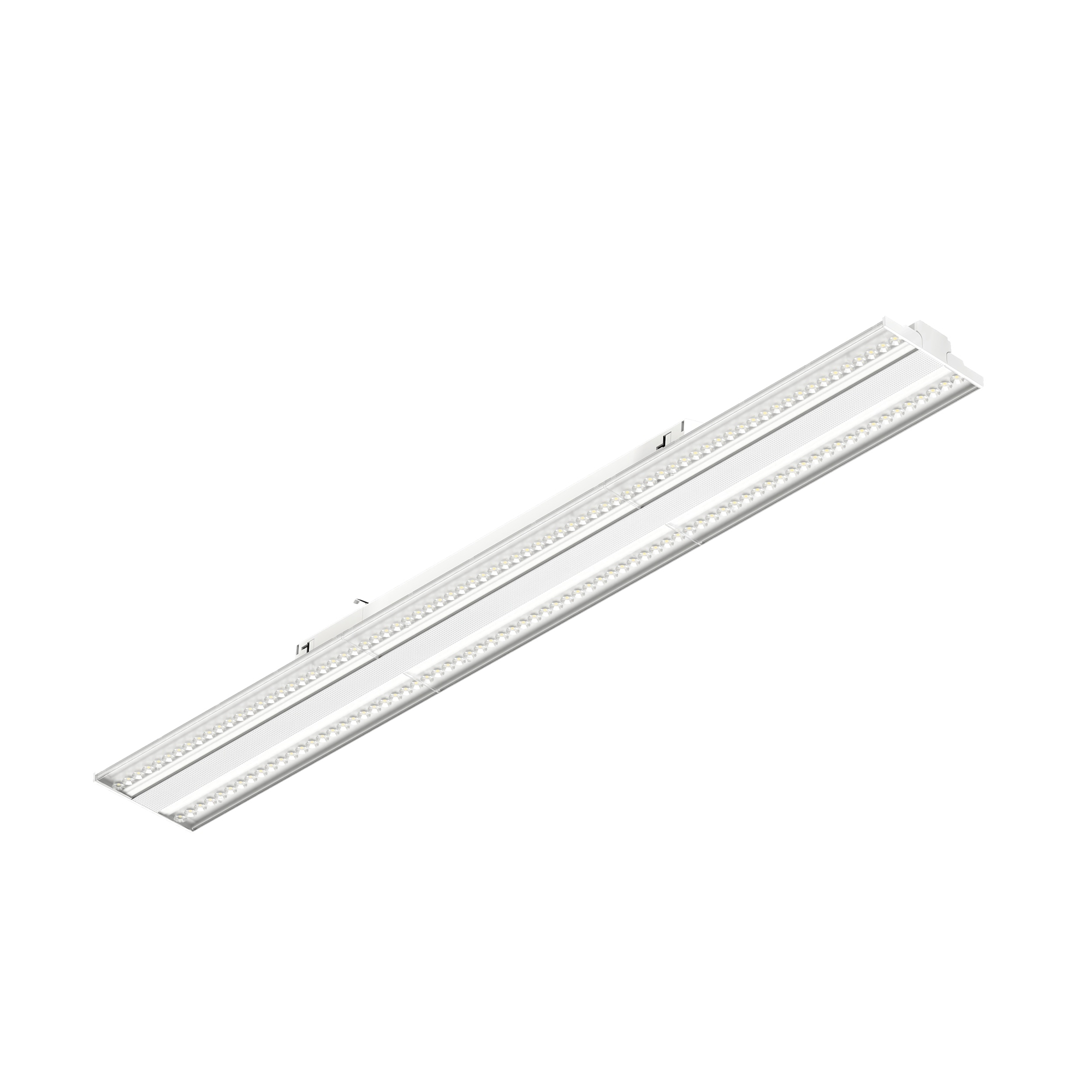

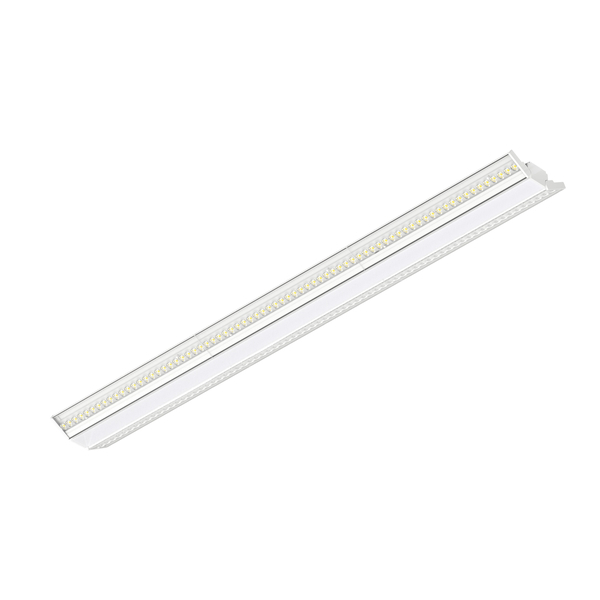

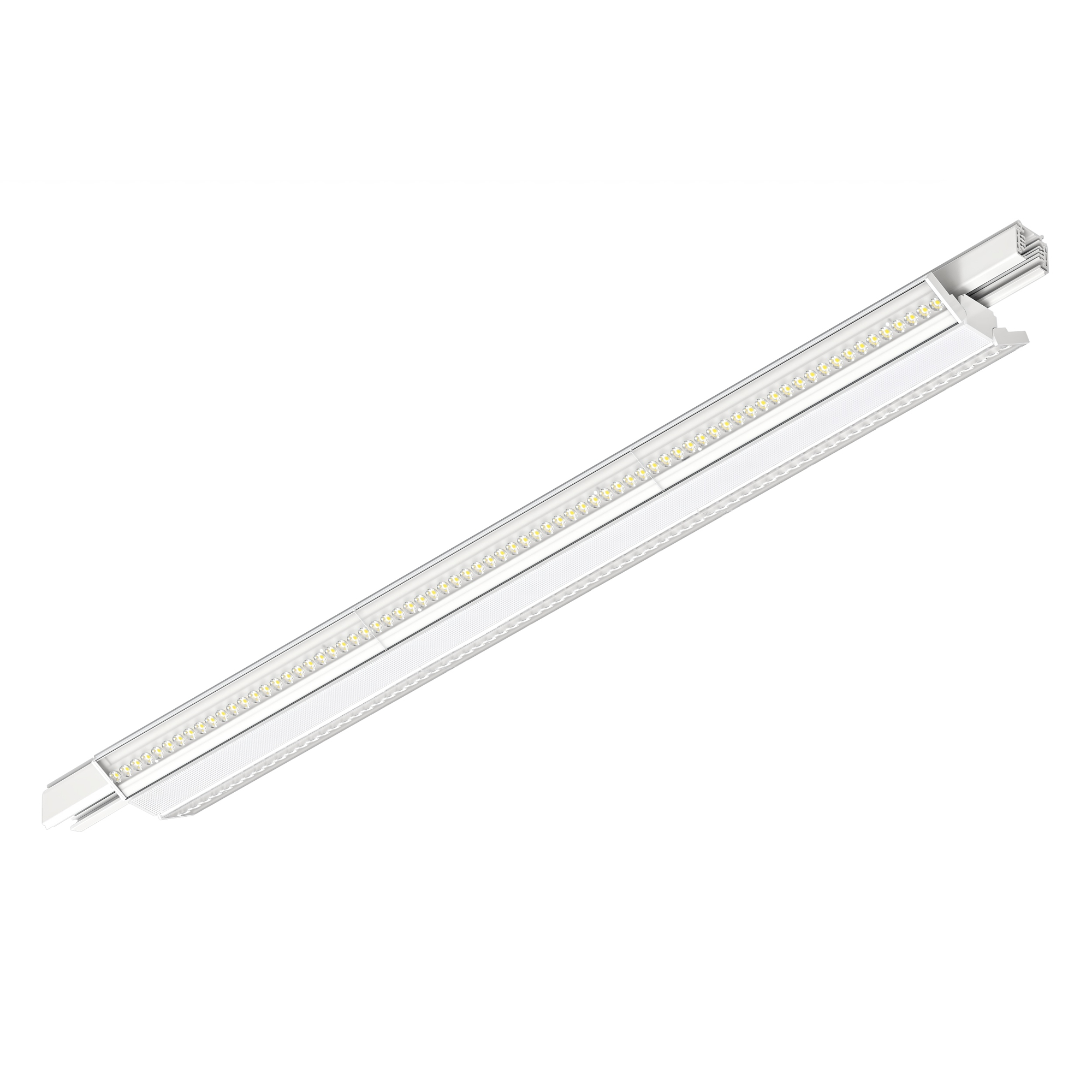

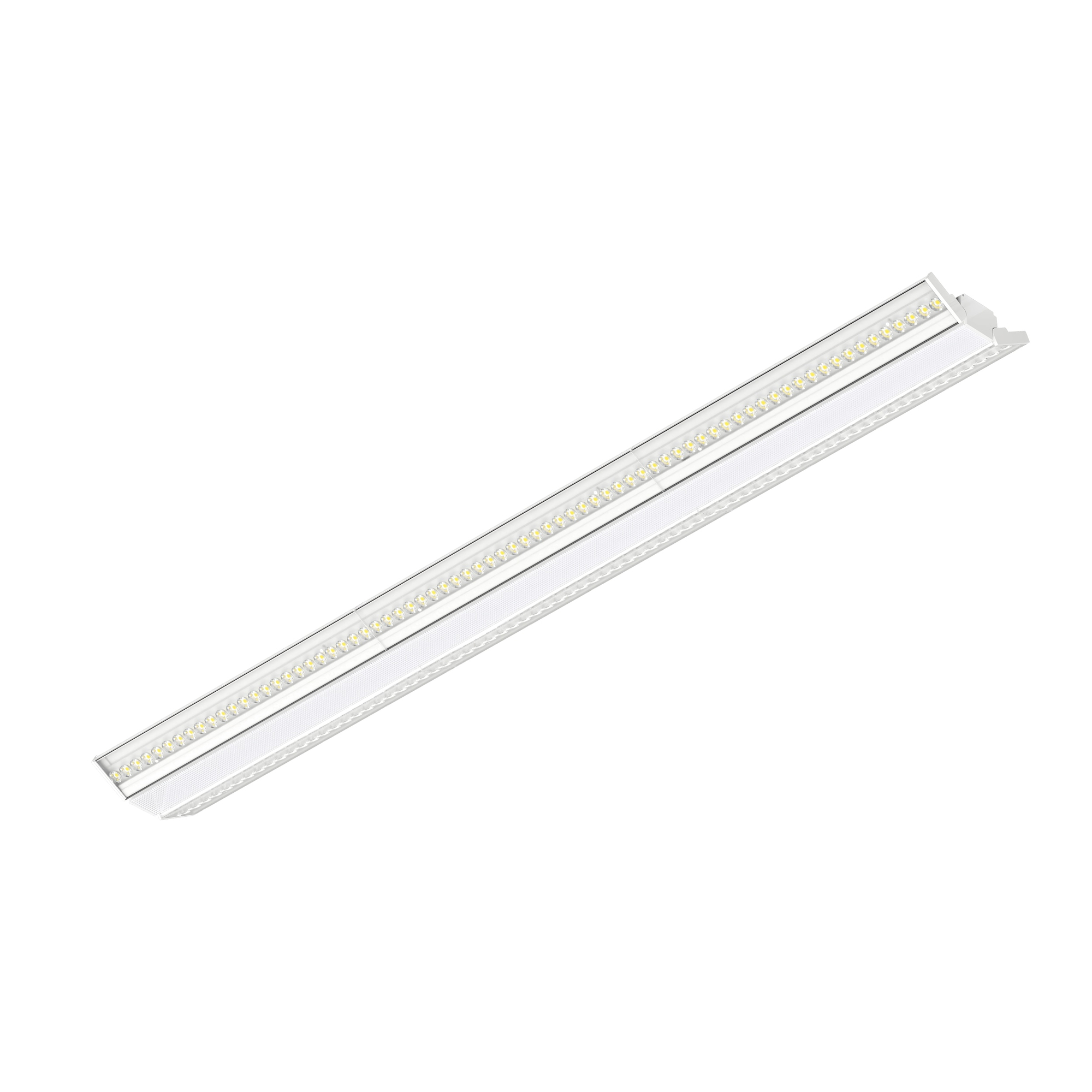

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
1200 mm · white · 3000 K warm white · CRI > 90
This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 150 lm/W – up to 7,200 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 90 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in white, PMMA lens, IK04
Central light + two tiltable spots
With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.
The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.
Perfect colour rendering for retail & boutiques
CRI > 90 delivers exceptionally brilliant, realistic colour rendering. Especially in shops, boutiques, galleries and deli areas where exact colours matter, textiles, products and displays look vivid and authentic – every detail becomes an eye-catcher and the merchandise shows at its best.
Long service life – L80 at 100,000 hours
The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.
High-quality LED chips by Sanan
This luminaire uses high-quality LED chips from Sanan. Founded in 2000 and headquartered in Xiamen, China, Sanan Optoelectronics is China's largest LED chip producer and ranks among the world's leading LED chip manufacturers. Its chips are known for high efficacy, excellent colour consistency and reliable long-term stability – qualities relied upon by many renowned lighting brands worldwide. This forms the basis for the high efficiency and long service life of the VU3 luminaire.
Mounting & track compatibility

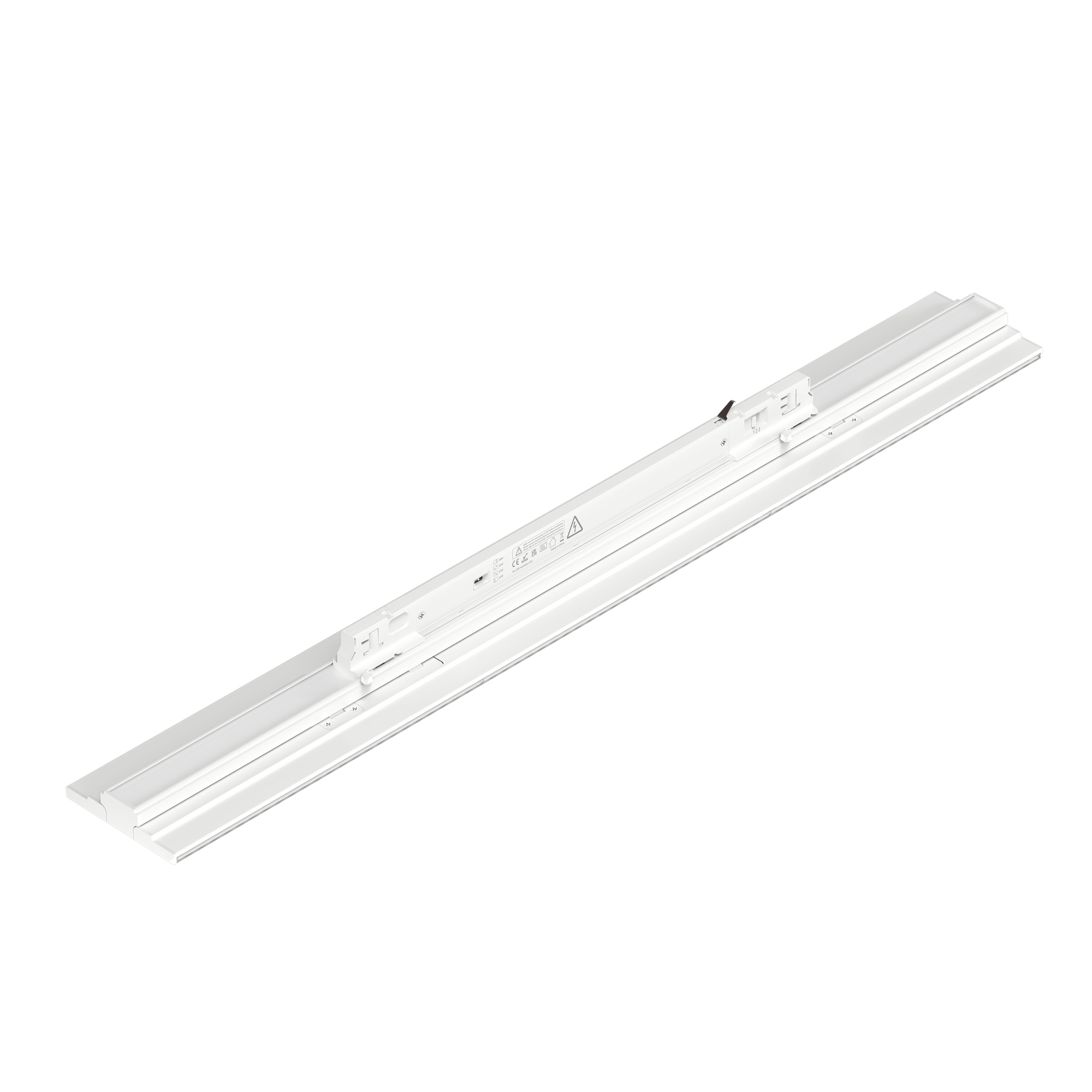

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.
Colour temperature 3000 K – warm white
Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.
Why CRI > 90 delivers slightly fewer lumens
The CRI > 90 variant intentionally reaches a slightly lower luminous flux than the CRI > 80 version – for a physical reason. Higher colour rendering calls for a fuller spectrum with more red and deep-red content. The eye is less sensitive precisely in this spectral range, and the additional phosphor conversion costs some efficiency. So at the same wattage you get slightly fewer lumens and marginally lower efficacy (lm/W) – in exchange for noticeably more natural, richer colours.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 7,200 lm / 40 W = 6,000 lm / 34 W = 5,100 lm / 27 W = 4,050 lm |
| Efficacy | 150 lm/W |
| Colour temperature | 3000 K (warm white) |
| Colour rendering | CRI > 90 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |

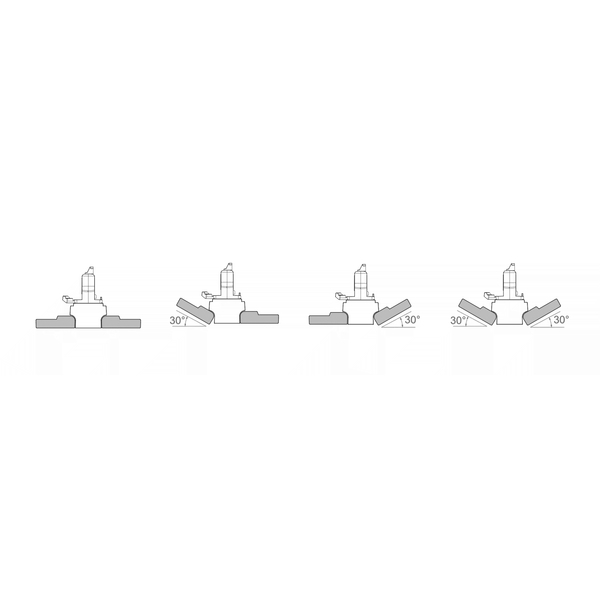

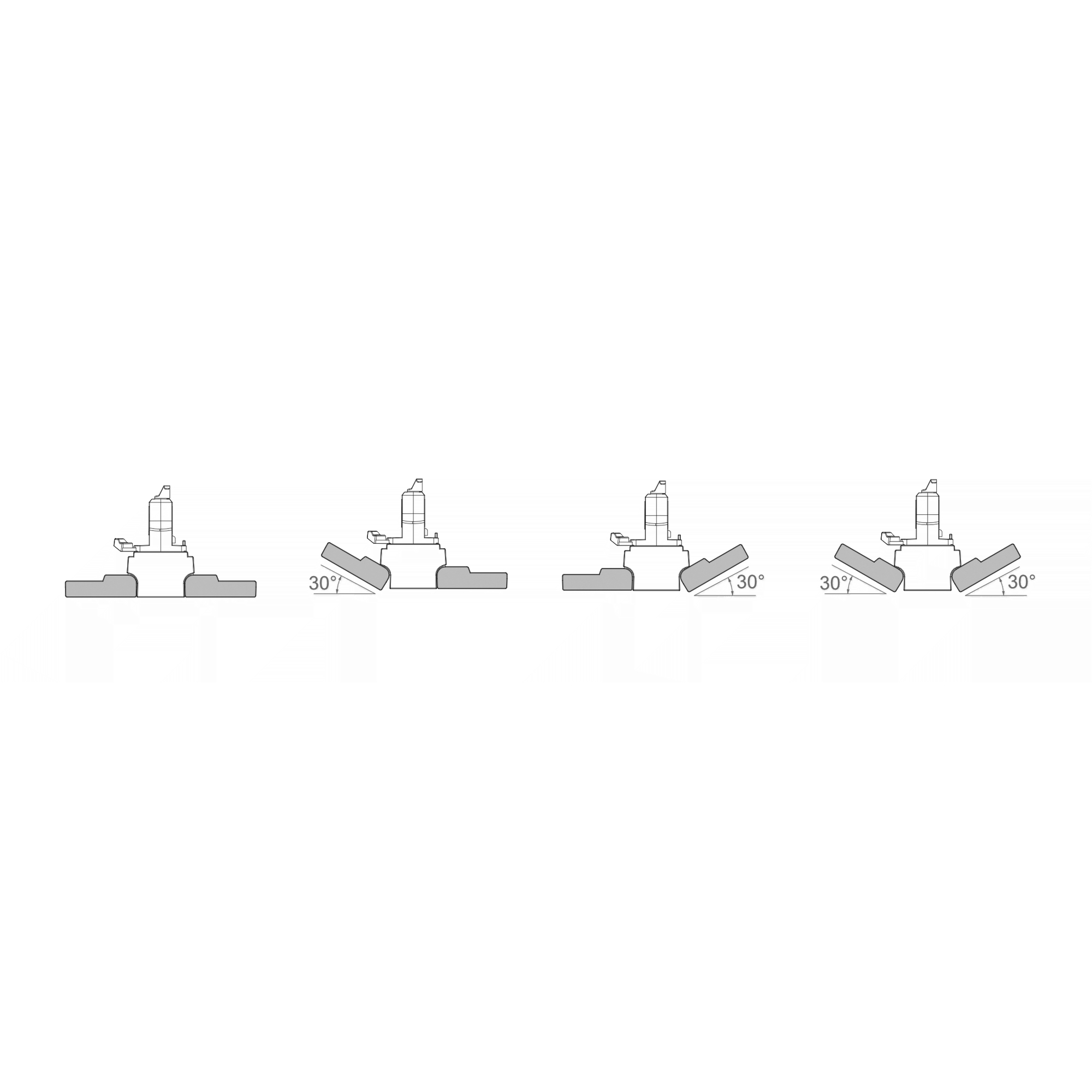

| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | White (RAL 9016) |
| Dimensions (L×W×H) | 1198 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 1200 mm this luminaire is ideal for large areas such as store rows, open-plan offices and manufacturing bays. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
