Description

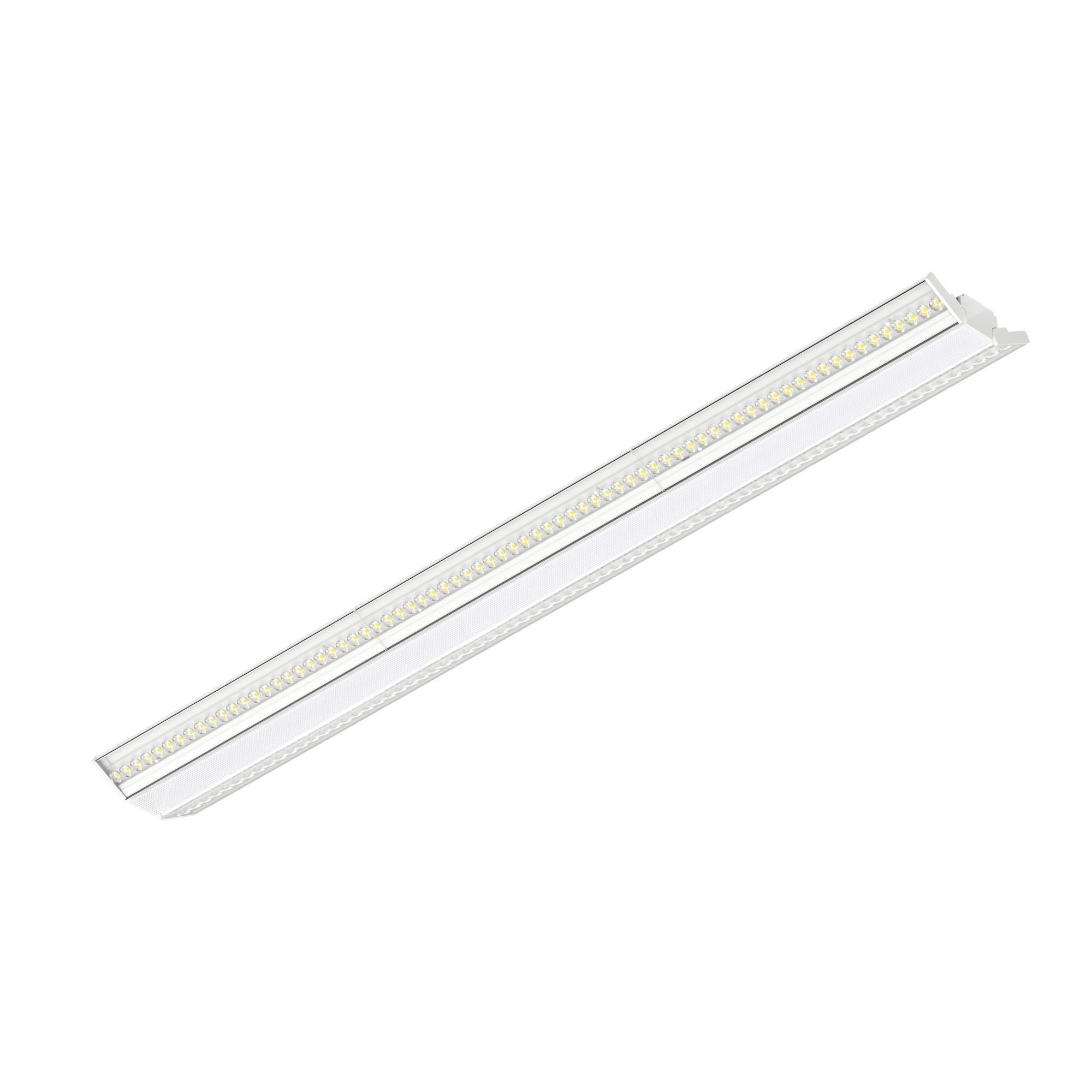

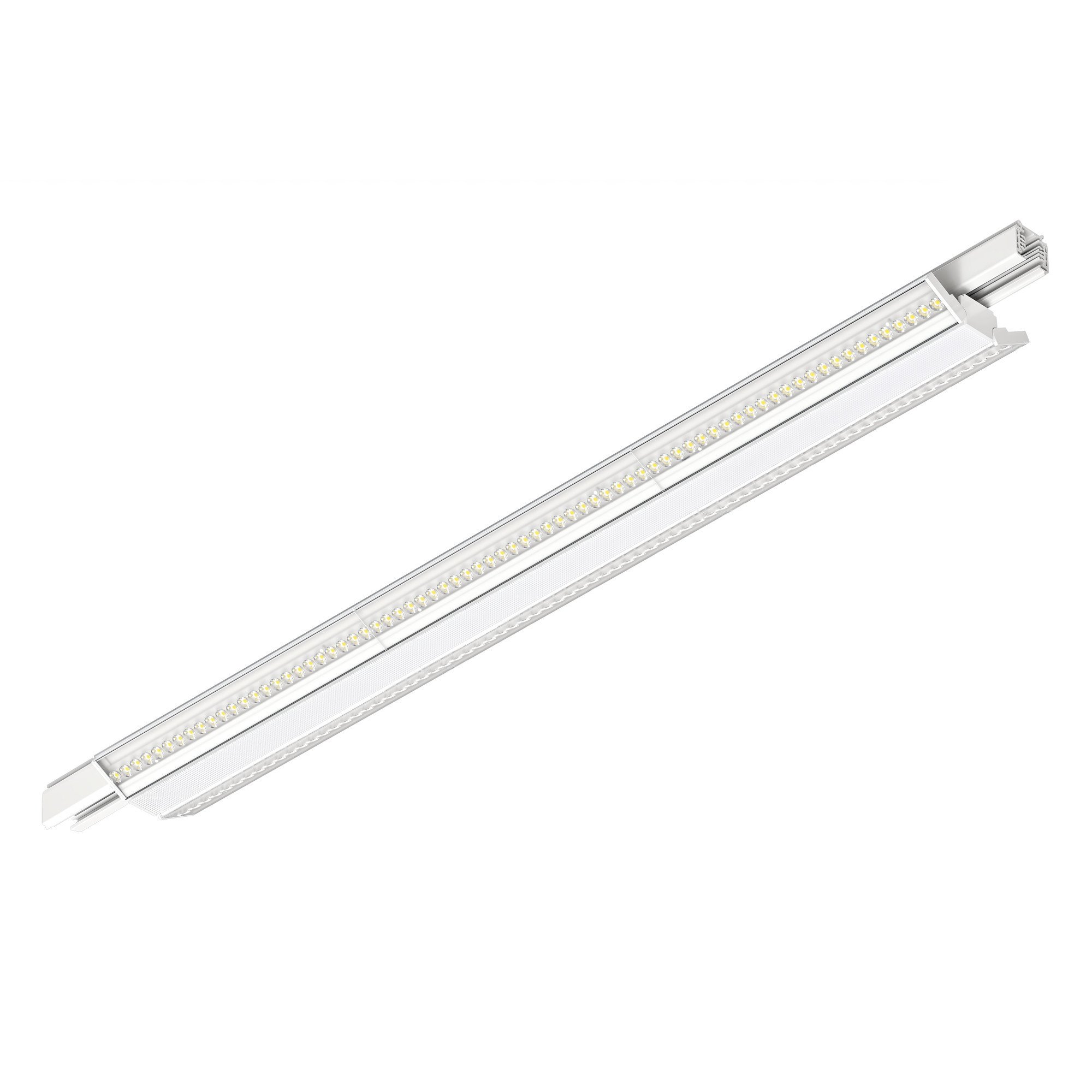

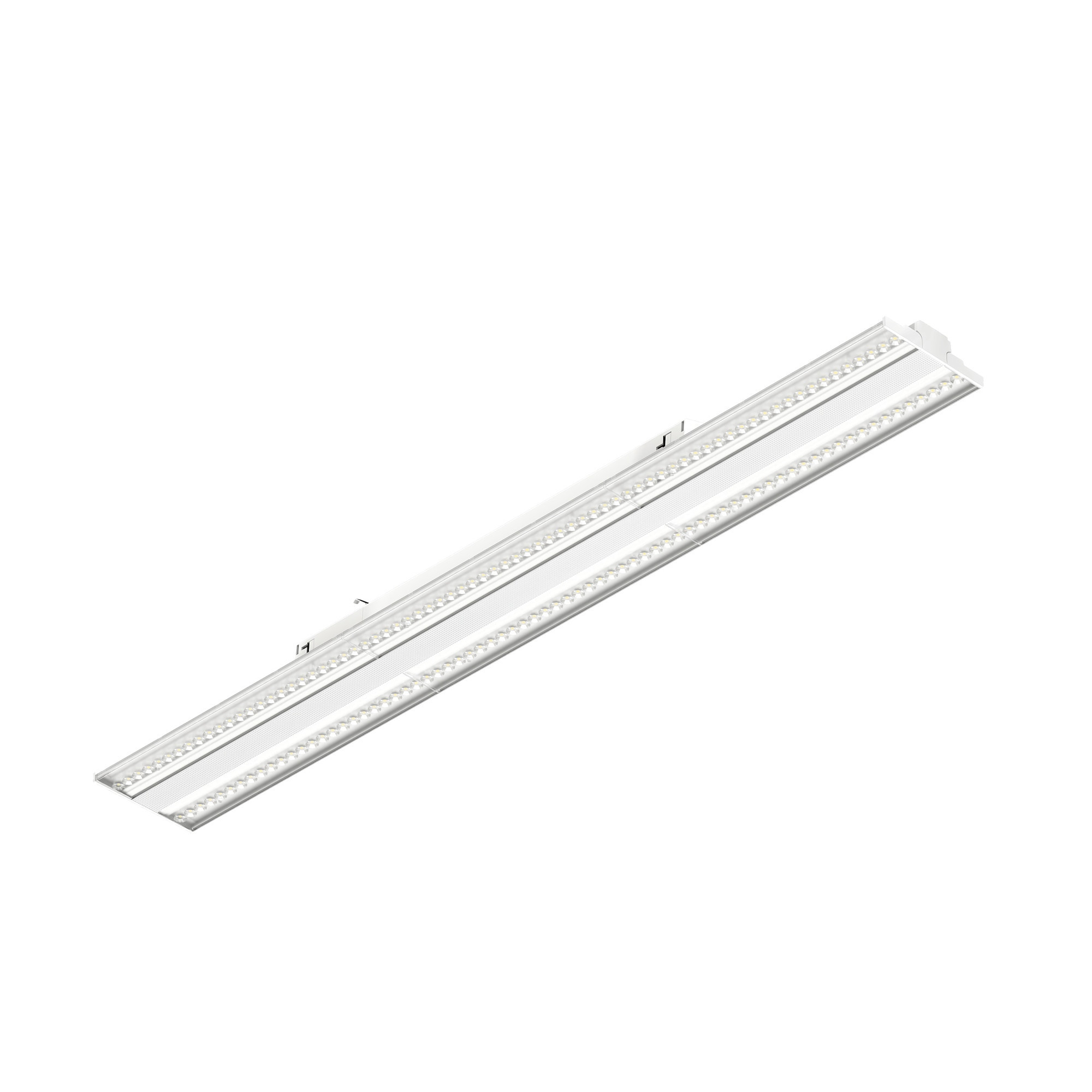

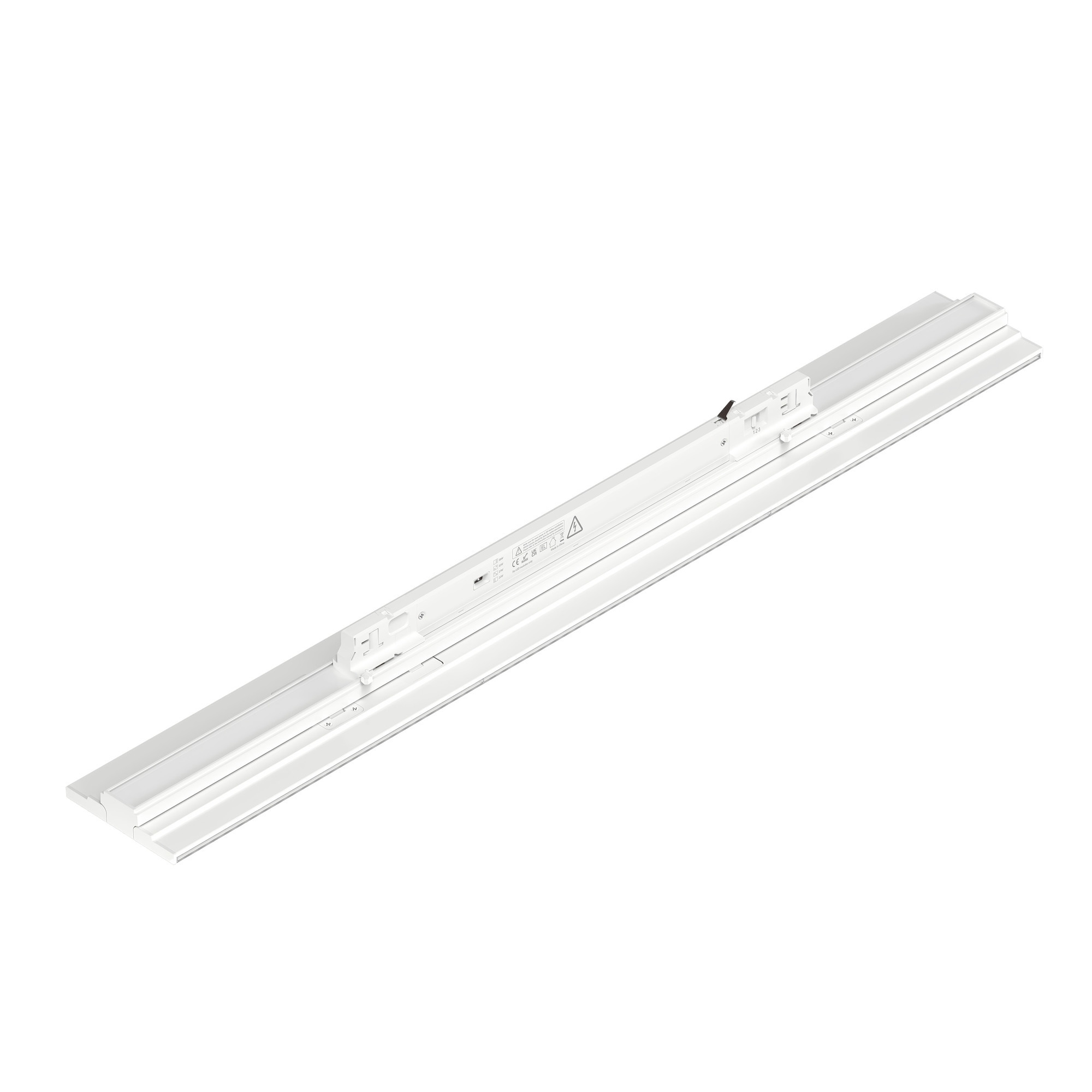

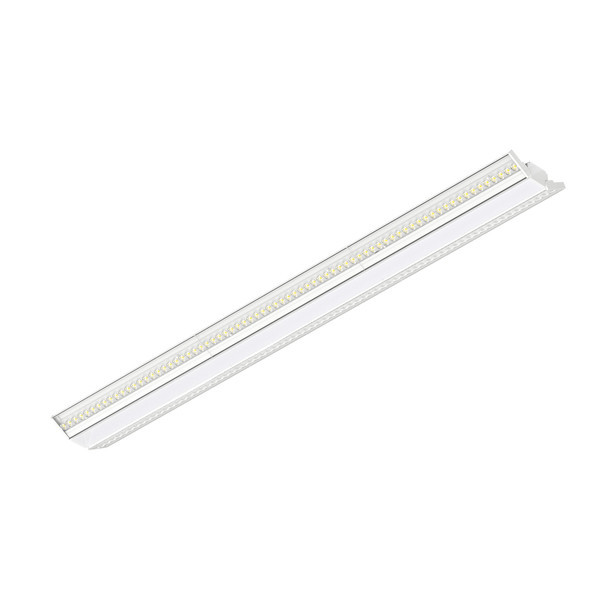

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
1200 mm · white · 4000 K neutral white · CRI > 90
This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 150 lm/W – up to 7,200 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 90 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in white, PMMA lens, IK04
Central light + two tiltable spots

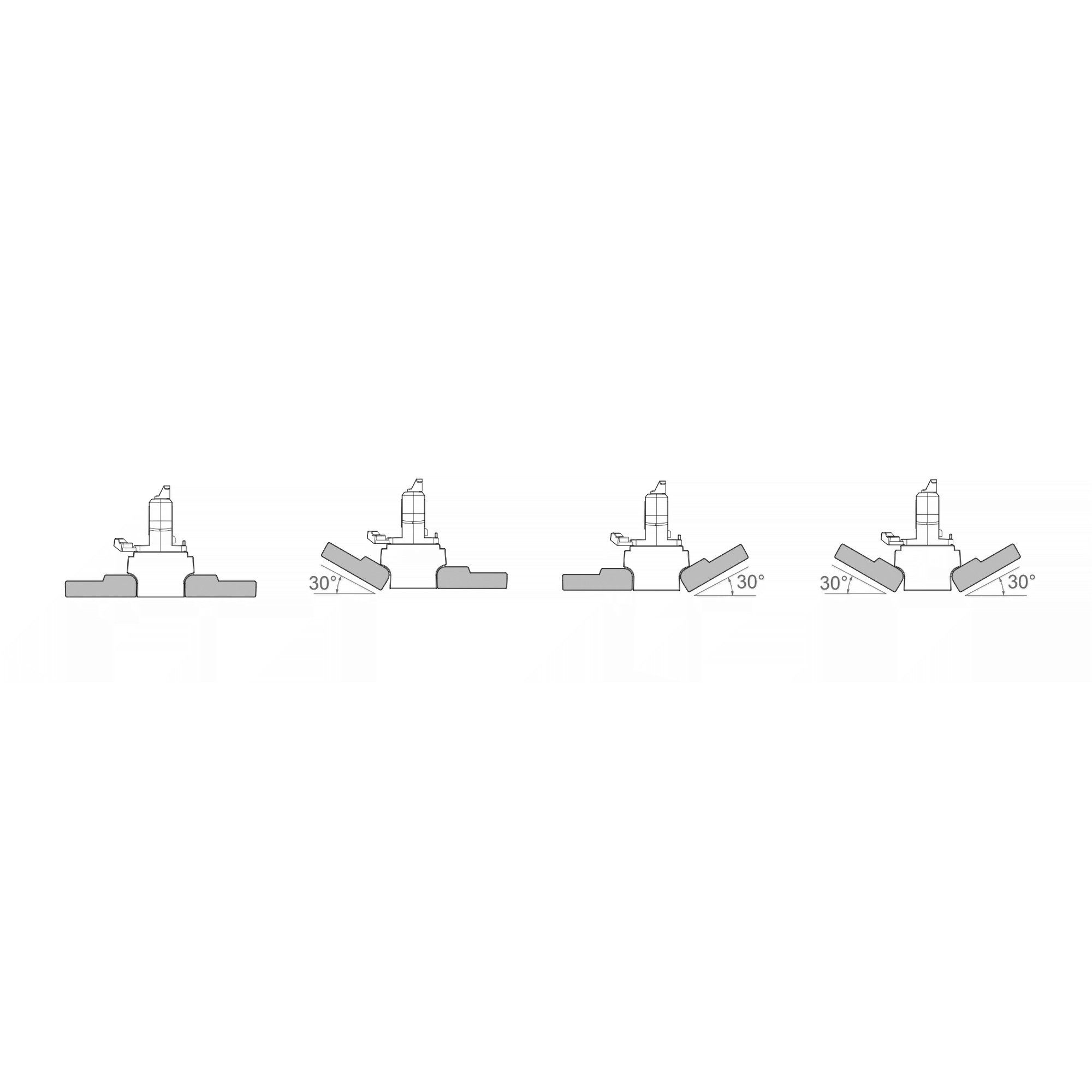

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.
The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.
Perfect colour rendering for retail & boutiques
CRI > 90 delivers exceptionally brilliant, realistic colour rendering. Especially in shops, boutiques, galleries and deli areas where exact colours matter, textiles, products and displays look vivid and authentic – every detail becomes an eye-catcher and the merchandise shows at its best.
Long service life – L80 at 100,000 hours
The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.
High-quality LED chips by Sanan
For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.
Mounting & track compatibility

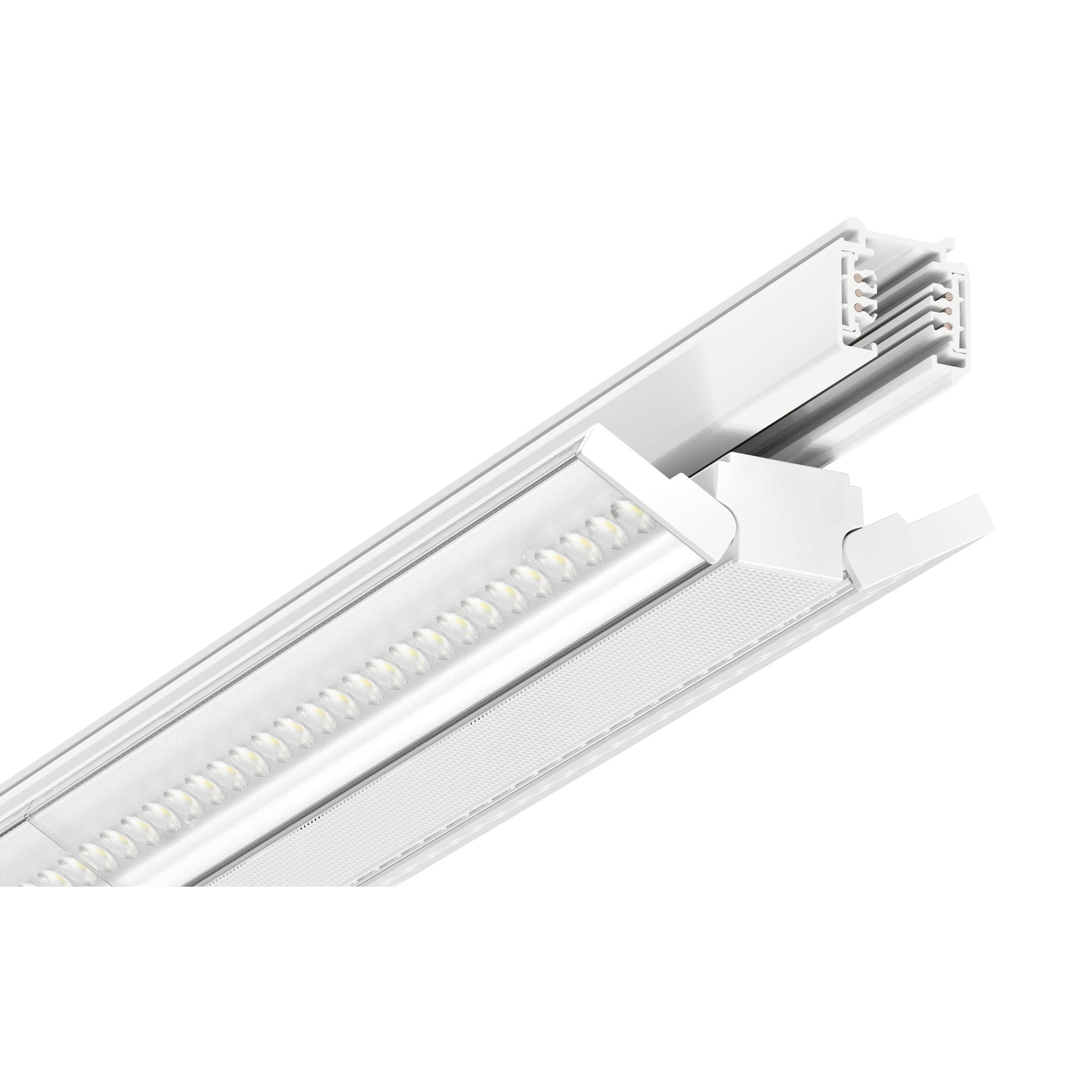

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 16 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.
Colour temperature 4000 K – neutral white
Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.
Why CRI > 90 delivers slightly fewer lumens
The fact that CRI > 90 delivers somewhat fewer lumens than CRI > 80 is directly linked to its better colour rendering. To render colours true to life, the LED needs a broader spectrum with an increased red share. This share contributes less to measured brightness because the eye is less responsive there, and the required conversion causes extra losses. The result is a slightly lower luminous flux and somewhat lower efficacy (lm/W) – a worthwhile trade wherever perfect colours matter more than the last lumen.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 7,200 lm / 40 W = 6,000 lm / 34 W = 5,100 lm / 27 W = 4,050 lm |
| Efficacy | 150 lm/W |
| Colour temperature | 4000 K (neutral white) |
| Colour rendering | CRI > 90 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | White (RAL 9016) |
| Dimensions (L×W×H) | 1198 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 1200 mm this luminaire is ideal for large areas such as store rows, open-plan offices and manufacturing bays. Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
