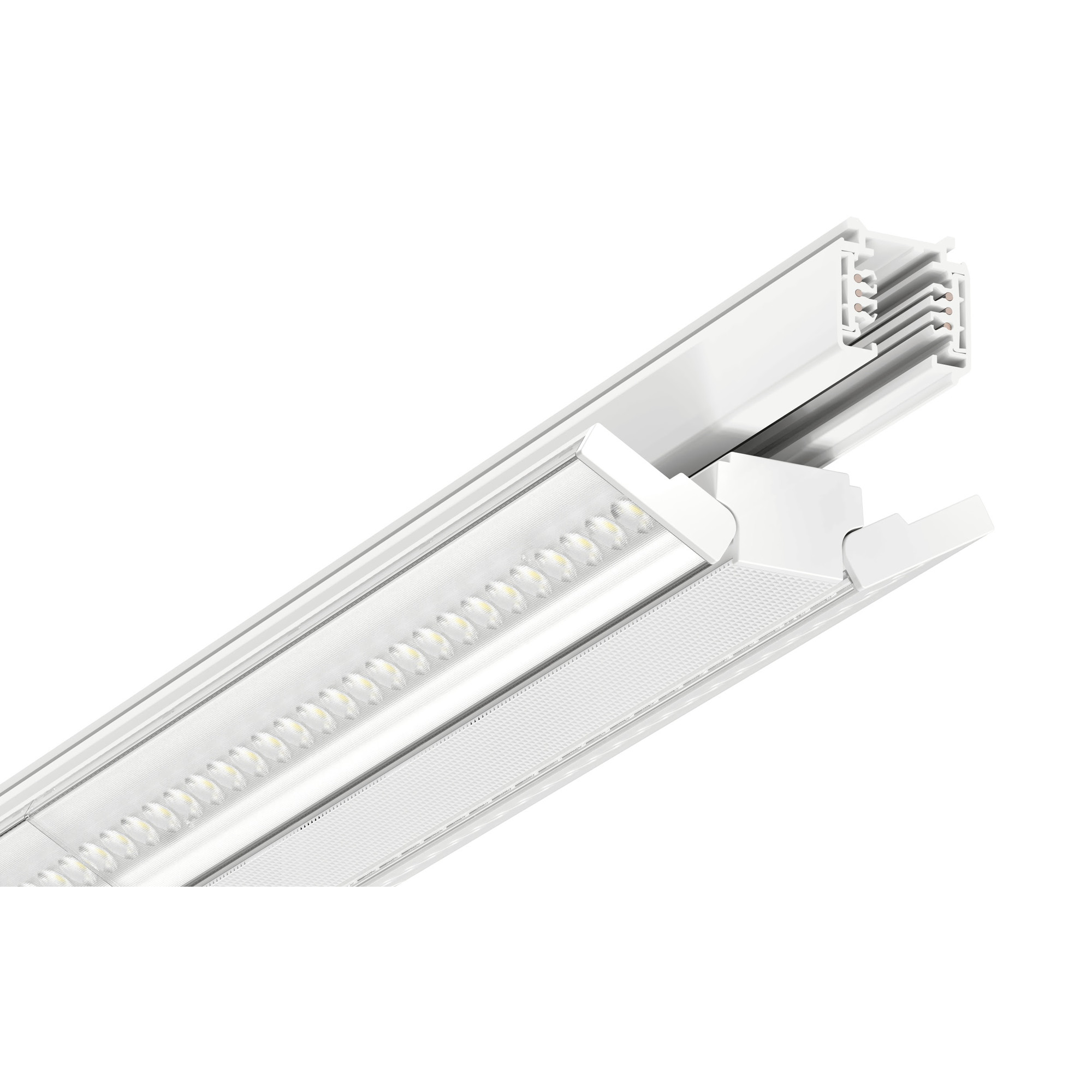

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
1200 mm · white · 5000 K daylight white · CRI > 90
This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 150 lm/W – up to 7,200 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 90 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems

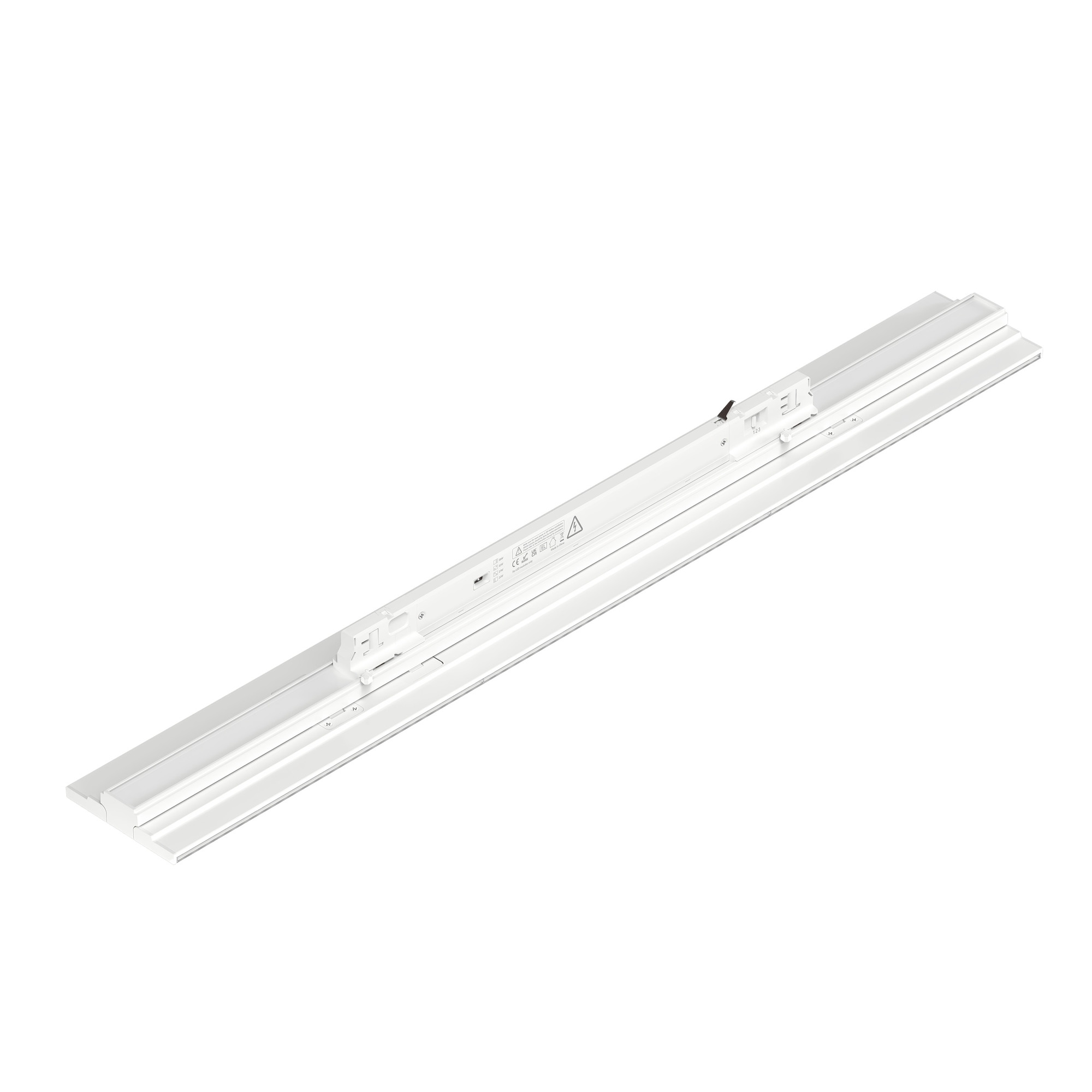

- Rugged aluminium housing in white, PMMA lens, IK04

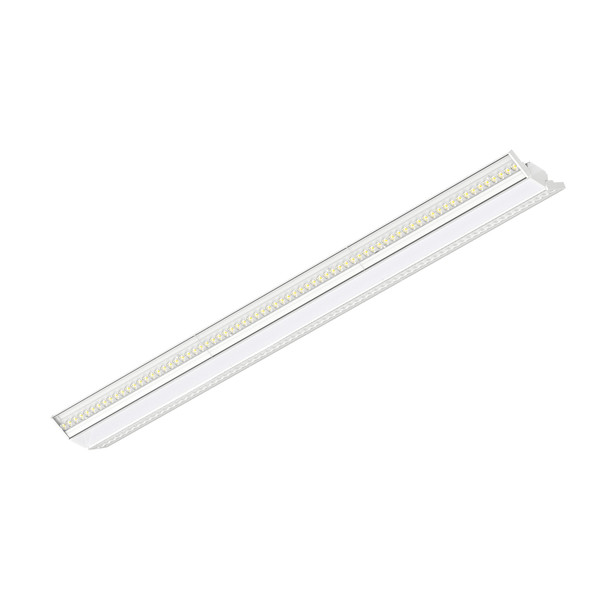

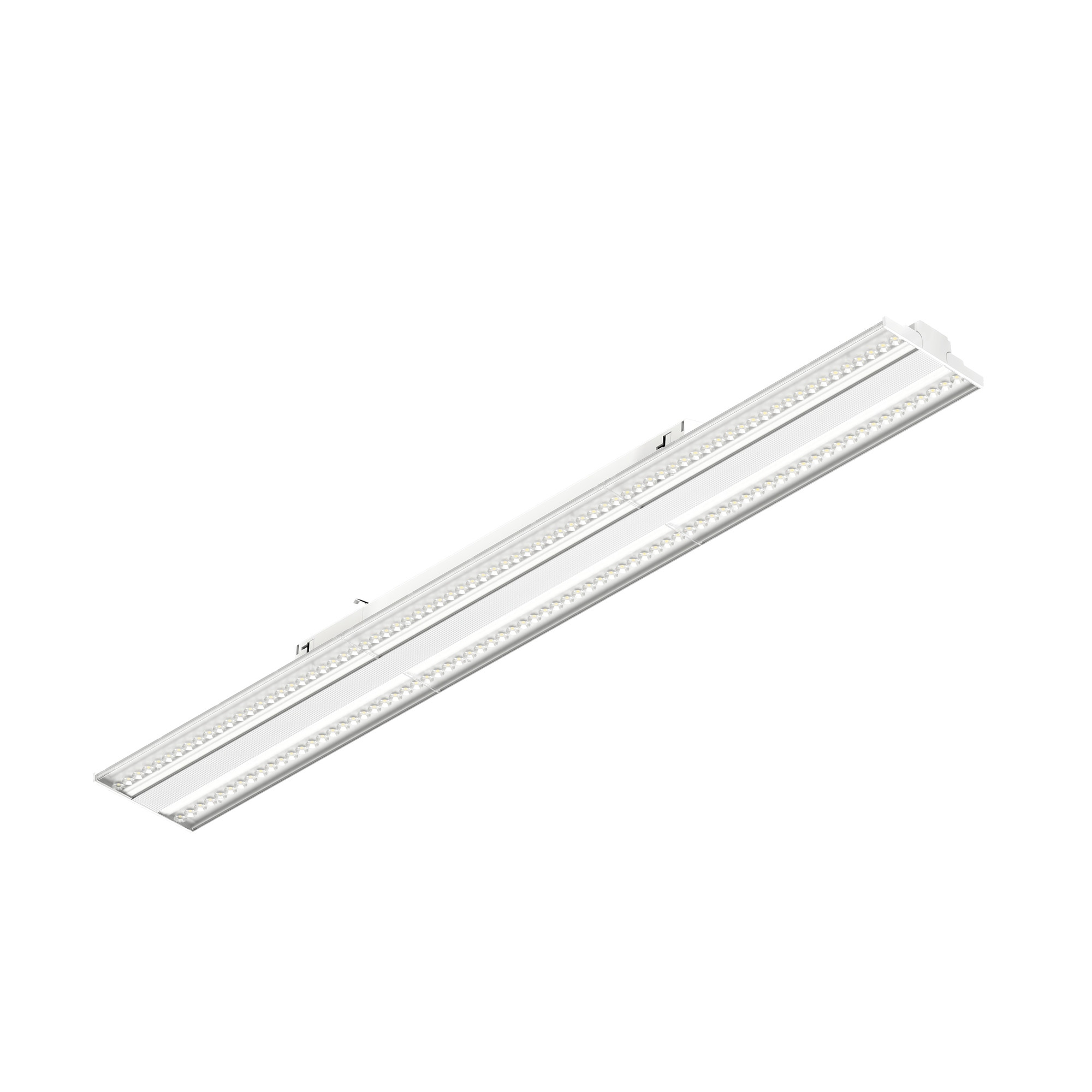

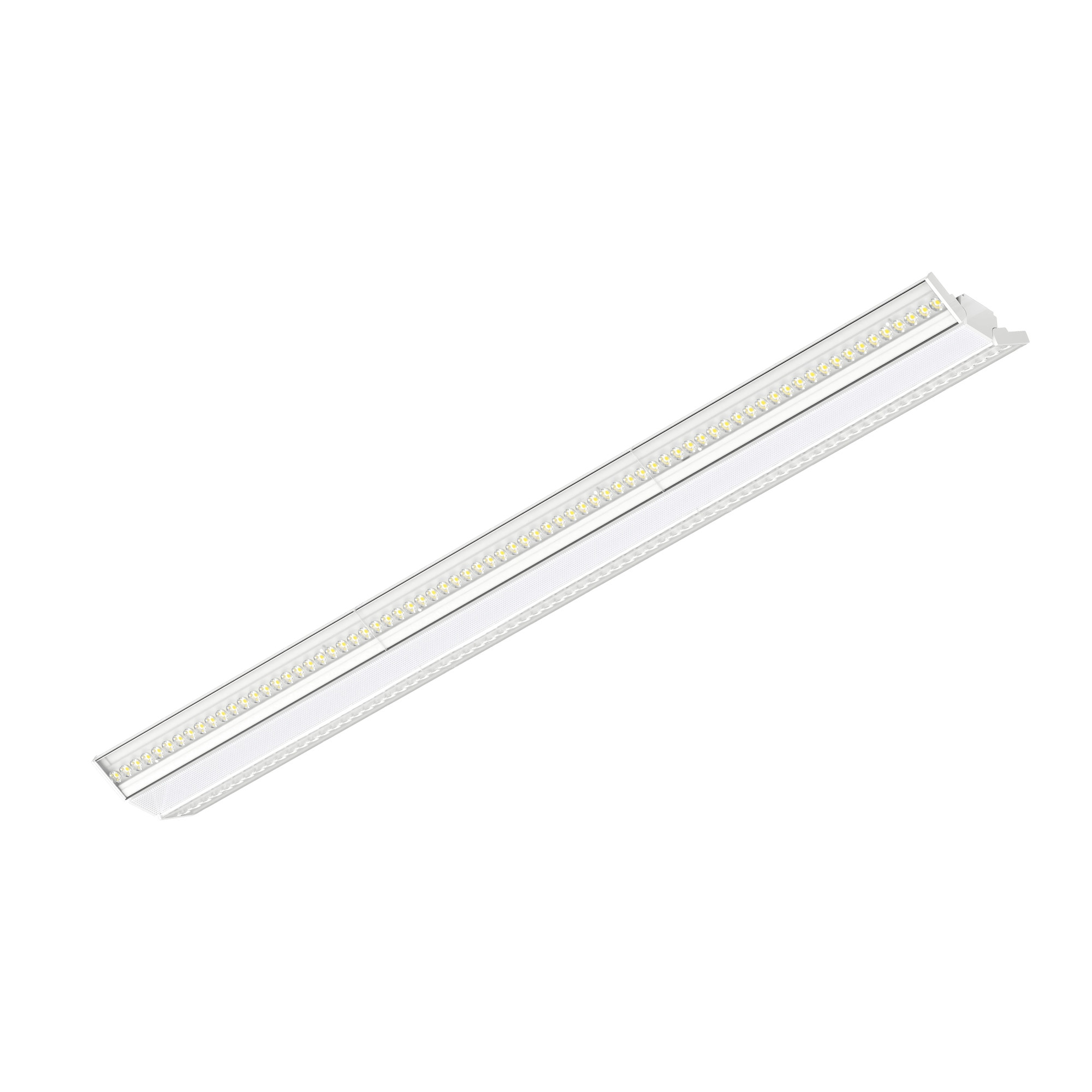

Central light + two tiltable spots

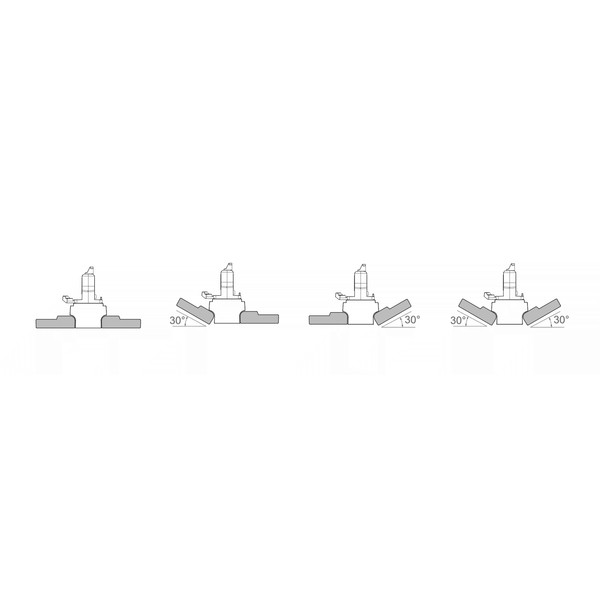

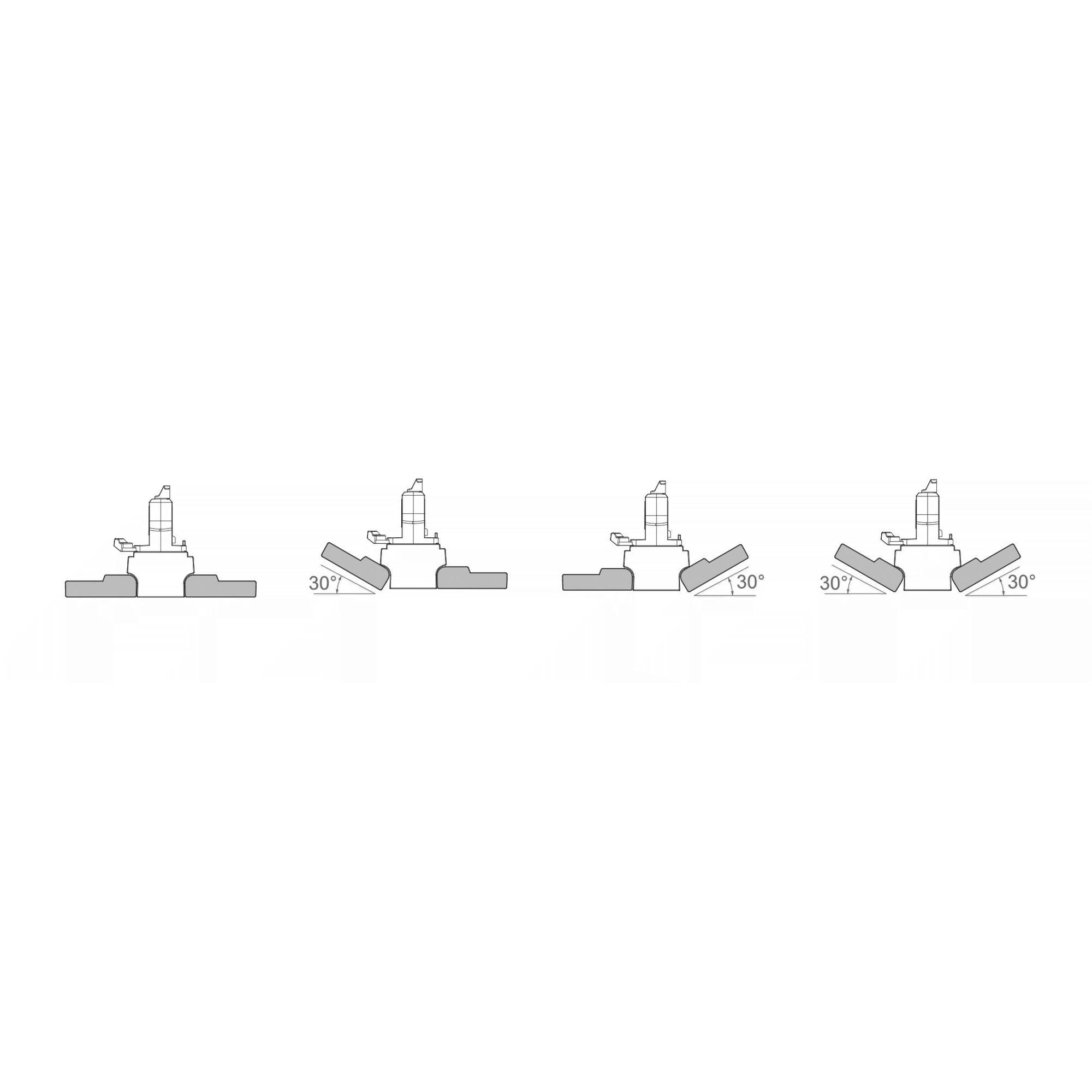

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.
The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.
Perfect colour rendering for retail & boutiques
CRI > 90 delivers exceptionally brilliant, realistic colour rendering. Especially in shops, boutiques, galleries and deli areas where exact colours matter, textiles, products and displays look vivid and authentic – every detail becomes an eye-catcher and the merchandise shows at its best.
Long service life – L80 at 100,000 hours
L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.
High-quality LED chips by Sanan
For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.
Mounting & track compatibility

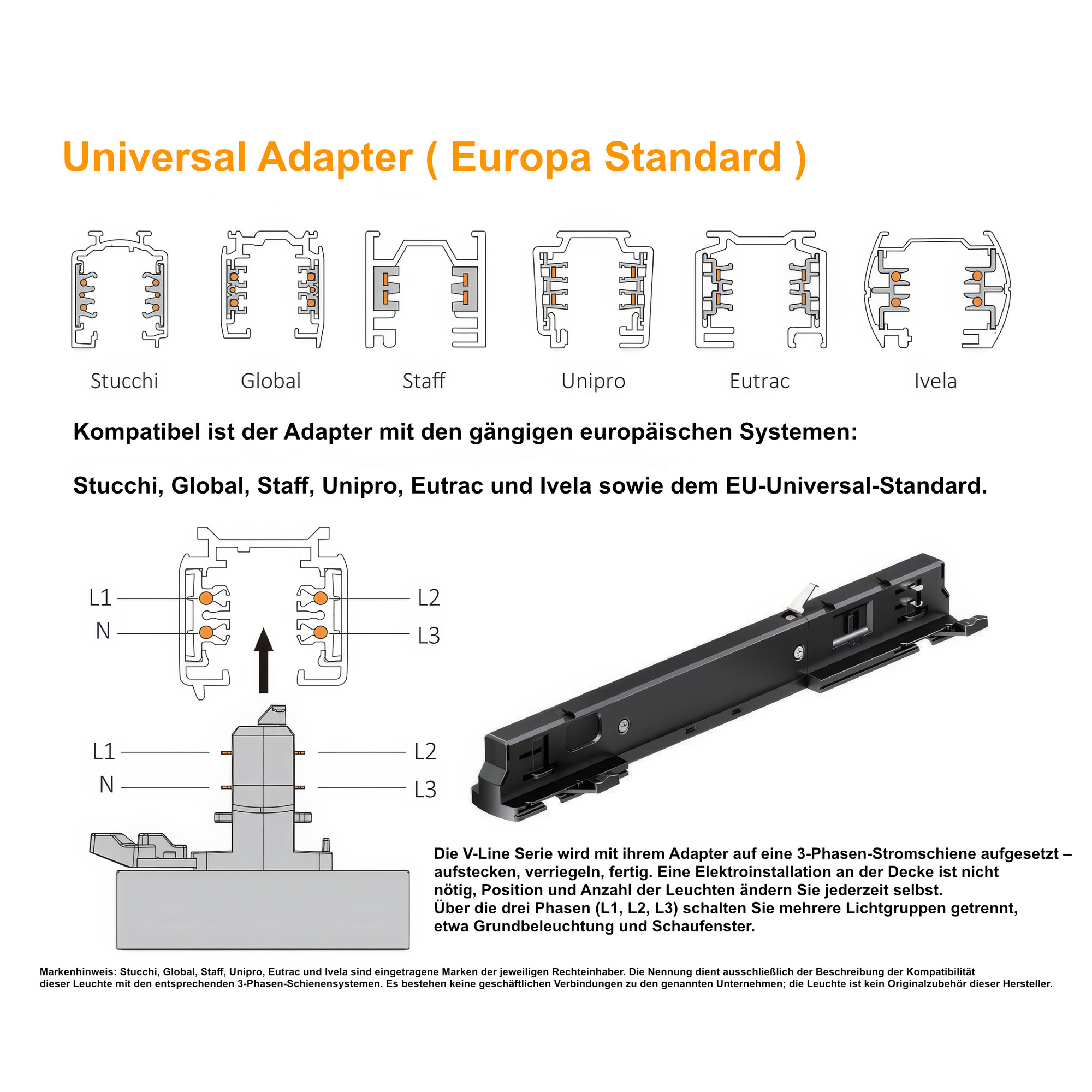

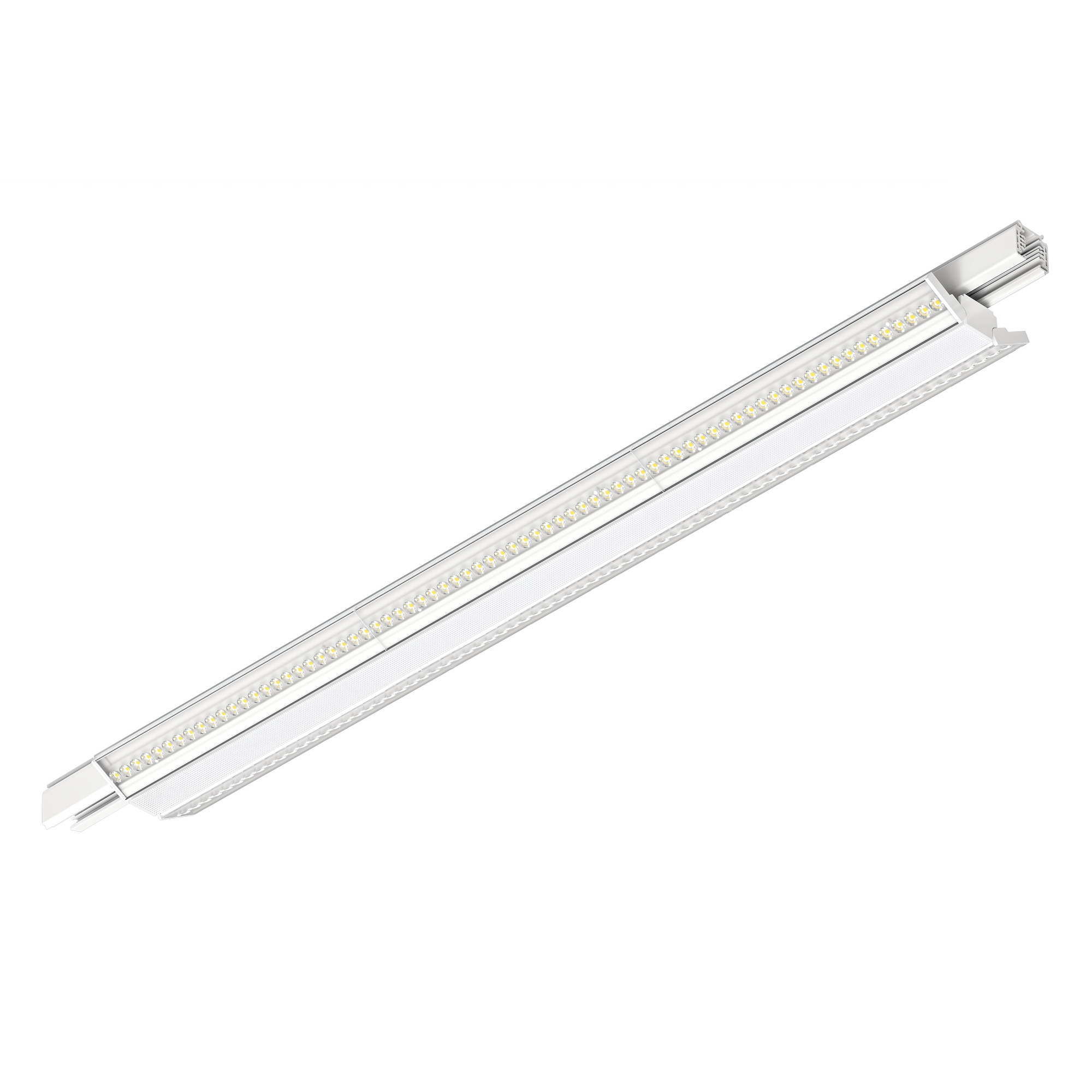

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.
Colour temperature 5000 K – daylight white
Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Why CRI > 90 delivers slightly fewer lumens
Why does the CRI > 90 version deliver slightly fewer lumens than the CRI > 80 one? A very high colour rendering requires a broader, more balanced LED spectrum – especially with a higher share of red. This additional red and deep-red content sits in a range to which the human eye is less sensitive, and the phosphor conversion needed for it introduces extra losses. As a result, at the same power the perceived luminous flux (lumens) and thus the efficacy in lm/W decrease. In return you get more true-to-life, more brilliant colours – at the cost of a marginally lower lumen figure.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 7,200 lm / 40 W = 6,000 lm / 34 W = 5,100 lm / 27 W = 4,050 lm |
| Efficacy | 150 lm/W |
| Colour temperature | 5000 K (daylight white) |
| Colour rendering | CRI > 90 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | White (RAL 9016) |
| Dimensions (L×W×H) | 1198 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 1200 mm this luminaire is ideal for large areas such as store rows, open-plan offices and manufacturing bays. Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
