Description

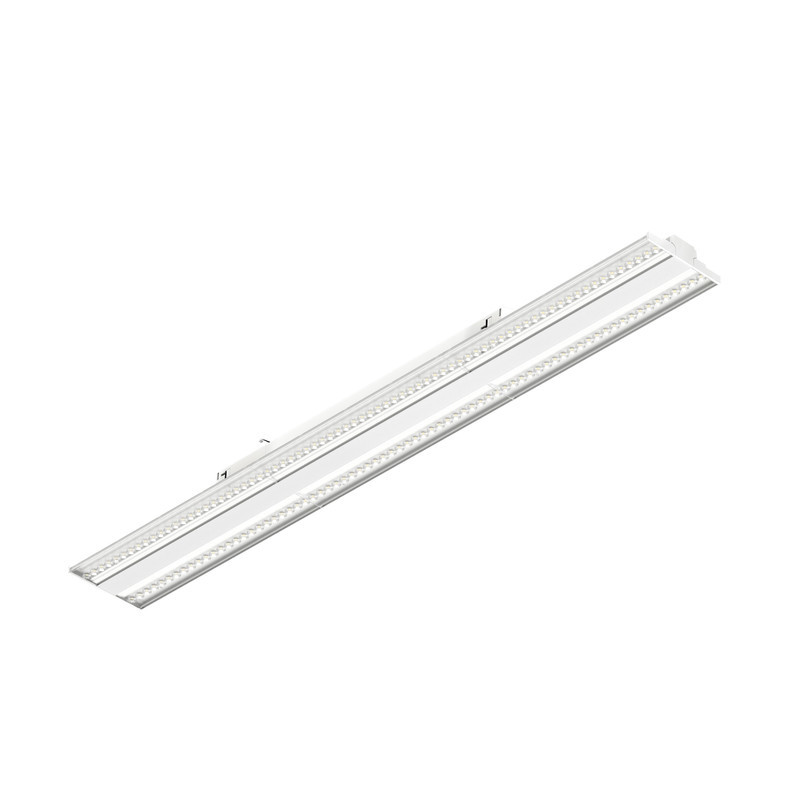

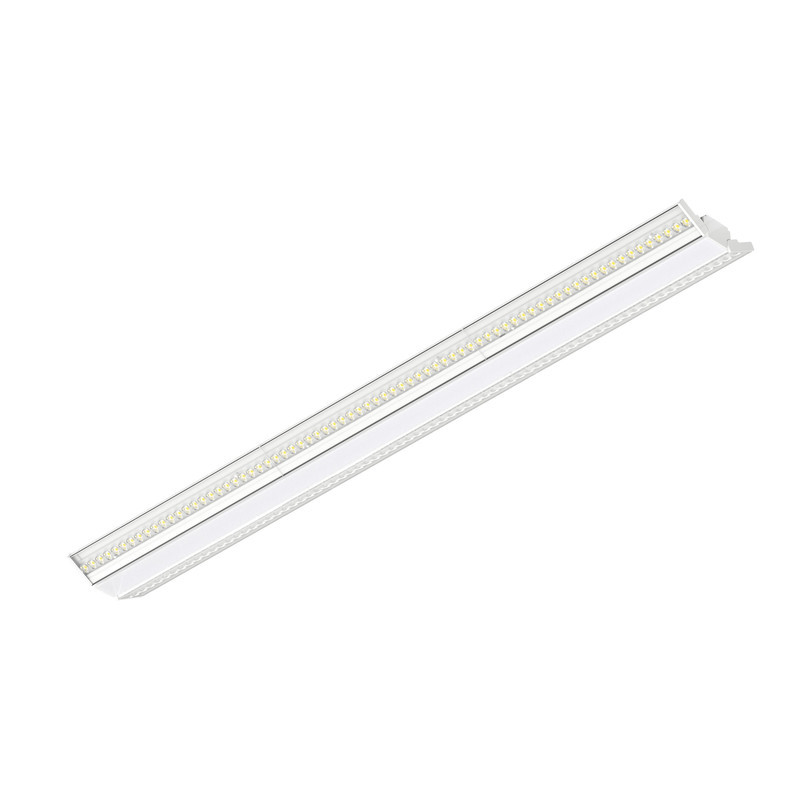

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
1200 mm · white · 3000 K warm white · CRI > 80
A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 160 lm/W – up to 7,680 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 80 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in white, PMMA lens, IK04
Central light + two tiltable spots

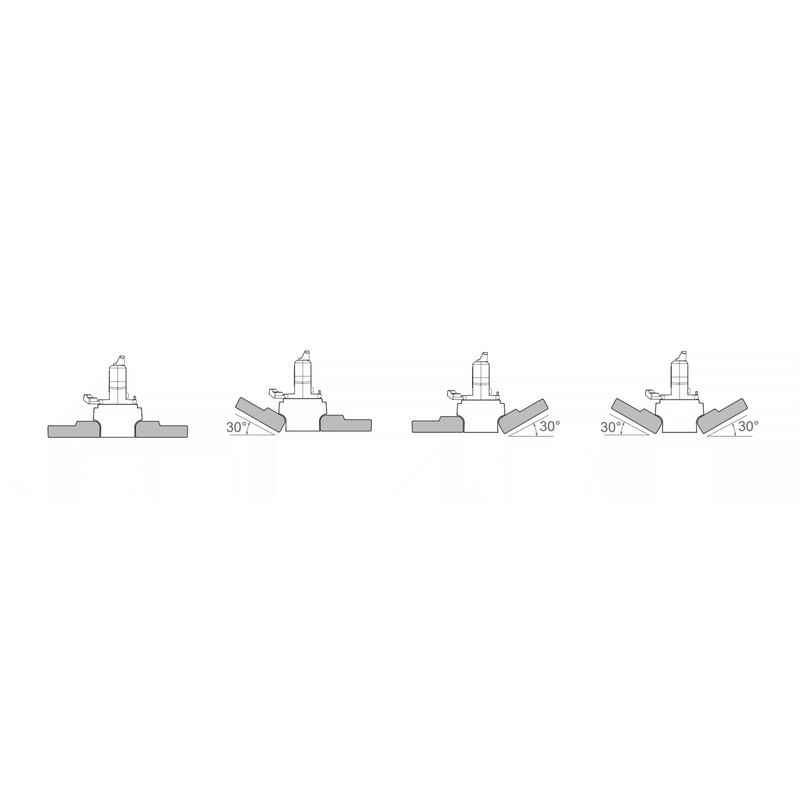

With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.
The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.
Efficient & bright
The CRI > 80 variant combines solid colour rendering with especially high efficiency (160 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.
Long service life – L80 at 100,000 hours
100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.
High-quality LED chips by Sanan
This luminaire uses high-quality LED chips from Sanan. Founded in 2000 and headquartered in Xiamen, China, Sanan Optoelectronics is China's largest LED chip producer and ranks among the world's leading LED chip manufacturers. Its chips are known for high efficacy, excellent colour consistency and reliable long-term stability – qualities relied upon by many renowned lighting brands worldwide. This forms the basis for the high efficiency and long service life of the VU3 luminaire.

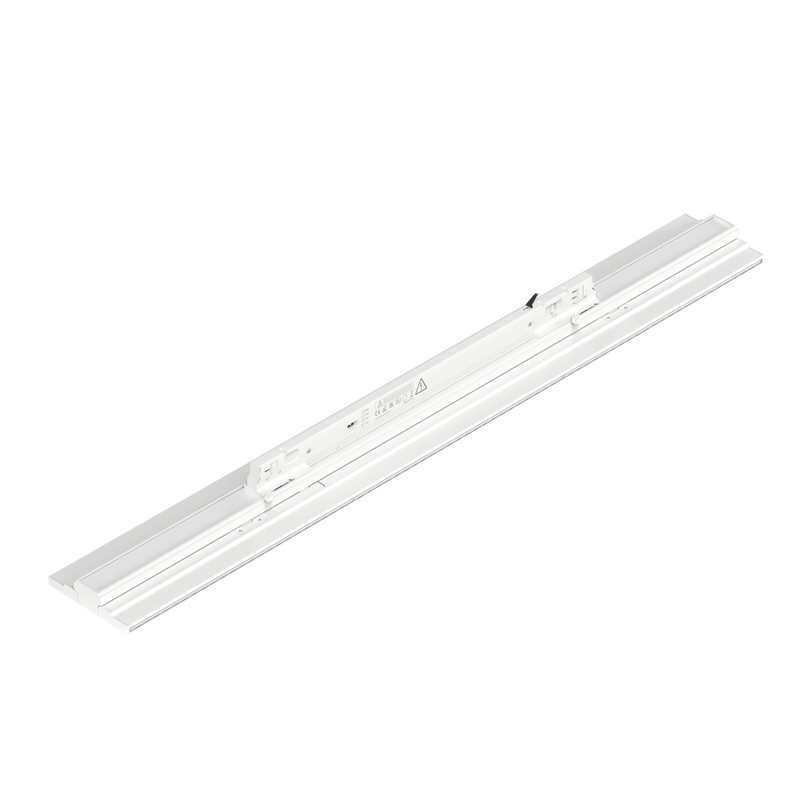

Mounting & track compatibility

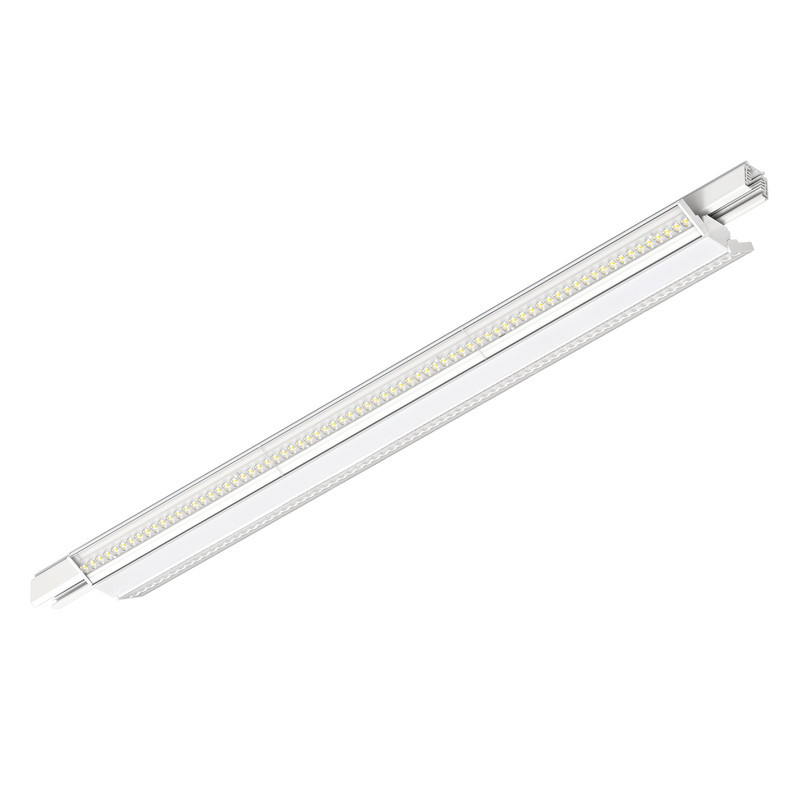

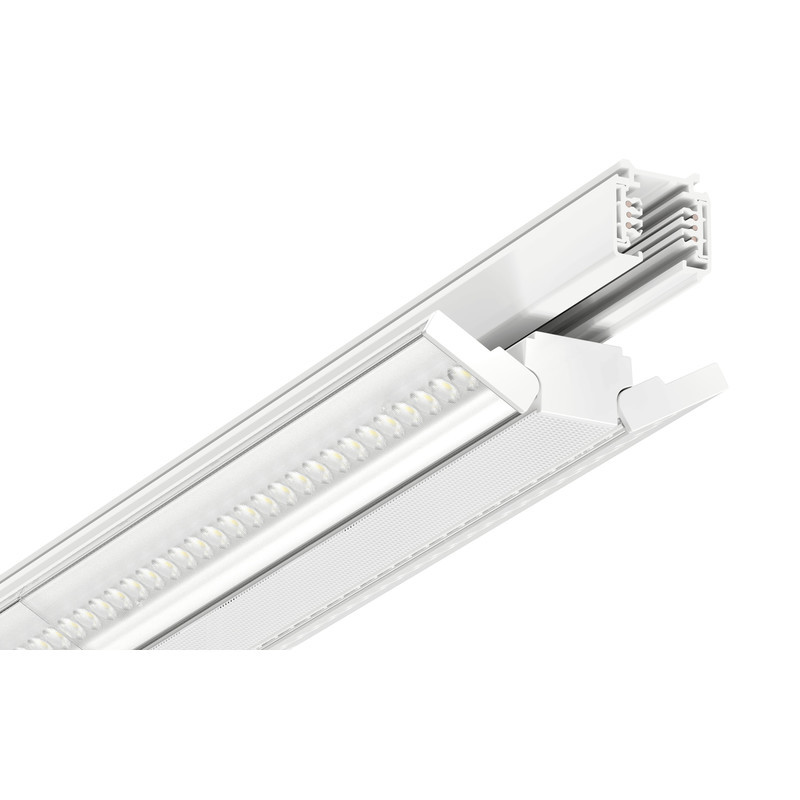

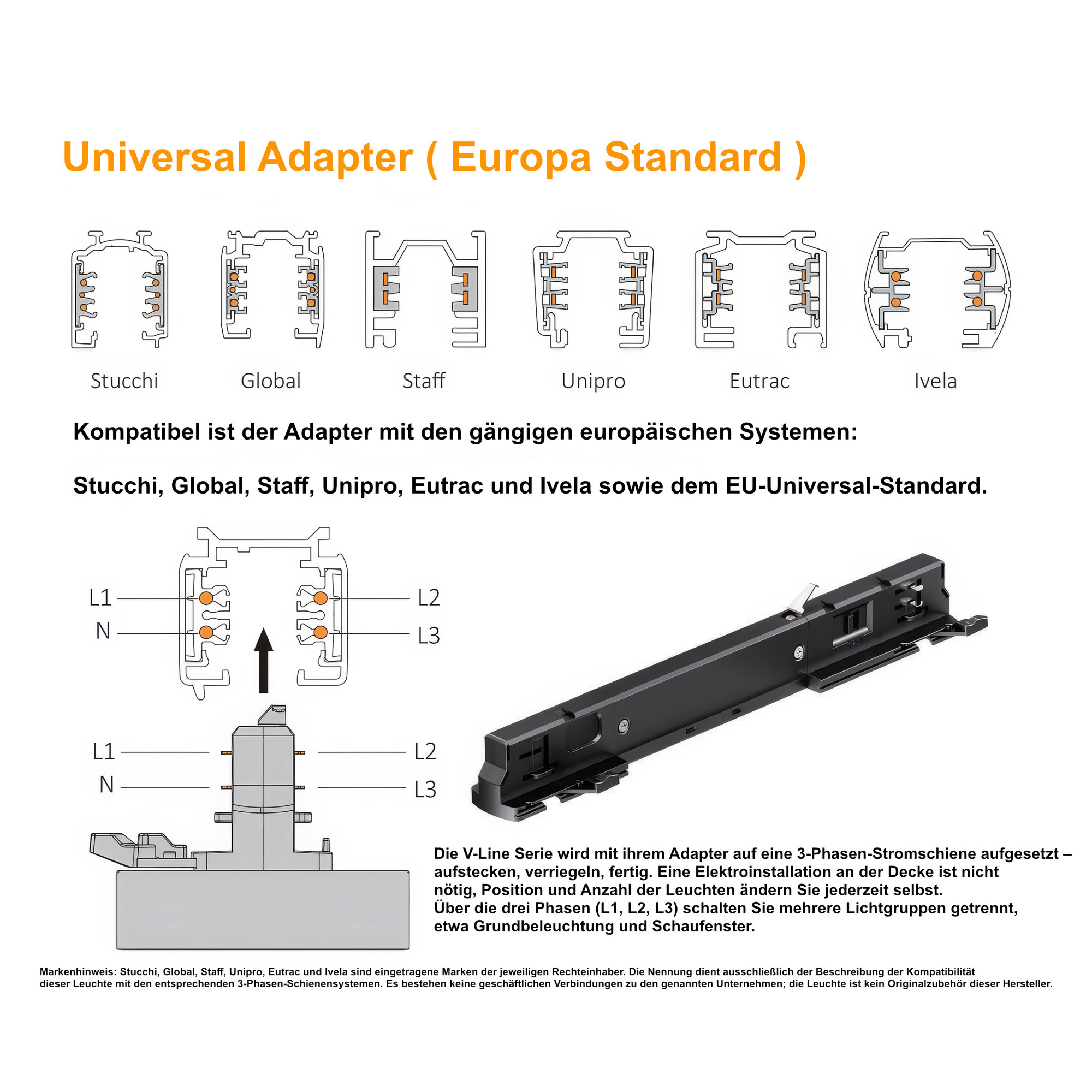

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 16 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.
Colour temperature 3000 K – warm white
Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 7,680 lm / 40 W = 6,400 lm / 34 W = 5,440 lm / 27 W = 4,320 lm |
| Efficacy | 160 lm/W |
| Colour temperature | 3000 K (warm white) |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | White (RAL 9016) |

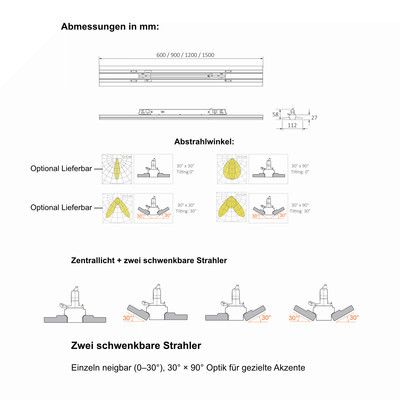

| Dimensions (L×W×H) | 1198 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | C (EU scale A–G, EU 2019/2015) |
Applications
At 1200 mm this luminaire is ideal for large areas such as store rows, open-plan offices and manufacturing bays. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
