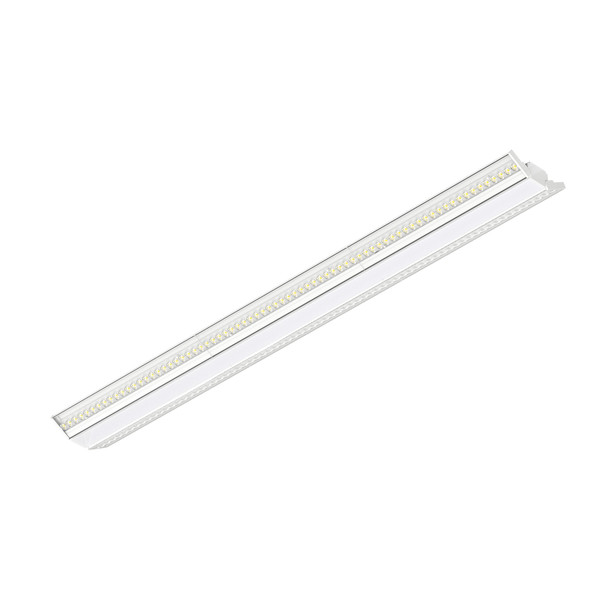

LED VU3 linear light adjustable 150cm white 160lm CRI >80 3K/4K/5K/6K 3000K

Item number: VU315C8W-1

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

144,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	139,90 €
12	134,90 €

Available

Shipping time: 15 - 16 workdays

Description

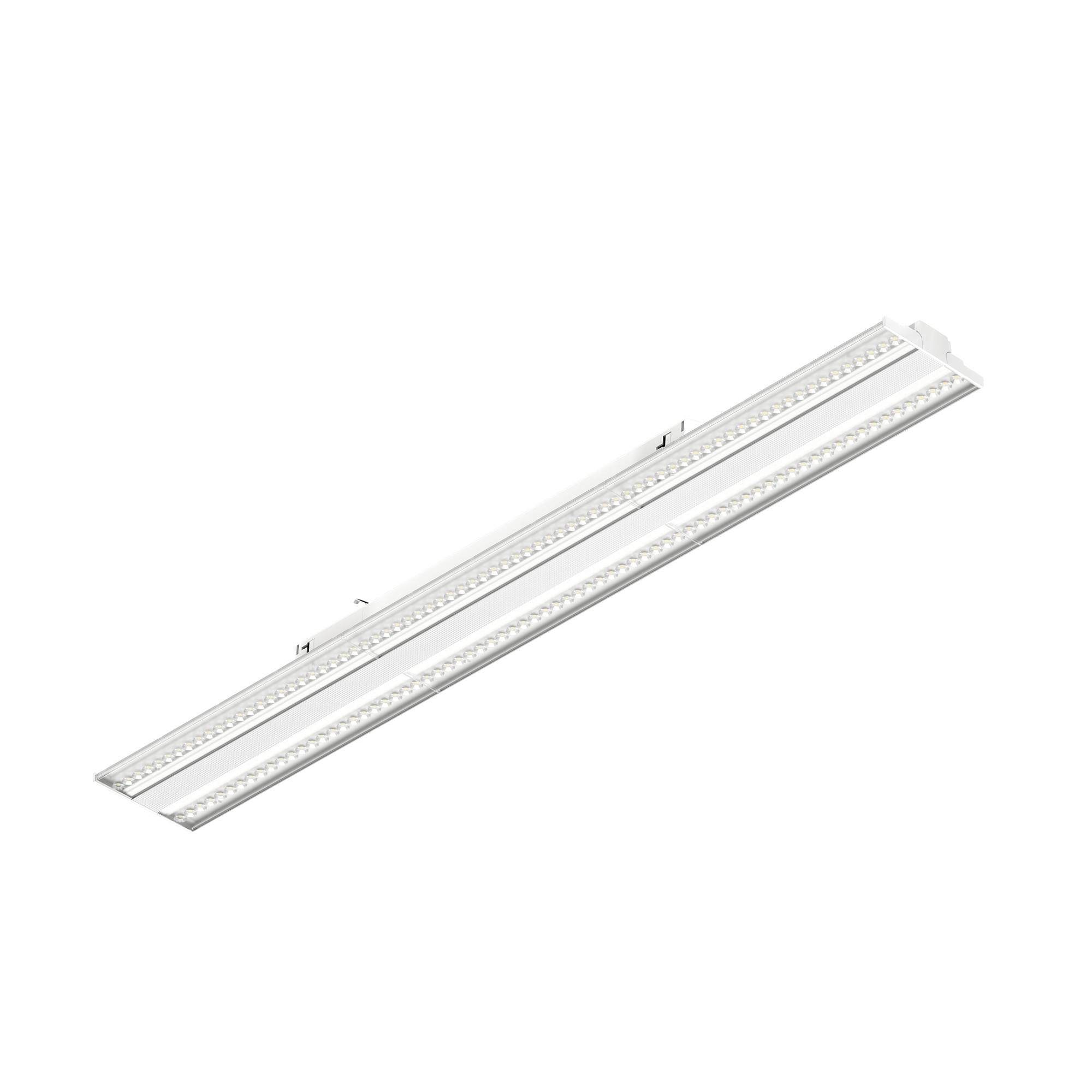

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

1500 mm · white · 3000 K warm white · CRI > 80

1500 mmwhiteCRI > 803000 KIP20160 lm/WL80 100,000 h

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch.	High efficiency 160 lm/W – up to 9,600 lm at 60 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 60 W / 50 W / 42 W / 34 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

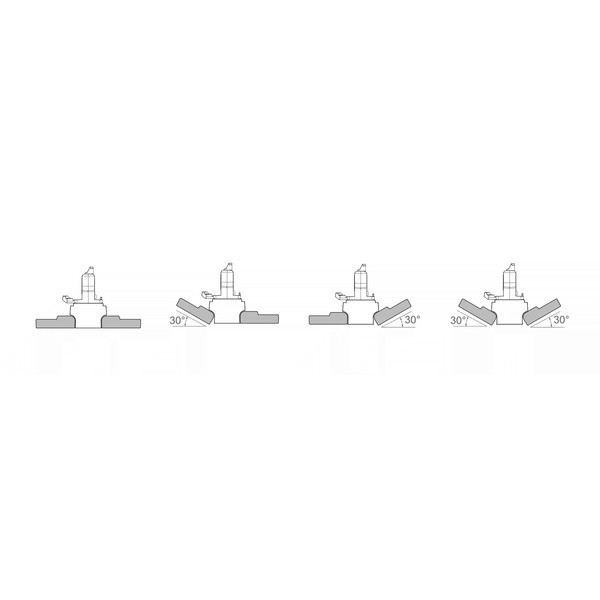

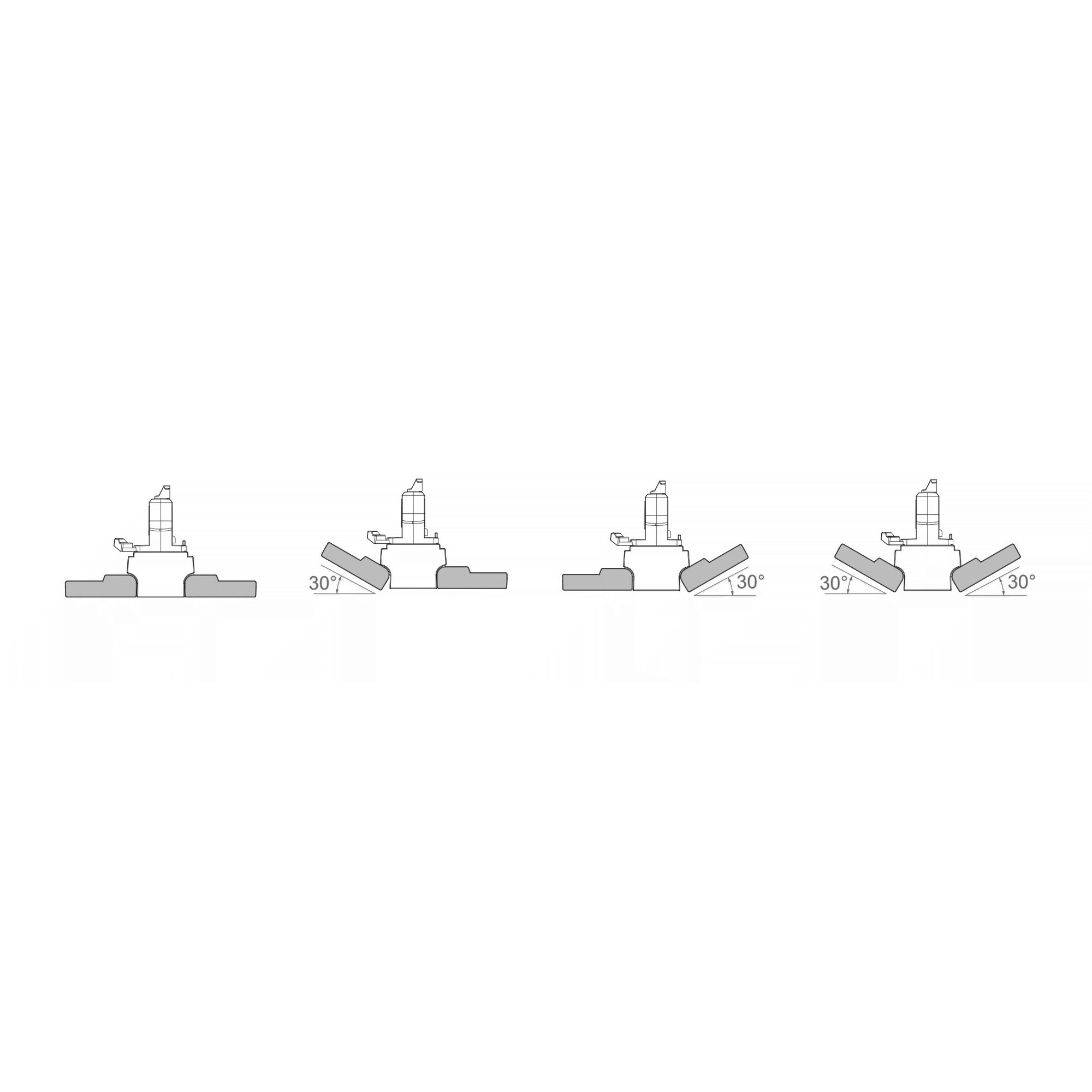

With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.

For shelf and aisle lighting the tiltable spots are ideal – the light can be aimed exactly at shelf boards and displays, presenting goods along the aisles bright and appealing.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 160 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

Mounting & track compatibility

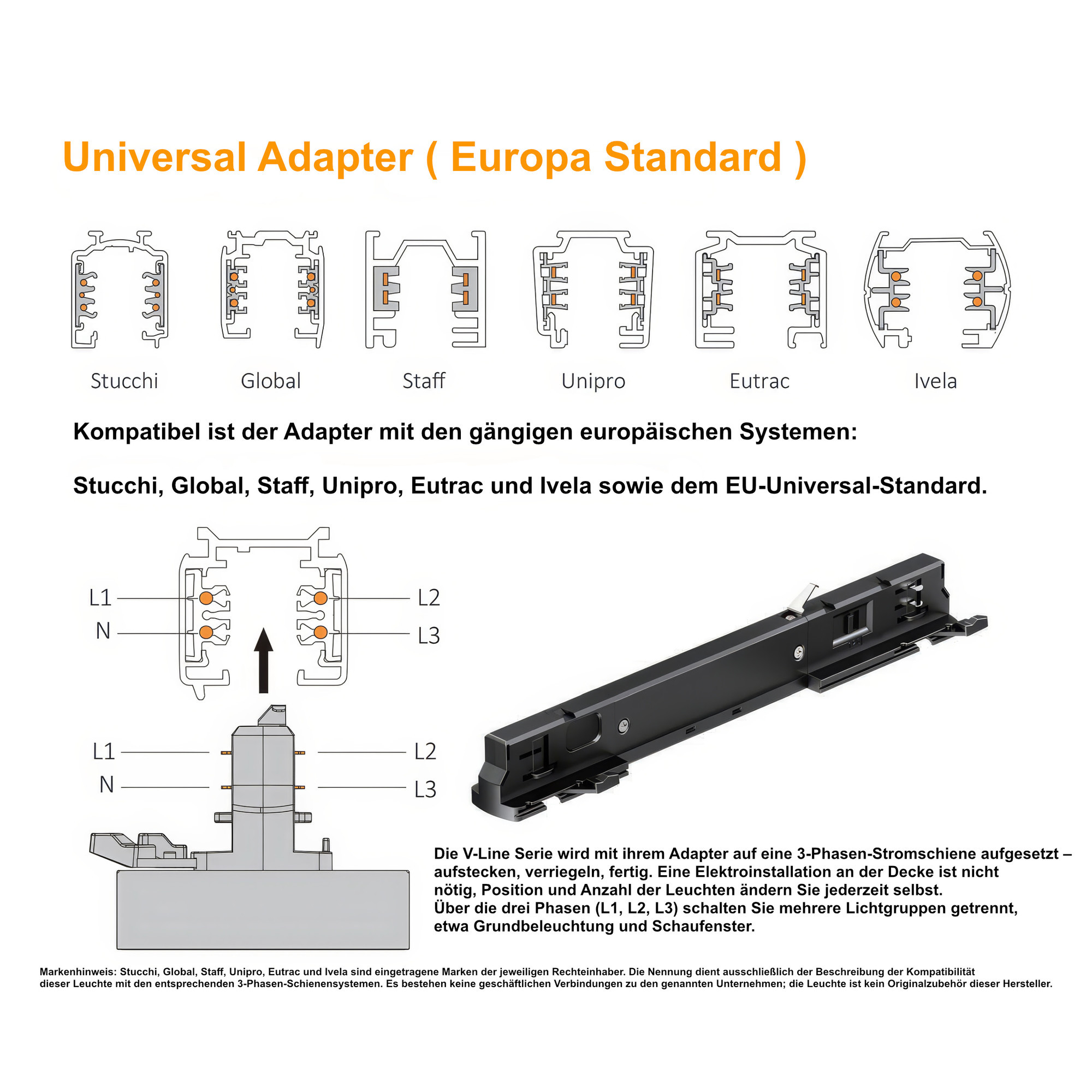

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 13 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.

Colour temperature 3000 K – warm white

Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Technical data

Power (switchable)	60 W / 50 W / 42 W / 34 W (by switch)
Luminous flux	60 W = 9,600 lm / 50 W = 8,000 lm / 42 W = 6,720 lm / 34 W = 5,440 lm
Efficacy	160 lm/W
Colour temperature	3000 K (warm white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions (L×W×H)	1498 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

At 1500 mm this luminaire is ideal for spacious halls, long retail aisles and continuous production lines. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
