LED VU3 linear light adjustable 150cm white 160lm CRI >80 3K/4K/5K/6K 5000K

Item number: VU315C8W-3

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

144,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	139,90 €
12	134,90 €

Available

Shipping time: 15 - 16 workdays

Description

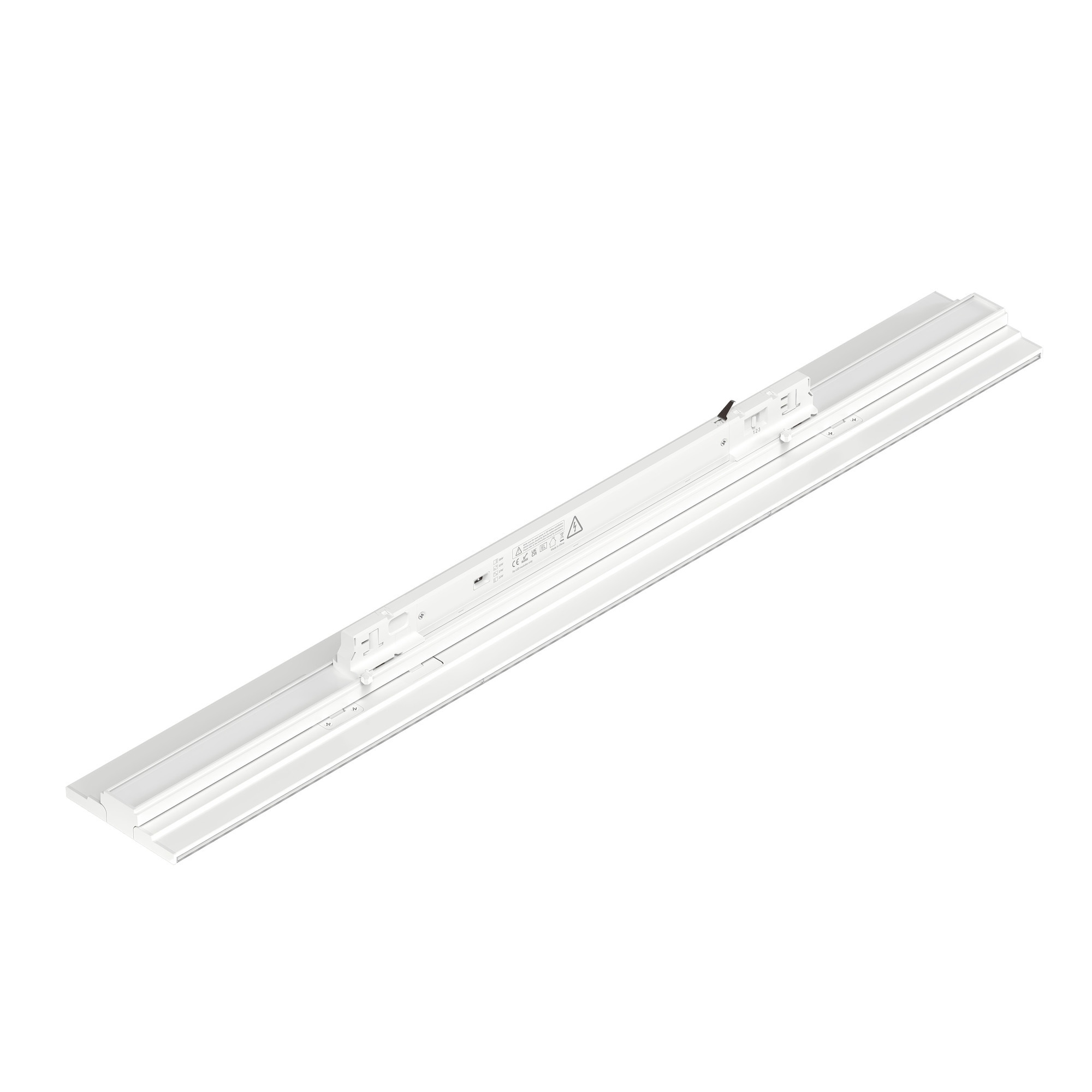

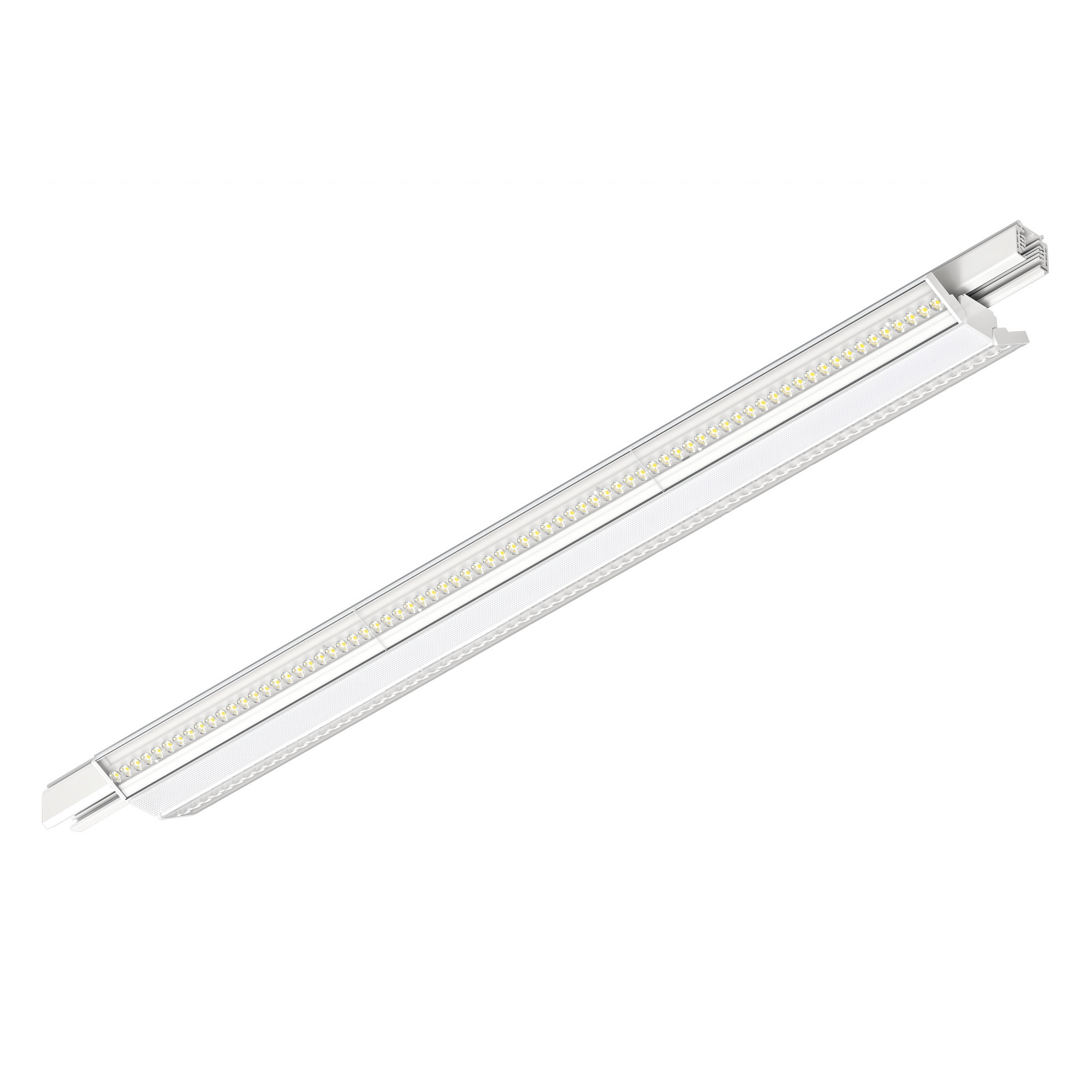

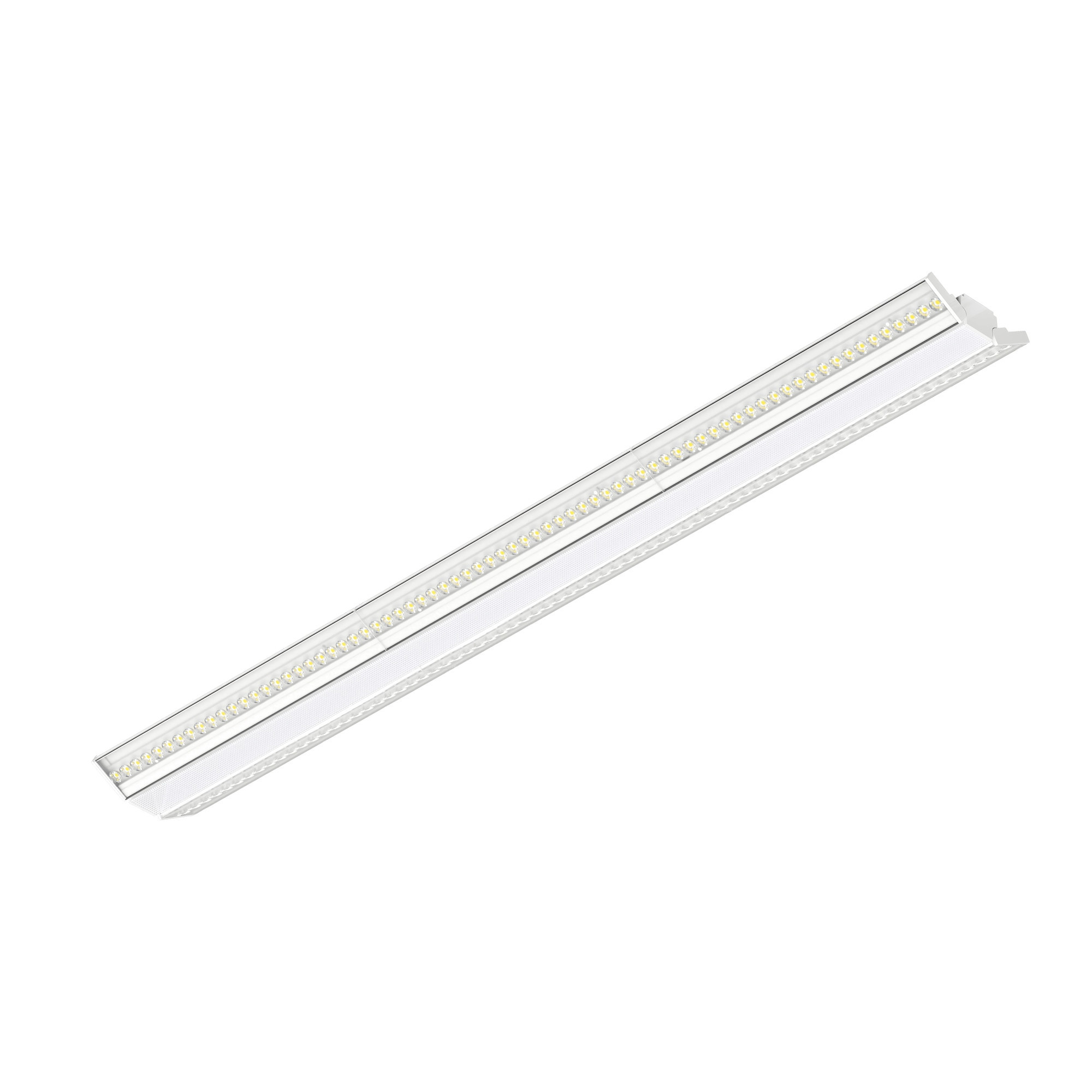

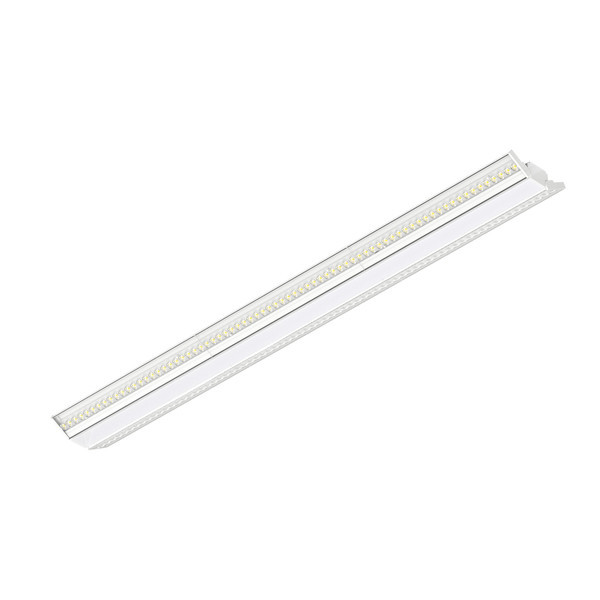

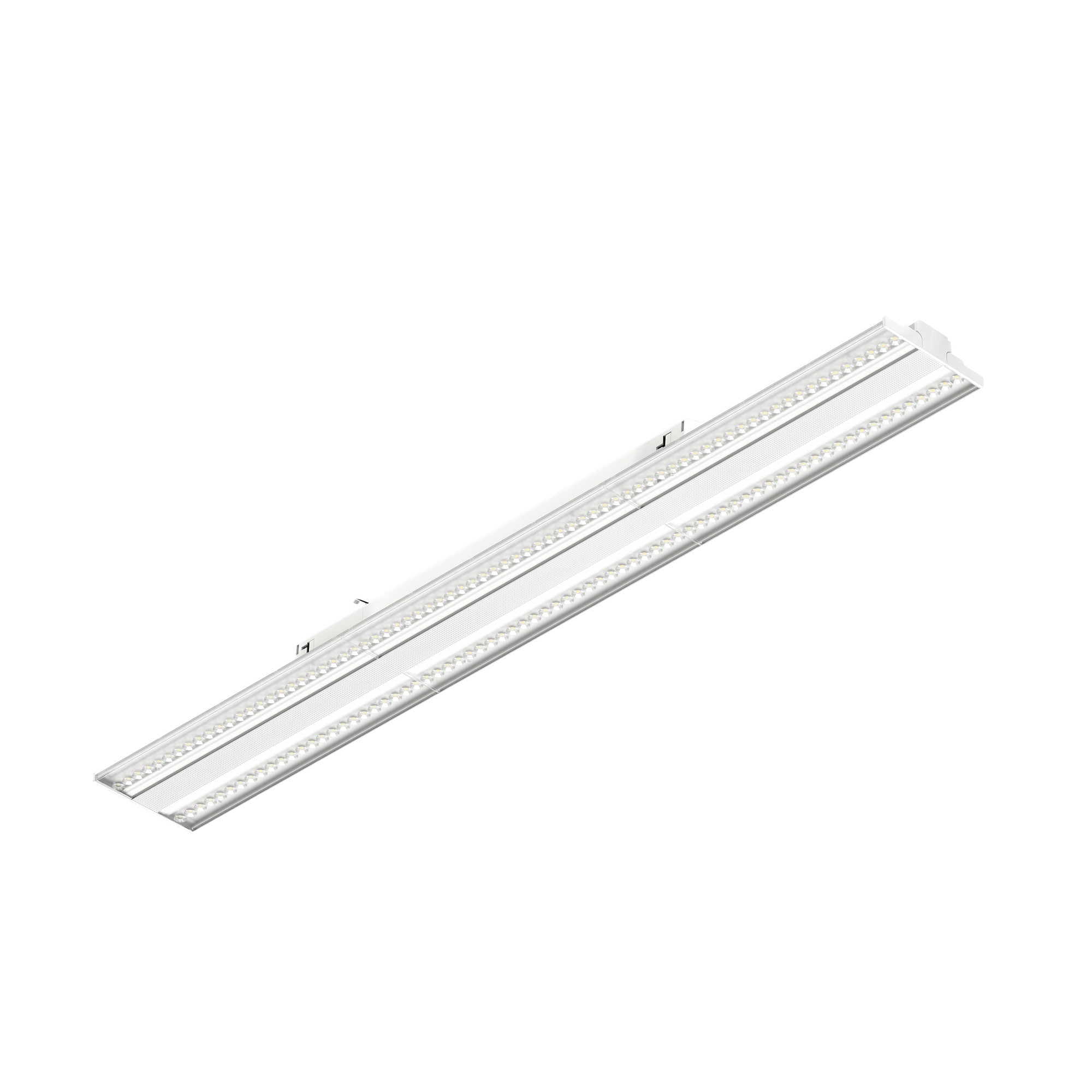

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

1500 mm · white · 5000 K daylight white · CRI > 80

1500 mmwhiteCRI > 805000 KIP20160 lm/WL80 100,000 h

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch.	High efficiency 160 lm/W – up to 9,600 lm at 60 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 60 W / 50 W / 42 W / 34 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

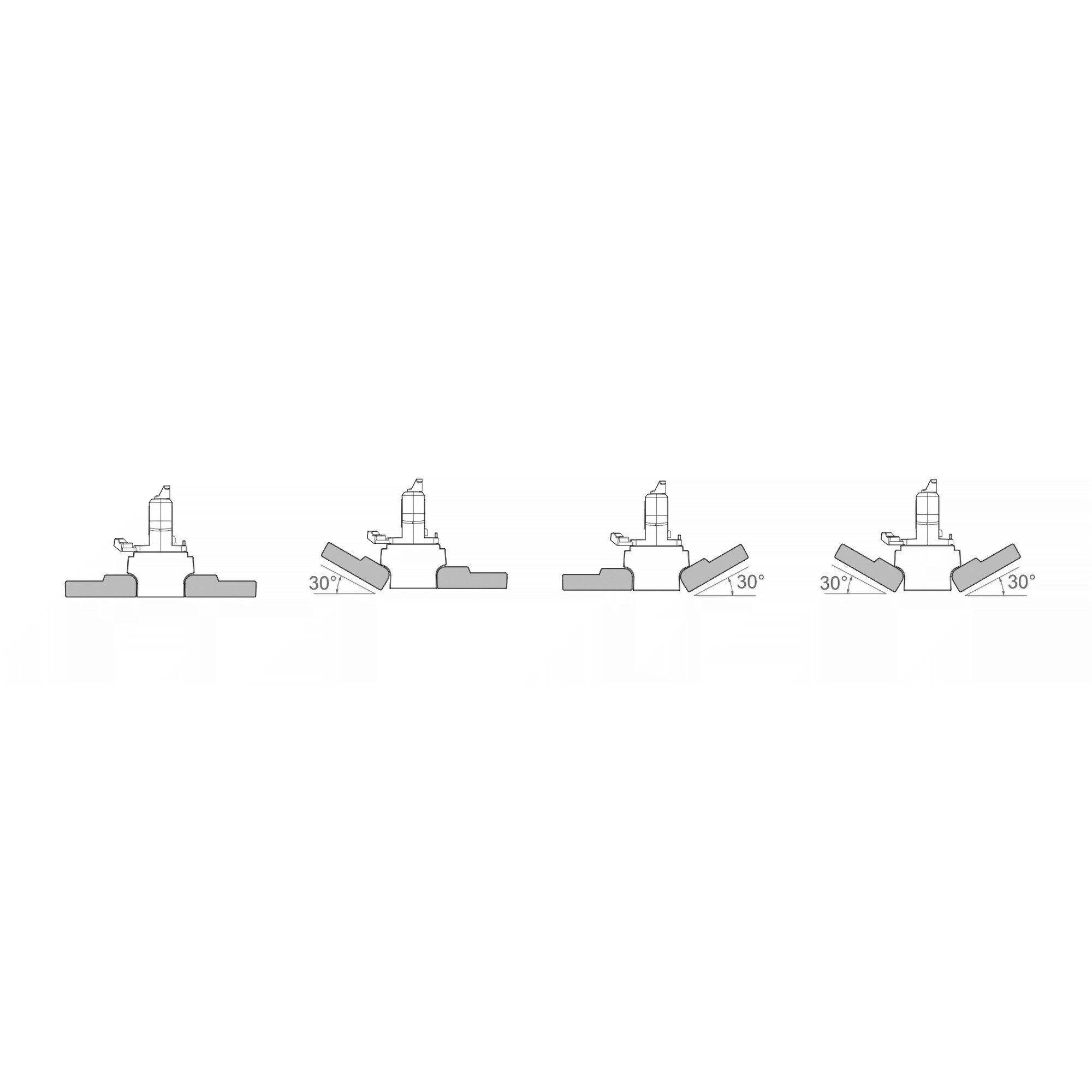

With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.

For shelf and aisle lighting the tiltable spots are ideal – the light can be aimed exactly at shelf boards and displays, presenting goods along the aisles bright and appealing.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 160 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

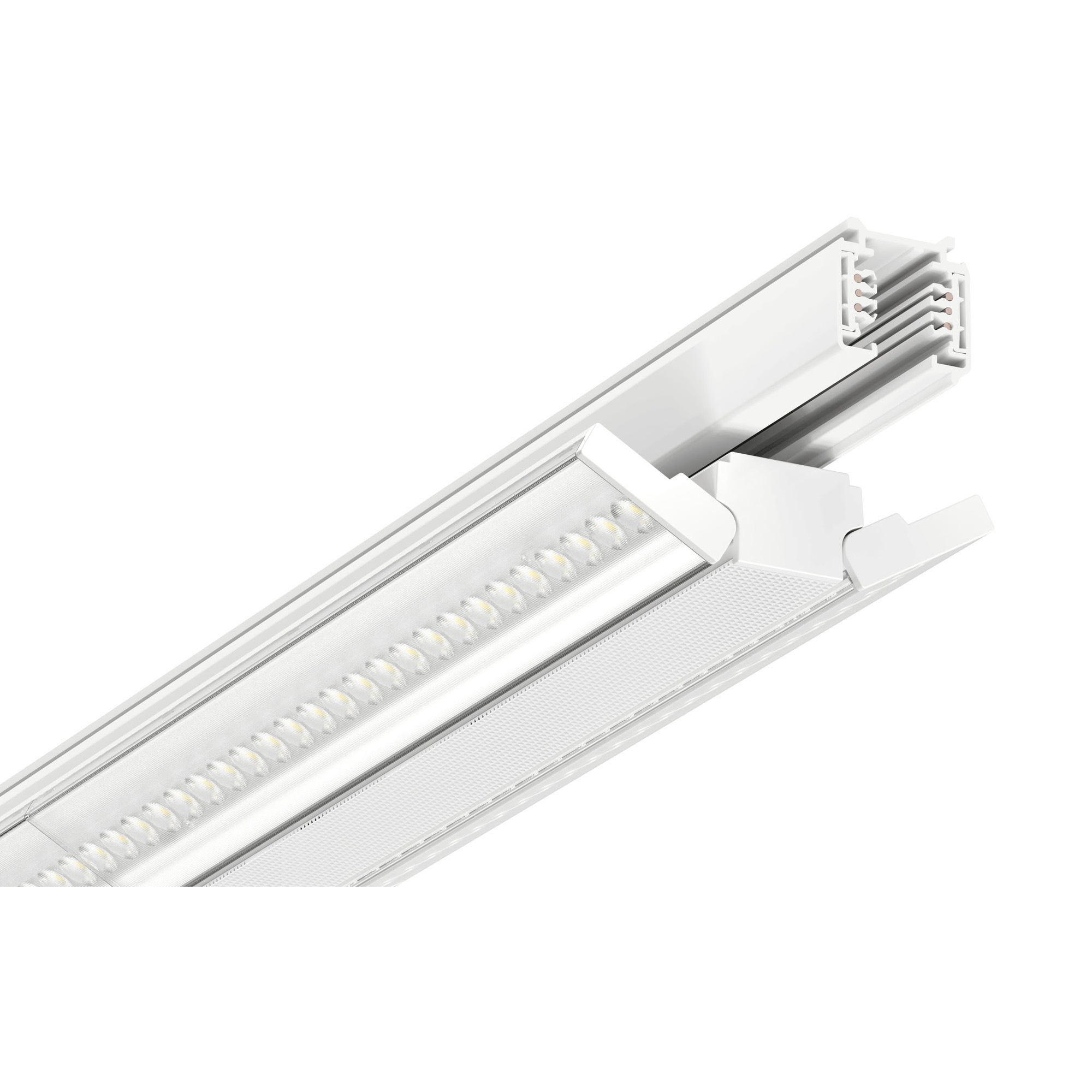

Mounting & track compatibility

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 13 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.

Colour temperature 5000 K – daylight white

Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.

Technical data

Power (switchable)	60 W / 50 W / 42 W / 34 W (by switch)
Luminous flux	60 W = 9,600 lm / 50 W = 8,000 lm / 42 W = 6,720 lm / 34 W = 5,440 lm
Efficacy	160 lm/W
Colour temperature	5000 K (daylight white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions (L×W×H)	1498 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

At 1500 mm this luminaire is ideal for spacious halls, long retail aisles and continuous production lines. Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
