LED VU3 linear light adjustable 60cm white 160lm CRI >80 3K/4K/5K/6K 3000K

Item number: VU36C8W-1

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

99,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	94,90 €
12	89,90 €

Available

Shipping time: 15 - 16 workdays

Description

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

600 mm · white · 3000 K warm white · CRI > 80

600 mmwhiteCRI > 803000 KIP20160 lm/WL80 100,000 h

This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch.	High efficiency 160 lm/W – up to 7,680 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 48 W / 40 W / 34 W / 27 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

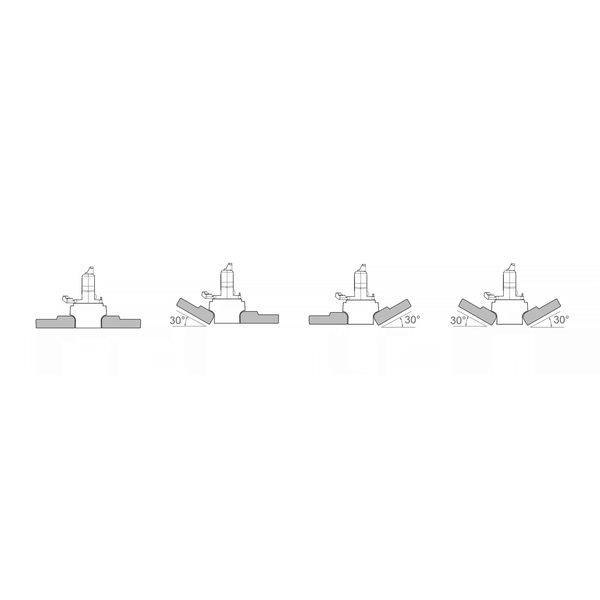

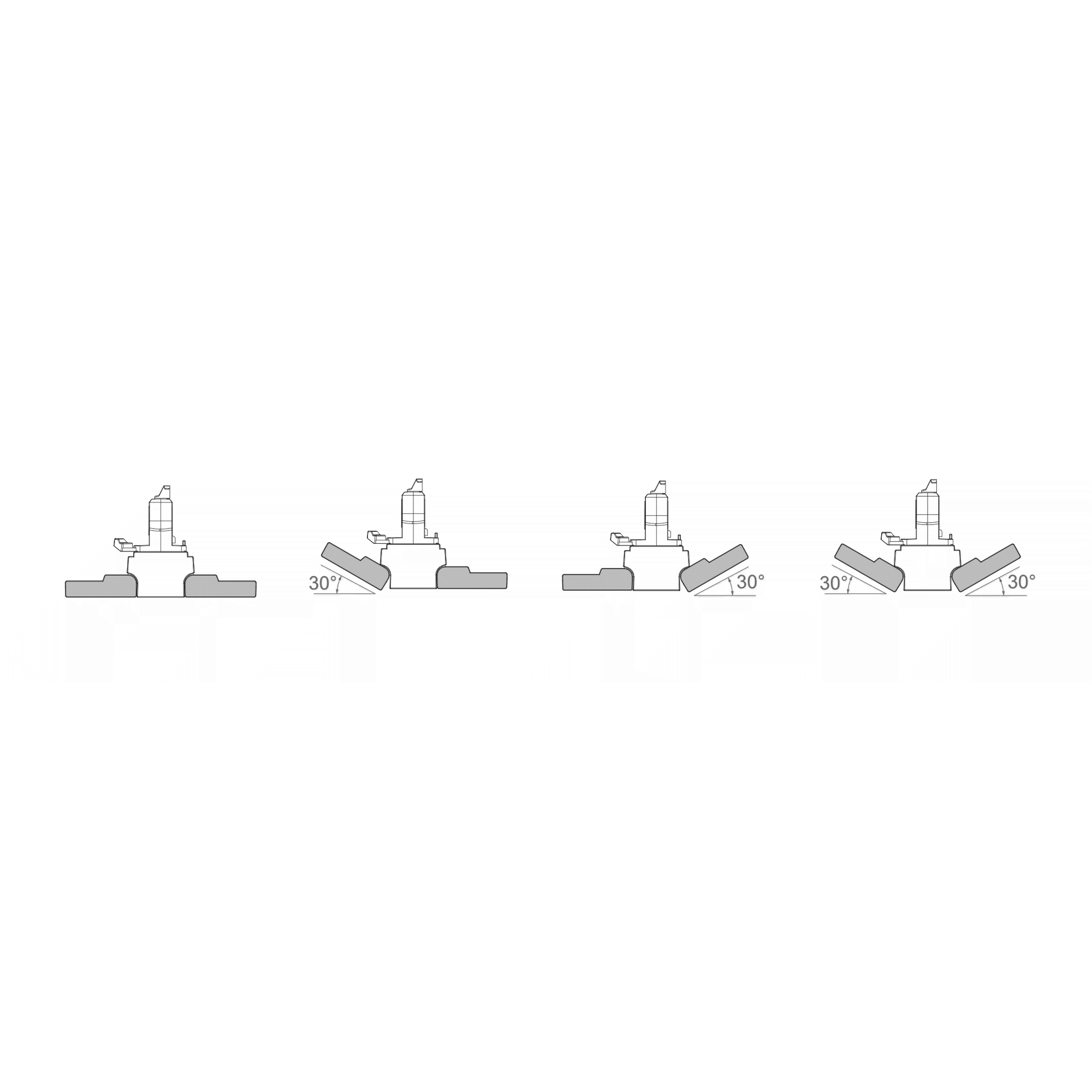

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

For shelf and aisle lighting the tiltable spots are ideal – the light can be aimed exactly at shelf boards and displays, presenting goods along the aisles bright and appealing.

Efficient & bright

The CRI > 80 variant combines solid colour rendering with especially high efficiency (160 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

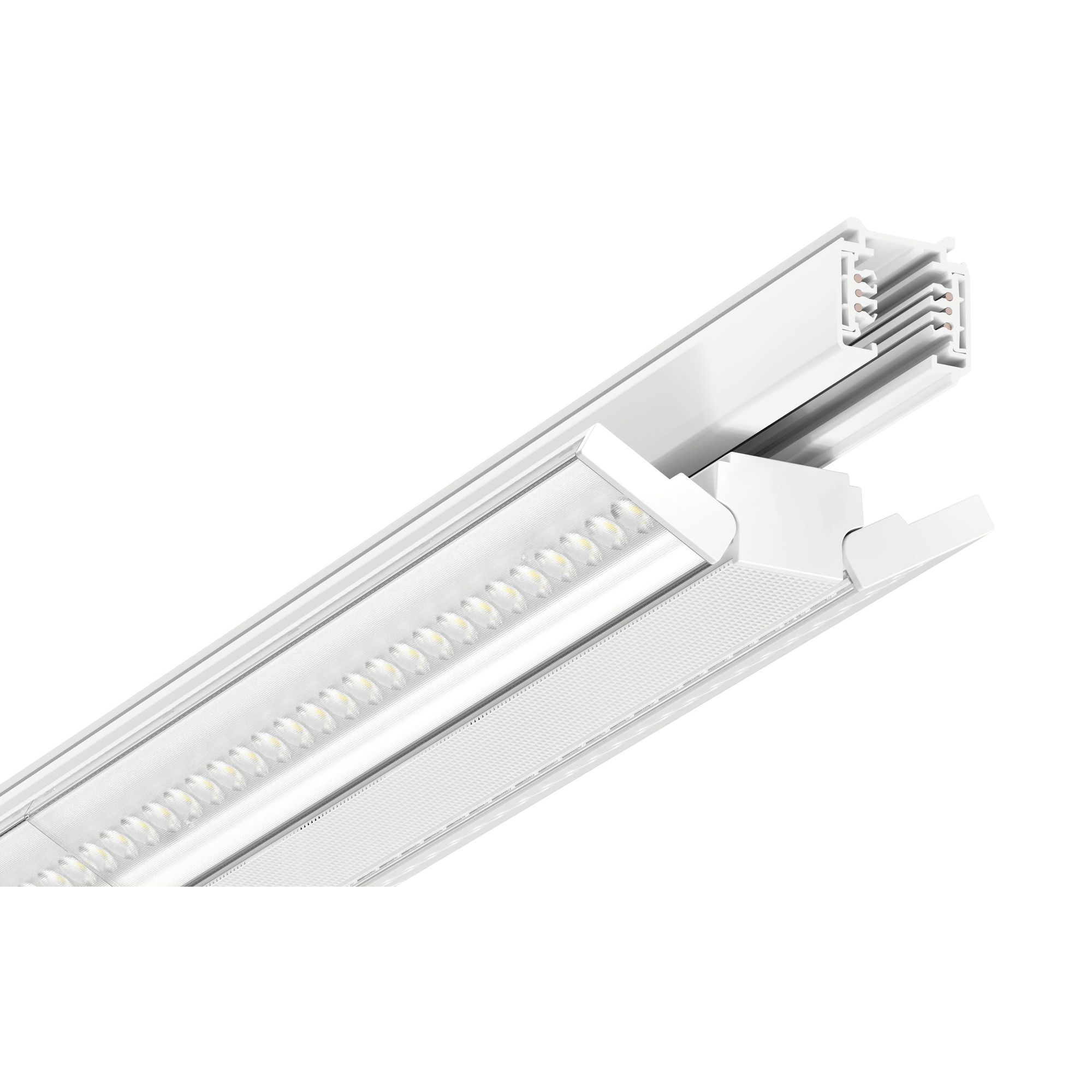

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Colour temperature 3000 K – warm white

Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Technical data

Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	48 W = 7,680 lm / 40 W = 6,400 lm / 34 W = 5,440 lm / 27 W = 4,320 lm
Efficacy	160 lm/W
Colour temperature	3000 K (warm white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions (L×W×H)	588 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
