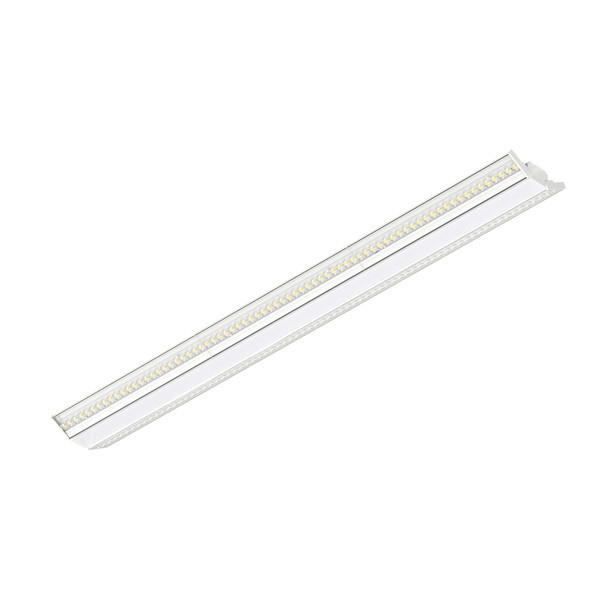

LED VU3 linear light adjustable 60cm white 160lm CRI >80 3K/4K/5K/6K 6000K

Item number: VU36C8W-4

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

99,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	94,90 €
12	89,90 €

Available

Shipping time: 15 - 16 workdays

Description

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

600 mm · white · 6000 K cool white · CRI > 80

600 mmwhiteCRI > 806000 KIP20160 lm/WL80 100,000 h

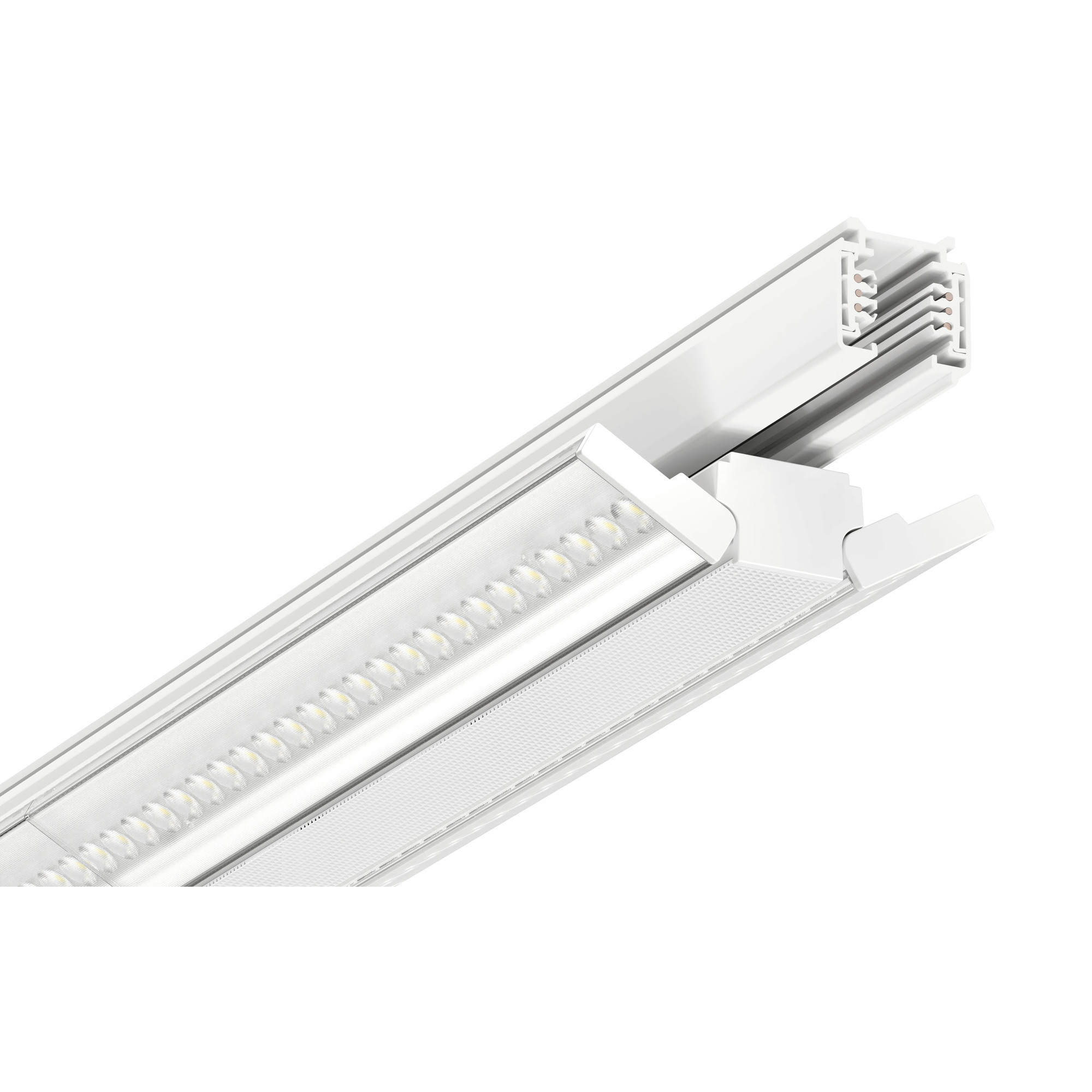

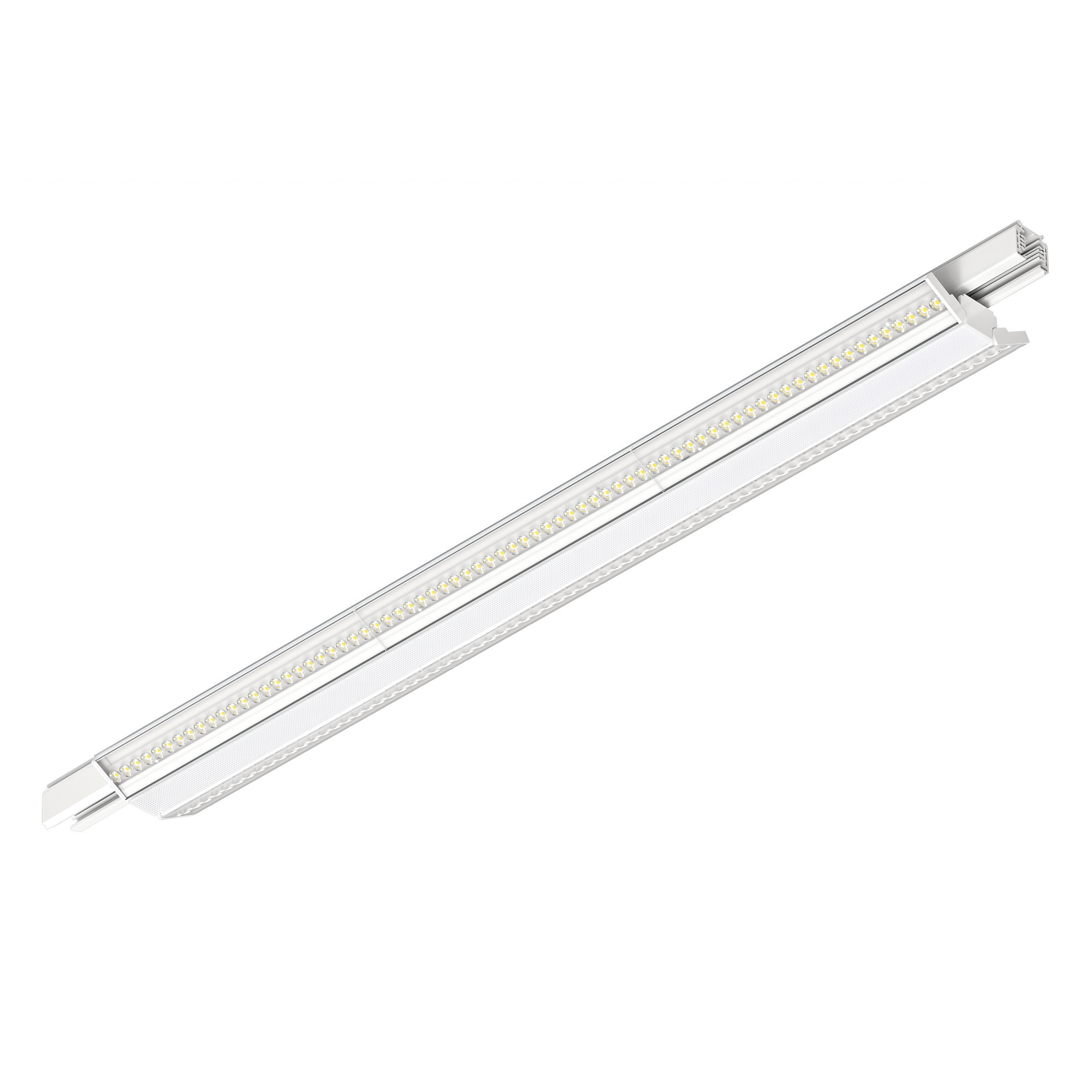

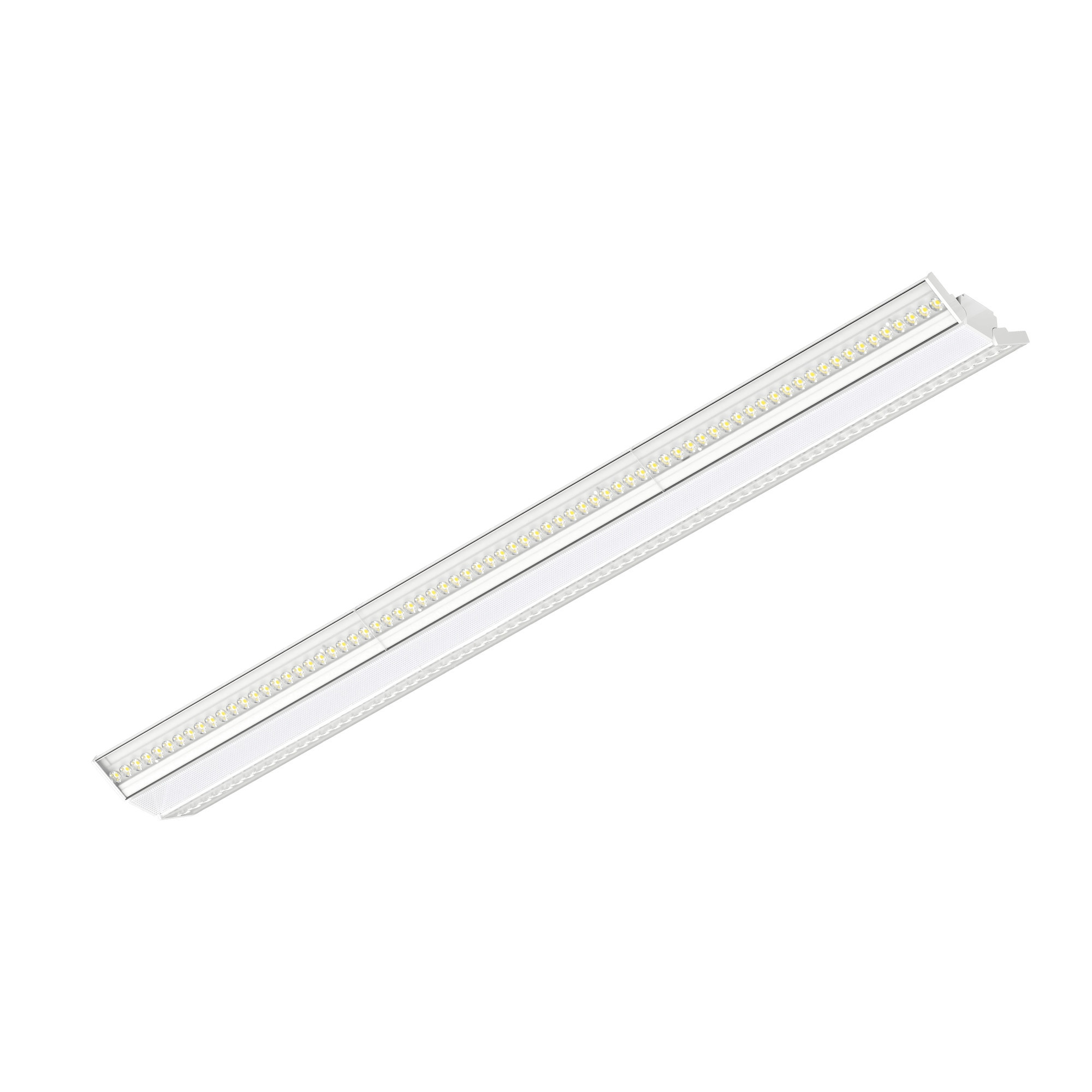

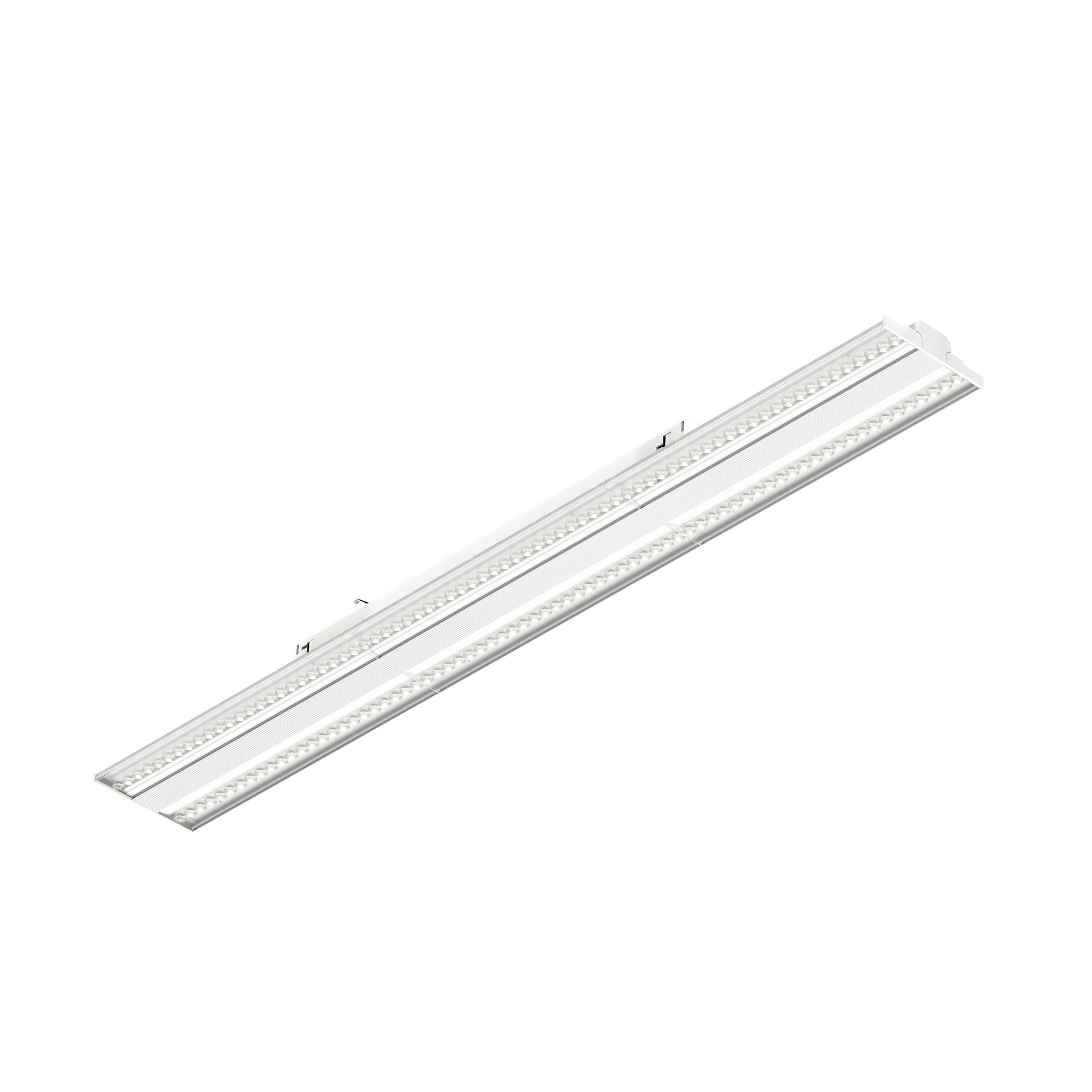

This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch.	High efficiency 160 lm/W – up to 7,680 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 48 W / 40 W / 34 W / 27 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

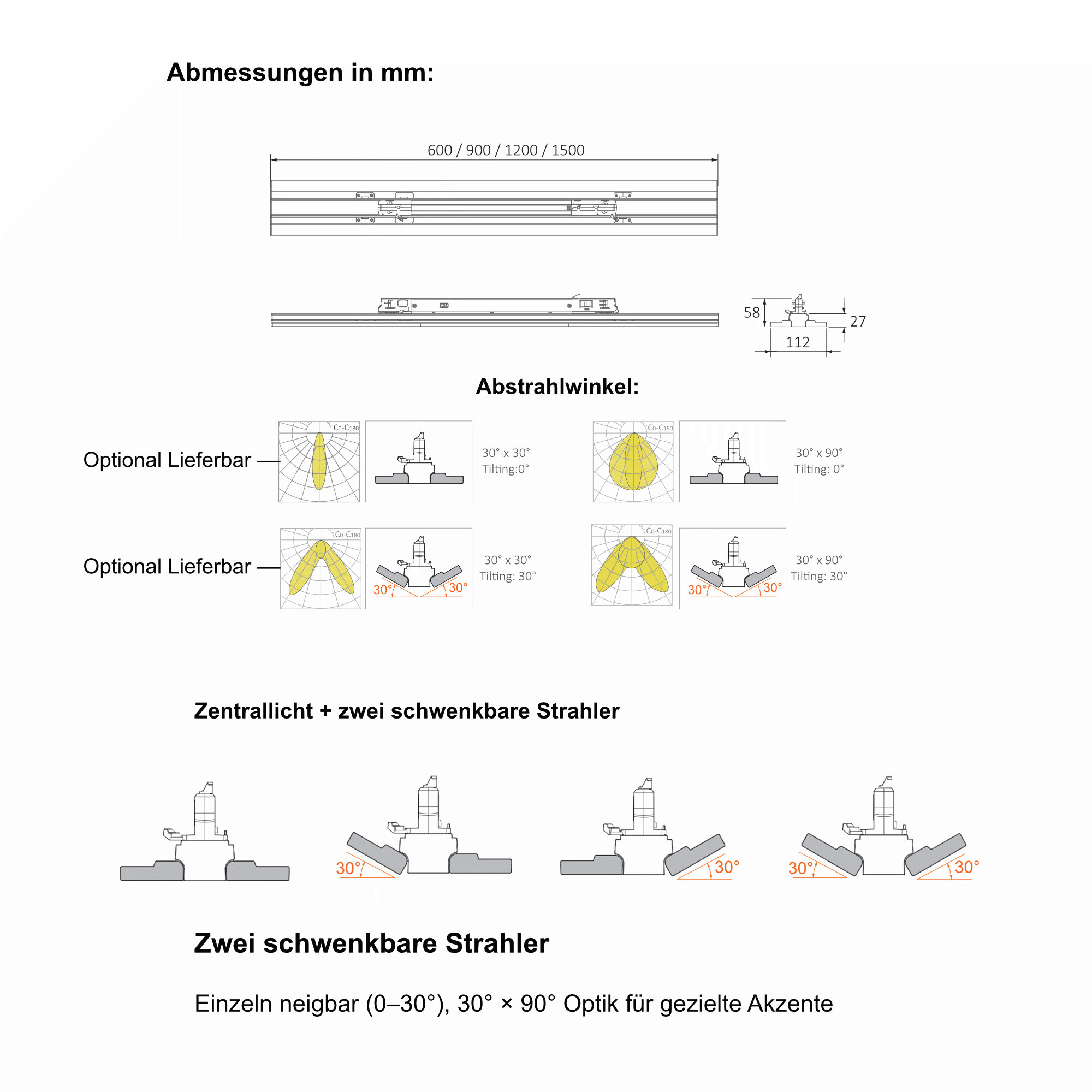

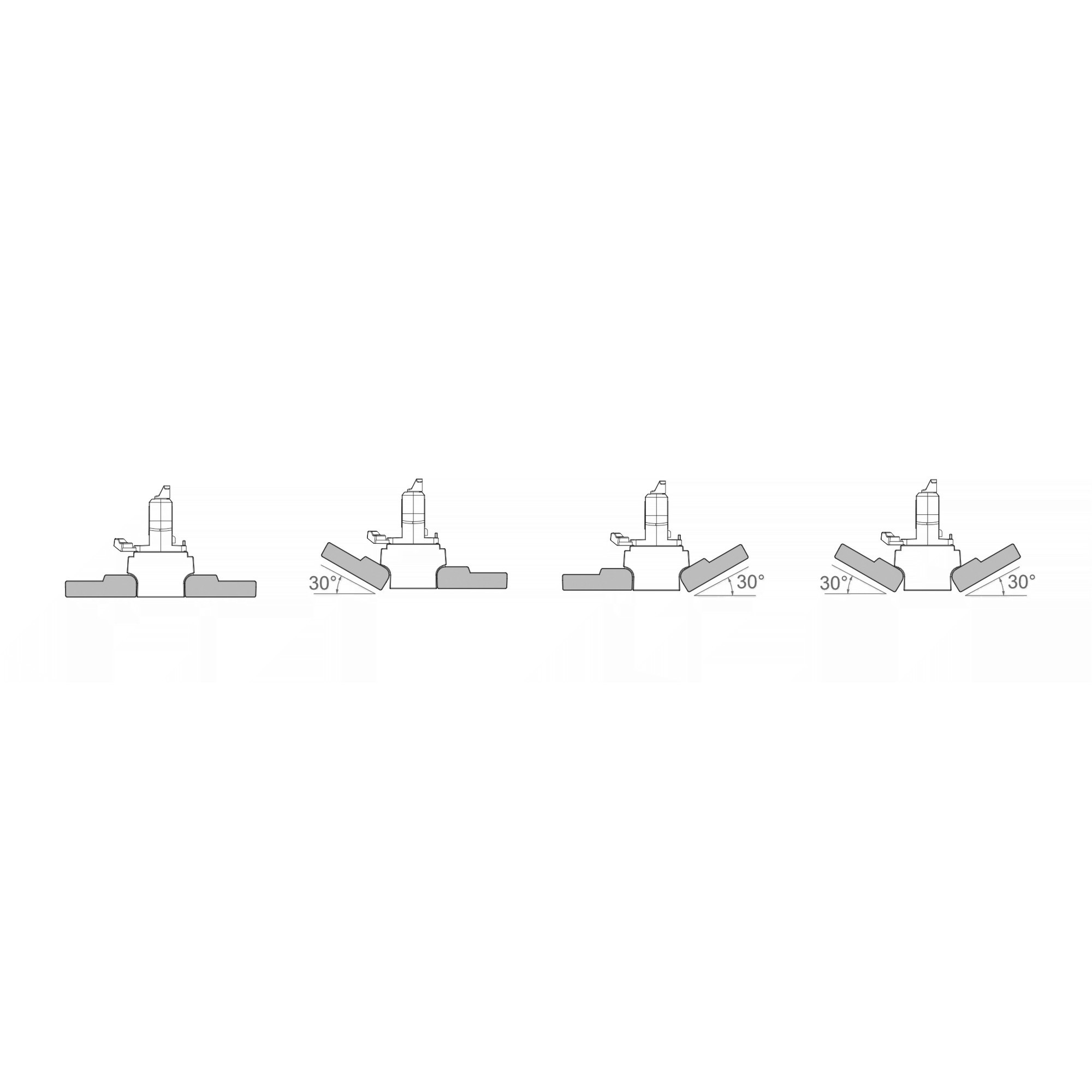

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

For shelf and aisle lighting the tiltable spots are ideal – the light can be aimed exactly at shelf boards and displays, presenting goods along the aisles bright and appealing.

Efficient & bright

The CRI > 80 variant combines solid colour rendering with especially high efficiency (160 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

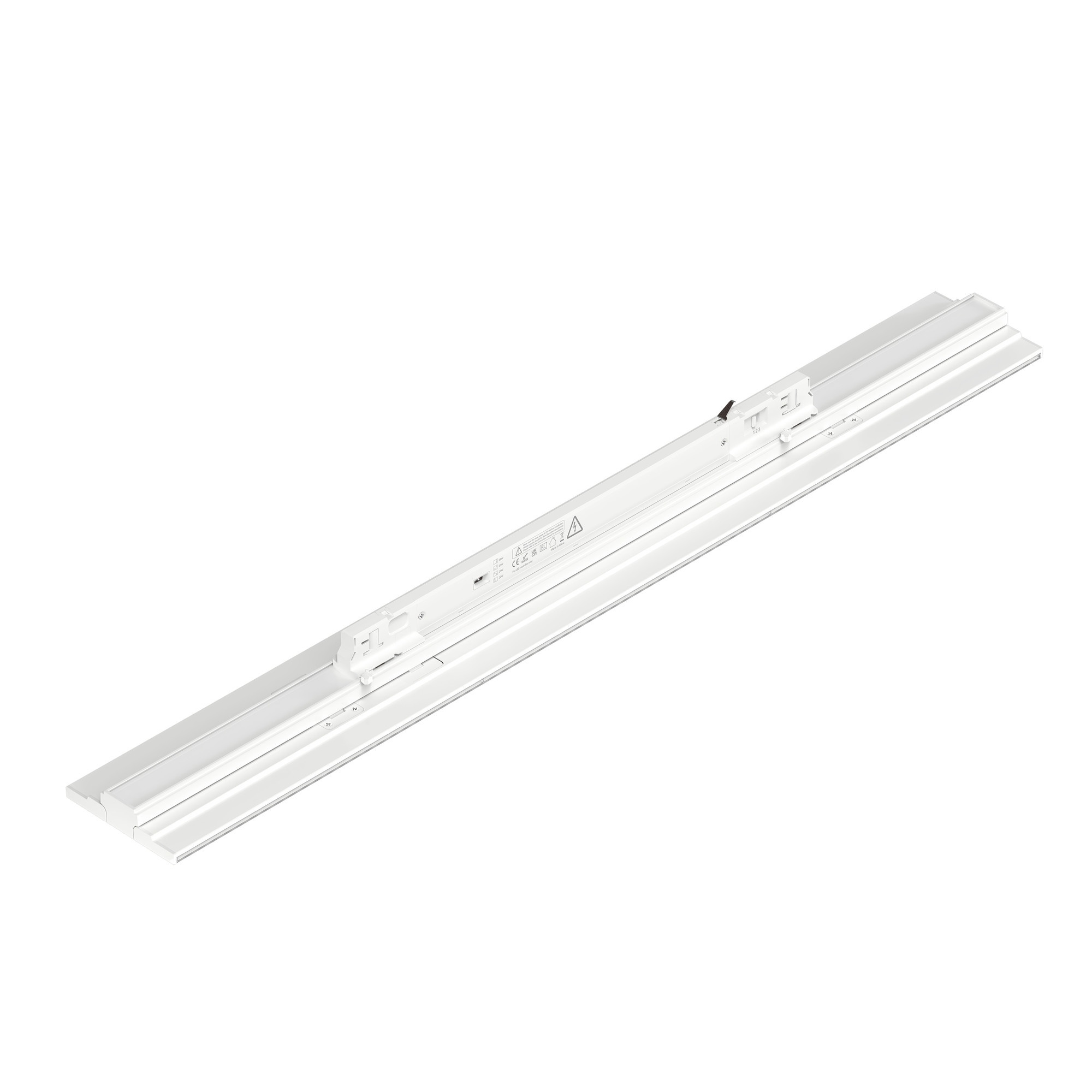

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Colour temperature 6000 K – cool white

Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Technical data

Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	48 W = 7,680 lm / 40 W = 6,400 lm / 34 W = 5,440 lm / 27 W = 4,320 lm
Efficacy	160 lm/W
Colour temperature	6000 K (cool white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions (L×W×H)	588 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
