LED VU3 linear light, adjustable, 90 cm, white, 150 lm, CRI >90, 3K/4K/5K/6K 3000K

Item number: VU39C9W-1

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

115,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	109,90 €
12	104,90 €

Available

Shipping time: 15 - 16 workdays

Description

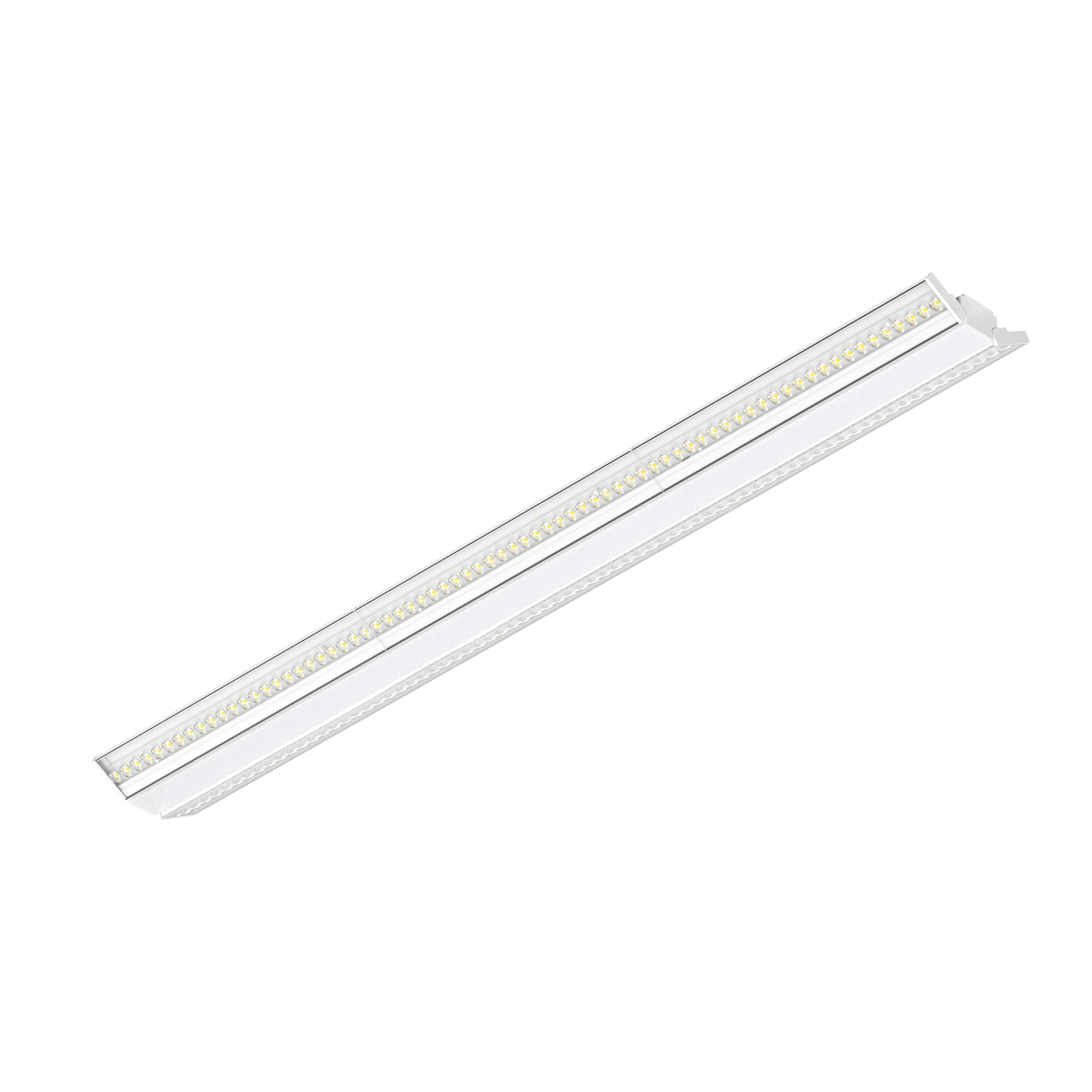

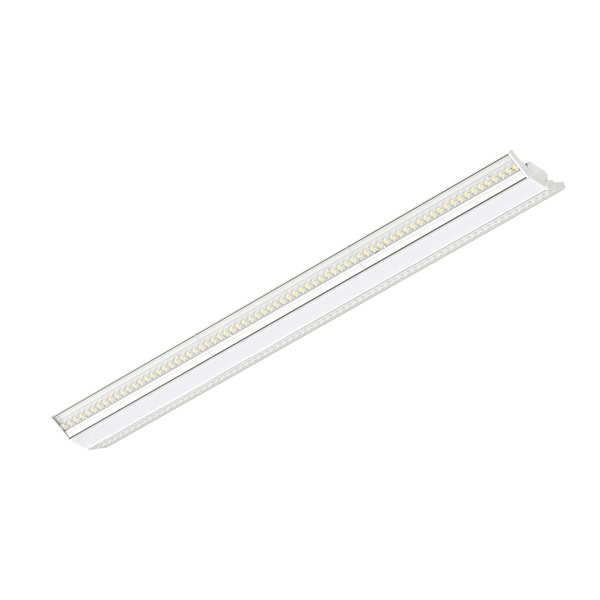

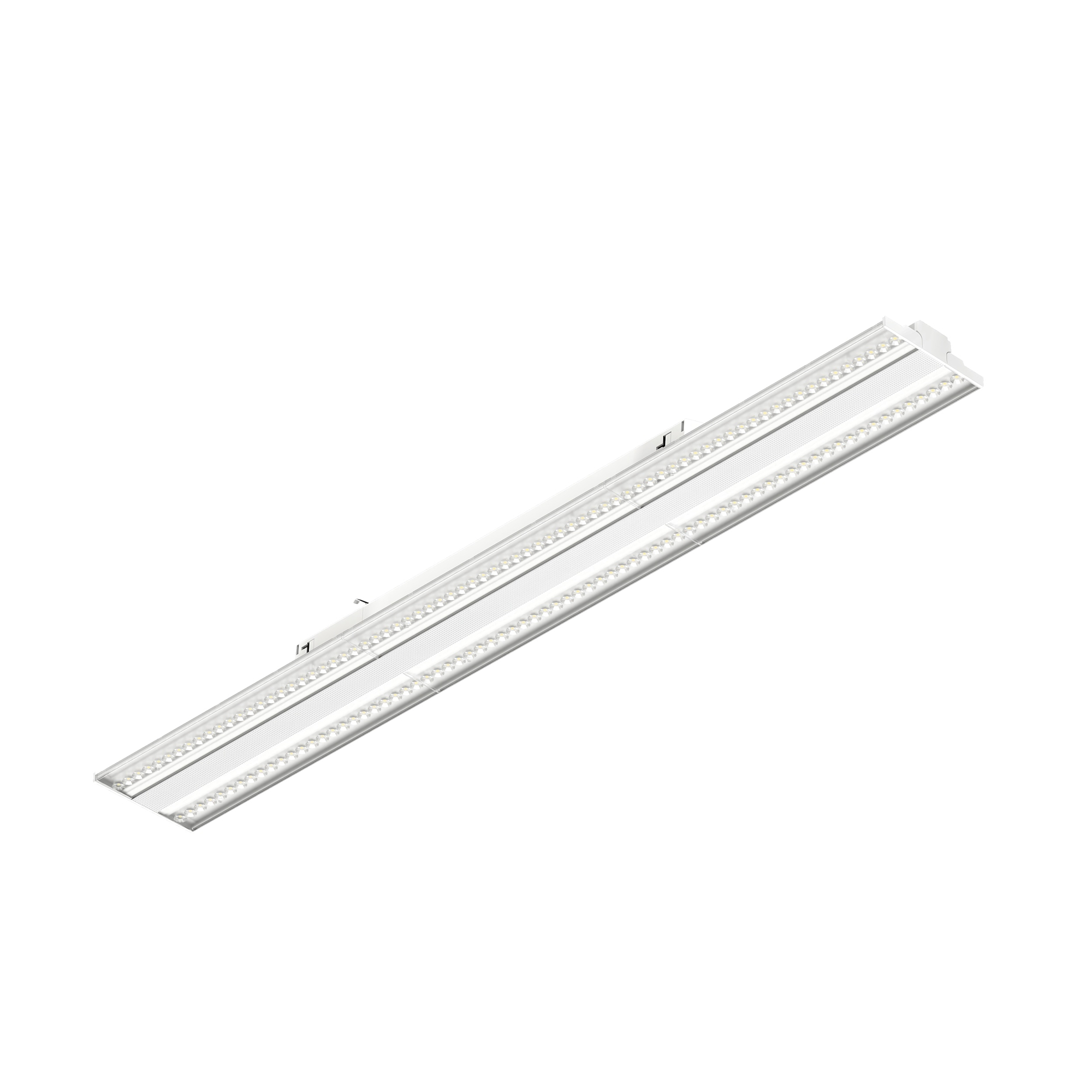

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

900 mm · white · 3000 K warm white · CRI > 90

900 mmwhiteCRI > 903000 KIP20150 lm/WL80 100,000 h

This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch.	High efficiency 150 lm/W – up to 8,250 lm at 55 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 90 for natural, rich colours
Switchable power 55 W / 47 W / 39 W / 30 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

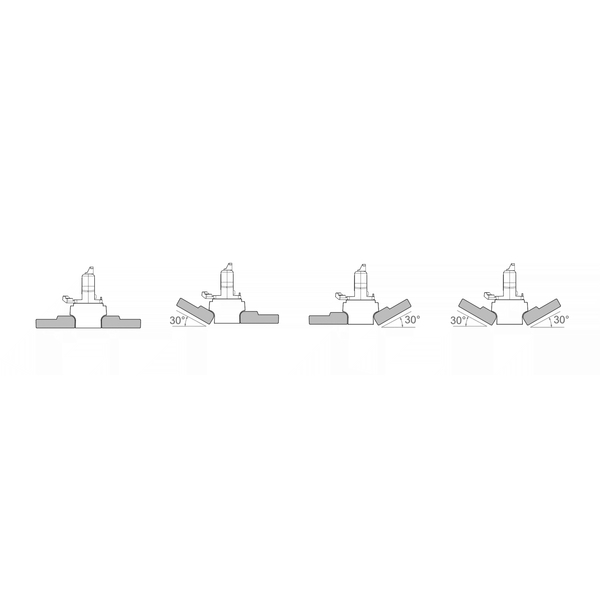

Central light + two tiltable spots

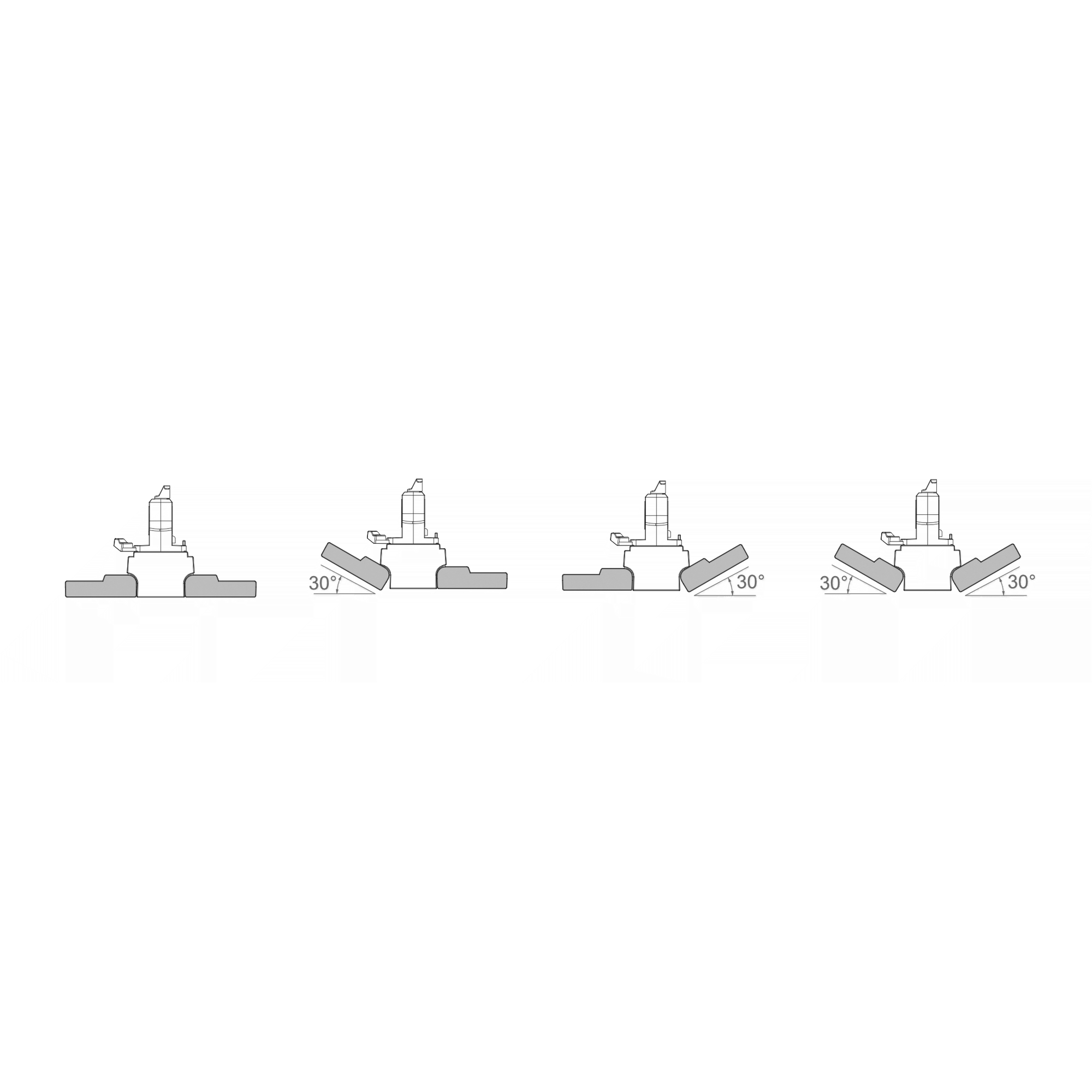

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Perfect colour rendering for retail & boutiques

With a colour rendering index of CRI > 90 this luminaire shows colours almost as they appear in daylight. Reds, skin tones and material shades stay rich and natural – a decisive advantage in boutiques, fashion stores, jewellers and anywhere goods need to look their best. Fabrics, food and displays appear more premium, actively supporting the buying decision.

Long service life – L80 at 100,000 hours

100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

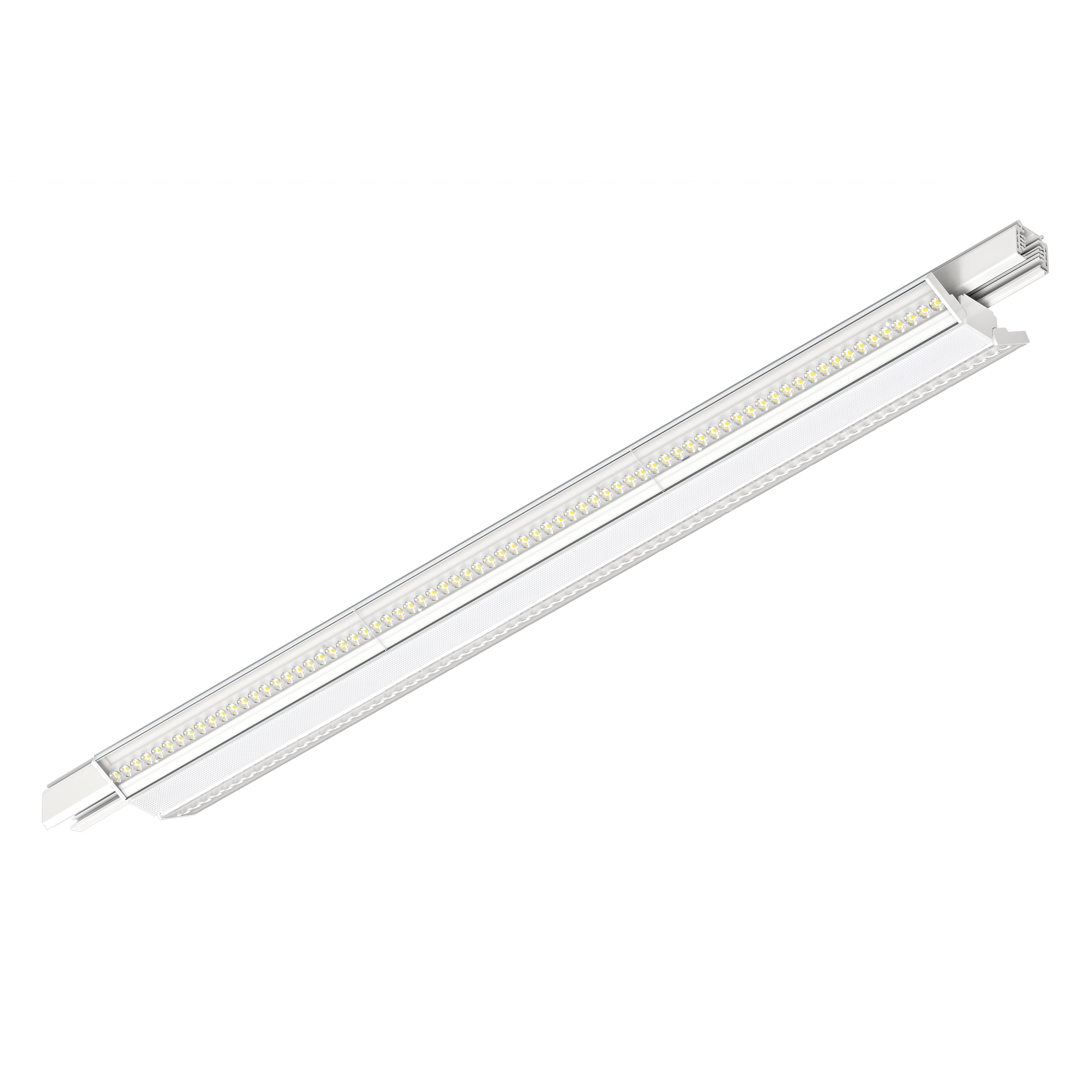

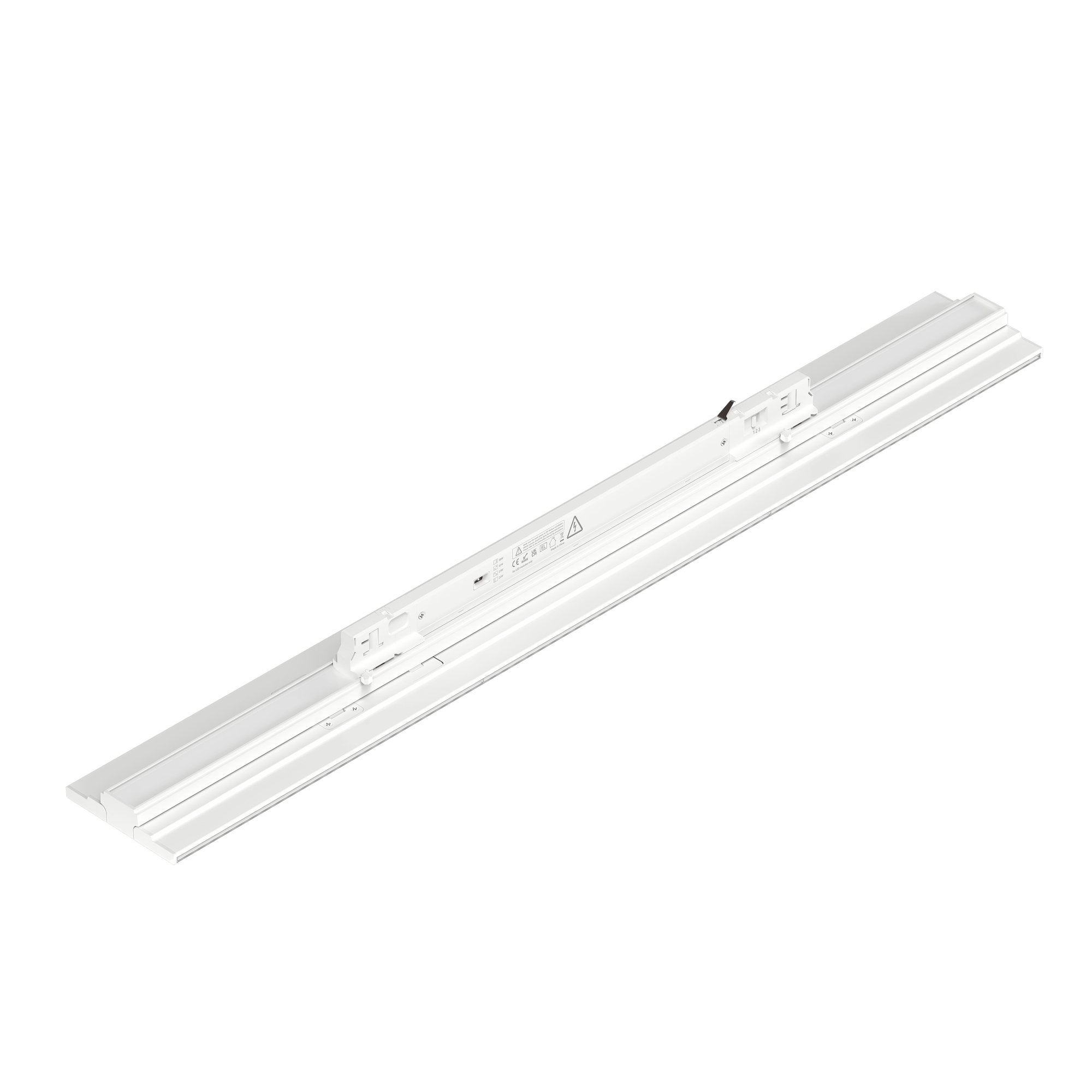

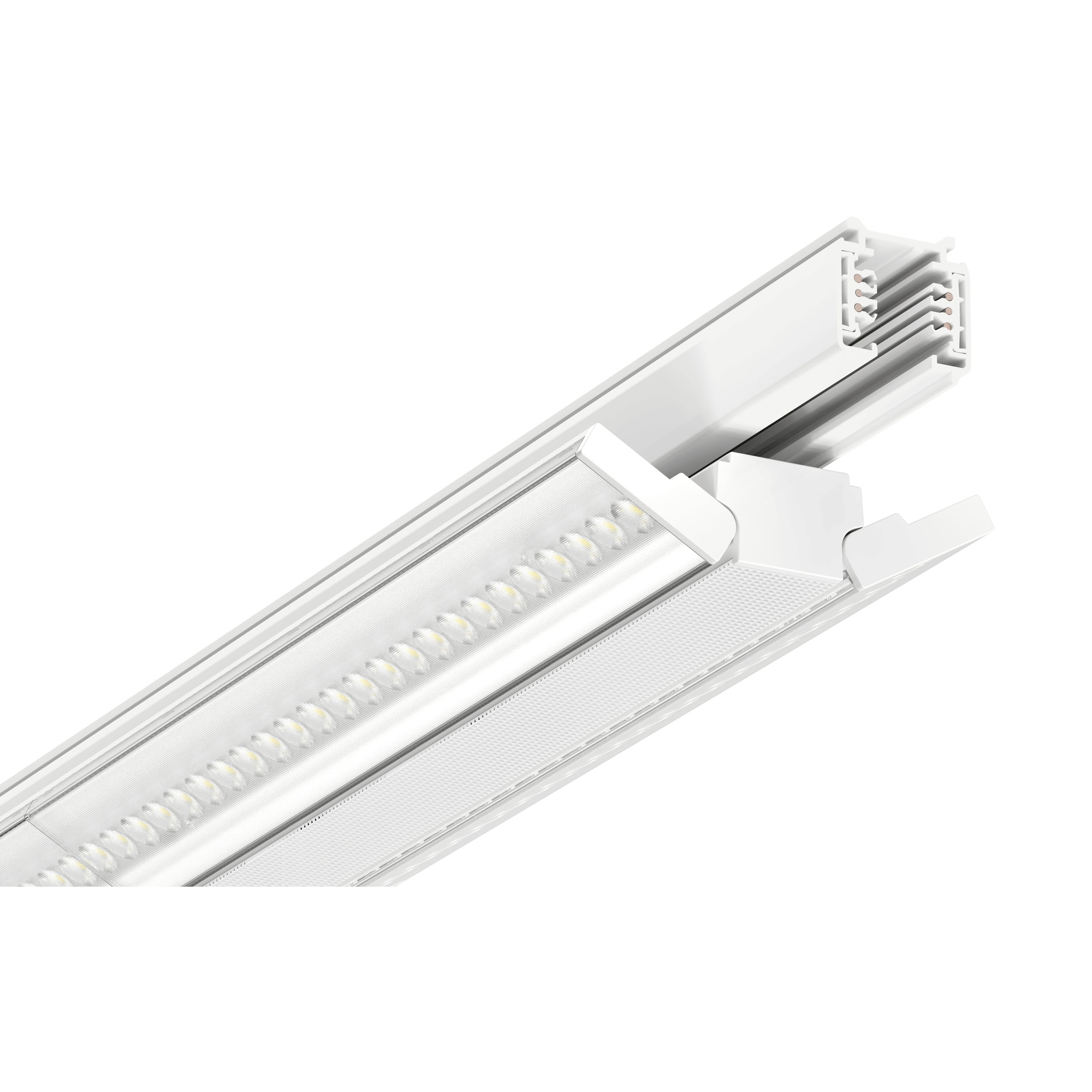

Mounting & track compatibility

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 14 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.

Colour temperature 3000 K – warm white

Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Why CRI > 90 delivers slightly fewer lumens

The CRI > 90 variant intentionally reaches a slightly lower luminous flux than the CRI > 80 version – for a physical reason. Higher colour rendering calls for a fuller spectrum with more red and deep-red content. The eye is less sensitive precisely in this spectral range, and the additional phosphor conversion costs some efficiency. So at the same wattage you get slightly fewer lumens and marginally lower efficacy (lm/W) – in exchange for noticeably more natural, richer colours.

Technical data

Power (switchable)	55 W / 47 W / 39 W / 30 W (by switch)
Luminous flux	55 W = 8,250 lm / 47 W = 7,050 lm / 39 W = 5,850 lm / 30 W = 4,500 lm
Efficacy	150 lm/W
Colour temperature	3000 K (warm white)
Colour rendering	CRI > 90
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)

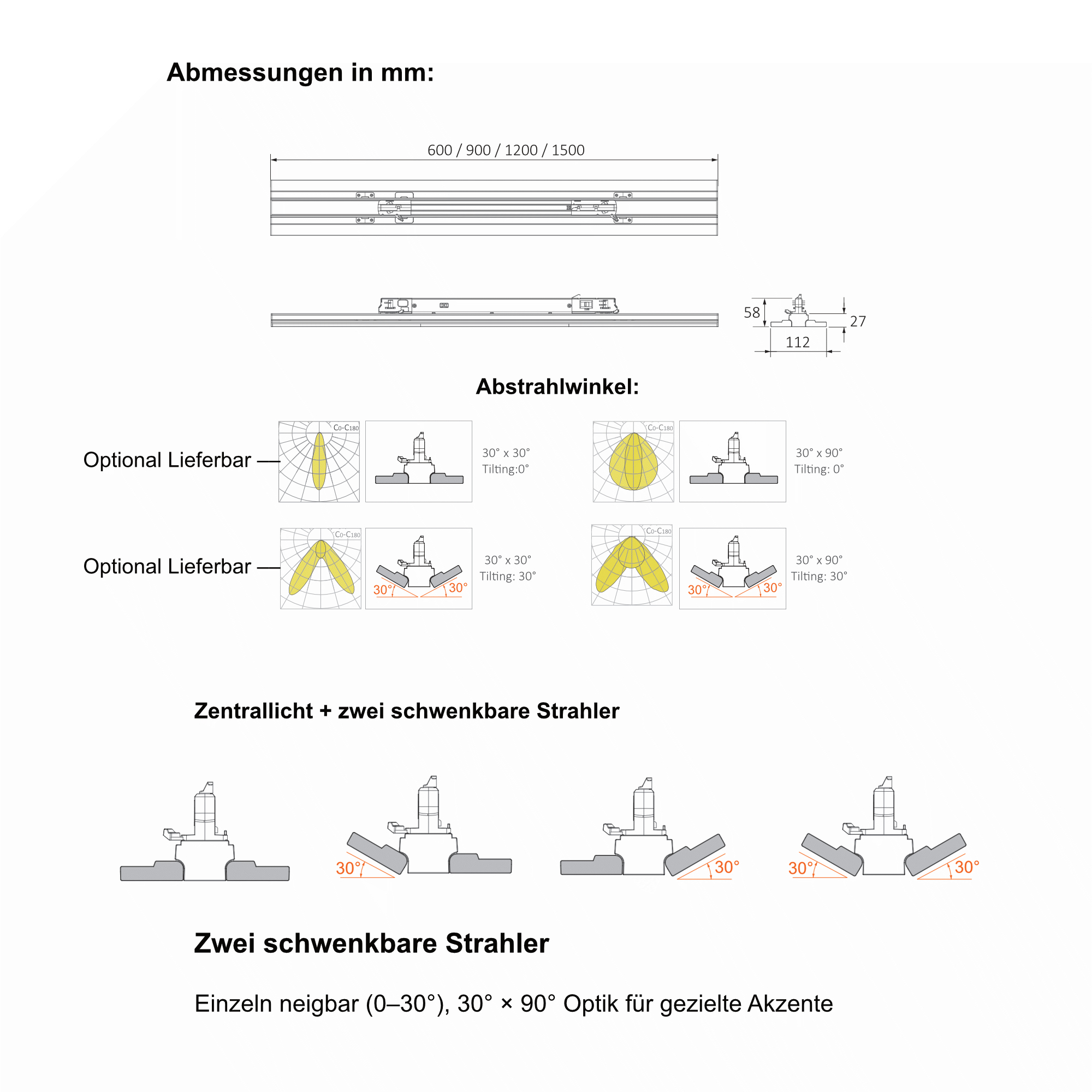

Dimensions (L×W×H)	888 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
