Description

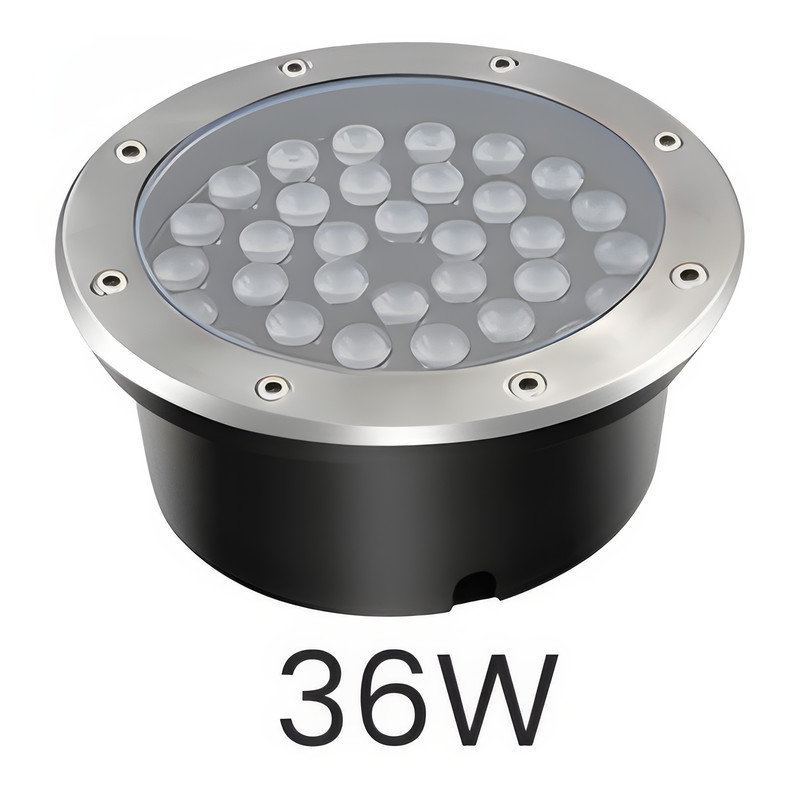

Stainless-steel in-ground light for outdoors
The powerful light is built from stainless 304 steel with a generous aluminium heat sink and reliably dissipates the higher heat load. Potted electronics and IP67 ensure lasting dust- and waterproofing, and the walk-over flange bears even high loads. The 24 V operation is safe and delivers a focused 45° beam.
Your Benefits at a Glance
Powerful accents 2,880 lm in warm white (3000 K) from 36 W. |
Walk-over & load-bearing Sturdy 304 stainless-steel body with a large heat sink, bears high loads. |
IP67 weatherproof Permanently dust- and waterproof – made for demanding outdoor use. |
Safe 24 V technology Extra-low voltage (Class III) – safe even on large installations. |
Warm White light 3000 K – gardens, paths & warm facade accents. |
Durable & economical Efficient cooling and 30,000 h for continuous operation. |
This Light Colour

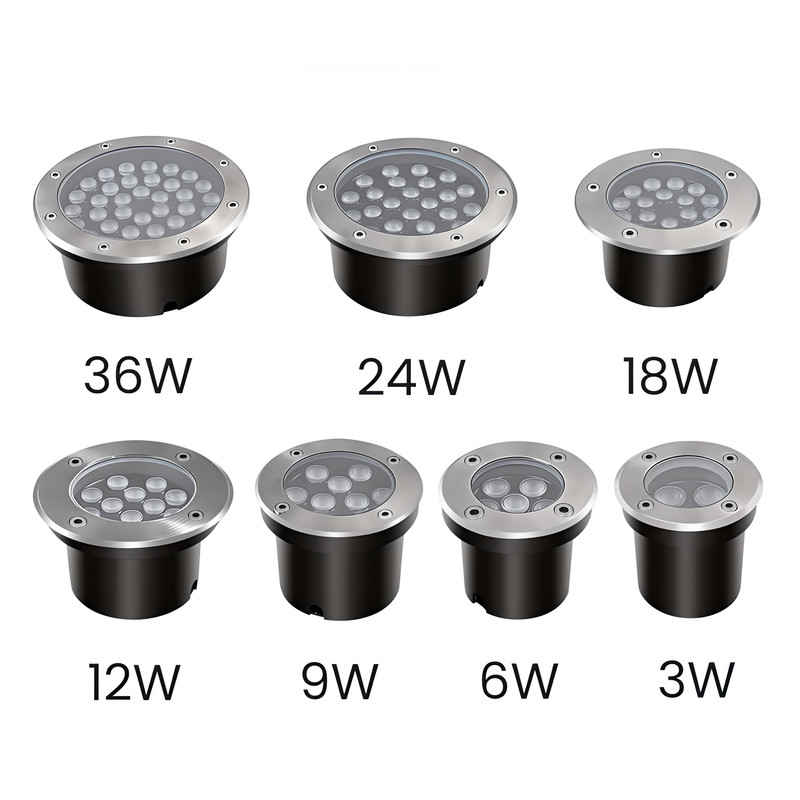

Fixed light colour of this variant – also available in 3000 K and 4000 K.
| 3000 K Warm White – gardens, paths & warm facade accents |
Specifications
| Property | Value |
| Power | 36 W |
| Input voltage | AC/DC 24 V |
| Luminous flux | 2,880 lm |
| Luminous efficacy | 80 lm/W |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 3000 K (warm white) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 45° |
| LED type | SMD 2835 (36 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP67 |
| Protection class | III (SELV) |
| Housing | 304 stainless steel, aluminium heat sink, PC cover |
| Outer diameter (flange) | Ø 250 mm |
| Light aperture (Ø) | Ø 190 mm |
| Cut-out (hole) | Ø 240 mm |
| Recessed depth (height) | 90 mm |
| Weight | 2.42 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 30,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The in-ground light is set into a Ø 240 mm hole in the ground; the stainless-steel flange (Ø 250 mm) sits flush with the surface. Important: the light runs on 24 V safety extra-low voltage (AC/DC) and requires a suitable 24 V power supply or transformer (not included). Never connect it directly to 230 V – this will destroy it. Wiring: V+ = brown, V− = blue; make all connections watertight. Installation and wiring only by a qualified electrician.
Applications

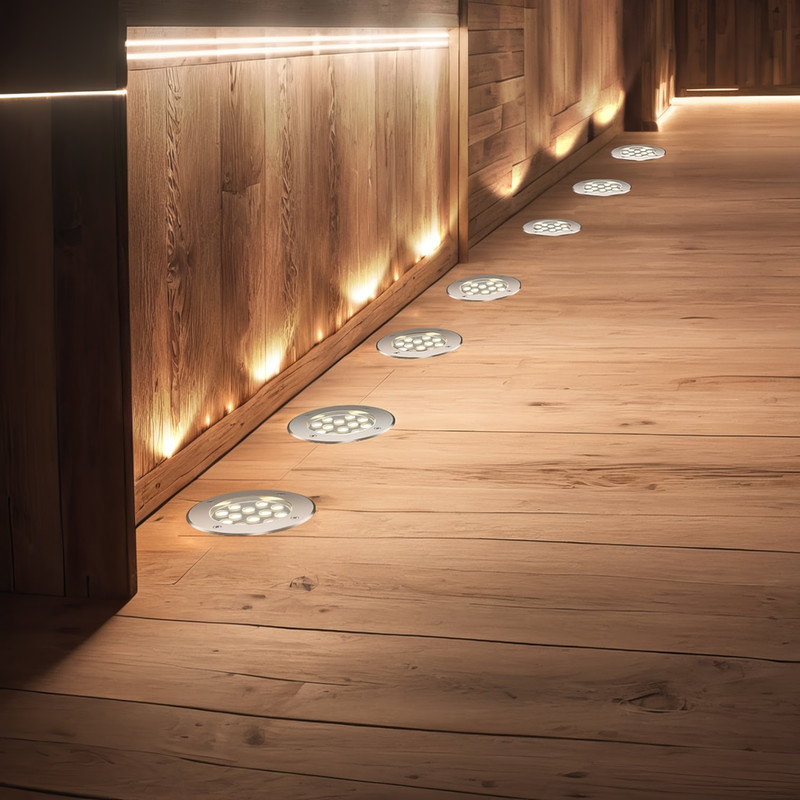

Warm white light (3000 K) makes plants, wood and natural stone feel cosy and inviting. The 36 W in-ground light is therefore ideal for uplighting tall facades, large trees and plazas, and it installs flush in the ground so the look stays tidy by day. The walk-over 304 stainless-steel flange withstands weather and load, IP67 protects against dust and moisture, and it runs on safe 24 V extra-low voltage. This creates an atmospheric, homely lighting mood in the garden – durable thanks to 304 stainless steel, IP67 and a 30,000-hour lifespan.
