Description

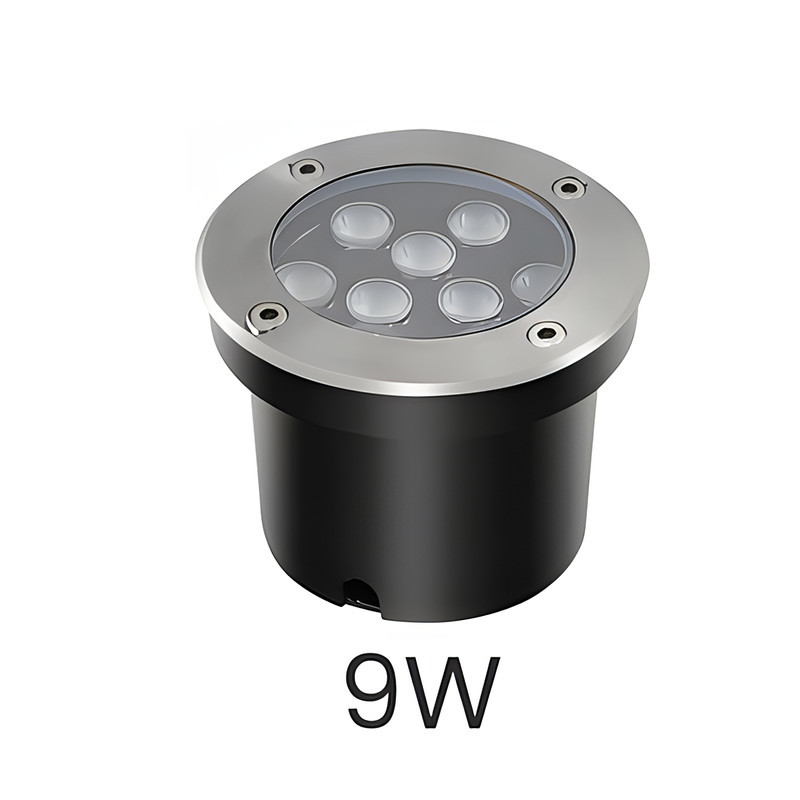

Stainless-steel in-ground light for outdoors
Made of stainless 304 steel with an aluminium heat sink, the light dissipates heat efficiently and therefore lasts long. The potted electronics and IP67 rating make it dust- and waterproof, while the walk-over installation withstands load. It runs safely on 24 V and emits a focused 45° beam.
Your Benefits at a Glance
Powerful accents 720 lm from 9 W in a focused 45° beam. |
Walk-over & rugged Solid 304 stainless-steel body with aluminium heat sink for in-ground use. |
IP67 waterproof Reliably dust- and waterproof – even in rain and irrigation. |
Safe 24 V technology Extra-low voltage (Class III) – no 230 V risk in the garden. |
2 light colours Warm white (3000 K) and neutral white (4000 K) available. |
Durable & efficient Good heat dissipation and a 30,000 h lifespan for long operation. |
Choose Your Light Colour
Selectable when ordering – one light colour per light.
| 3000 K Warm white – gardens, paths & warm facade accents | |
| 4000 K Neutral white – driveways, plazas & crisp architectural accents |
Specifications
| Property | Value |
| Power | 9 W |
| Input voltage | AC/DC 24 V |
| Luminous flux | 720 lm |
| Luminous efficacy | 80 lm/W |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 3000 / 4000 K (depending on variant) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 45° |
| LED type | SMD 2835 (9 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP67 |
| Protection class | III (SELV) |
| Housing | 304 stainless steel, aluminium heat sink, PC cover |
| Outer diameter (flange) | Ø 160 mm |
| Light aperture (Ø) | Ø 100 mm |
| Cut-out (hole) | Ø 145 mm |
| Recessed depth (height) | 95 mm |
| Weight | 1.01 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 30,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The in-ground light is set into a Ø 145 mm hole in the ground; the stainless-steel flange (Ø 160 mm) sits flush with the surface. Important: the light runs on 24 V safety extra-low voltage (AC/DC) and requires a suitable 24 V power supply or transformer (not included). Never connect it directly to 230 V – this will destroy it. Wiring: V+ = brown, V− = blue; make all connections watertight. Installation and wiring only by a qualified electrician.
Applications

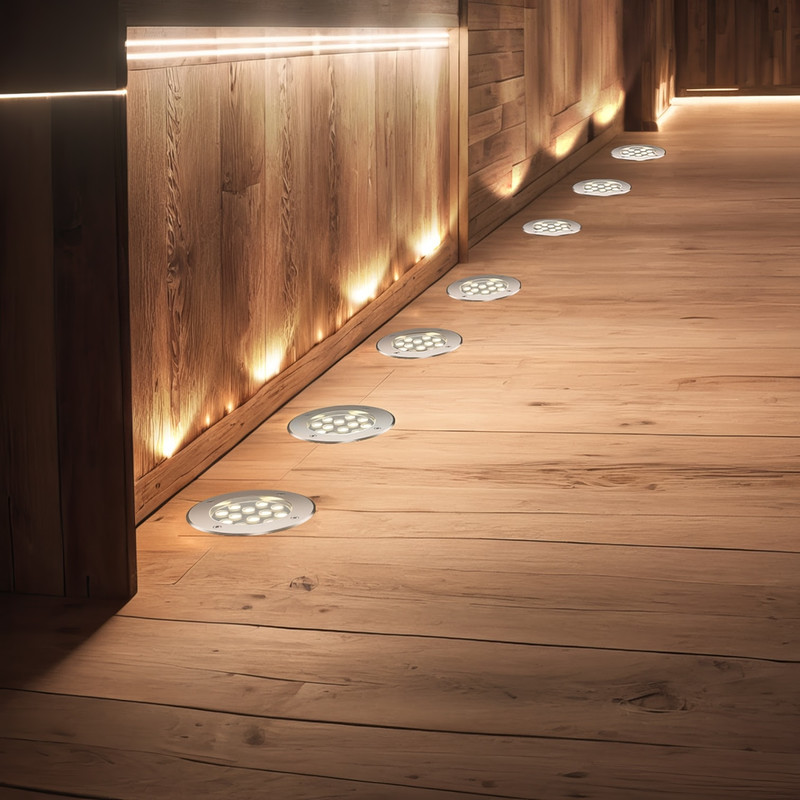

The 9 W in-ground light brings shrubs, walls, terraces and smaller facade surfaces to life with 720 lm. As it disappears flush into the ground, the look stays tidy by day, while targeted light-and-shadow edges accentuate architecture at night. The walk-over 304 stainless-steel flange withstands weather, dirt and load for years, and IP67 ensures dust- and waterproofing. Safe 24 V operation is ideal for garden and yard. With efficient LED technology and a 30,000-hour lifespan, it is a durable choice for facade and garden lighting.
