Description

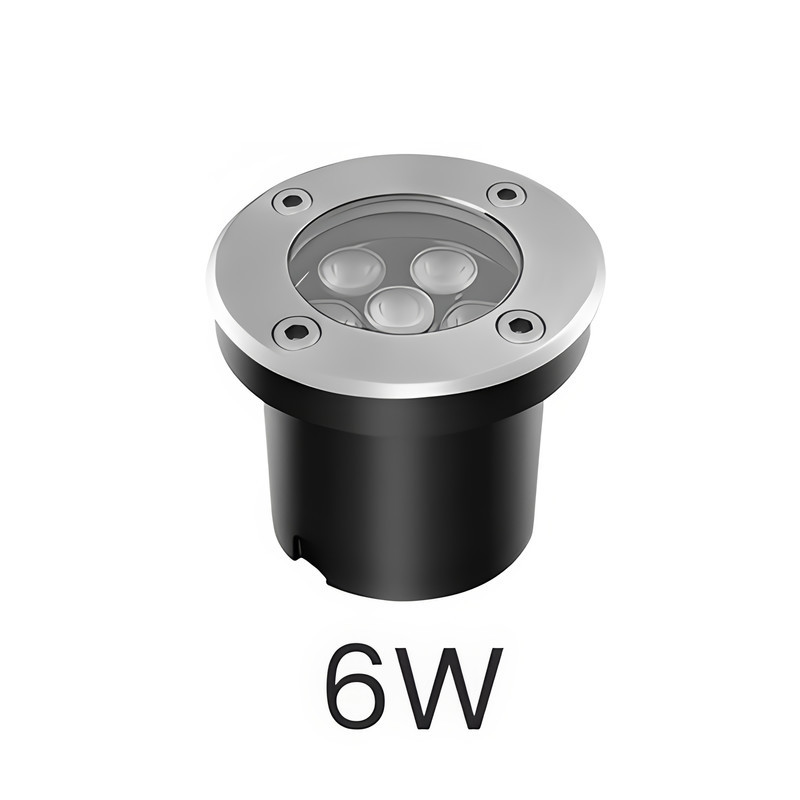

Stainless-steel in-ground light for outdoors
The small light is made of stainless 304 steel and fully protected with potted, waterproof electronics. It installs flush in the ground, is walk-over capable and, rated IP67, dust-tight and protected against temporary immersion. It runs on 24 V extra-low voltage; with a focused 45° beam.
Your Benefits at a Glance
Powerful accents 480 lm from 6 W in a focused 45° beam. |
Walk-over & rugged Compact 304 stainless-steel body for discreet in-ground use. |
IP67 waterproof Dust-tight and protected against temporary immersion – ideal near beds and paths. |
Safe 24 V technology Extra-low voltage (Class III) – safe close to plants and water. |
2 light colours Warm white (3000 K) and neutral white (4000 K) available. |
Durable & low-maintenance Potted electronics, 30,000 h – years without upkeep. |
Choose Your Light Colour
Selectable when ordering – one light colour per light.
| 3000 K Warm white – gardens, paths & warm facade accents | |
| 4000 K Neutral white – driveways, plazas & crisp architectural accents |
Specifications
| Property | Value |
| Power | 6 W |
| Input voltage | AC/DC 24 V |
| Luminous flux | 480 lm |
| Luminous efficacy | 80 lm/W |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 3000 / 4000 K (depending on variant) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 45° |
| LED type | SMD 2835 (6 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP67 |
| Protection class | III (SELV) |
| Housing | 304 stainless steel, aluminium heat sink, PC cover |
| Outer diameter (flange) | Ø 120 mm |
| Light aperture (Ø) | Ø 80 mm |
| Cut-out (hole) | Ø 115 mm |
| Recessed depth (height) | 90 mm |
| Weight | 0.64 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 30,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The in-ground light is set into a Ø 115 mm hole in the ground; the stainless-steel flange (Ø 120 mm) sits flush with the surface. Important: the light runs on 24 V safety extra-low voltage (AC/DC) and requires a suitable 24 V power supply or transformer (not included). Never connect it directly to 230 V – this will destroy it. Wiring: V+ = brown, V− = blue; make all connections watertight. Installation and wiring only by a qualified electrician.

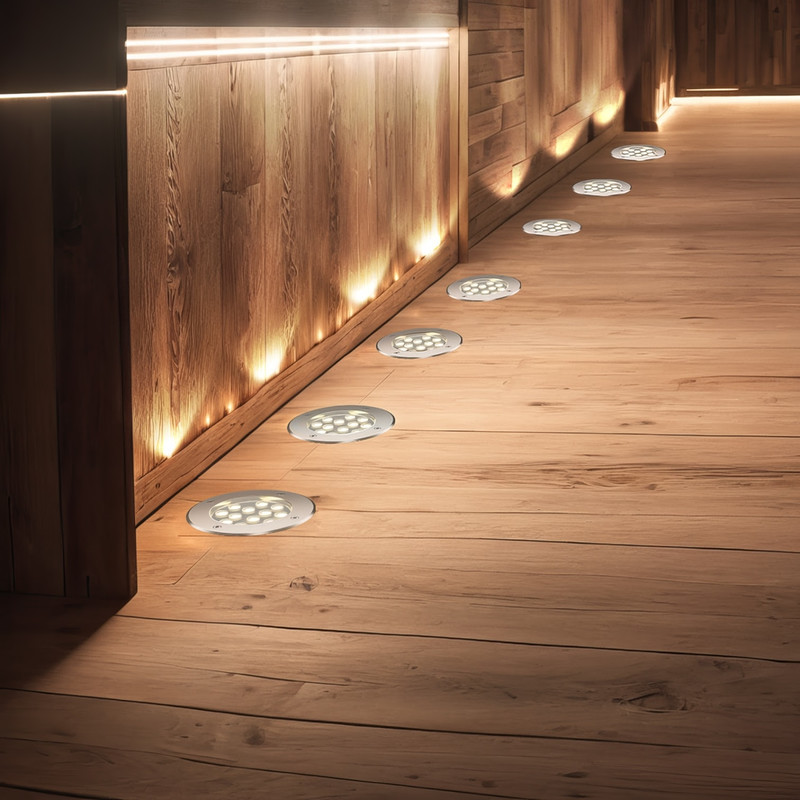

Applications
With 480 lm, the 6 W in-ground light illuminates paths, beds, steps and small trees – ideal for lighting gardens, entrances and terraces safely and attractively. Set flush in the ground, it blends in discreetly and emphasises structures and plants at night. The stainless 304-steel body withstands weather and load, while IP67 protects against dust and jet water. Thanks to 24 V extra-low voltage it can be used near beds and paths without concern. Efficient LED technology and a 30,000-hour lifespan make it an economical, permanent outdoor solution.
