Description
IP66 – dust-, moisture- and corrosion-proof

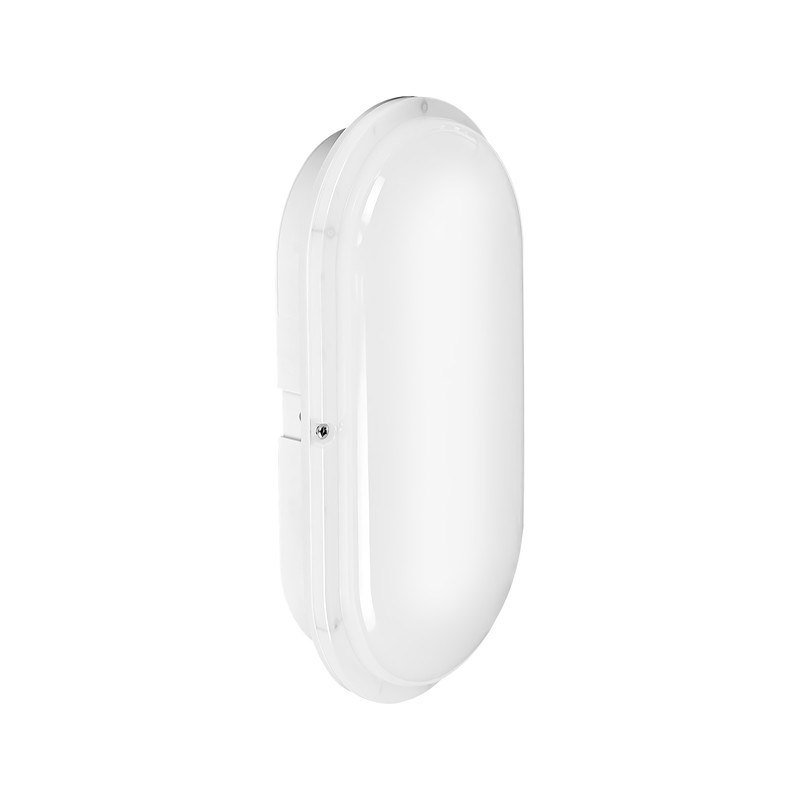

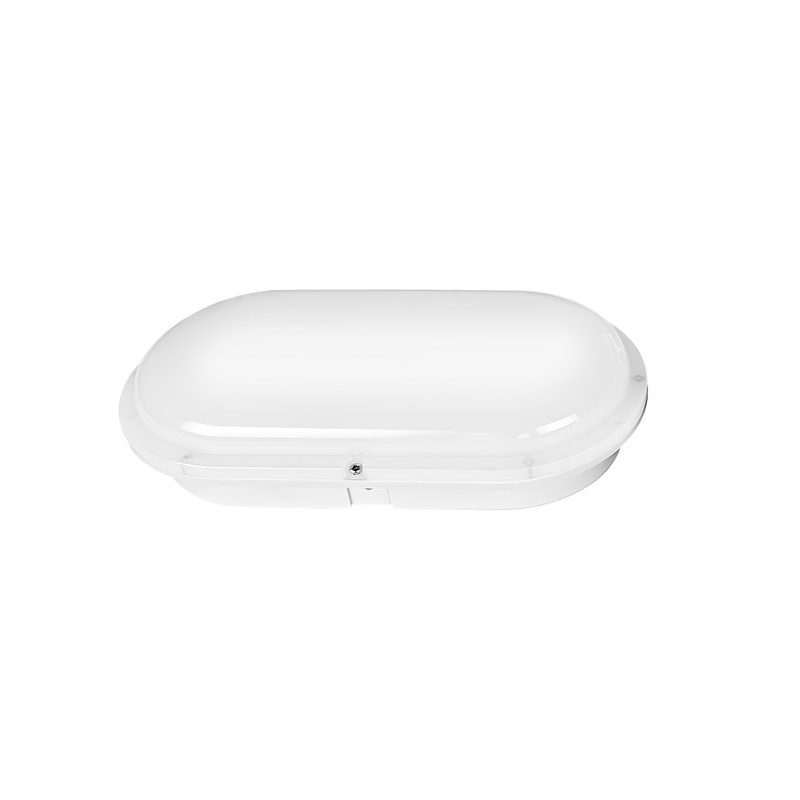

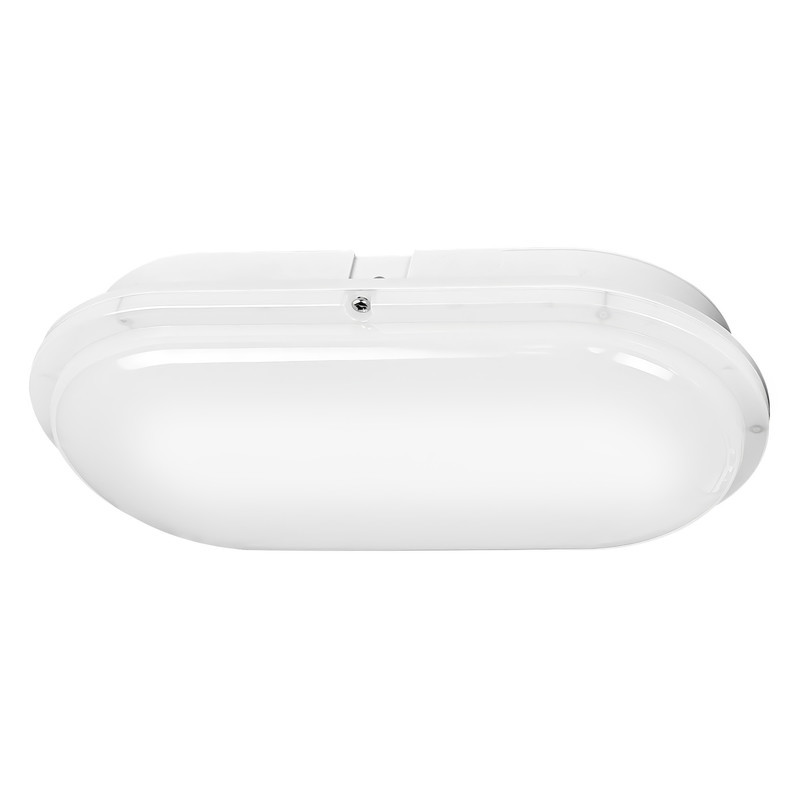

The sealed housing of impact-resistant ABS with an opal cover reliably protects the light against dust, jet water and corrosion (triple protection / tri-proof). Even in damp rooms such as bathrooms, cellars or garages and in sheltered outdoor areas, the light output stays stable for years. The light switches on instantly and flicker-free, delivering constant, low-glare brightness.
Your Benefits at a Glance
Powerful brightness 1,800 lm from 15 W at 120 lm/W – even, low-glare illumination. |
IP66 triple protection Dust-, jet-water- and corrosion-proof – for wet rooms and outdoor areas. |
Rugged & durable Impact-resistant ABS housing with opal cover – low-maintenance and durable. |
Indoor & outdoor Ideal for bathrooms, cellars, garages, carports and sheltered outdoor areas. |
High efficiency 120 lm/W, energy efficiency class E – economical versus old fluorescent tubes. |
Easy surface mounting For wall and ceiling – mounting hardware included, 230 V connection. |
Specifications
| Property | Value |
| Power | 15 W |
| Input voltage | AC 200–240 V |
| Luminous flux | 1,800 lm |
| Luminous efficacy | 120 lm/W |
| Energy efficiency class | E (EU 2019/2015) |
| Light colour | 4000 K neutral white |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 120° |
| LED type | SMD 2835 (60 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP66 |
| Protection class | II |
| Housing | ABS with opal PC cover |
| Shape | Oval |

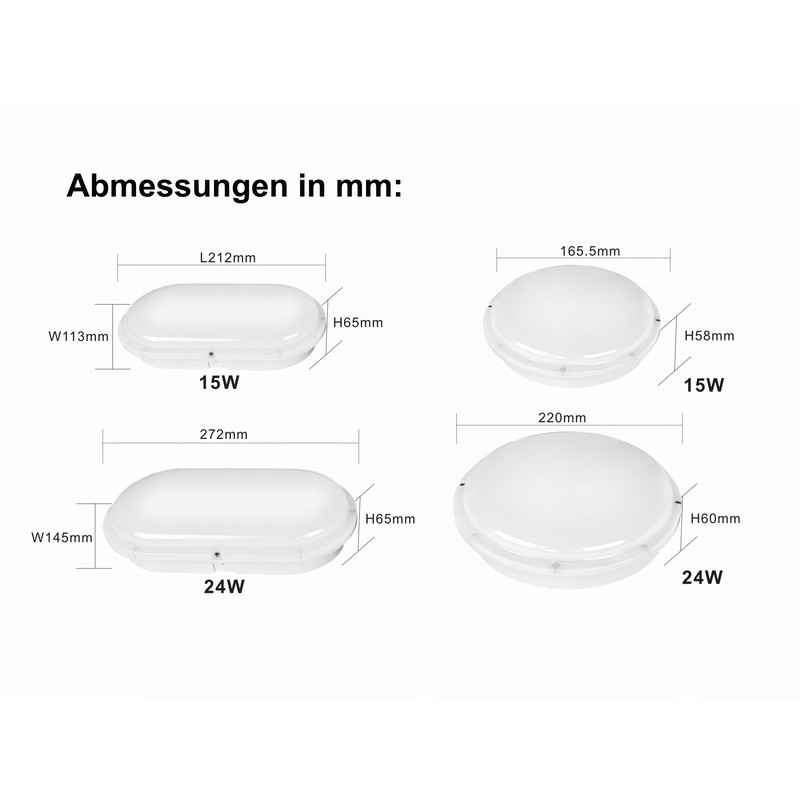

| Dimensions (L × W × H) | 212 × 113 × 65 mm |
| Weight | 0.25 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 50,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The tri-proof light is surface-mounted on a wall or ceiling: drill the fixing holes (6 mm), insert the dowels and fix the light with the supplied screws. Connection is made via the waterproof terminal to 230 V (L = brown, N = blue). Installation and wiring only by a qualified electrician with the power switched off.
Applications
The tri-proof light suits any place that is damp, dusty or cool: bathrooms and WCs, cellars and laundry rooms, garages, carports and workshops, utility and storage rooms, plus sheltered outdoor areas such as balconies, terraces, entrances or garden sheds. Thanks to IP66 it is well equipped even for demanding environments.
Why It Pays Off
The LED tri-proof light brings reliable, bright light exactly where it gets damp, dusty or harsh. Thanks to IP66 it withstands splash water, dust and corrosion and suits bathrooms, cellars, garages and utility rooms as well as sheltered outdoor areas. 1,800 lm from just 15 W provide even, low-glare illumination – and at 120 lm/W you save considerable electricity versus old fluorescent tubes. The rugged oval surface luminaire mounts easily on a wall or ceiling; bracket, dowels and screws are included. The modern, slim shape blends discreetly into any room. The sealed housing keeps moisture and dirt out for good and stays low-maintenance. With a 50,000-hour lifespan it lights reliably for years – an economical solution for home, yard and commercial use.
