Description
Motion sensor – light exactly when you need it
The integrated infrared motion sensor (PIR) detects people within a 120° angle and up to 5 m away. As soon as it is dusk or dark and movement is detected, the light switches on instantly and turns off automatically after about 40–60 seconds. This saves energy, because the light only runs when needed, while adding comfort and extra safety – with no switch. During the day the dusk sensor keeps the light off.
IP65 – dust-, moisture- and corrosion-proof
The sealed, flame-retardant housing with a soft opal cover reliably protects the light against dust, jet water and moisture (tri-proof). Even in damp rooms such as bathrooms, cellars or garages and in sheltered outdoor areas, the light output stays stable for years. The light switches on flicker-free and delivers soft, even illumination.
Your Benefits at a Glance
Automatic on & off Switches on instantly on movement and off again after approx. 40–60 s. |
Only in darkness Integrated dusk sensor – the light stays off during the day and saves energy. |
Wide range Detects movement up to 5 m at a 120° detection angle. |
IP65 weatherproof Dust-, jet-water- and moisture-proof – indoors and outdoors. |
Bright, efficient light 1,800 lm from 15 W, 120 lm/W, energy efficiency class E. |
Easy wall mounting Drill, screw, connect – mounting hardware included. |
Specifications
| Property | Value |
| Power | 15 W |
| Input voltage | AC 200–240 V |
| Luminous flux | 1,800 lm |
| Luminous efficacy | 120 lm/W |
| Energy efficiency class | E (EU 2019/2015) |
| Light colour | 4000 K neutral white |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 120° |
| Sensor | infrared motion sensor (PIR) |
| Sensor detection angle | 120° |
| Detection range | 1–5 m |
| Hold time | approx. 40–60 s |
| Dusk sensor | yes – activates only in darkness |

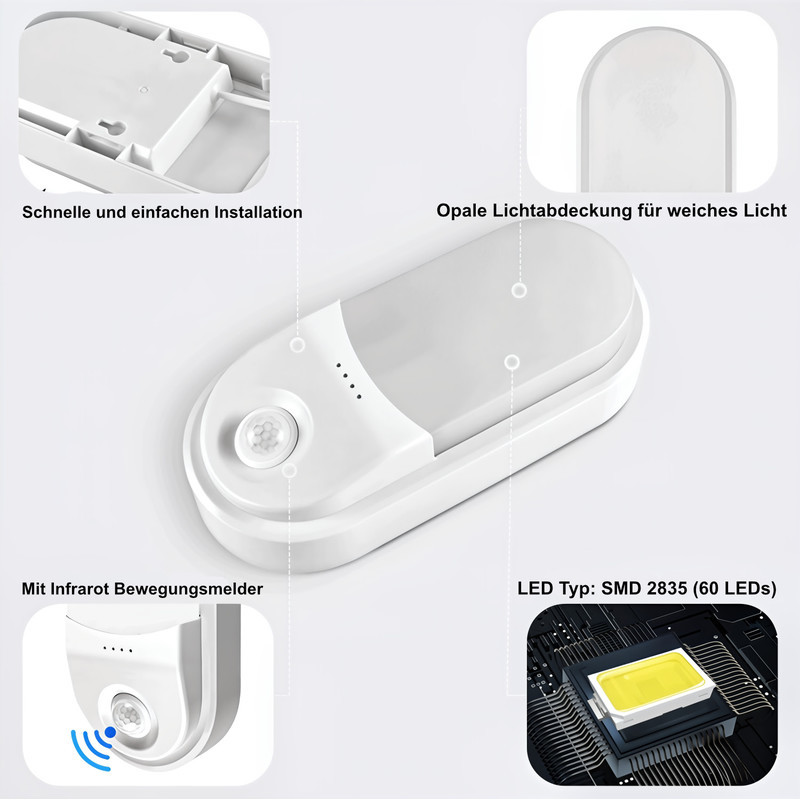

| LED type | SMD 2835 (60 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP65 |
| Protection class | II |
| Housing | ABS, flame-retardant, opal cover |
| Shape | Oval |

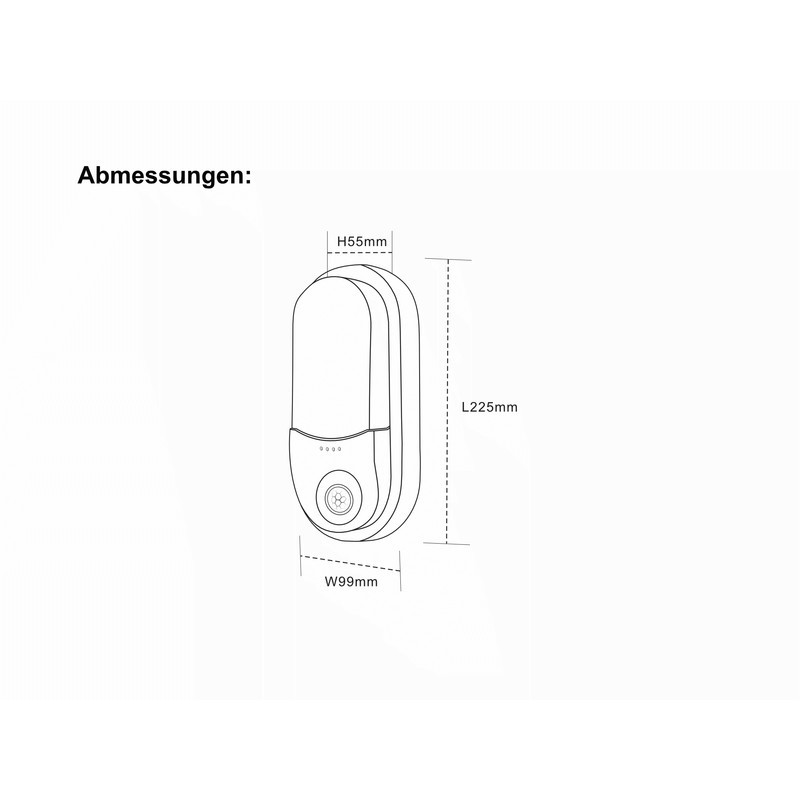

| Dimensions (L × W × H) | 225 × 99 × 55 mm |
| Weight | 0.23 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 50,000 h |
| Certification | CE, RoHS |
Installation & Wiring

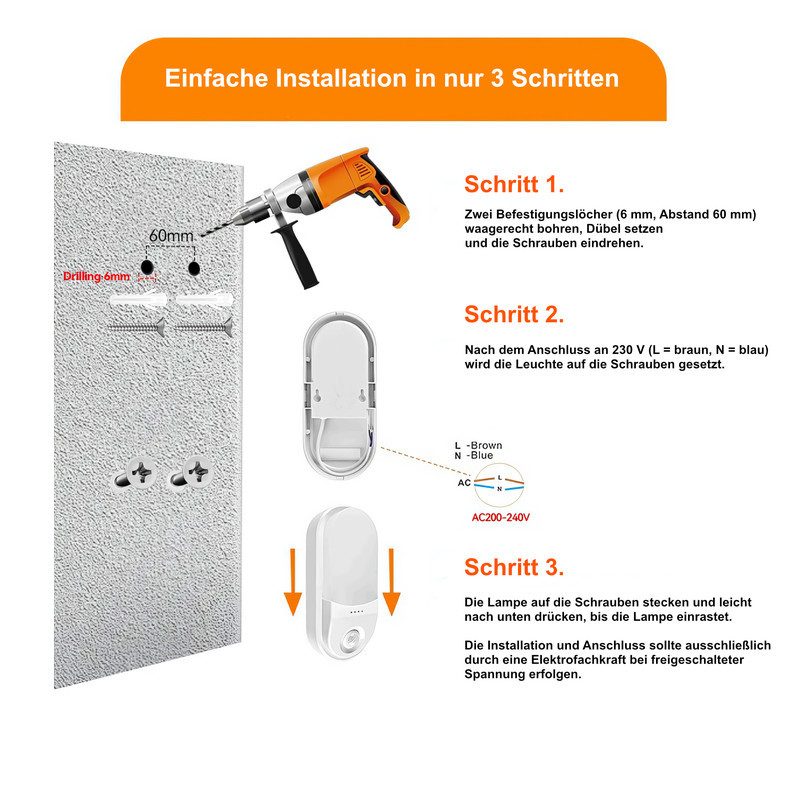

The sensor light is wall-mounted: drill two fixing holes (6 mm, 60 mm apart) level, insert the dowels and drive in the screws. After connecting to 230 V (L = brown, N = blue), place the light onto the screws and slide it down to lock. Installation and wiring only by a qualified electrician with the power switched off.
Applications
The sensor tri-proof light suits anywhere automatic light adds comfort and safety: house entrances and front doors, stairwells, hallways and corridors, cellars, garages and carports, bathrooms and WCs, plus sheltered outdoor areas such as terraces, balconies, yards or garden paths. Thanks to IP65 it is well equipped even for damp and harsh environments.
Why It Pays Off
The LED tri-proof light with motion sensor provides light exactly when you need it – with no switch. As soon as it detects movement in dusk or darkness, it turns on instantly and switches off again after about 40–60 seconds. This adds comfort and extra safety at entrances, stairs or hallways while saving energy, because the light only runs when needed. With 1,800 lm from just 15 W at 120 lm/W, it shines bright and efficiently in neutral white light (4000 K). Rated IP65, it withstands dust, jet water and moisture and suits both indoor and sheltered outdoor areas. The flame-retardant, rugged housing with a soft light cover is low-maintenance and durable. Wall mounting takes three steps – drill, screw, connect – with the hardware included. With a 50,000-hour lifespan it is a convenient, economical solution for home, yard and entrance.
