Mounting Bracket for UFO LED High Bay Extreme X1 200W

Mounting Bracket for LED High Bay Extreme X1 200W

Description

Mounting Bracket for UFO LED High Bay Extreme X1 – 200 W

Stabiler Stahlbügel zur Wand- oder Deckenmontage – passgenau für die Extreme X1 200 W mit 340 mm Gehäusedurchmesser.

Steel

Material

Black

Powder-Coated

340 mm

For Luminaire 200 W

Inkl.

Screws & Nuts

Adjustable

Beam Angle

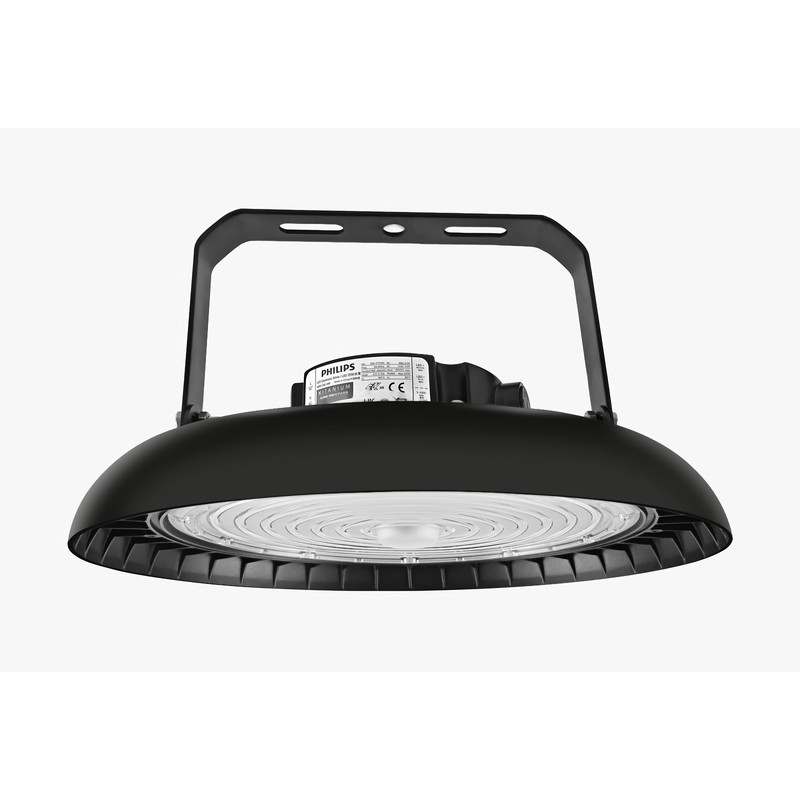

The mounting bracket for the Extreme X1 200 W is the robust solution for wall or ceiling installation of the most powerful variant in the Extreme X1 series. Precision-engineered for the 340 mm housing diameter of the 200 W luminaire, the heavy-duty steel bracket permanently supports the higher weight (2.25 kg) – vibration-proof and precisely adjustable.

Your Benefits

Why a Mounting Bracket?

360°

Freely Adjustable

The slotted guides in the bracket allow precise alignment of the luminaire after installation – the beam angle can be exactly directed towards the work area.

■■

Wall & Ceiling Mounting

The bracket is suitable for both ceiling and wall mounting – wherever a suspension hook is not possible or desired.

PRO

Vibration-Proof Steel Construction

Robust steel bracket, powder-coated in matt black – corrosion-resistant, load-bearing and visually matched to the Extreme X1 luminaire.

FIT

Precision Fit for Extreme X1 200 W

Konstruiert und getestet für die Extreme X1 200 W mit 340 mm Gehäusedurchmesser – keine Eigenanpassungen nötig, direktes Anschrauben.

Compatibility

Compatible with This Luminaire

Compatible Luminaire	UFO LED High Bay Extreme X1 200 W
Luminaire Housing Diameter	340 mm
Mounting Types	Ceiling · Wall
Material	Steel, powder-coated matt black
Alignment	Adjustable via slotted guide

FAQ

Frequently Asked Questions

Can I use the bracket with other wattages of the Extreme X1?

No – each bracket is precision-made for a specific wattage, as the Extreme X1 housing diameters differ by power class (100 W: 255 mm · 150 W: 300 mm · 200 W: 340 mm). Please select the bracket matching your model.

Can the bracket be installed without a professional?

The mechanical installation of the bracket is straightforward and can be done with basic tools. However, the electrical connection of the luminaire must be carried out by a qualified electrician.

When is a bracket preferable to the suspension hook?

A bracket is recommended when no suitable hanging points are available, a flush wall mount is preferred, or when the luminaire needs to be precisely angled – for example to illuminate shelf aisles or work areas from the side.

Ist der Bügel auch im Außenbereich verwendbar?

The bracket is powder-coated and corrosion-resistant for indoor use and covered outdoor areas.

Package Contents

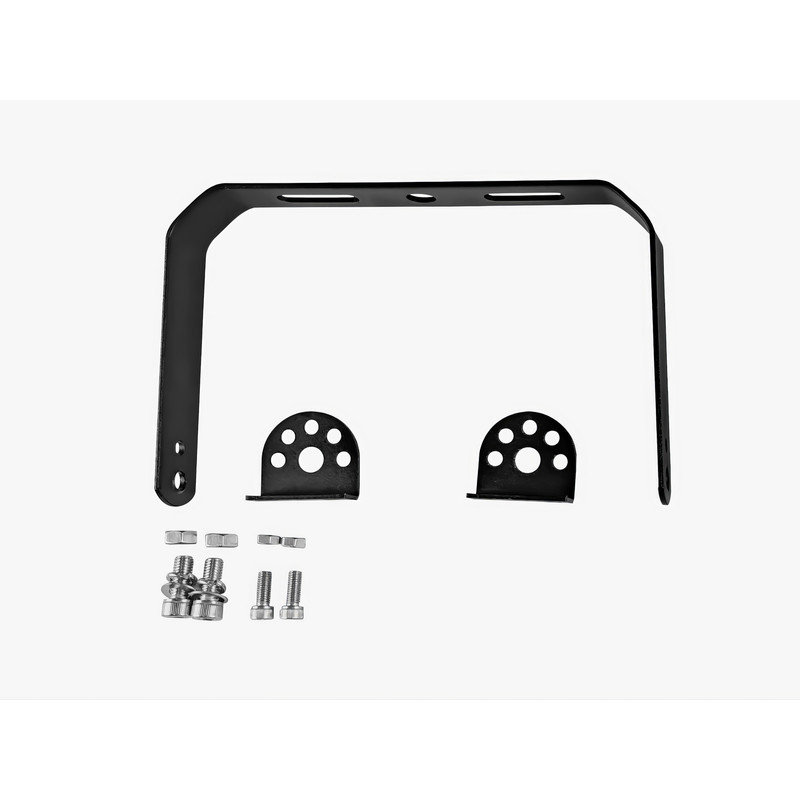

1× Steel bracket (U-shape, black powder-coated) · 2× angle plates for wall fixing · Screws & nuts (stainless steel) · Installation guide
Note: Fits Extreme X1 200 W – not compatible with other wattages.
