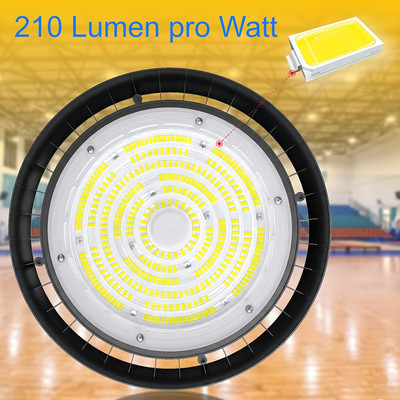

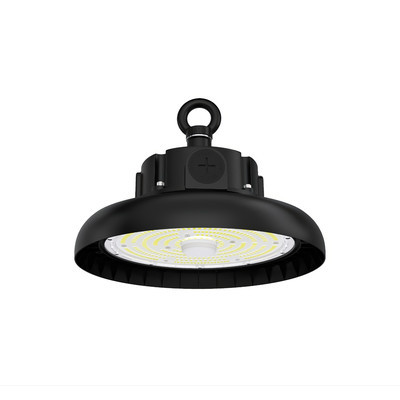

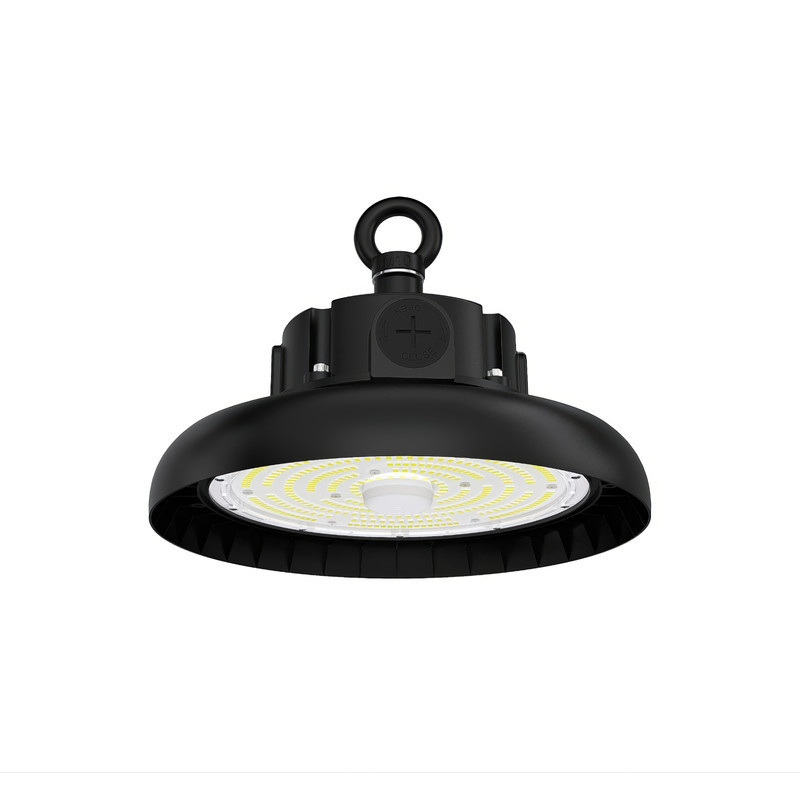

UFO LED High Bay Extreme X1 200W | 210 lm/W

LED high-bay light Extreme X1 200W 210 lm/W 90° Xitanium NT

Description

UFO LED High Bay Extreme X1 – 200 W | 210 lm/W | 42,000 lm | Selectable Colour Temperature

UFO High Bay Extreme X1 at 200 W – ideal for mounting heights of 10–15 m. Available in 4000 K, 5000 K and 6000 K.

210 lm/W

Efficiency

42,000 lm

Luminous Flux

200 W

Wattage

50,000 h

Lifespan

IP65

Protection

4000–6000 K

Selectable Colour Temp.

Maximum light output: the Extreme X1 200 W generates an impressive 42,000 lumens – the equivalent of more than 20 conventional 150 W halogen floodlights – at 210 lm/W system efficacy. Ideal for high-bay racking, logistics halls and large industrial spaces with mounting heights up to 15 m. Three output levels (120/160/200 W) and a Philips Xitanium driver ensure maximum reliability in continuous operation. The colour temperature is freely selectable: 4000 K (Neutral White), 5000 K (Daylight White) or 6000 K (Cool White) – please select when ordering.

Brand Quality

Philips Xitanium LED Driver – Industrial Driver for Peak Performance in Continuous Operation

At 200 W operation, the driver is under maximum load – exactly where the Philips Xitanium excels. With efficiency ≥94%, built-in thermal protection, short circuit and overvoltage protection, plus full IP65 encapsulation, it is engineered for continuous operation in high-bay warehouses, production halls and industrial facilities with ceiling heights up to 15 m.

Power Factor ≥ 0.95 Efficiency ≥ 94% 0–10 V Dimming IP65 Encapsulated 4x Protection Built-in

Output Control

Up to 200 W – Three Output Levels Without Additional Controls

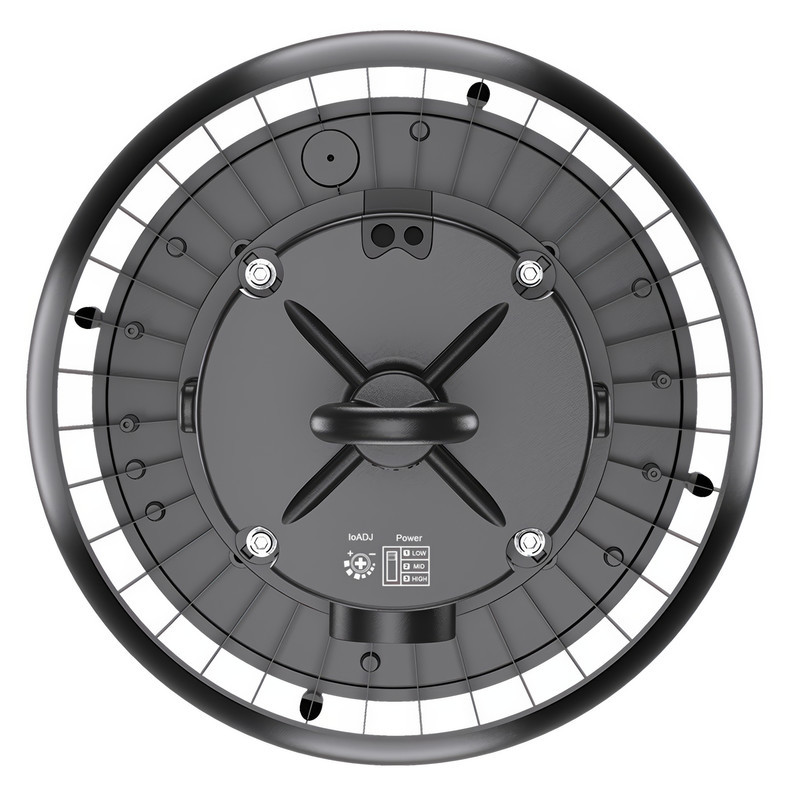

The 200 W model covers an exceptionally wide power range – from energy-efficient mode (120 W / 25,200 lm) to full industrial output (200 W / 42,000 lm). Adjustable with a screwdriver directly on the fixture, without an electrician or control system.

Model	Default	? LOW	? MID	? HIGH
200 W Model	200 W	120 W	160 W	200 W

Your Benefits

Built for Industrial Use

lm/W

Maximum Output – 42,000 Lumens at 200 W

42,000 lumens at just 200 W – the Extreme X1 200 W can replace a conventional 400 W sodium vapour luminaires with a single fixture. Fewer installation points, lower operating costs, superior illumination.

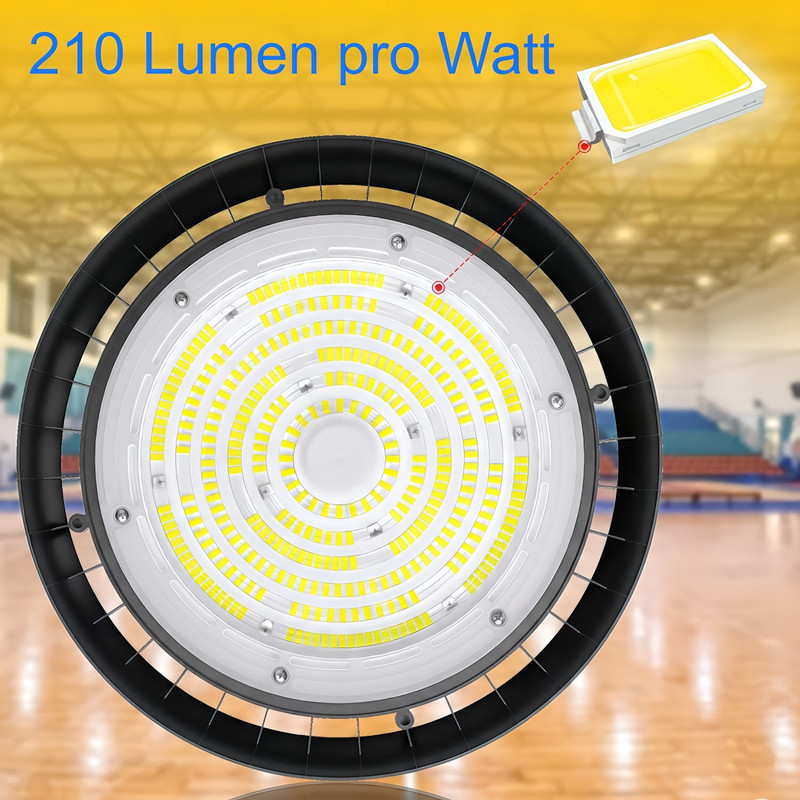

SMD 2835 High-Efficiency LEDs

IP65

Highest Protection Classes for Extreme Applications

IP65 and IK09 are tested, certified ratings – not marketing claims. Water jet protection and 5-joule impact resistance: the Extreme X1 200 W is approved for the most demanding industrial and logistics environments.

DIM

0–10 V Dimming

With 200 W luminaires, dimming makes the biggest difference: via 0–10 V the Extreme X1 200 W can be dimmed to 30% during off-peak hours, saving up to 70% energy – fully compatible with BMS, KNX and DALI gateways.

50Th

An Investment That Pays Off – 50,000 Hours

Based on 8 operating hours per day, the lifespan exceeds 17 years – without lamp replacement. In a new installation with 20 luminaires, that means no maintenance costs for well over a decade.

CRI

Standard-Compliant Colour Rendering for High-Bay and Industry

CRI ≥ 70 meets EN 12464 requirements for industrial work areas: reliable recognition of colour codes, labels and safety markings even at ceiling heights up to 15 m.

90°

90° – Maximum Reach at 10–15 m

At mounting heights of 10–15 m, the 90° beam angle concentrates all 42,000 lumens directly onto the work area – no light loss through wide scatter, maximum illuminance exactly where it is needed.

Optional: PC reflector available

Specifications

Technical Data

Parameter	Value
Power Consumption	200 W (switchable 120/160/200 W)
Luminous Flux	42,000 lm
Luminous Efficacy	210 lm/W
Colour Temperature	4,000 K · 5,000 K · 6,000 K – Please select when ordering.
Colour Rendering (CRI)	Ra ≥ 70
Beam Angle	90°
Protection / Impact Rating	IP65 · IK09
Energy Efficiency Class	C (EU Scale A–G) The EU formula rates directional luminaires (90°) more strictly than omnidirectional sources. — therefore Class C instead of A, even though the actual system efficiency with 210 lm/W is in the top range.
LED Driver	Philips Xitanium · 0–10 V dimmable
LED Type	SMD 2835
Operating Voltage	AC 200–240 V · 50/60 Hz
Housing Diameter	Φ340 mm
Height	110 mm
Weight	2.25 kg
Lifespan	50,000 hours
Certificates	CE · RoHS

Applications

Recommended Mounting Height: 10–15 m

Industry & Production Manufacturing halls, assembly areas and production floors requiring maximum brightness and reliability during shift operations.	Warehouses & Logistics High-bay racking, picking areas and logistics centres requiring uniform, shadow-free illumination across large floor areas.	Sports Halls & Arenas Sports halls, riding arenas and covered venues requiring uniform, glare-free area illumination.
Petrol Stations & Canopies IP65-rated for covered outdoor areas, carports and petrol station forecourt canopies.	Supermarkets & Trade Large-format retail and exhibition floors with high ceiling clearance.	Workshops & Automotive Automotive workshops and bodyshops where precise colour rendering and high illuminance are critical.

FAQ

Frequently Asked Questions

Can the Extreme X1 200 W replace sodium vapour or halogen luminaires?

Yes – the Extreme X1 200 W typically replaces a 400 W sodium vapour luminaire (approx. 32,000 lm effective) or a 300 W metal halide fixture with a single, far more efficient LED luminaire delivering 42,000 lumens. Energy consumption drops by up to 50% while light quality improves significantly.

Which output level is optimal for high-bay and industrial use?

We recommend HIGH (200 W / 42,000 lm) for high-bay racking and active production floors. MID (160 W / 33,600 lm) suits storage areas with moderate lighting needs. LOW (120 W / 25,200 lm) is ideal for off-peak hours, breaks or less-used hall areas – adjustable with a screwdriver directly on the fixture.

Can the luminaire be dimmed?

Yes – the Philips Xitanium driver supports 0–10 V dimming, making it compatible with building automation systems, presence sensors and daylight-responsive controls.

Is the Extreme X1 suitable for outdoor use?

Thanks to its IP65 rating, the Extreme X1 is suitable for covered outdoor areas (canopies, carports, petrol stations). For unprotected outdoor use with direct rainfall, we recommend a luminaire rated IP66 or higher.

What optional accessories are available?

Optional accessories include a mounting bracket for wall or ceiling installation and a PC reflector to optimise the beam angle. Both are available specifically for the 200 W version.

Package Contents

1× UFO LED High Bay Extreme X1 200 W · 1× Philips Xitanium LED driver · 1× Suspension hook
Optional: Mounting bracket · PC reflector
