Vertical U22 LED Track Light 45-60 W 3000/4000/5000 K CRI >90 1,145mm White

Item number: VU22W1

Category: Vertical U22

109,00 €

including 19% VAT., no shipping costs

From	Price per unit
12	99,99 €
24	88,90 €

Available

Shipping time: 16 - 17 workdays

Description

Vertical U22 – LED Linear Track Light 1,145 mm, Switchable Power and Colour Temperature, White

45–60 W via DIP switch · 6,300–8,400 lm · 3000/4000/5000 K selectable · CRI > 90 · UGR < 22 · white housing

45–60 Wup to 8,400 lm3 colour temperaturesCRI > 90UGR < 22±30° tiltwhite housing

With the Vertical U22 you decide on site: the power can be set in four steps from 45 to 60 W via DIP switch, the colour temperature switched to 3000, 4000 or 5000 K. That simplifies planning and stock-keeping, as the same luminaire suits the sales floor as well as the office or gallery.

Key benefits at a glance

Selectable power 45, 50, 55 or 60 W – via DIP switch on the luminaire.	Three colour temperatures 3000, 4000 or 5000 K selectable via switch.
High efficiency 140 lm/W – up to 8,400 lm from 60 W.	True colours CRI > 90 for natural colour rendering at the point of sale.
Low glare UGR < 22 thanks to lens optics with an 80° beam angle.	Flexible aiming ±30° tilt, tool-free track mounting.

Features in detail

Linear track luminaire, 1,145 mm long, profile just 65 × 20 mm
Power selectable via DIP switch: 45 / 50 / 55 / 60 W
Colour temperature switch-selectable: 3000 / 4000 / 5000 K
Samsung LEDs with colour rendering CRI > 90, glare UGR < 22
Lens optics with 80° beam angle, head tilts by ±30°
Flexible adapter for 3-phase track to EU standard
Robust aluminium profile in white, impact resistance IK07

Power via DIP switch: 45 to 60 W

The power consumption is not hard-wired but selectable: a DIP switch toggles between 45, 50, 55 and 60 W. Lower steps save energy where less light is sufficient; the full step delivers 8,400 lm for high ceilings and demanding areas. The same luminaire can therefore be used several times within one project without ordering different models.

Switchable colour temperature: 3000, 4000 or 5000 K

Three colour temperatures in one luminaire: warm white at 3000 K creates an inviting atmosphere, neutral white at 4000 K appears matter-of-fact and focused, daylight white at 5000 K emphasises freshness and contrast. A switch on the luminaire decides which tone is used – the setting can be changed at any time, for example when an area is repurposed.

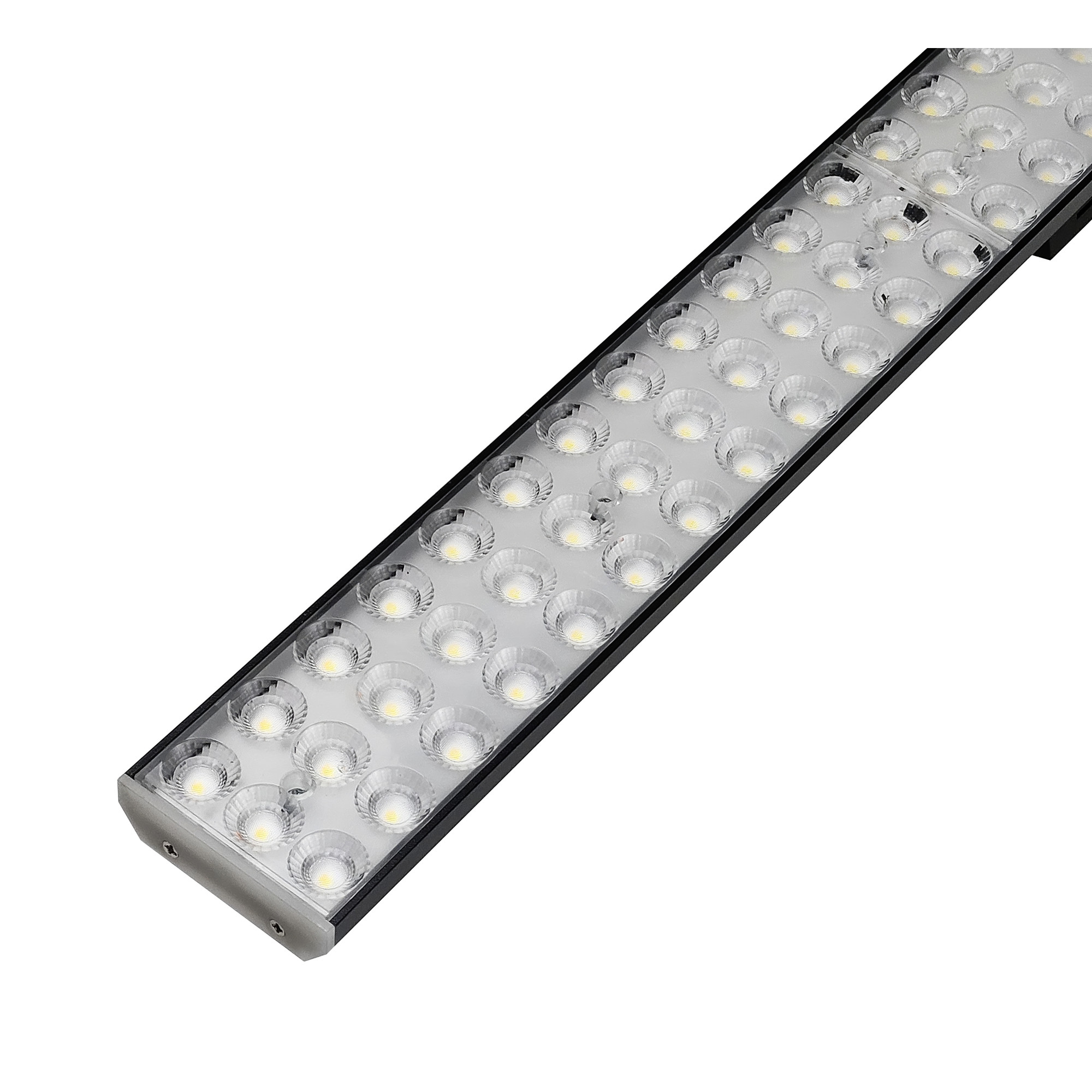

Lens optics: 80° beam angle, UGR < 22

Instead of a simple diffuser, lens optics with an 80-degree beam angle sit in front of the LEDs. They distribute the light evenly while limiting glare to UGR < 22. The UGR value describes how strongly a luminaire glares from typical viewing angles – the lower, the more comfortable. The luminaire is recommended for mounting heights of 2 to 5 m, from sales rooms to halls with standard ceiling heights.

±30° tilt – light where it is needed

Once inserted into the track, the orientation is not fixed: the head tilts by ±30 degrees and follows the interior – onto the wall shelf today, onto the promotion table in the middle tomorrow. Lighting planning stays flexible even as the space evolves.

CRI > 90: colours as under daylight

CRI > 90 means the luminaire renders colours faithfully instead of distorting them or letting them appear grey. For sales areas this is more than a technical detail – colour rendering helps decide whether food looks appetising, clothing looks high-quality and decoration looks coherent. In offices and practices, the natural rendering also creates a pleasant environment.

Long service life: L80 at 50,000 hours

L80 / 50,000 h translates to: even after 50,000 hours of continuous use, the LEDs still shine at a minimum of 80 percent of their initial brightness. If you light your space twelve hours a day, that adds up to more than eleven years of use. The robust aluminium profile dissipates the heat of the LEDs and thus contributes to the long service life.

Samsung LEDs: brand quality as the light source

Samsung LEDs serve as the light source. Samsung has been among the leading LED manufacturers for years and supplies luminaire makers worldwide – production and quality control are correspondingly mature. This pays off twice: in consistent light and colour values across all luminaires of a delivery, and in the long-term stability behind the service-life rating of L80 at 50,000 hours. If you equip an entire area with several luminaires, none of them will visibly differ from its neighbours.

Mounting and compatibility

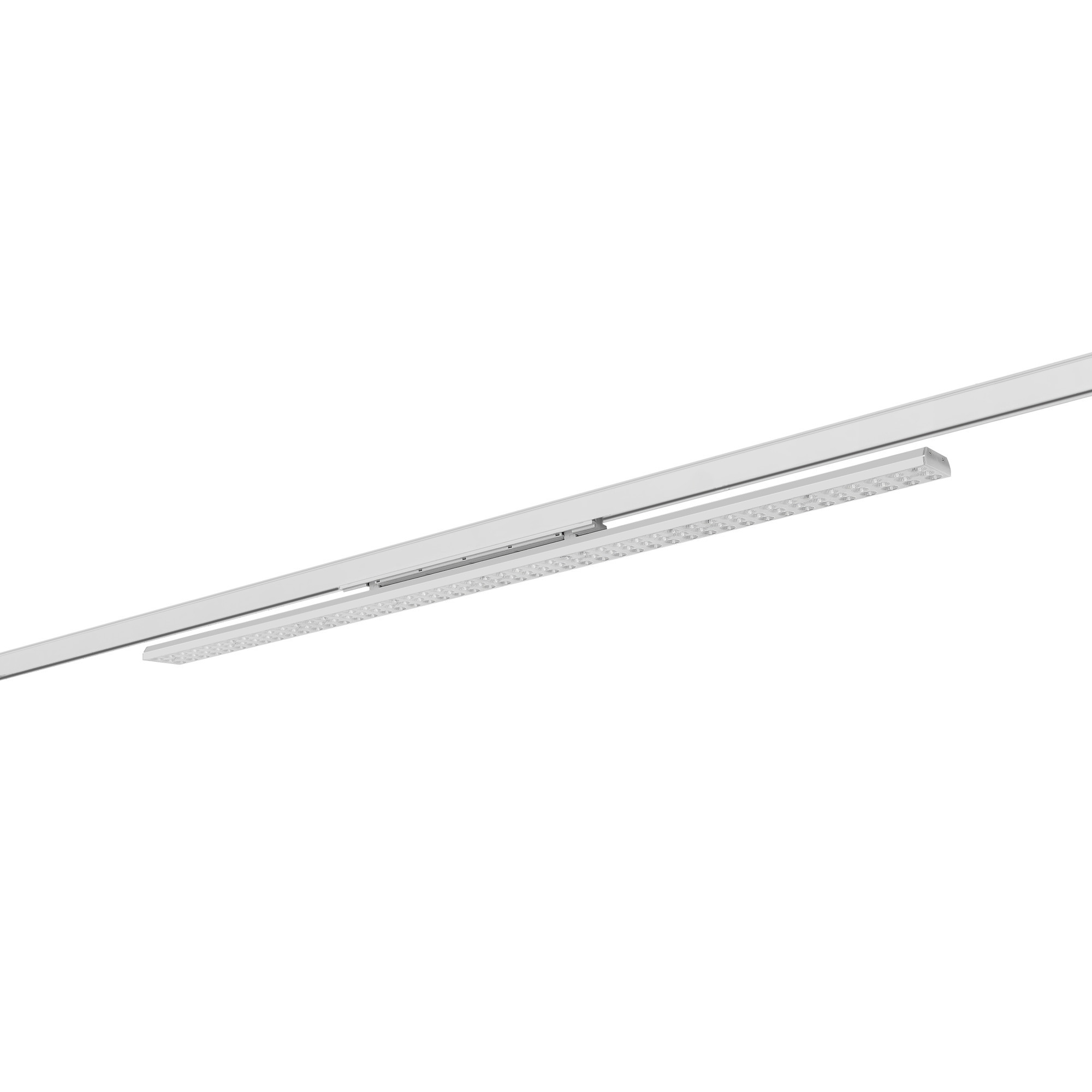

The luminaire is inserted into the track via a flexible 3-phase adapter and locked with one movement – no tools, drilling or cable routing required. The adapter is compatible with the widespread European systems from Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard; existing track installations can thus be extended or supplemented at any time. A practical advantage of 3-phase technology: via L1, L2 and L3, several lighting groups on one track can be switched separately – for example general lighting, merchandise lighting and accents. The luminaire is built to protection class I with an earth conductor.

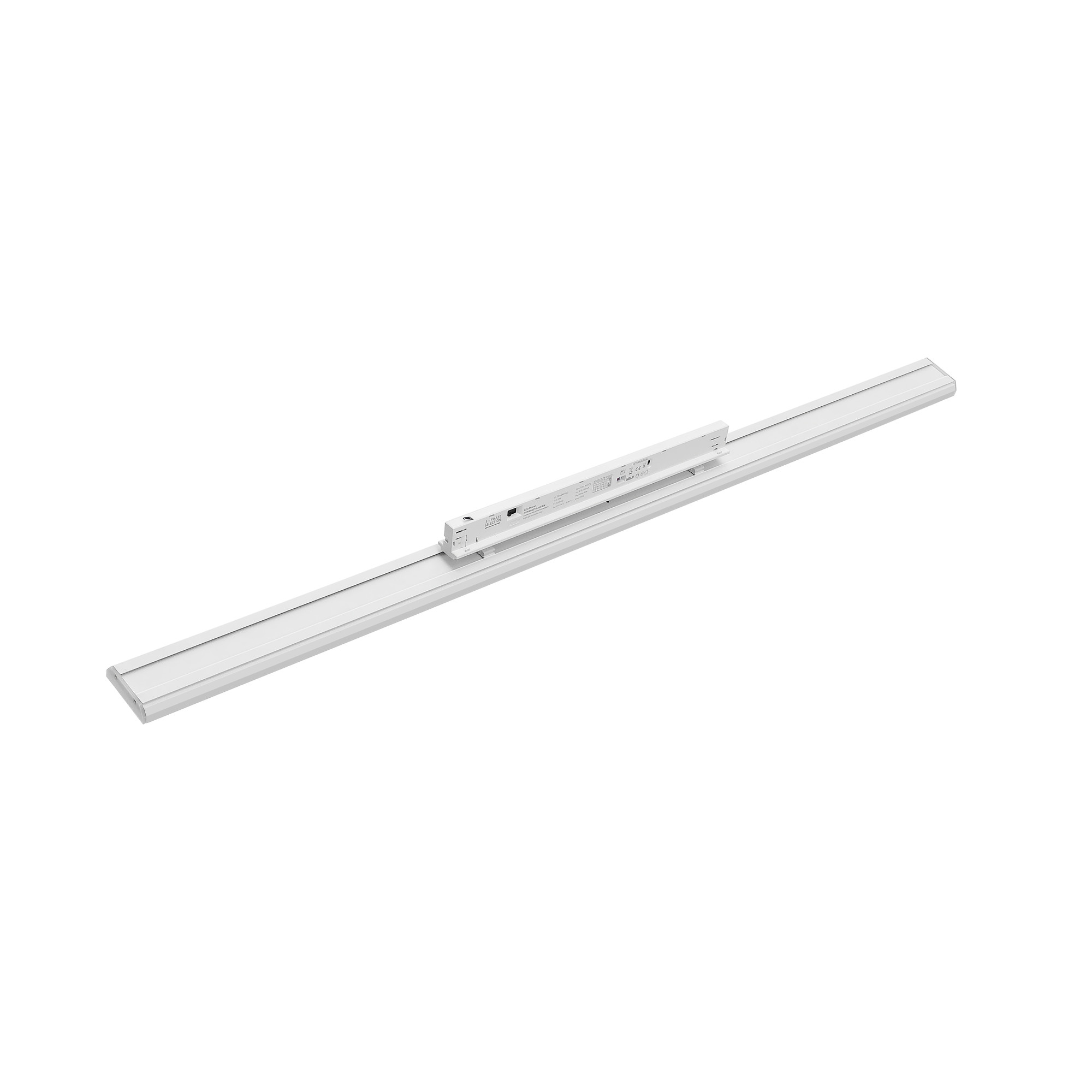

Housing in white

White suits spaces with bright ceilings and walls: the flat white aluminium profile of just 65 × 20 mm holds back and makes the lighting appear natural. The same luminaire is alternatively available with a black housing.

Switch steps and luminous flux

Switch step (DIP)	Power	Luminous flux at 140 lm/W
Step 1	45 W	6,300 lm
Step 2	50 W	7,000 lm
Step 3	55 W	7,700 lm
Step 4	60 W	8,400 lm

Technical data

Model	Vertical U22
Type	linear LED luminaire for 3-phase track
Power	45 / 50 / 55 / 60 W, selectable via DIP switch
Luminous flux	6,300–8,400 lm (depending on switch step)
Efficacy	140 lm/W
Colour temperature	3000 K / 4000 K / 5000 K, switch-selectable
Colour rendering	CRI > 90
Glare rating	UGR < 22
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Beam angle	80°
Tilt range	±30°
LED	Samsung
Dimming	no
Voltage	AC 220–240 V, 50–60 Hz
Power factor	≥ 0.9
Ambient temperature	-20 °C to +40 °C
Protection class	I (with earth conductor)
Protection rating	IP20 (indoor use)
Impact resistance	IK07
Housing	aluminium profile, white

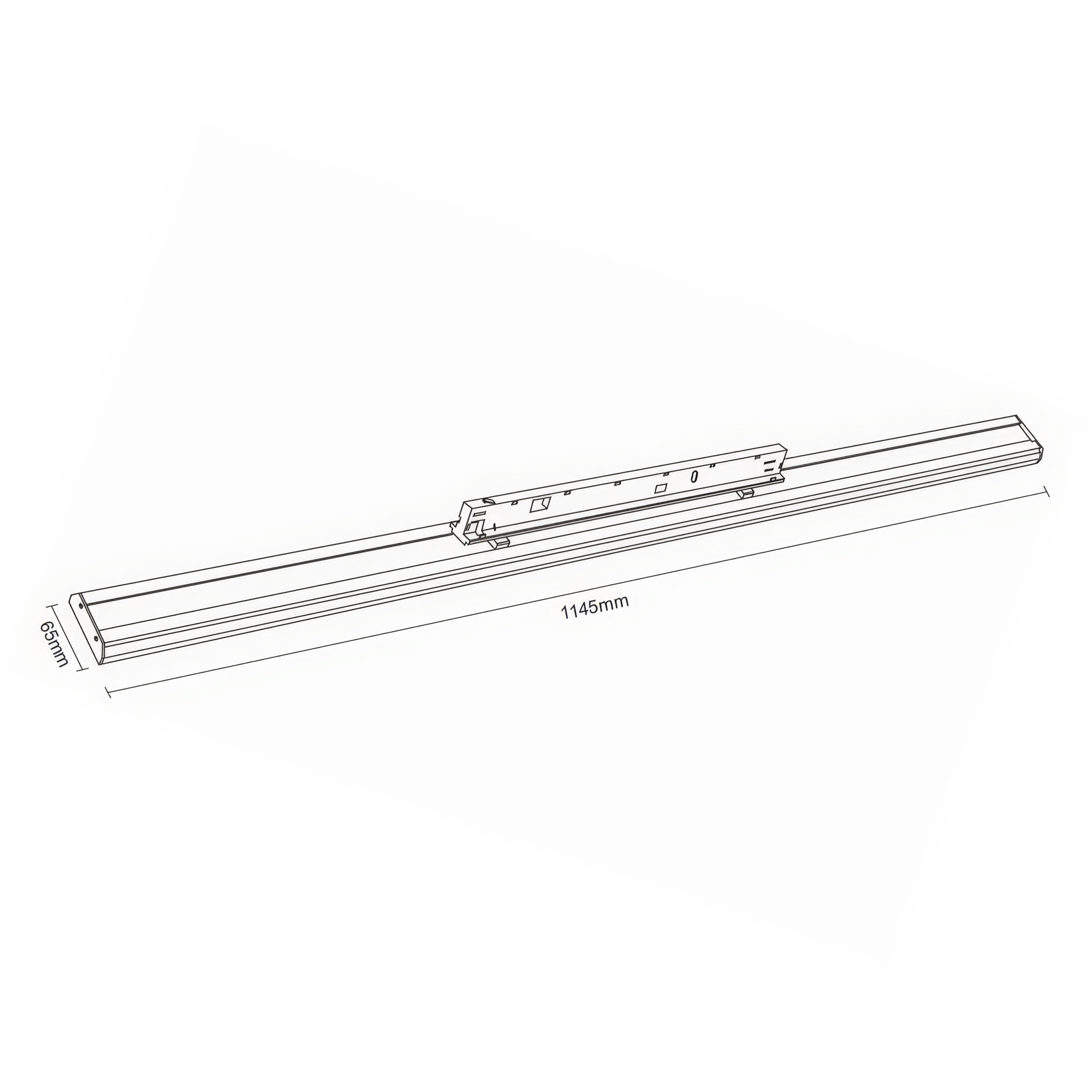

Dimensions	1,145 × 65 × 20 mm
Mounting	3-phase track (EU standard), flexible adapter
Service life	L80 50,000 h
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

Sales rooms from supermarket to boutique, exhibition and gallery spaces, office and reception areas, gastronomy – wherever 3-phase track is installed or planned.

Scope of delivery

1× linear LED track luminaire with fitted 3-phase adapter
Installation and operating instructions
