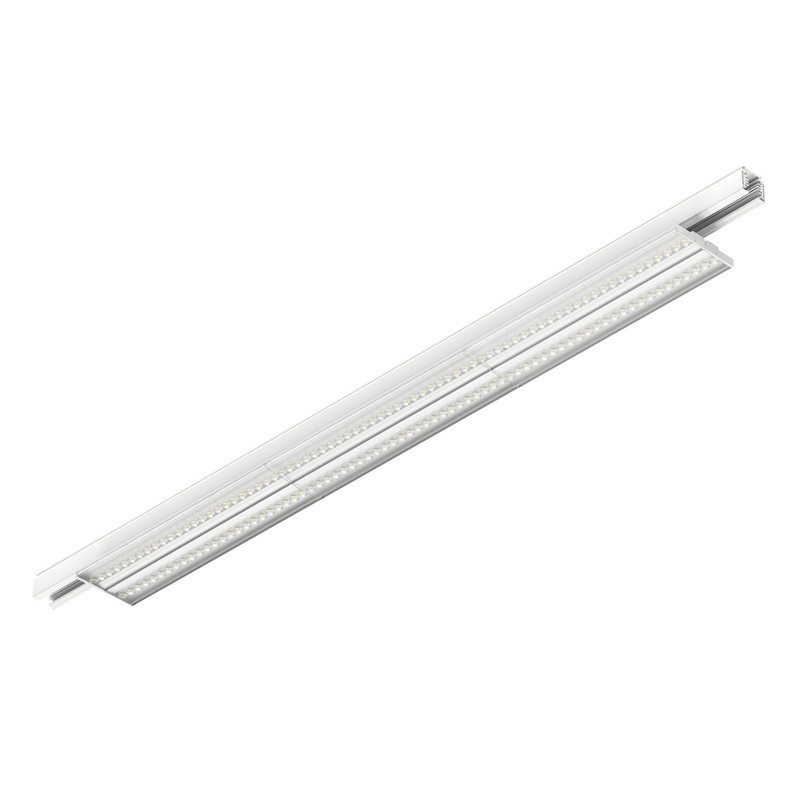

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings
1500 mm · white housing · CRI > 80 · 30° × 90° · 3-phase track
Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.
Key benefits at a glance
Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire. | 30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill. |
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch. | High efficiency 165 lm/W – up to 9,900 lm at 60 W. |
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras. | Long service life L80 at 100,000 h thanks to Sanan LED chips. |
Features in detail
- Two separately tiltable light wings, each adjustable 0° to 30°
- Beam angle 30° × 90°, 30° × 30° optionally available on request
- Colour rendering CRI > 80 for natural colours
- Switchable power in four steps without tools
- Optionally available with DALI-2 dimming on request
- For 3-phase track – compatible with common track systems
- Aluminium housing in white with PMMA lens, IP20, IK04

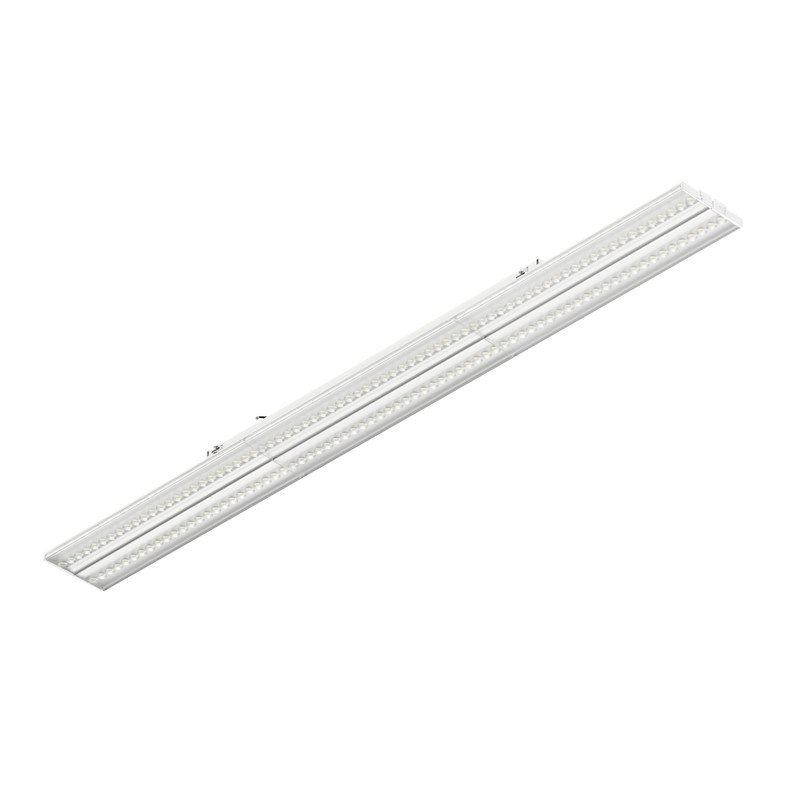

Two tiltable wings: one luminaire, many lighting effects
What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.
Beam angles: which one suits your application?
How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:
- 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
- 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
- Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.
As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.
Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.
CRI > 80: maximum light per euro
The CRI > 80 version renders colours naturally while running very economically: 165 lm/W means plenty of brightness from little power. For sales floors, warehouses, workshops and offices where large areas are lit for many hours a day, this is the most economical choice.
Long service life – L80 at 100,000 hours
Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.
High-quality LED chips by Sanan
For the LEDs we deliberately avoid unbranded parts. Fitted are chips by Sanan Optoelectronics, the LED chip market leader in China and one of the world's leading manufacturers. The listed company from Xiamen makes everything itself, from wafer to finished chip, invests continuously in research and holds over a thousand patents; its customers include well-known international brands. This integrated production is the reason for consistent quality – and therefore for this luminaire's high efficiency and long service life.

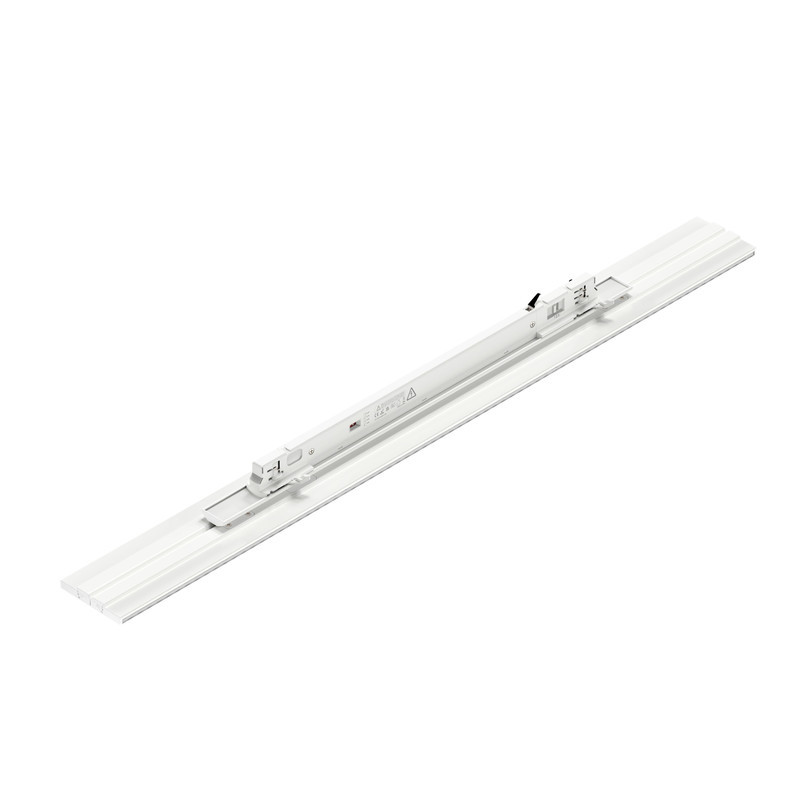

Mounting & track compatibility

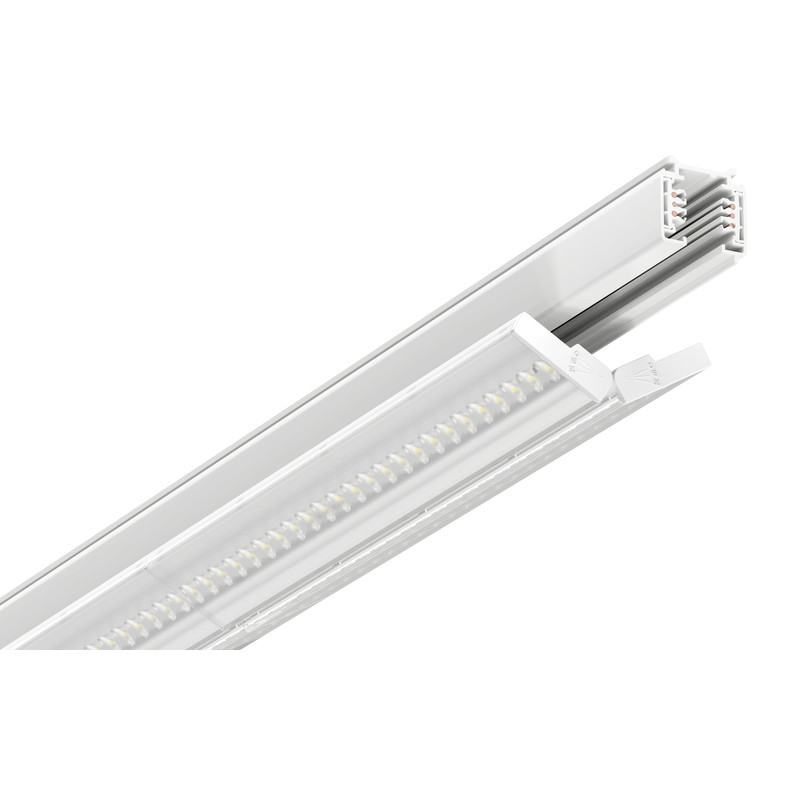

The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.
Choose your colour temperature
- 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
- 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
- 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
- 6000 K cool white – proven in warehouses, production and high spaces.
This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.
Power steps & luminous flux
| Power step | Power | Luminous flux |
|---|---|---|
| Step 1 (maximum) | 60 W | 9,900 lm |
| Step 2 | 50 W | 8,250 lm |
| Step 3 | 42 W | 6,930 lm |
| Step 4 (minimum) | 34 W | 5,610 lm |
Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.
Technical data
| Length | 1500 mm |
| Power (switchable) | 60 W / 50 W / 42 W / 34 W (by switch) |
| Luminous flux | 9,900 lm / 8,250 lm / 6,930 lm / 5,610 lm |
| Efficacy | 165 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K – select your preferred colour temperature when ordering |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (standard); 30° × 30° optionally available on request |
| Tilt range | two wings, individually tiltable 0° to 30° |
| Mounting | 3-phase track (via adapter), phase selection L1/L2/L3 |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC/DC 220–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Switching cycles | > 500,000 |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | White (RAL 9016) |
| Dimensions | 1500 × 84.6 × 55 mm (L × W × H) |
| Weight | 2.45 kg |
| Ambient temperature | −20 °C to +40 °C |
| Storage temperature | −25 °C to +65 °C |
| Glow wire test | 650 °C |
| Energy efficiency class | C (EU scale A–G, EU 2019/2015) |
Applications
Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.
Scope of delivery
- 1× LED VU2 linear luminaire with 3-phase adapter
- Installation instructions
Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
