Description
Economical yet capable: 60 LEDs/m for long runs of light
At just 5 watts per metre, the 60-LED version is the energy-efficient entry point of our 230V SMD series. It connects directly to a socket via the supplied mains plug and needs no power supply. Thanks to its low power draw, it is especially suited to long contours, outlines and orientation lighting – along ceilings, stairs, railings and facades, or for subtle indirect lighting of large areas.
Your benefits at a glance

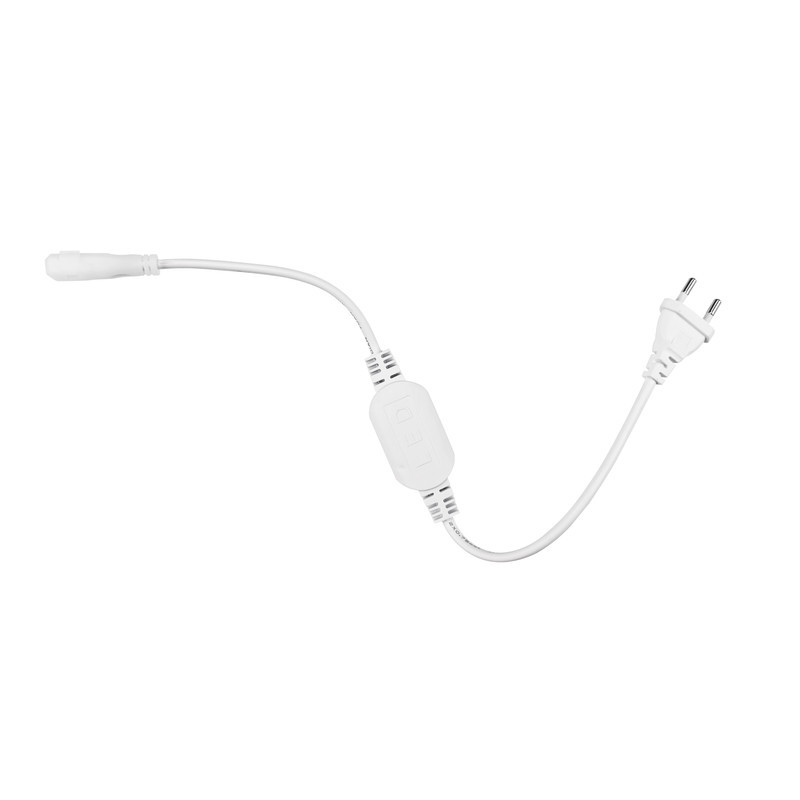

No external power supply Direct 230 V connection via the supplied plug – no transformer or power supply required. |
Just 5 W/m – economical Low power consumption across the full 50 m length – ideal for long, continuously operated runs of light. |
IP65 – splash-proof Fully encapsulated PVC housing – suitable for damp rooms and protected outdoor areas. |
High-quality Sanan LEDs Long-life SMD 2835 LEDs from Sanan with good colour rendering (CRI Ra ≥ 80). |
3 light colours selectable 3000 K warm white, 4000 K neutral white or 6000 K daylight white. |
Cuttable every 1 m Cut to length at the marked points; each section can be operated separately. |
Light colour 3000 K Warm White
This strip is also available in 4000 K Neutral White and 6000 K Daylight White – selectable when ordering.
Technical Data
| Property | Value |
| Operating voltage | AC 230 V (200–240 V, direct connection) |
| Power | 5 W/m (approx. 250 W at 50 m) |
| Energy efficiency class | F (EU 2019/2015, 100 lm/W) |
| LED type | SMD 2835 (Sanan) |
| LED density | 60 LEDs/m |
| Luminous flux | 500 lm/m |
| Luminous efficacy | 100 lm/W |
| Light colour | 3000 K (Warm White) |
| Colour rendering (CRI) | Ra ≥ 80 |
| Protection rating | IP65 |

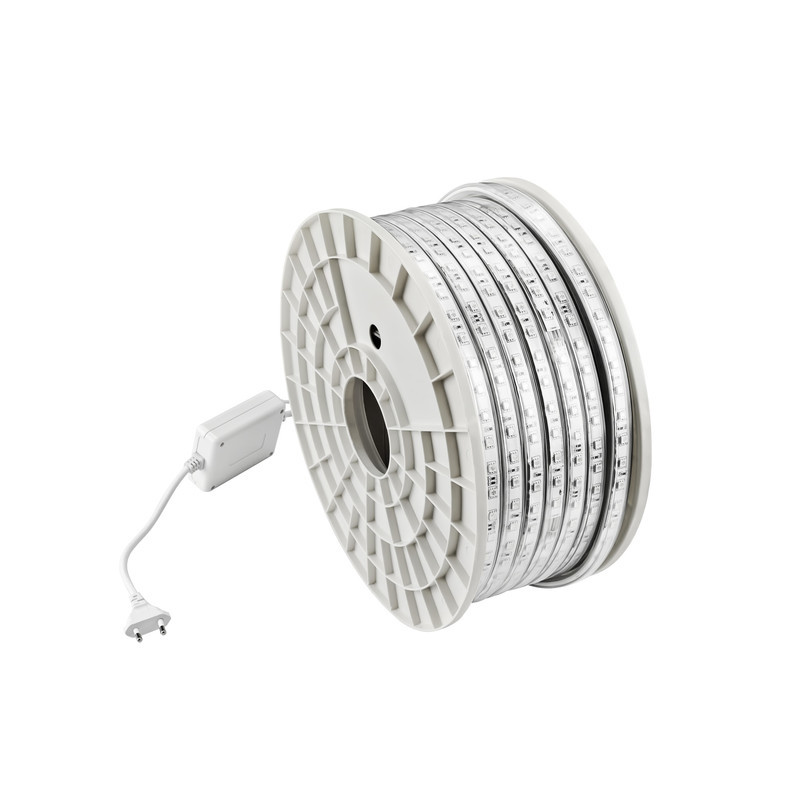

| Length / reel | 50 m |
| Dimensions (W × H) | 11 × 7 mm |
| Beam angle | 120° |
| Cuttable every | 1 m (at marked points) |
| Min. bending diameter | ≥ 6 cm |
| Operating temperature | -25 °C to +50 °C |
| Housing material | PVC (transparent surface, white base) |
| Mounting | mounting clips + screws (incl.) |
| Certification | CE, RoHS |

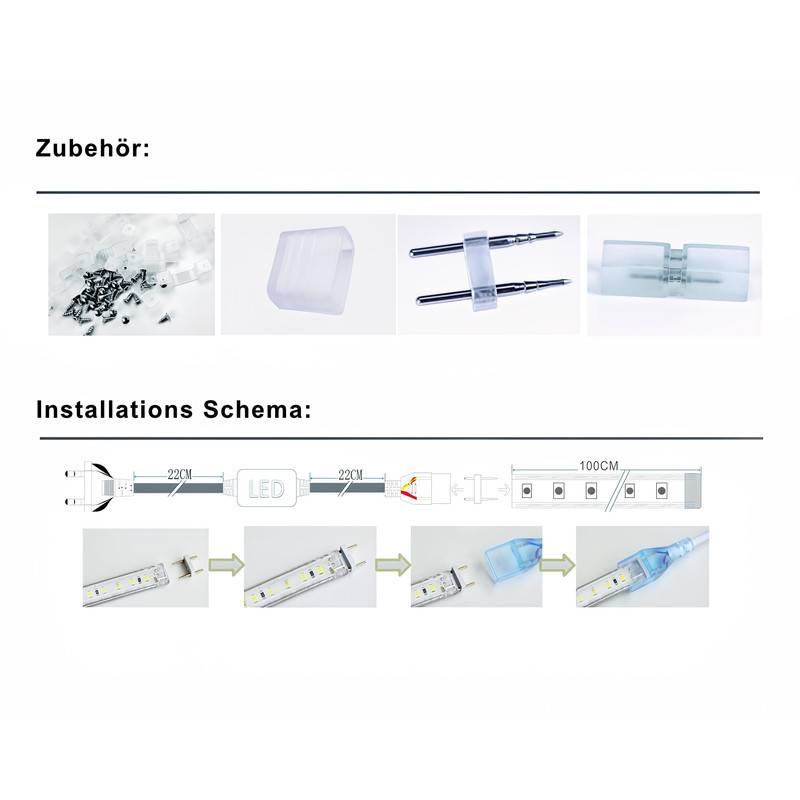

Mounting & accessories
Mounting is straightforward using the supplied mounting clips and screws. Matching accessories – from additional clips and mid-connectors to plugs and end caps – are also available in our shop, so you can tailor your installation to your needs.
Extending or cutting to length?
The 50 m strip can be shortened to the length you need every 1 m at the marked cut points. Seal the open end with an end cap afterwards. The benefit: each section you cut off can be put back into operation with a separate 230 V connection plug – so a single reel gives you several independent runs of light. For cutting and connecting the strip properly, we recommend consulting an electrician or qualified specialist.
Applications
With warm white light at 3000 K, this strip creates a cosy, inviting atmosphere – ideal for living spaces, hotels, restaurants, reception and wellness areas, plus indirect lighting in protected outdoor areas.
