Description
Highest LED density for maximum brightness

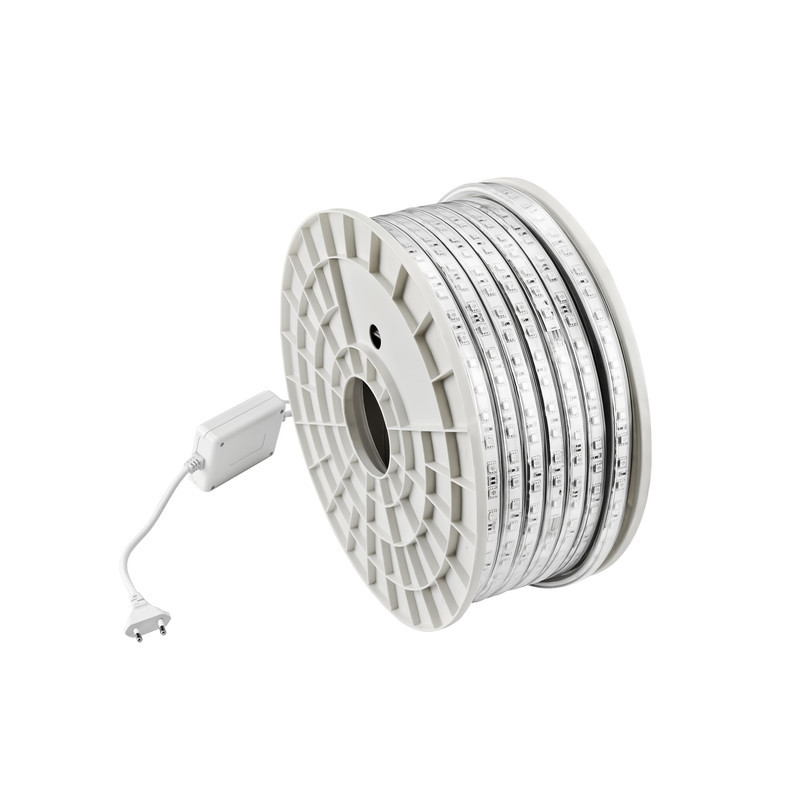

With 180 LEDs per metre, this strip reaches the highest luminous density in our series and produces an almost seamless, very even band of light at 800 lm/m. The slightly wider 15 mm profile accommodates the additional LEDs and delivers powerful, brilliant illumination. At 8 W/m, this version is the first choice wherever maximum brightness matters – for large ceiling and wall lighting, shop windows, warehouses and prestige areas.
Your benefits at a glance

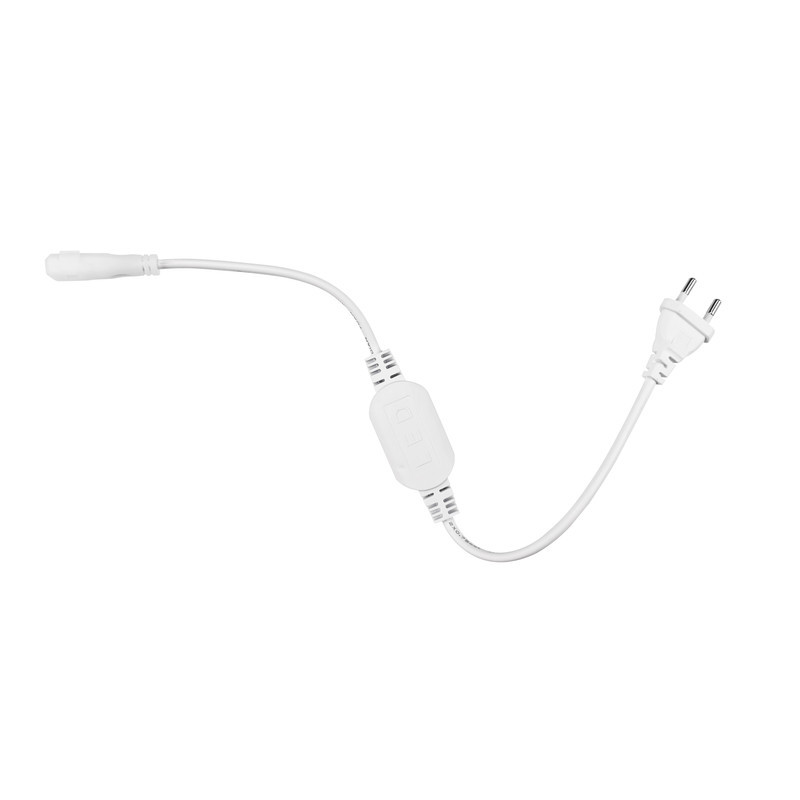

No external power supply Direct 230 V connection via the supplied plug – no transformer or power supply required. |
180 LEDs/m – maximum brightness Highest LED density for 800 lm/m and an almost continuous, brilliant band of light. |
IP65 – splash-proof Fully encapsulated PVC housing – suitable for damp rooms and protected outdoor areas. |
High-quality Sanan LEDs Long-life SMD 2835 LEDs from Sanan with good colour rendering (CRI Ra ≥ 80). |
3 light colours selectable 3000 K warm white, 4000 K neutral white or 6000 K daylight white. |
Cuttable every 1 m Cut to length at the marked points; each section can be operated separately. |
Light colour 6000 K Daylight White
This strip is also available in 3000 K Warm White and 4000 K Neutral White – selectable when ordering.
Technical Data
| Property | Value |
| Operating voltage | AC 230 V (200–240 V, direct connection) |
| Power | 8 W/m (approx. 400 W at 50 m) |
| Energy efficiency class | F (EU 2019/2015, 100 lm/W) |
| LED type | SMD 2835 (Sanan) |
| LED density | 180 LEDs/m |
| Luminous flux | 800 lm/m |
| Luminous efficacy | 100 lm/W |
| Light colour | 6000 K (Daylight White) |
| Colour rendering (CRI) | Ra ≥ 80 |
| Protection rating | IP65 |
| Length / reel | 50 m |
| Dimensions (W × H) | 15 × 7 mm |
| Beam angle | 120° |
| Cuttable every | 1 m (at marked points) |
| Min. bending diameter | ≥ 6 cm |
| Operating temperature | -25 °C to +50 °C |
| Housing material | PVC (transparent surface, white base) |
| Mounting | mounting clips + screws (incl.) |
| Certification | CE, RoHS |

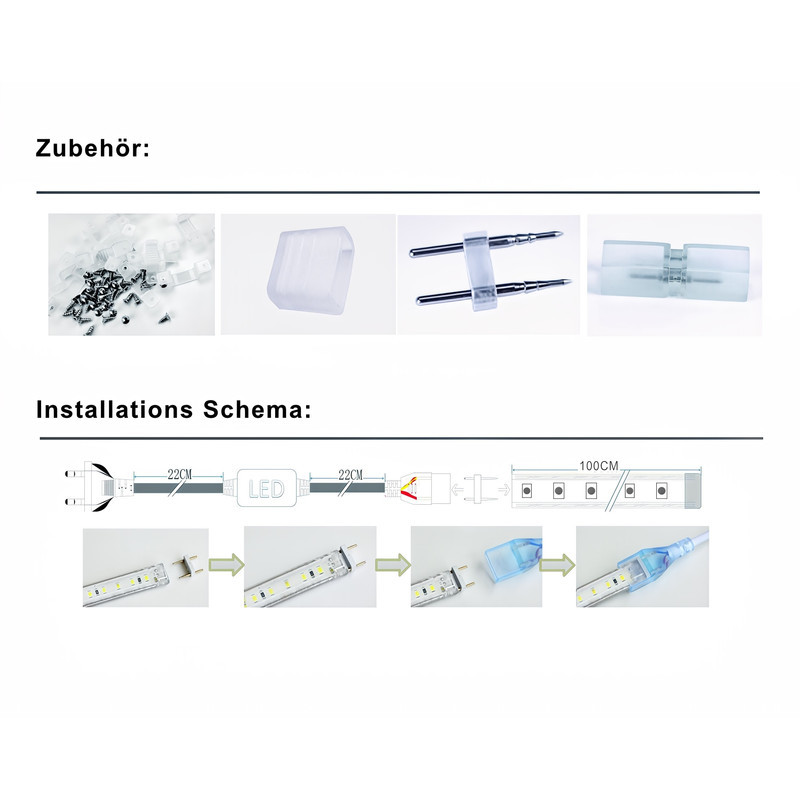

Mounting & accessories
Mounting is straightforward using the supplied mounting clips and screws. Matching accessories – from additional clips and mid-connectors to plugs and end caps – are also available in our shop, so you can tailor your installation to your needs.
Extending or cutting to length?
The 50 m strip can be shortened to the length you need every 1 m at the marked cut points. Seal the open end with an end cap afterwards. The benefit: each section you cut off can be put back into operation with a separate 230 V connection plug – so a single reel gives you several independent runs of light. For cutting and connecting the strip properly, we recommend consulting an electrician or qualified specialist.
Applications
With daylight white light at 6000 K, this strip provides maximum brightness and contrast – ideal for garages, warehouses, stairwells, utility rooms and work areas.
