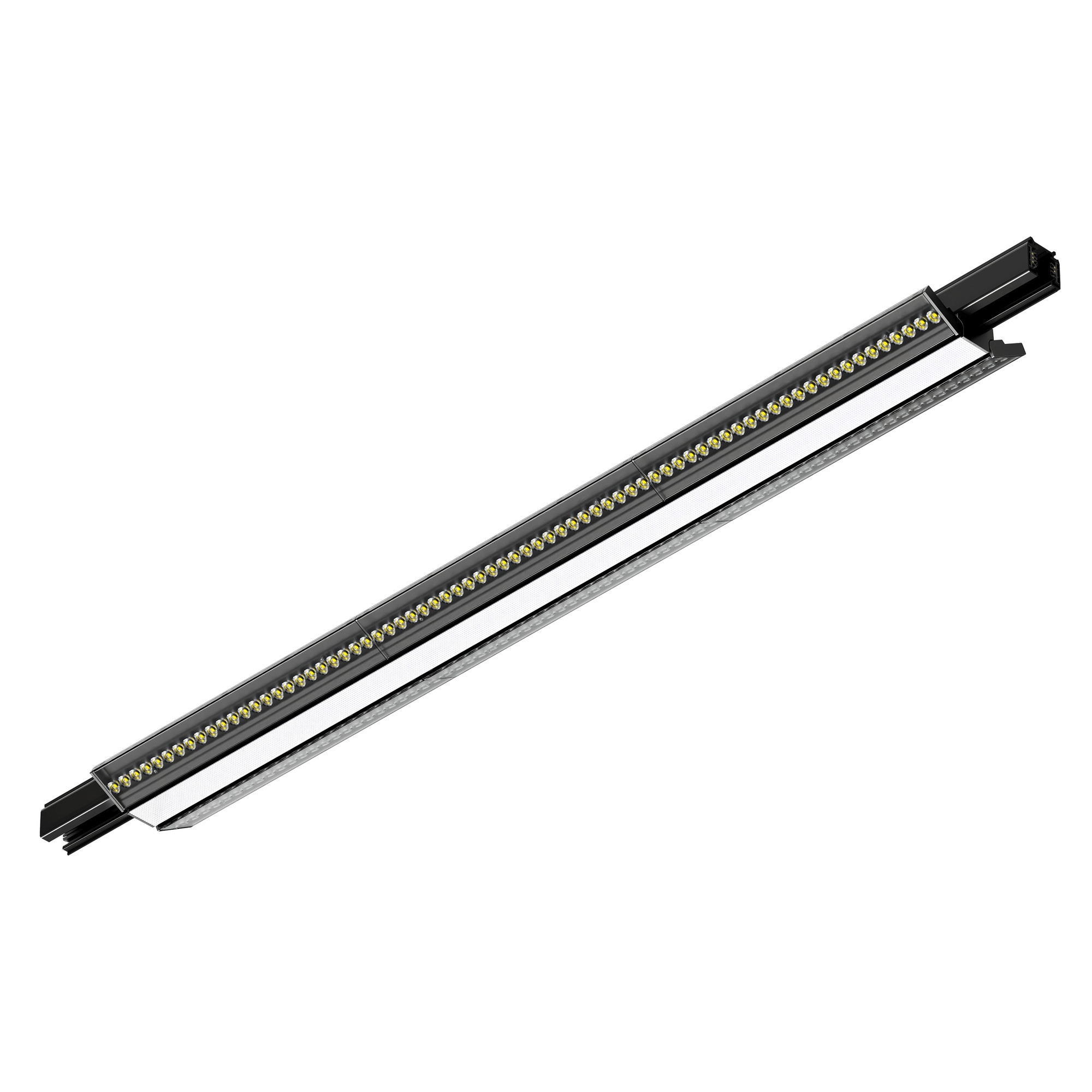

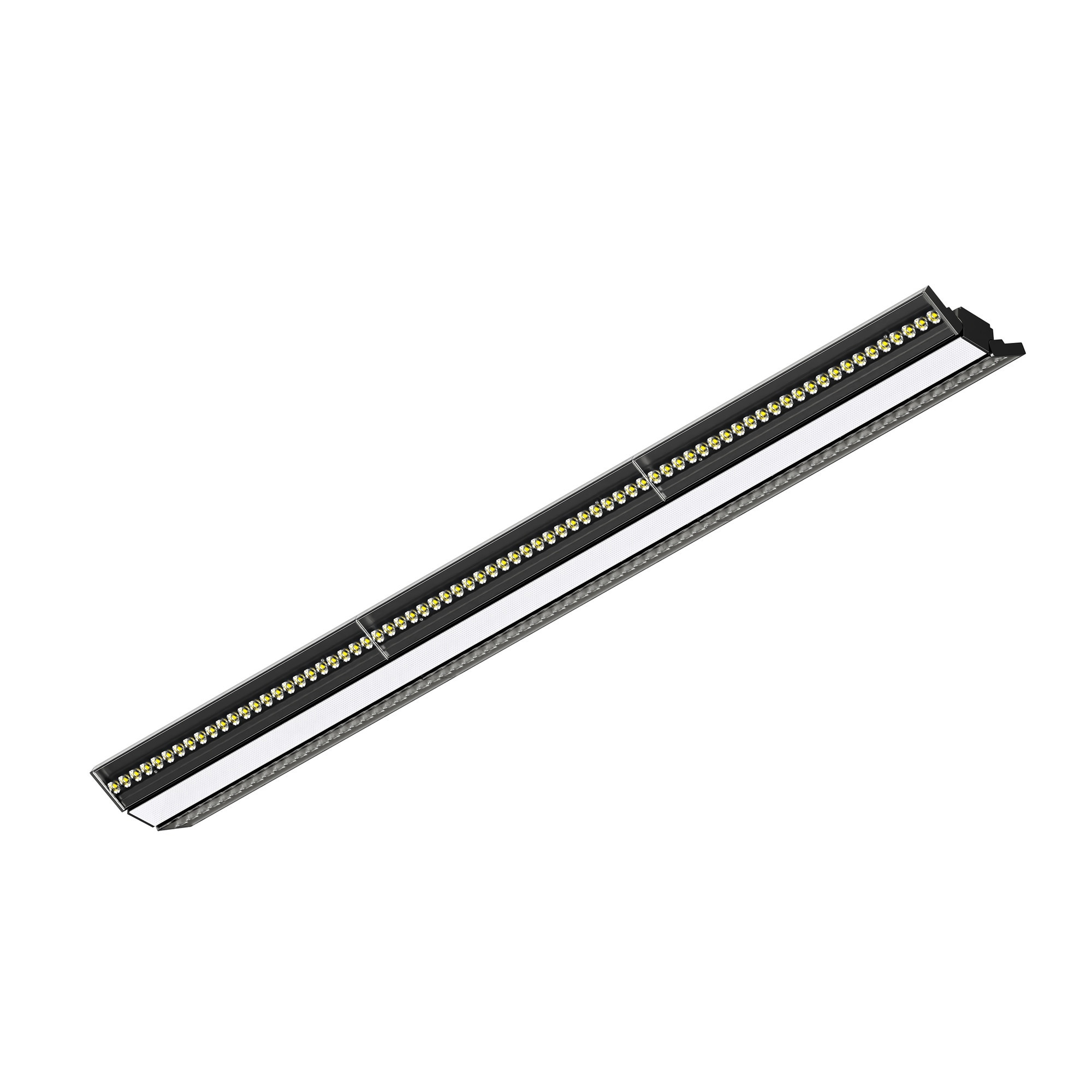

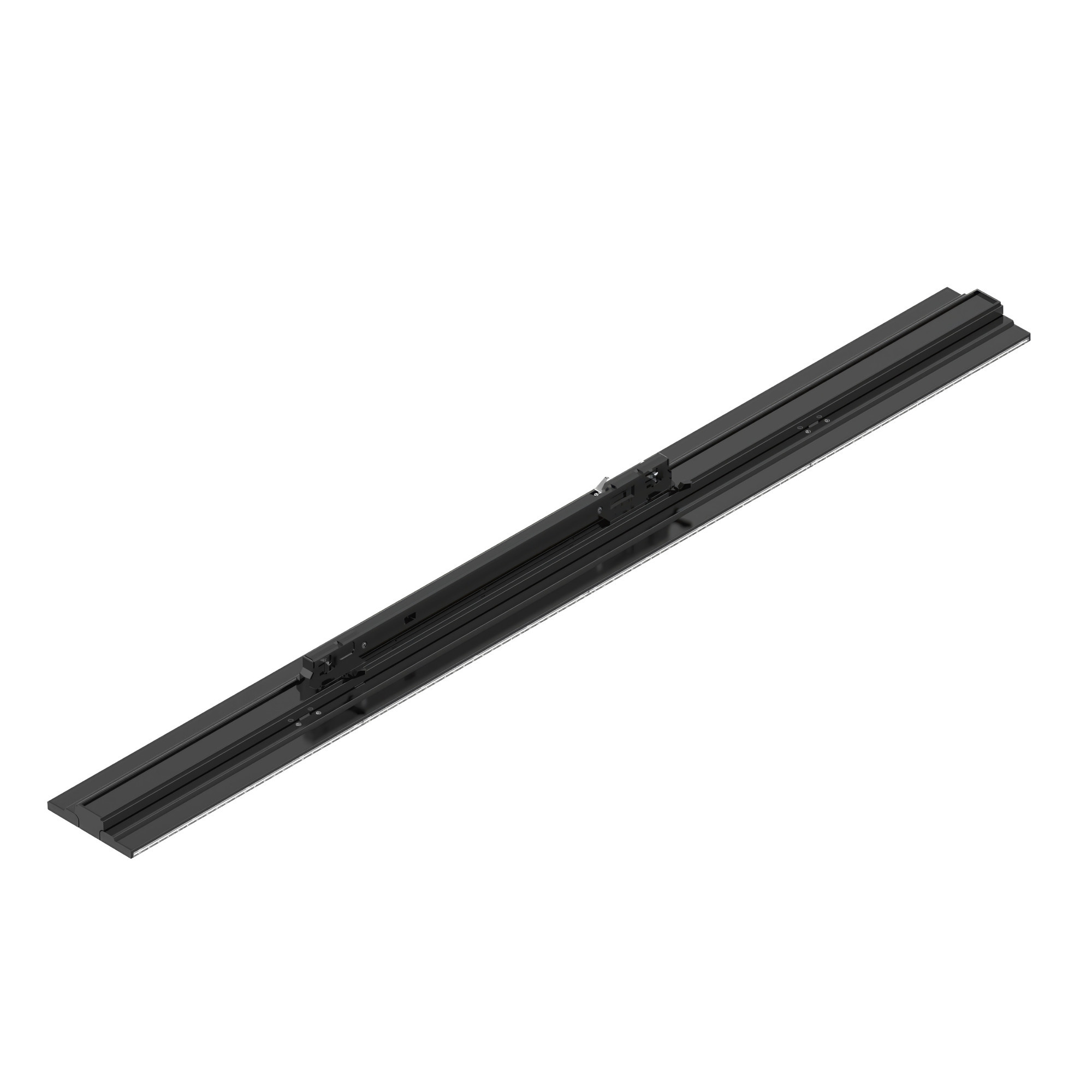

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

900 mm · black · 4000 K neutral white · CRI > 80

900 mmblackCRI > 804000 KIP20145 lm/WL80 100,000 h

This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch.	High efficiency 145 lm/W – up to 7,975 lm at 55 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 55 W / 47 W / 39 W / 30 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in black, PMMA lens, IK04

Central light + two tiltable spots

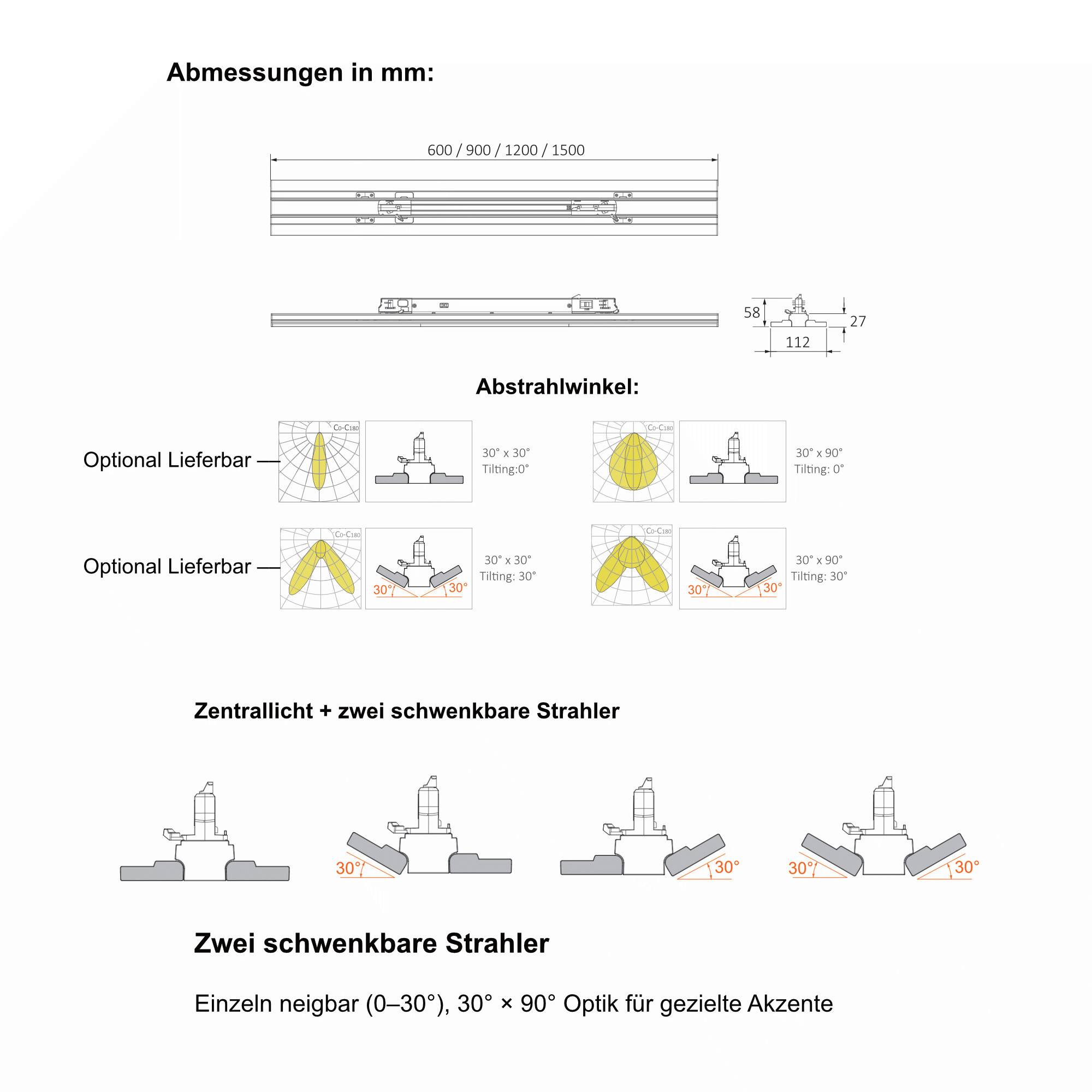

At its core is the mix of a 100° central module for flat illumination and two tiltable 30° × 90° spots. The 0° to 30° tilt directs light onto walls, displays or work surfaces – variable and adjustable at any time.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Efficient & bright

The CRI > 80 variant combines solid colour rendering with especially high efficiency (145 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

Mounting & track compatibility

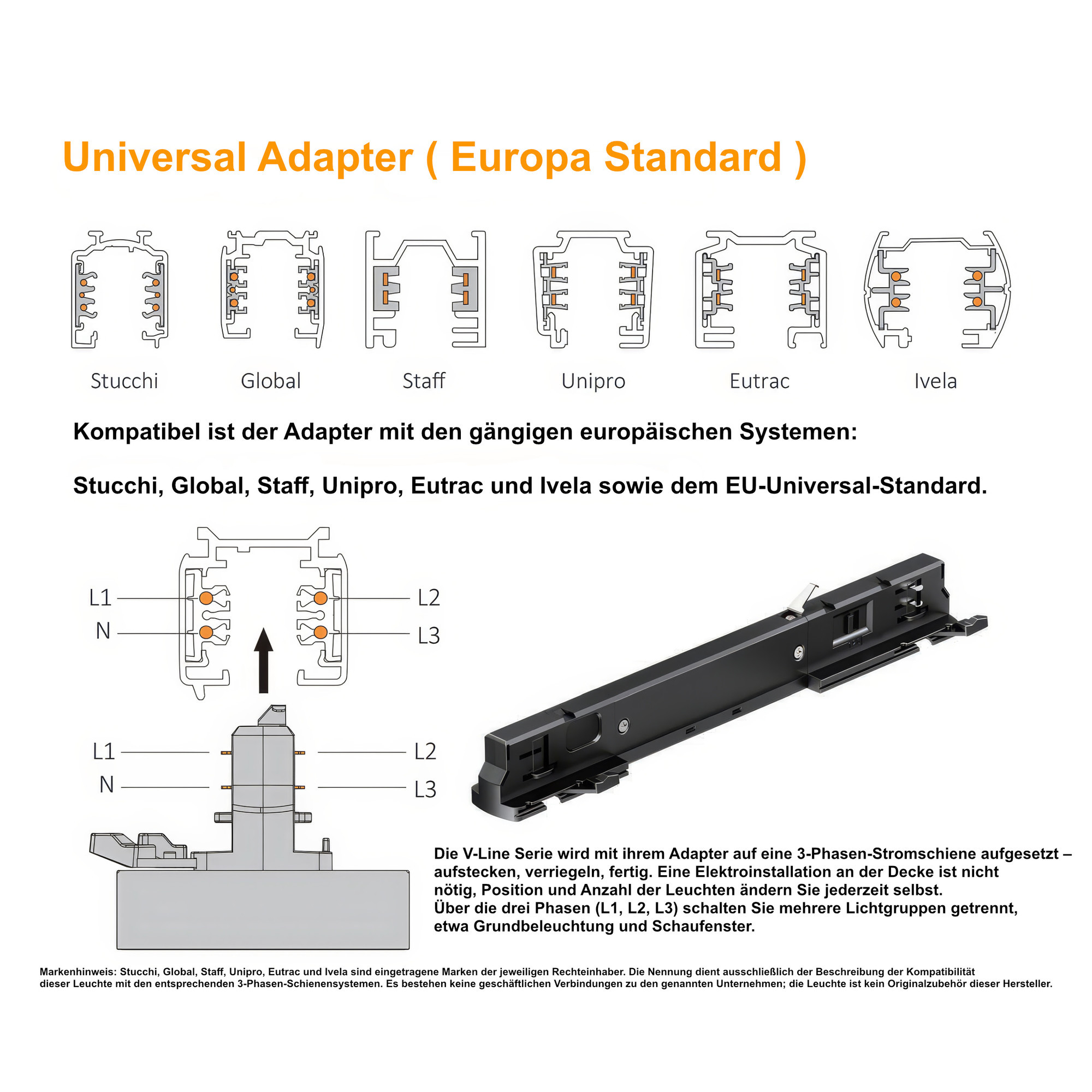

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 14 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Colour temperature 4000 K – neutral white

Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Black housing: luminous flux & look

The black-housing version intentionally reaches a slightly lower luminous flux than the white one – for a physical reason. Inside the luminaire, part of the light hits the housing and optic surfaces. White surfaces bounce this light back and outward with almost no loss, while black surfaces absorb some of it and turn it into heat. Less reflected light means a marginally lower lumen figure and slightly lower efficacy (lm/W). In exchange, the black version glares less and blends particularly elegantly and unobtrusively into demanding spaces such as boutiques and showrooms.

Technical data

Power (switchable)	55 W / 47 W / 39 W / 30 W (by switch)
Luminous flux	55 W = 7,975 lm / 47 W = 6,815 lm / 39 W = 5,655 lm / 30 W = 4,350 lm
Efficacy	145 lm/W
Colour temperature	4000 K (neutral white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	Black (matt)
Dimensions (L×W×H)	888 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
