4000K

Item number: VU315C8S-2

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

144,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	139,90 €
12	134,90 €

Available

Shipping time: 15 - 16 workdays

Description

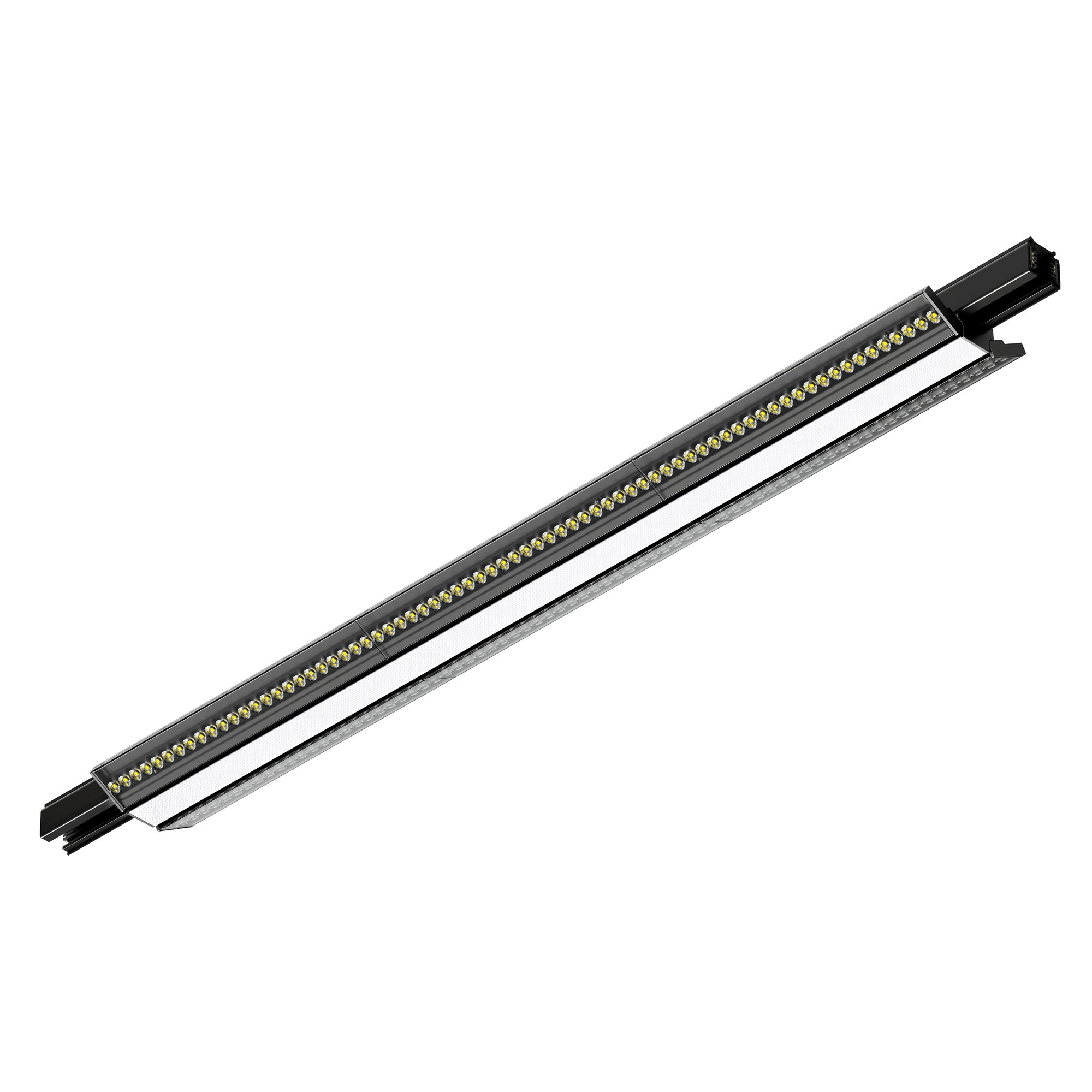

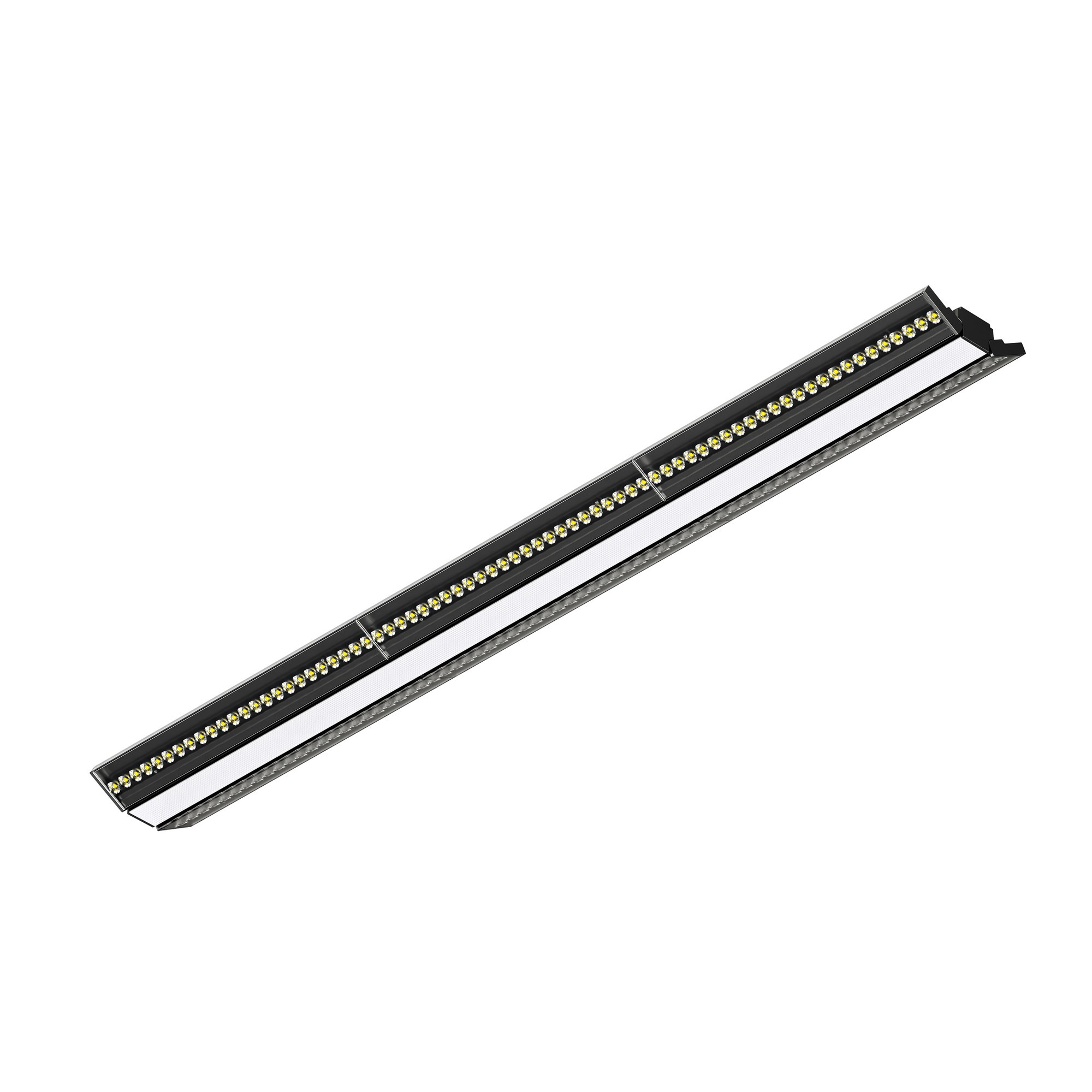

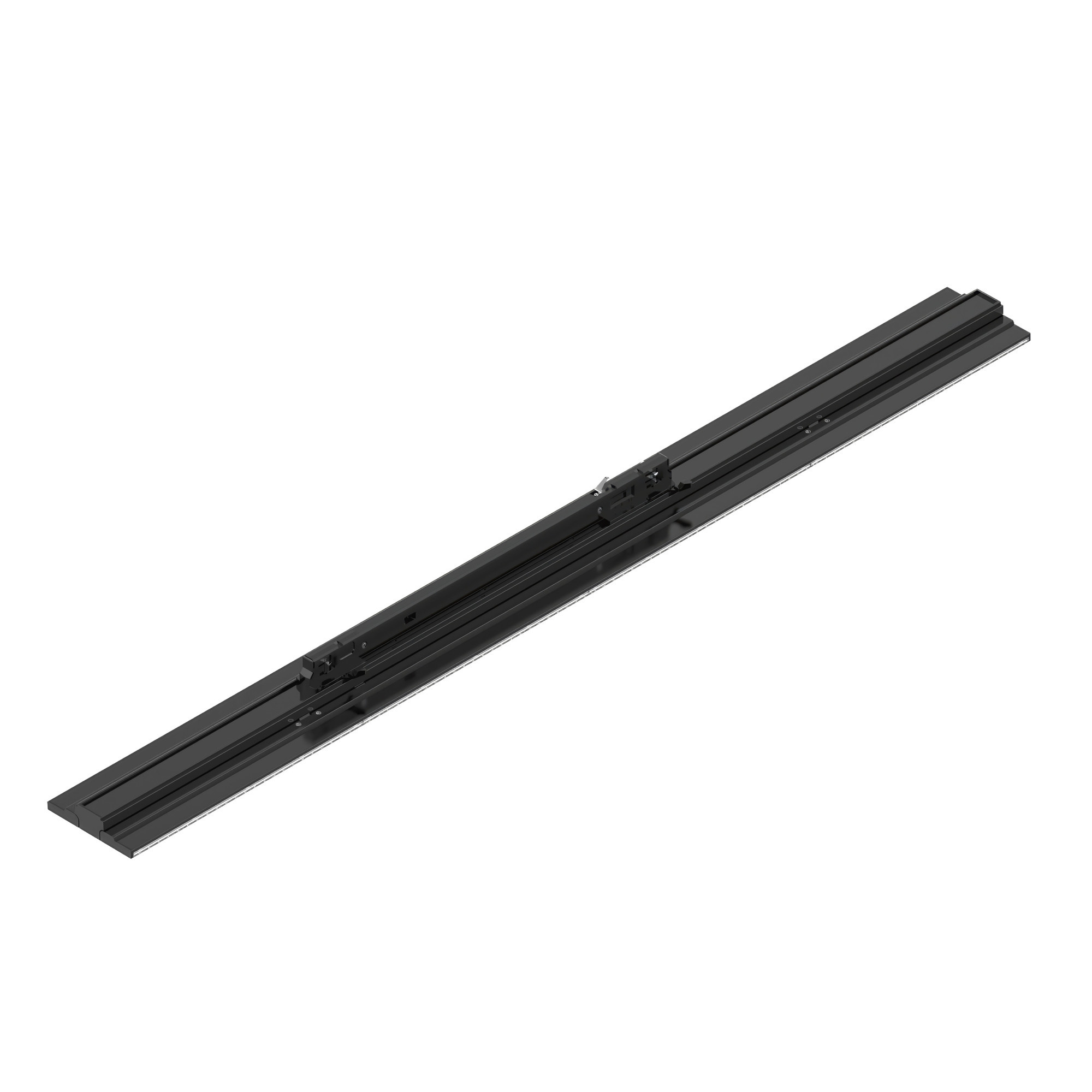

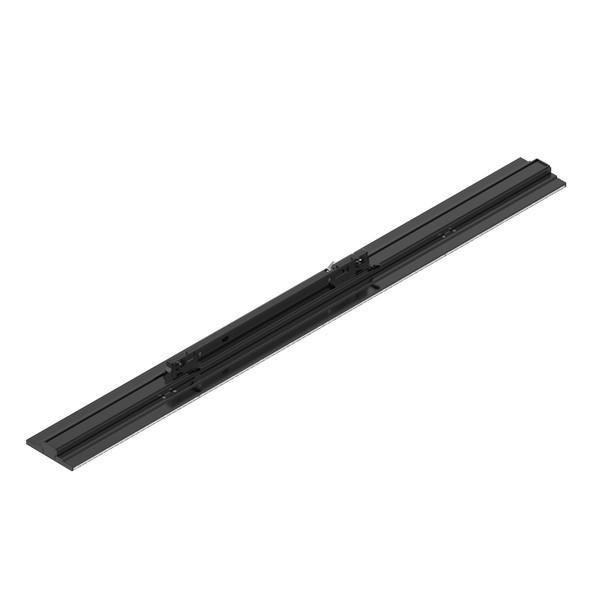

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

1500 mm · black · 4000 K neutral white · CRI > 80

1500 mmblackCRI > 804000 KIP20145 lm/WL80 100,000 h

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch.	High efficiency 145 lm/W – up to 8,700 lm at 60 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 60 W / 50 W / 42 W / 34 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in black, PMMA lens, IK04

Central light + two tiltable spots

With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.

The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.

Efficient & bright

The CRI > 80 variant combines solid colour rendering with especially high efficiency (145 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.

Long service life – L80 at 100,000 hours

100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

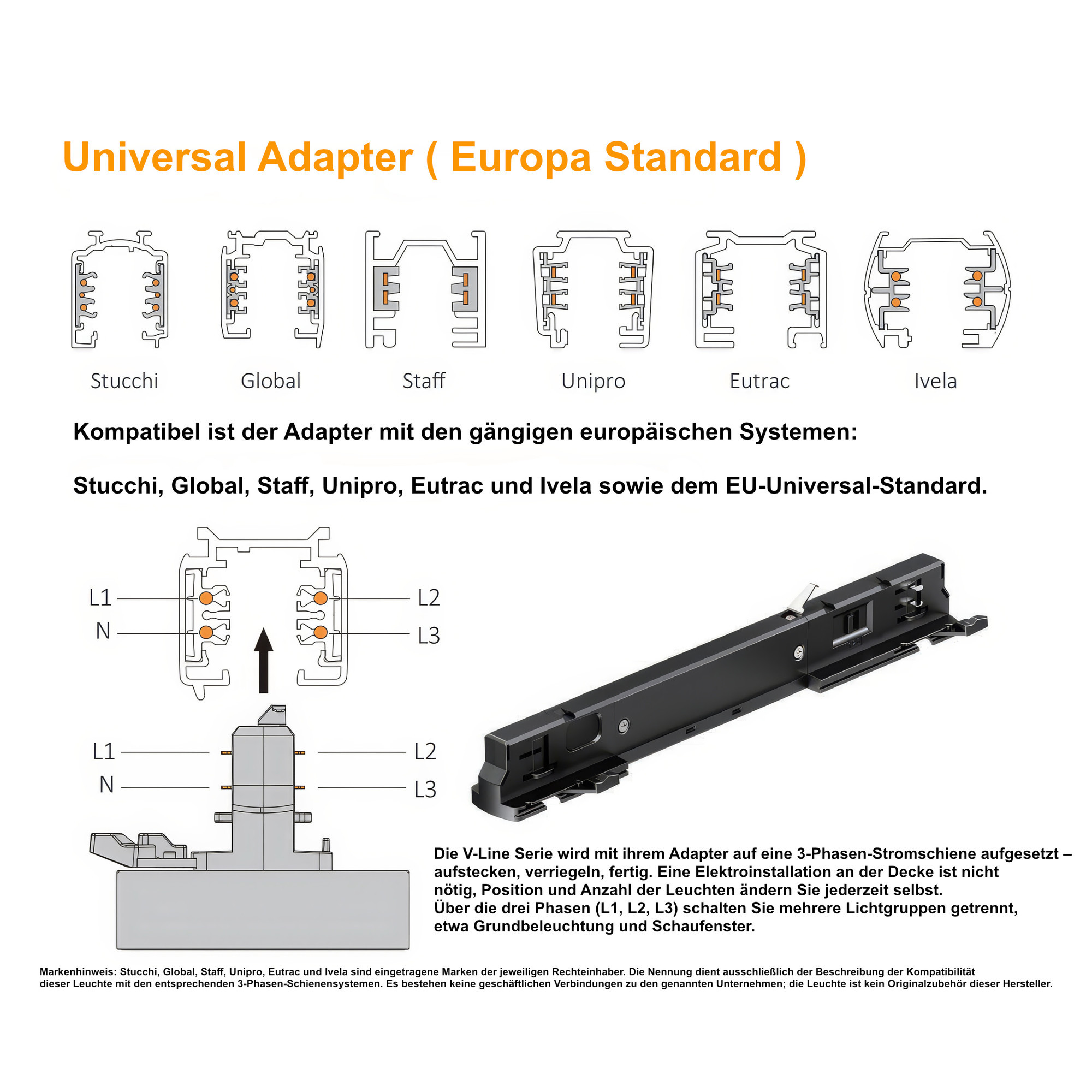

Mounting & track compatibility

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 13 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.

Colour temperature 4000 K – neutral white

Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Black housing: luminous flux & look

Why does the black-housing version deliver slightly fewer lumens? The reason lies in the reflection inside the luminaire: bright, white surfaces reflect the generated light very efficiently and direct almost all of it outward. Dark or black surfaces, by contrast, absorb part of the light that hits the internal surfaces – this portion does not leave the luminaire and is lost as heat. That is why the luminous flux, and therefore the efficacy in lm/W, is somewhat lower with a black housing than with a white one. In return, the black version appears less glaring and more discreet – a deliberately chosen advantage in boutiques, shops and premium settings where an understated, elegant look is desired.

Technical data

Power (switchable)	60 W / 50 W / 42 W / 34 W (by switch)
Luminous flux	60 W = 8,700 lm / 50 W = 7,250 lm / 42 W = 6,090 lm / 34 W = 4,930 lm
Efficacy	145 lm/W
Colour temperature	4000 K (neutral white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	Black (matt)

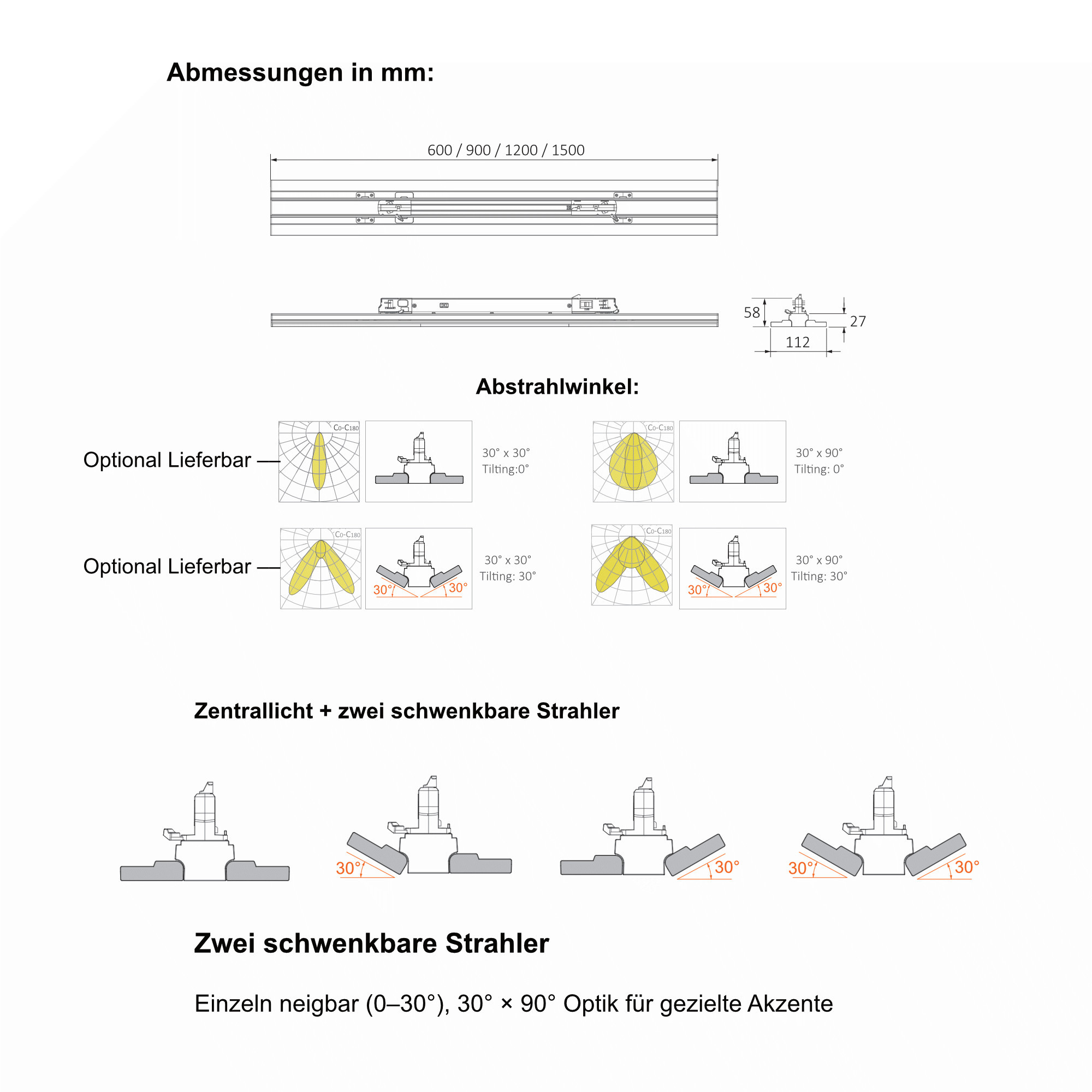

Dimensions (L×W×H)	1498 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

At 1500 mm this luminaire is ideal for spacious halls, long retail aisles and continuous production lines. Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
