Surface-Mount Frame Black 60x60 cm for Back-Lit Panel - Matt Aluminium

Black mounting frame, 68 mm high, for back-lit LED panel 60x60 cm

Description

Surface-Mount Frame Black for Back-Lit LED Panels – Design Statement with Surface Installation

The black surface-mount frame made of powder-coated aluminium creates a clear design accent on the ceiling and gives your Back-Lit LED panel a modern, premium look. Perfect for loft atmospheres, industrial style, design apartments and prestigious spaces – entirely without ceiling cut-outs.

Black

matt powder-coated

Surface

Mounting Type

Aluminium

Material

68 mm

Mounting Depth

3 Sizes

available

CE / RoHS

Certified

Black Frame – the Statement for Modern Interior Design

While a white frame blends in neutrally, the black surface-mount frame becomes a deliberate design element. It frames the luminous panel with strong contrast, defines clean edges and pairs perfectly with dark ceiling surfaces, anthracite accents and modern architecture. Ideal for everyone who wants to not just install but showcase their LED panel.

Available Sizes

Three Formats – One Consistent Black Design Line

The black surface-mount frame is offered in three standard sizes, matching the LedKing Back-Lit Panel series:

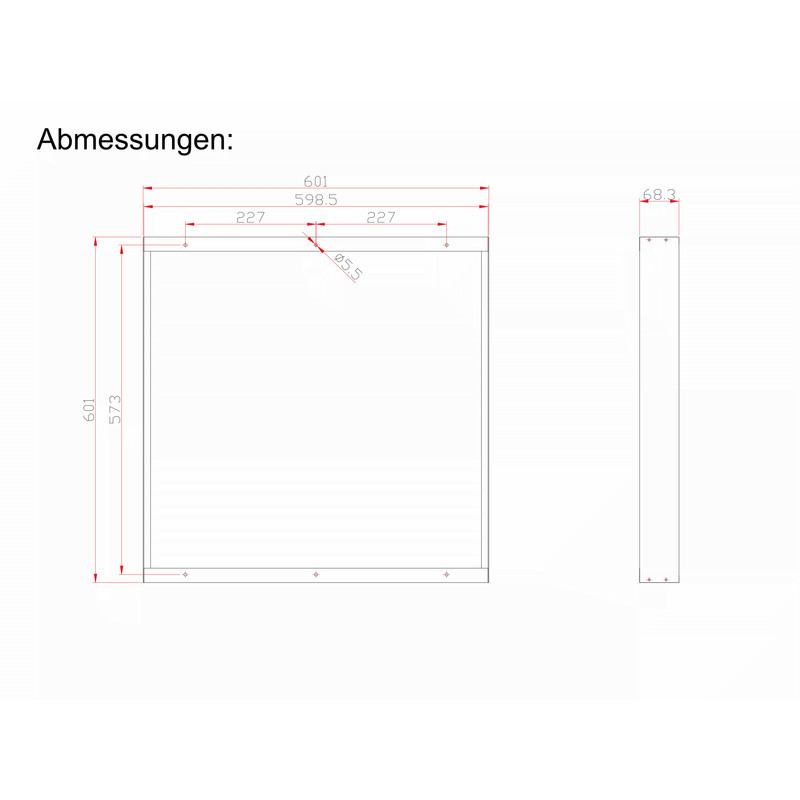

Frame Variant	External Size	Fits Panel
60x60 cm	601 × 601 × 68.3 mm	595 × 595 mm Back-Lit Panel
62x62 cm	626 × 626 × 68.3 mm	620 × 620 mm Back-Lit Panel
30x120 cm	1201 × 301 × 68.3 mm	1195 × 295 mm long-format Back-Lit Panel

All three sizes come in uniform matt black powder coating. A white version of these frames is also available in our shop.

Your Benefits

What Sets the Black Surface-Mount Frame Apart

Design Accent Instead of Hidden Installation

The black frame is deliberately visible – it makes your LED panel a design element and gives any ceiling architectural depth.

Powder-Coated Aluminium

Matt black powder coating on sturdy aluminium – scratch-resistant, fade-resistant and durable. Does not reflect disturbing light.

Direct Surface Installation

No ceiling cut-out, no grid ceiling required – the panel goes directly onto the existing ceiling. Ideal for rented apartments and existing buildings.

Slim 68 mm Mounting Depth

Despite the premium housing, the construction remains very discreet at only 6.83 cm – significantly slimmer than conventional surface luminaires.

Concealed Screw Holes

The frame surrounds the panel flush and hides connection and screw areas – a clean, refined appearance without visible fastenings.

6-Step Installation

Aluminium profiles are assembled on site into the frame, fixed to the ceiling and the panel inserted from below – no special tools required.

Applications

Where the Black Frame Shows Its Strengths

The black surface-mount frame is the right choice wherever lighting should be not only functional, but also visually impactful:

Loft apartments, industrial style and designer flats
Modern restaurants, bars and cafés with dark interiors
Showrooms, boutiques and concept stores
Co-working spaces and creative work environments
Hotel rooms and lobbies with modern interior design
Private ceilings with anthracite or dark plaster accents

Specifications

Specifications of the Black Surface-Mount Frame

Property	Value
Product type	Black surface-mount frame for Back-Lit LED panel
Material	Aluminium, matt powder-coated
Colour	Black (matt)
Mounting depth	68.3 mm
Inner height (for panel)	65.85 mm
Available sizes	60x60 · 62x62 · 30x120 cm
Mounting type	Surface mounting on ceiling
Delivery state	Profiles disassembled – assembled on site
Certificates	CE · RoHS

Installation

Mount the Frame to the Ceiling in 6 Steps

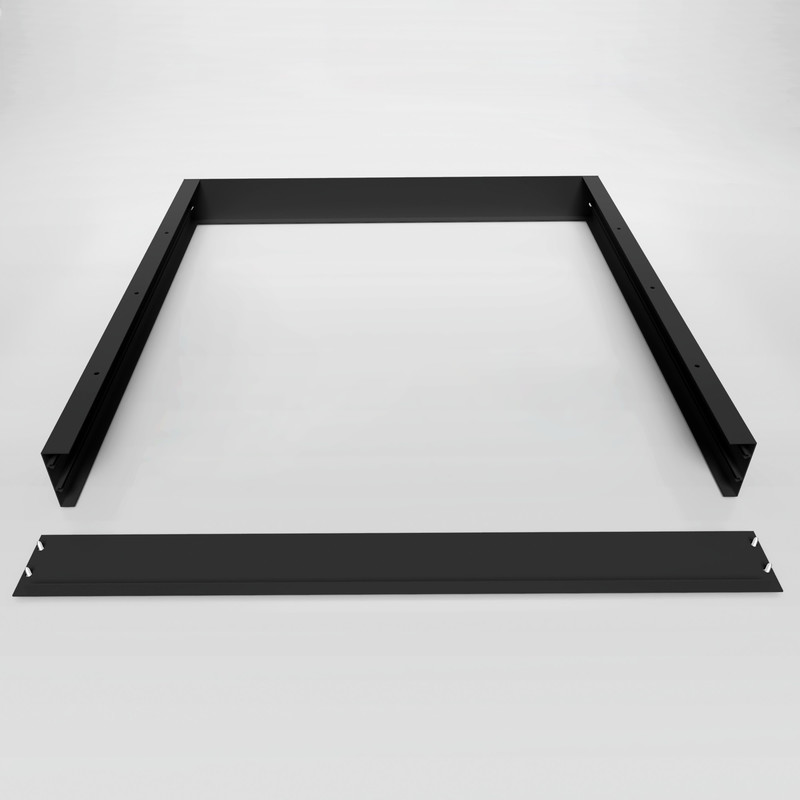

Step 1 Unpack aluminium profiles and screws from the package.	Step 2 Join profiles into a rectangle and fix screws at the corners.	Step 3 Mark drill holes and prepare the cable feed-through.

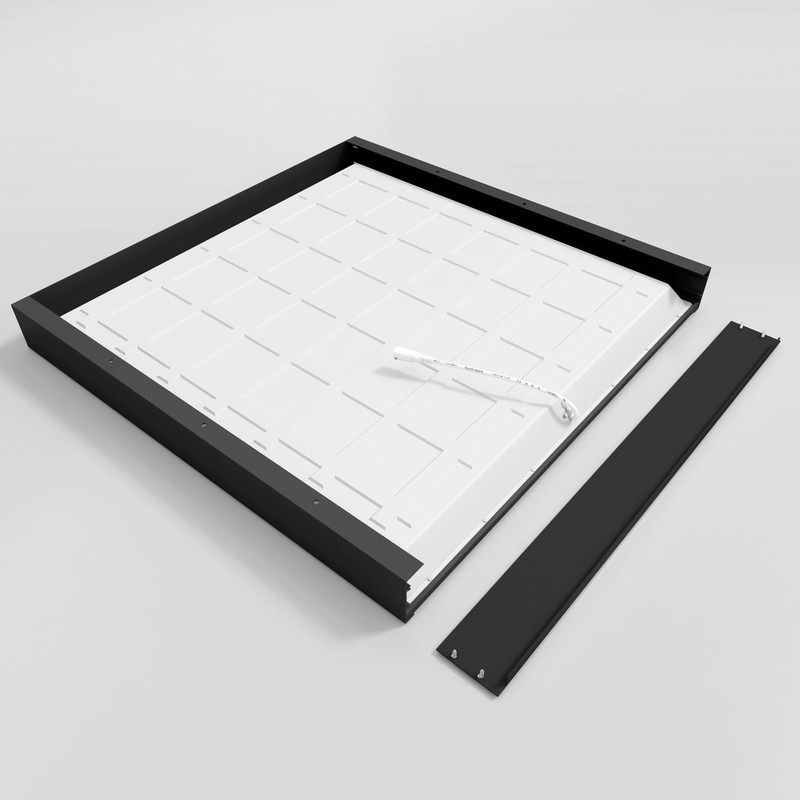

Step 4 Firmly screw the frame to the ceiling.	Step 5 Insert the Back-Lit panel into the frame from below and connect the wiring.	Step 6 Insert the final profile strip – installation complete.

Electrical installation should be performed by a qualified electrician. The Back-Lit panel is not included.

FAQ

Answers to Common Questions About the Black Surface-Mount Frame

Isn’t the black frame too eye-catching?

On the contrary – in the right rooms, the black frame becomes an elegant design element. It sharpens the contour of the luminous panel and harmonises with dark furniture, anthracite wall elements, black architectural details (door frames, windows, fittings) and modern industrial style.

Is the Back-Lit panel included in the package?

No. The delivery contains only the black surface-mount frame with mounting hardware and guide. Please order the matching Back-Lit panel separately in the corresponding size.

How does the frame look with the panel switched on?

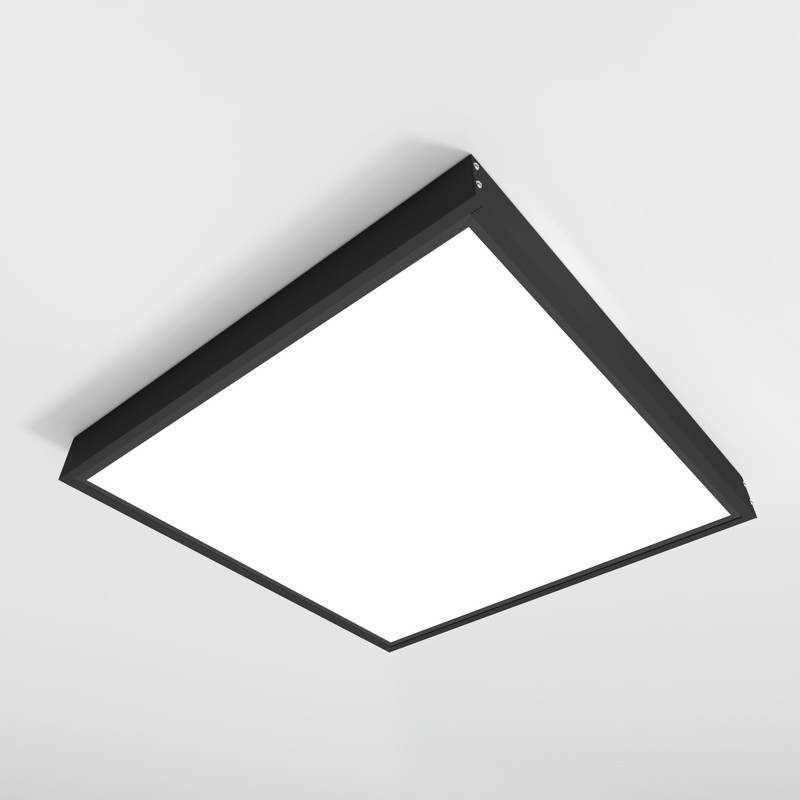

The white light of the Back-Lit panel and the black frame create a striking light-dark contrast. The lighting surface appears visually sharper and better defined thanks to the black surround – a visually very premium impression.

Is the black powder coating scratch-resistant?

Yes. The matt powder coating is significantly more robust than conventional paints. During installation, however, please take care not to drag tools directly across the surface. Light cleaning is done with a dry or slightly damp cloth – without aggressive cleaning agents.

Where can I find the white version of this frame?

We also offer the same surface-mount frame in white – under the product "Surface-Mount Frame White for Back-Lit Panels" in our shop. The white model is also available in four sizes.

Package Contents

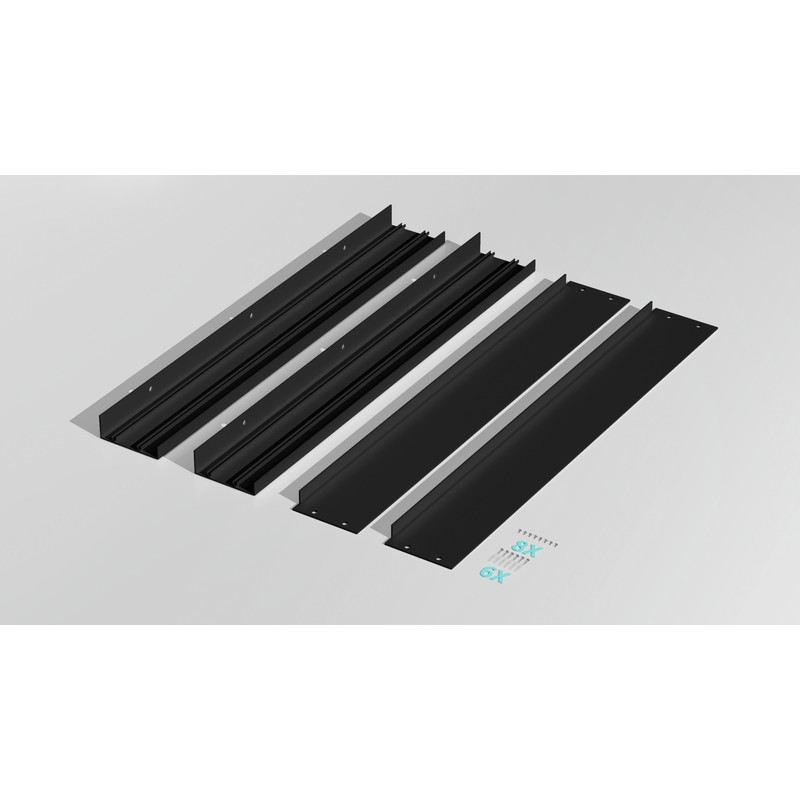

1× surface-mount frame Black in selected size (aluminium profiles disassembled) · Mounting screws · Installation guide
Note: The Back-Lit LED panel is not included and must be ordered separately.
