Surface-Mount Frame Black 62x62 cm for Back-Lit Panel - Matt Aluminium

Black mounting frame, 68 mm high, for back-lit LED panel 62x62 cm

Description

Surface-Mount Frame 62x62 cm Black for 62x62 cm Back-Lit Panel – Design Accent for Any Ceiling

Black surface-mount frame in size 62x62 cm made of matt powder-coated aluminium – precisely engineered for the 62x62 cm Back-Lit Panel (620 × 620 mm). Gives the ceiling a striking design accent and turns the LED panel into an architectural statement. Ideal for modern loft, industrial and design spaces without ceiling cut-out.

Black

matt powder-coated

Surface

Mounting Type

Aluminium

Material

68 mm

Mounting Depth

62x62 cm

Frame Size

CE / RoHS

Certified

Surface Mounting Your 62x62 cm Back-Lit Panel with Design Aspiration

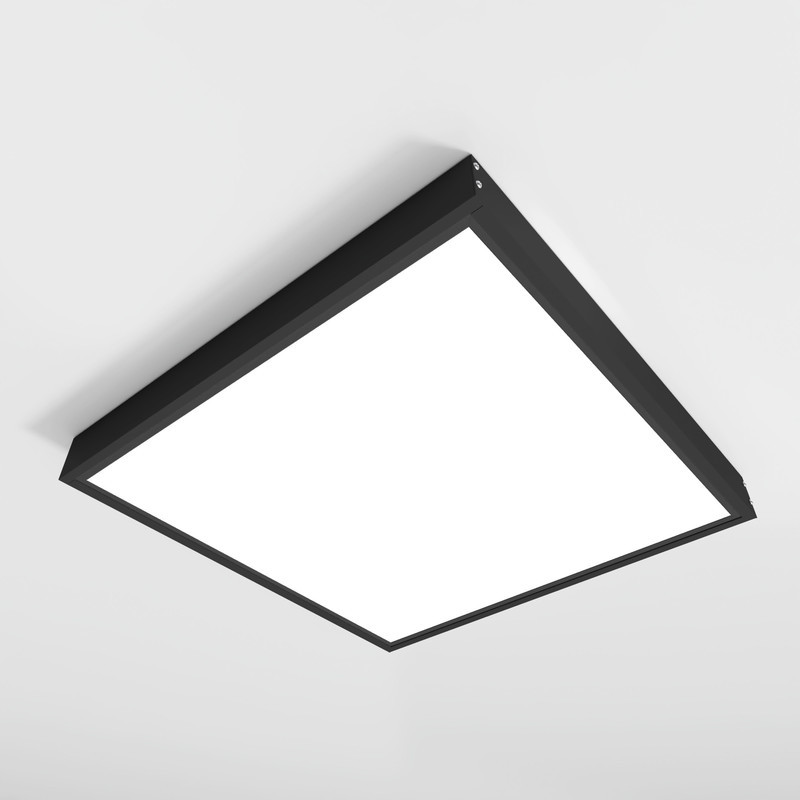

This 62x62 cm surface-mount frame in black is precisely engineered for the 62x62 cm Back-Lit Panel with external dimensions 620 × 620 mm. Rather than disappearing into a ceiling grid, the black frame showcases the panel with strong contrast – clean edges, defined light surface and a visually premium appearance without visible fastenings.

This Variant

Surface-Mount Frame Black 62x62 cm in Detail

The black surface-mount frame is offered in three standard sizes, matching the LedKing Back-Lit Panel series:

Frame Variant	External Size	Fits Panel
60x60 cm	601 × 601 × 68.3 mm	595 × 595 mm Back-Lit Panel
62x62 cm	626 × 626 × 68.3 mm	620 × 620 mm Back-Lit Panel
30x120 cm	1201 × 301 × 68.3 mm	1195 × 295 mm long-format Back-Lit Panel

All three sizes come in uniform matt black powder coating. A white version of these frames is also available in our shop.

Your Benefits

The Benefits of the 62x62 cm Black Surface-Mount Frame

Design Accent Instead of Hidden Installation

The black frame is deliberately visible – it makes your LED panel a design element and gives any ceiling architectural depth.

Powder-Coated Aluminium

Matt black powder coating on sturdy aluminium – scratch-resistant, fade-resistant and durable. Does not reflect disturbing light.

Direct Surface Installation

No ceiling cut-out, no grid ceiling required – the panel goes directly onto the existing ceiling. Ideal for rented apartments and existing buildings.

Slim 68 mm Mounting Depth

Despite the premium housing, the construction remains very discreet at only 6.83 cm – significantly slimmer than conventional surface luminaires.

Concealed Screw Holes

The frame surrounds the panel flush and hides connection and screw areas – a clean, refined appearance without visible fastenings.

6-Step Installation

Aluminium profiles are assembled on site into the frame, fixed to the ceiling and the panel inserted from below – no special tools required.

Applications

Where the Black Frame Shows Its Strengths

The black surface-mount frame is the right choice wherever lighting should be not only functional, but also visually impactful:

Loft apartments, industrial style and designer flats
Modern restaurants, bars and cafés with dark interiors
Showrooms, boutiques and concept stores
Co-working spaces and creative work environments
Hotel rooms and lobbies with modern interior design
Private ceilings with anthracite or dark plaster accents

Specifications

Specifications of the Black Surface-Mount Frame

Property	Value
Product type	Black surface-mount frame for Back-Lit LED panel
Material	Aluminium, matt powder-coated
Colour	Black (matt)

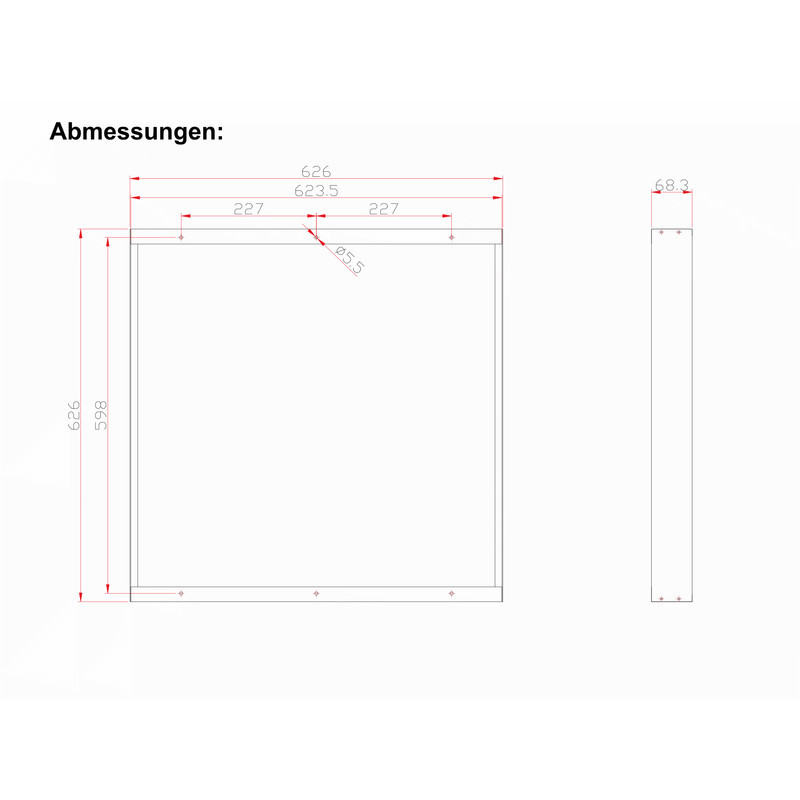

External size	626 × 626 × 68.3 mm
Inner size (for panel)	623.5 × 623.5 × 65.85 mm
Mounting depth	68.3 mm
Inner height (for panel)	65.85 mm
Frame size	62x62 cm
Mounting type	Surface mounting on ceiling
Delivery state	Profiles disassembled – assembled on site
Certificates	CE · RoHS

Installation

Mount the Frame to the Ceiling in 6 Steps

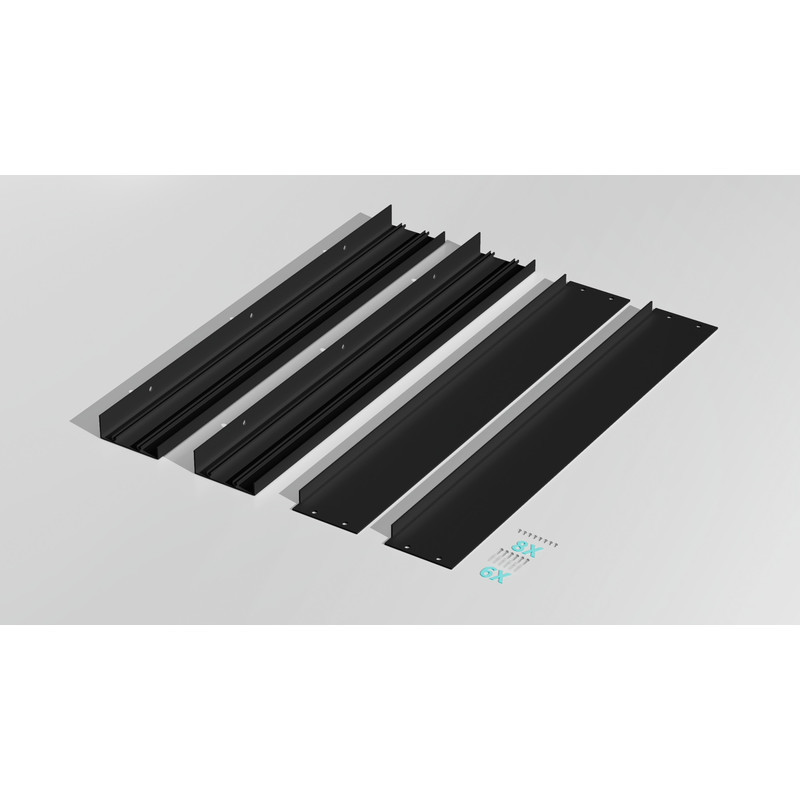

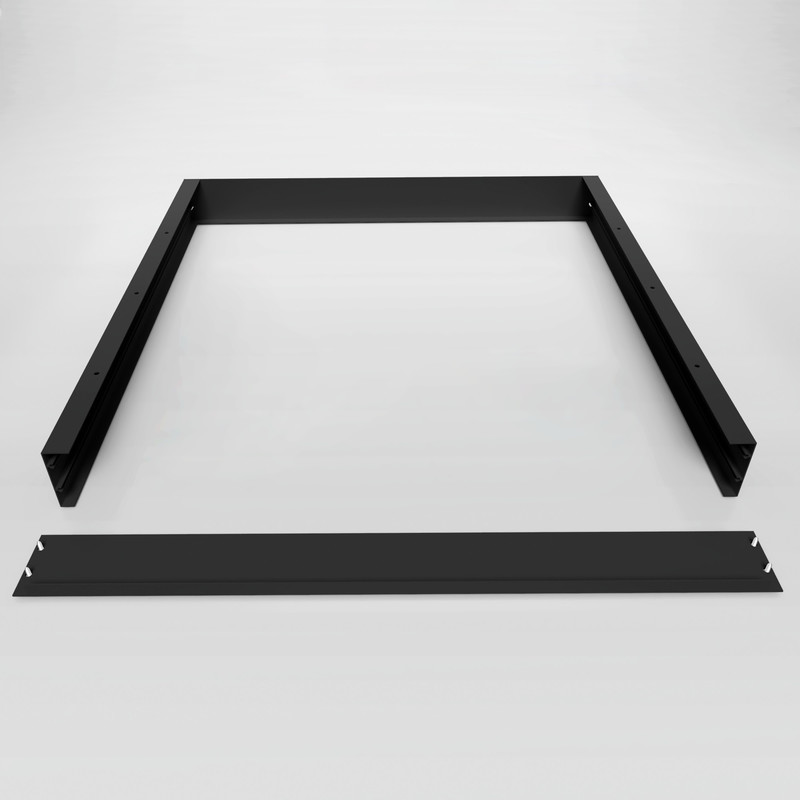

Step 1 Unpack aluminium profiles and screws from the package.	Step 2 Join profiles into a rectangle and fix screws at the corners.	Step 3 Mark drill holes and prepare the cable feed-through.

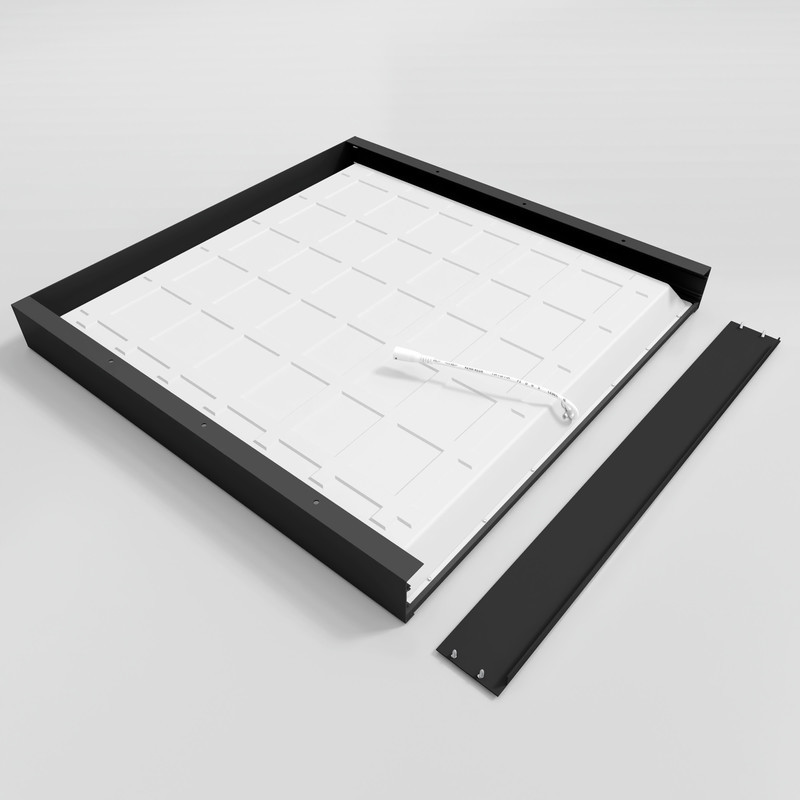

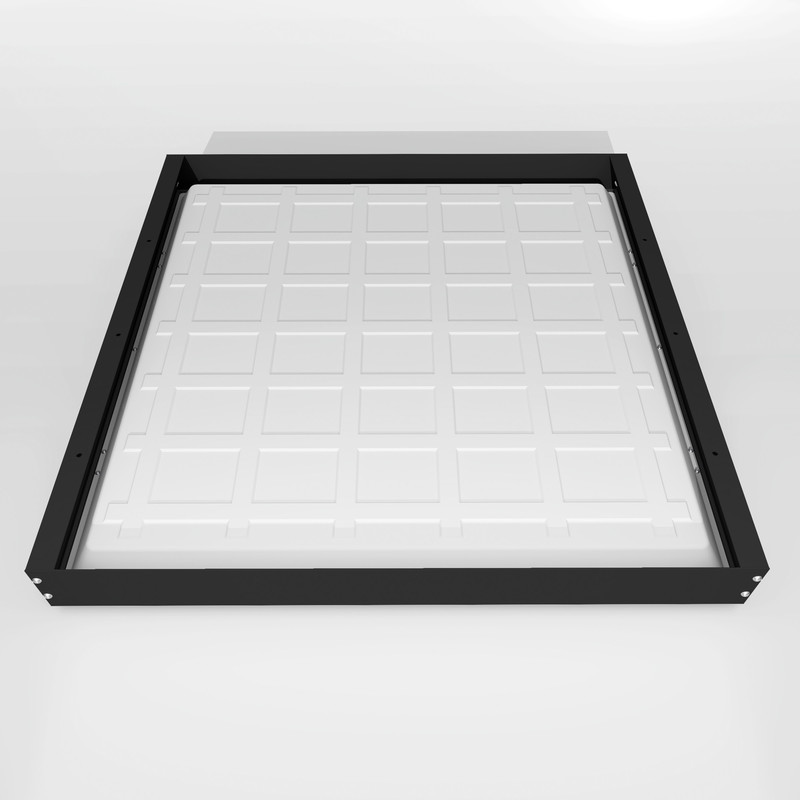

Step 4 Firmly screw the frame to the ceiling.	Step 5 Insert the Back-Lit panel into the frame from below and connect the wiring.	Step 6 Insert the final profile strip – installation complete.

Electrical installation should be performed by a qualified electrician. The Back-Lit panel is not included.

FAQ

Answers to Common Questions About the Black Surface-Mount Frame

Isn’t the black frame too eye-catching?

On the contrary – in the right rooms, the black frame becomes an elegant design element. It sharpens the contour of the luminous panel and harmonises with dark furniture, anthracite wall elements, black architectural details (door frames, windows, fittings) and modern industrial style.

Is the Back-Lit panel included in the package?

No. The delivery contains only the black surface-mount frame with mounting hardware and guide. Please order the matching Back-Lit panel separately in the corresponding size.

How does the frame look with the panel switched on?

The white light of the Back-Lit panel and the black frame create a striking light-dark contrast. The lighting surface appears visually sharper and better defined thanks to the black surround – a visually very premium impression.

Is the black powder coating scratch-resistant?

Yes. The matt powder coating is significantly more robust than conventional paints. During installation, however, please take care not to drag tools directly across the surface. Light cleaning is done with a dry or slightly damp cloth – without aggressive cleaning agents.

Where can I find the white version of this frame?

We also offer the same surface-mount frame in white – under the product "Surface-Mount Frame White for Back-Lit Panels" in our shop. The white model is also available in four sizes.

Package Contents

1× surface-mount frame Black 62x62 cm (aluminium profiles disassembled) · Mounting screws · Installation guide
Note: The Back-Lit LED panel is not included and must be ordered separately.
