LED VU2 linear light 30°x90°V-tiltable 1200mm white 165lm CRI>80 3000K

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1200 mm · white · 3000 K warm white · CRI > 80 · 30° × 90°

Two tiltable wings make the LED VU2 linear luminaire exceptionally adaptable. The standard 30° × 90° beam spreads light widely along the luminaire and keeps it narrow across – exactly right for aisles and shelf rows. The 0° to 30° tilt lets you decide where each wing points. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 80 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in white with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: maximum light per euro

CRI > 80 is the proven standard in retail and industry. Colour rendering is good, while efficiency at 165 lm/W is considerably higher than in the CRI 90 version. Anyone running many luminaires noticeably reduces energy costs – with a light quality that is perfectly adequate for most applications.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

Mounting & track compatibility

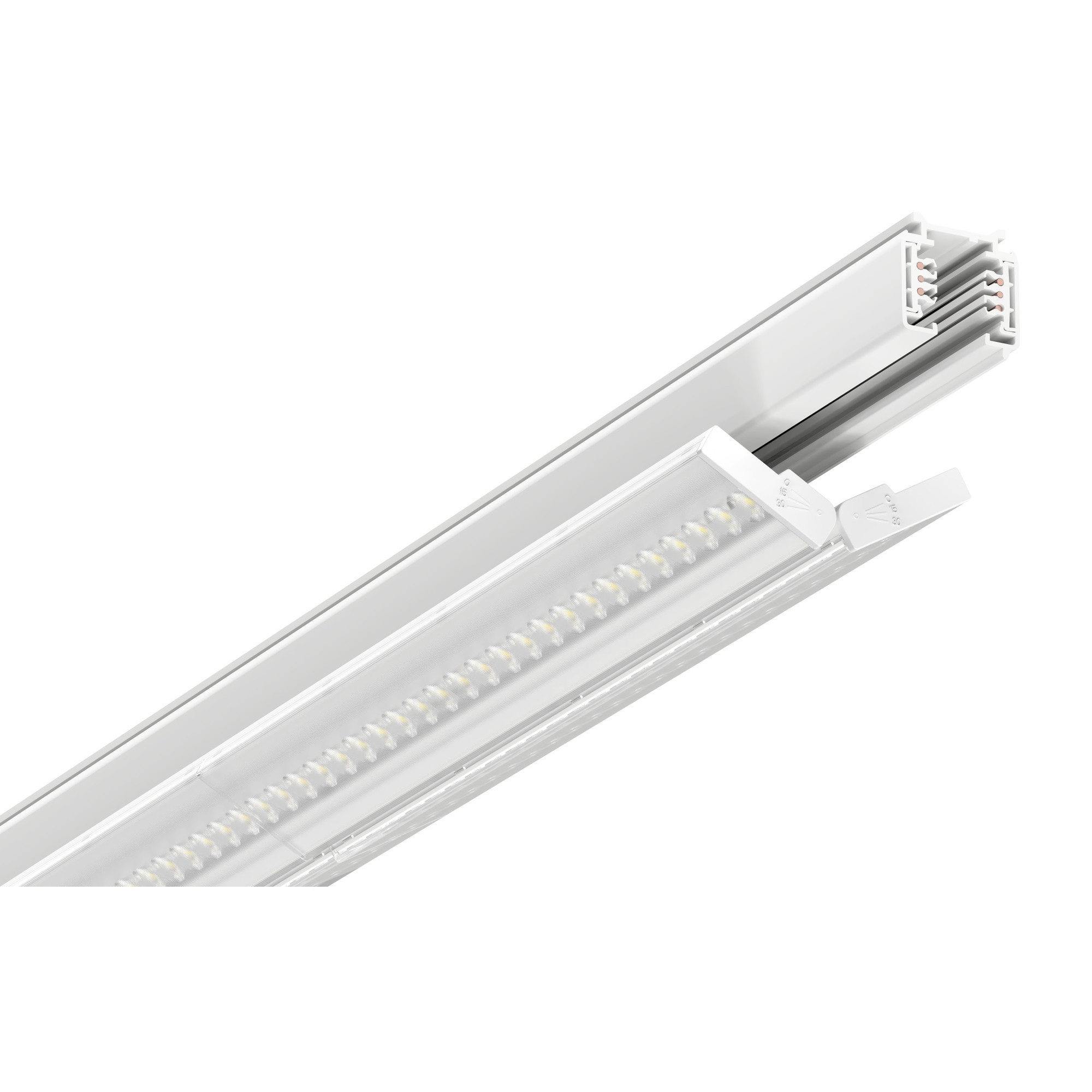

The luminaire mounts on a 3-phase busbar. Its adapter fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard – so you can add the VU2 to existing installations. Since the track carries three separate phases, groups of luminaires can be switched independently. The luminaire is Safety Class I with a protective-earth connection.

Colour temperature 3000 K – warm white

Warm white light feels cosy and inviting – proven in hospitality, hotels, boutiques and reception areas.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

The VU2 is at home wherever a track system is in place and surfaces need even brightness. In retail it lights long aisles and shelf rows; thanks to the oppositely tiltable wings, one row of luminaires is often enough for two shelf fronts. In supermarkets and specialist stores it provides calm base lighting, in boutiques and showrooms accentuated product presentation. Offices, meeting rooms, galleries, workshops and exhibition halls also benefit from the flexible light control.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
