LED VU2 linear light 30°x90°V-tiltable 1500mm white 150lm CRI>90

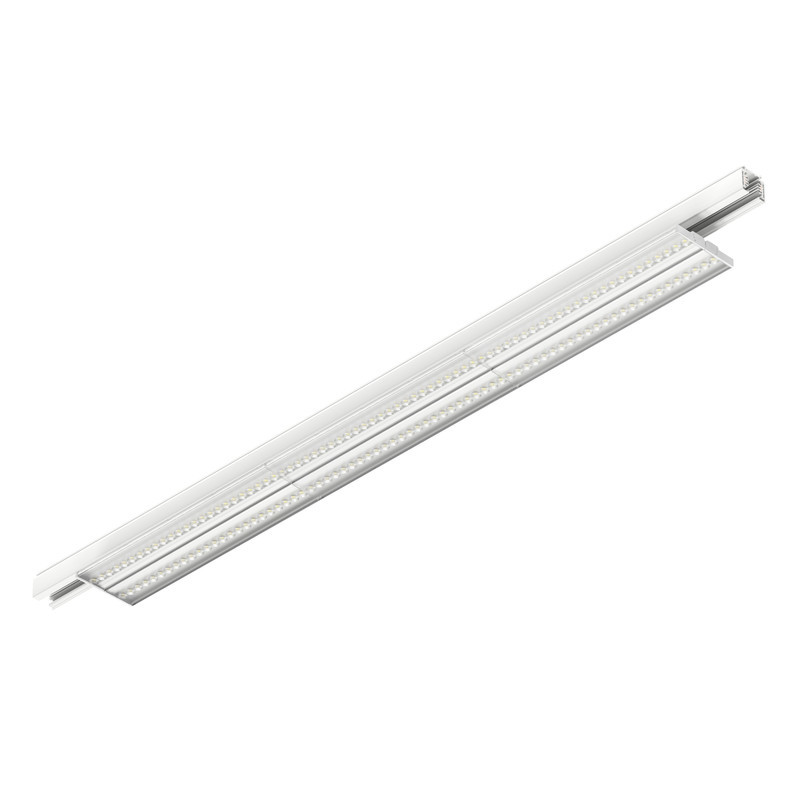

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1500 mm · white housing · CRI > 90 · 30° × 90° · 3-phase track

The LED VU2 linear luminaire is a track spotlight with two separately movable light wings. Both wings tilt independently by up to 30° – inwards, outwards or both in the same direction. A single luminaire can therefore cover opposite shelf rows or concentrate all of its light on one side. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Two separately tiltable light wings, each adjustable 0° to 30°
• Beam angle 30° × 90°, 30° × 30° optionally available on request
• Colour rendering CRI > 90 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Aluminium housing in white with PMMA lens, IP20, IK04

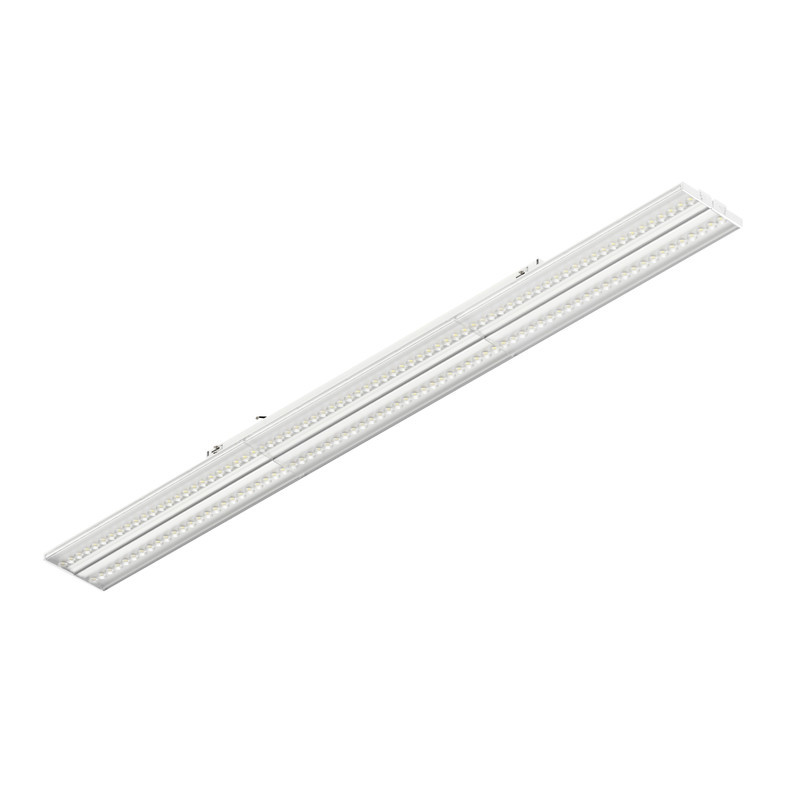

Two tiltable wings: one luminaire, many lighting effects

Two wings, many options: because both light rows of the VU2 tilt independently up to 30°, you change the light distribution in seconds. Straight down for even base light, spread outwards for two shelf sides at once, or both swivelled together for one strongly accented surface. If your store layout changes, simply re-aim them.

Beam angles: which one suits your application?

How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:

• 30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
• 30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
• Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

When colour fidelity counts, CRI > 90 is the right choice. Simple LEDs make reds in particular look washed out; this version renders them strong and natural. Clothing looks the same in the shop as it later does at home in daylight – a point that prevents returns and eases the buying decision.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

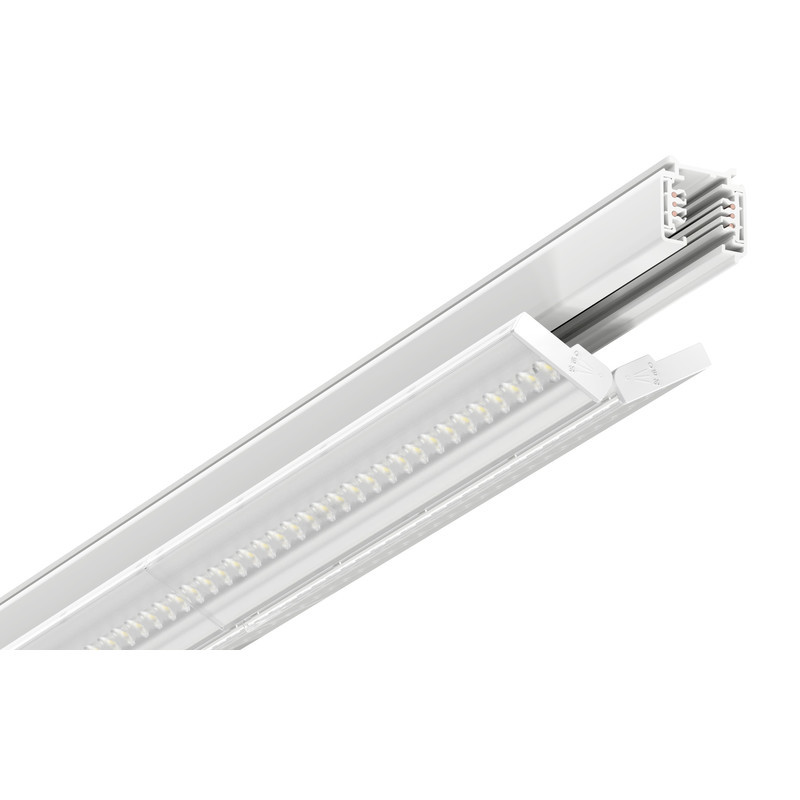

Mounting & track compatibility

The VU2 is placed onto a 3-phase busbar using its adapter – insert, lock, done. No electrical work at the ceiling is required, and you can change the position and number of luminaires yourself at any time. The three phases (L1, L2, L3) let you switch several lighting groups separately, for example general lighting and shop window. The adapter is compatible with the common European systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard. The luminaire is Safety Class I with protective earth.

Choose your colour temperature

• 3000 K warm white – proven in hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and inspection stations.
• 6000 K cool white – proven in warehouses, production and high spaces.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Why CRI > 90 delivers slightly fewer lumens

Why does CRI > 90 deliver fewer lumens than CRI > 80? Better colour rendering calls for a more complete spectrum, especially a stronger red component. The human eye is less sensitive precisely in that range, so this portion of the light contributes little to measured brightness. Together with conversion losses this yields slightly lower efficacy – a trade worth making wherever colours must look exact.

Power steps & luminous flux

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

The VU2 is at home wherever a track system is in place and surfaces need even brightness. In retail it lights long aisles and shelf rows; thanks to the oppositely tiltable wings, one row of luminaires is often enough for two shelf fronts. In supermarkets and specialist stores it provides calm base lighting, in boutiques and showrooms accentuated product presentation. Offices, meeting rooms, galleries, workshops and exhibition halls also benefit from the flexible light control.

Scope of delivery

• 1× LED VU2 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
