LED VU2 linear light 30°x90°V-tiltable 1500mm white 165lm CRI>80 6000K

Item number: VU2C815WV-4

Category: VU2 LED linear light

Lightcolor:: 3000K4000K5000K6000K

134,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	129,90 €
12	124,90 €

Available

Shipping time: 15 - 16 workdays

Description

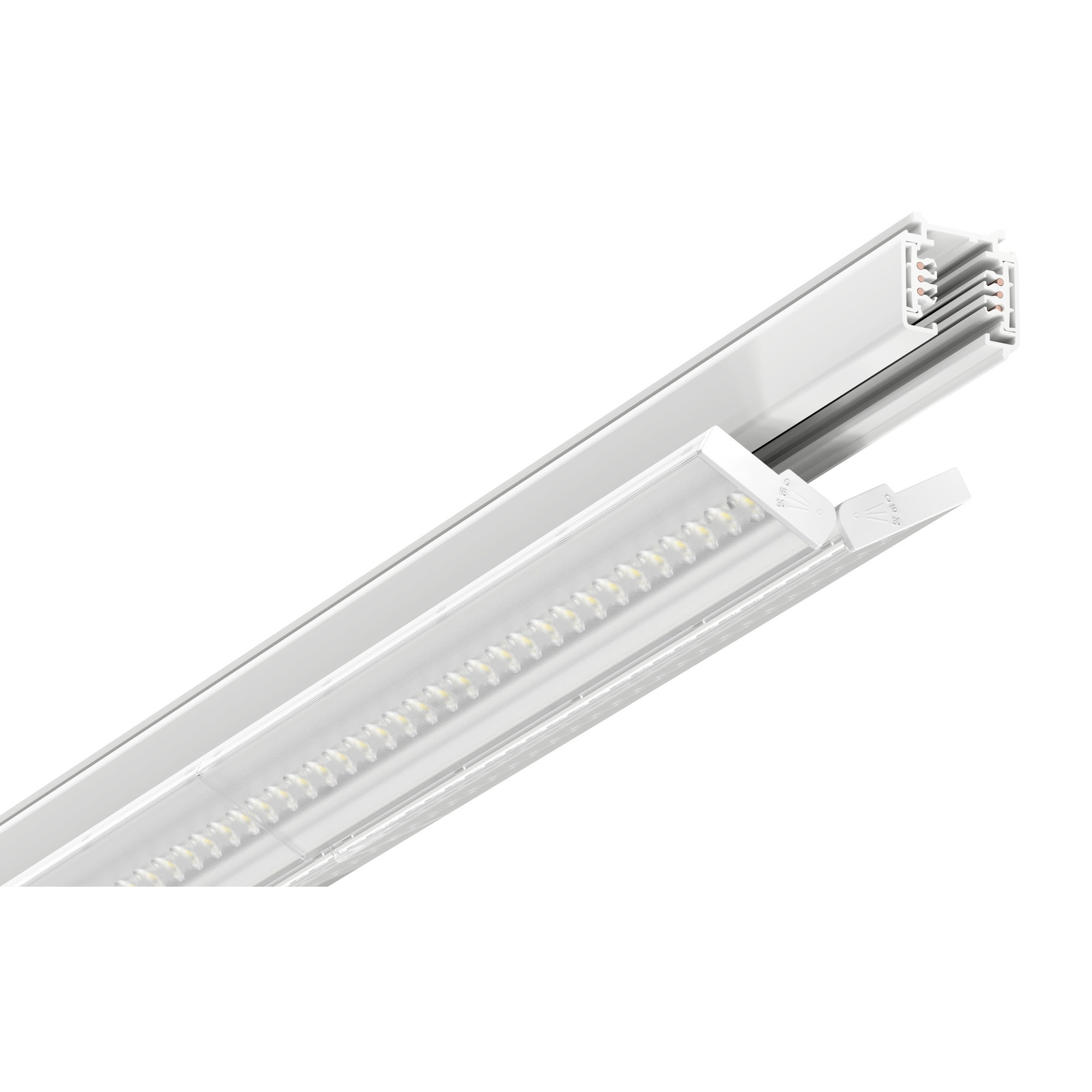

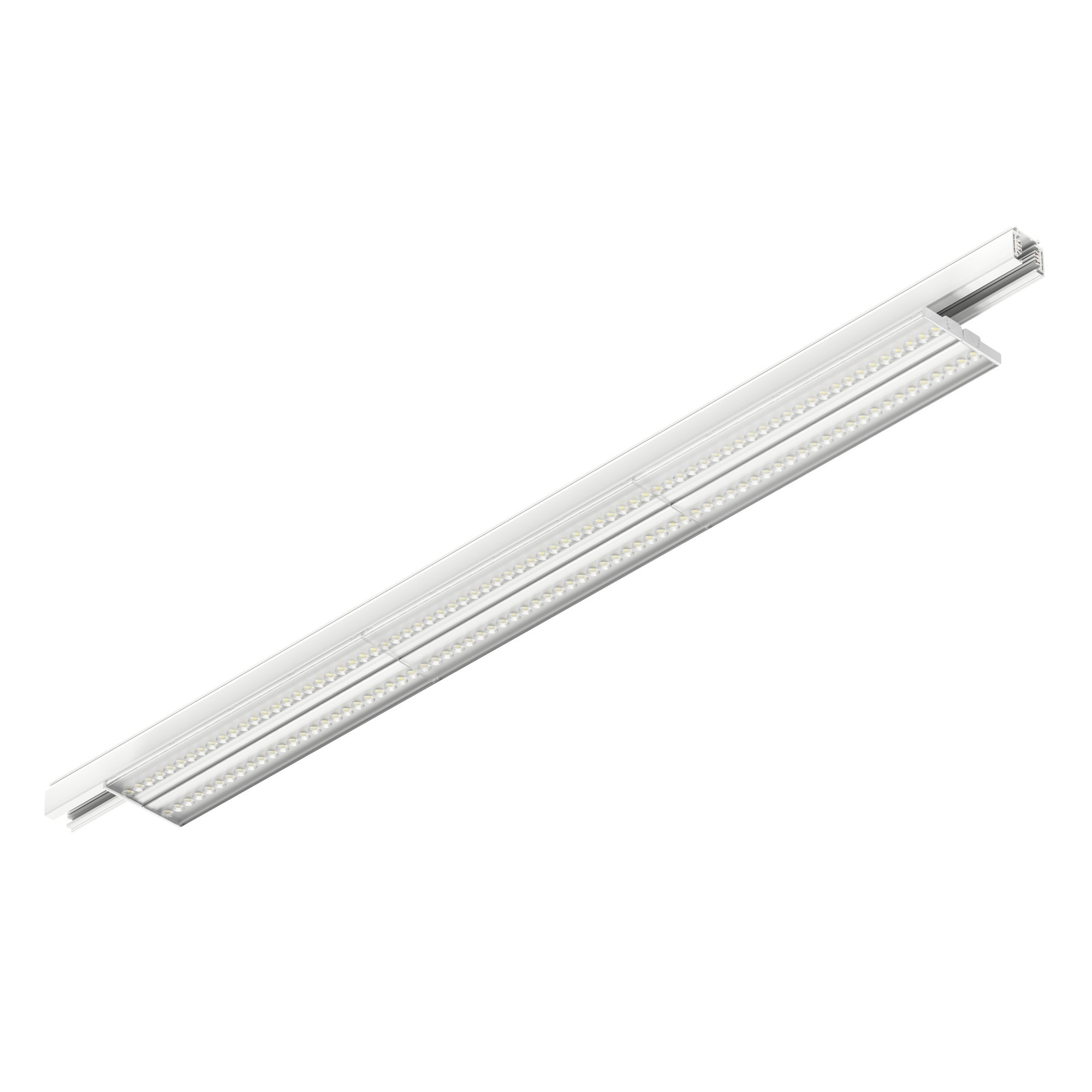

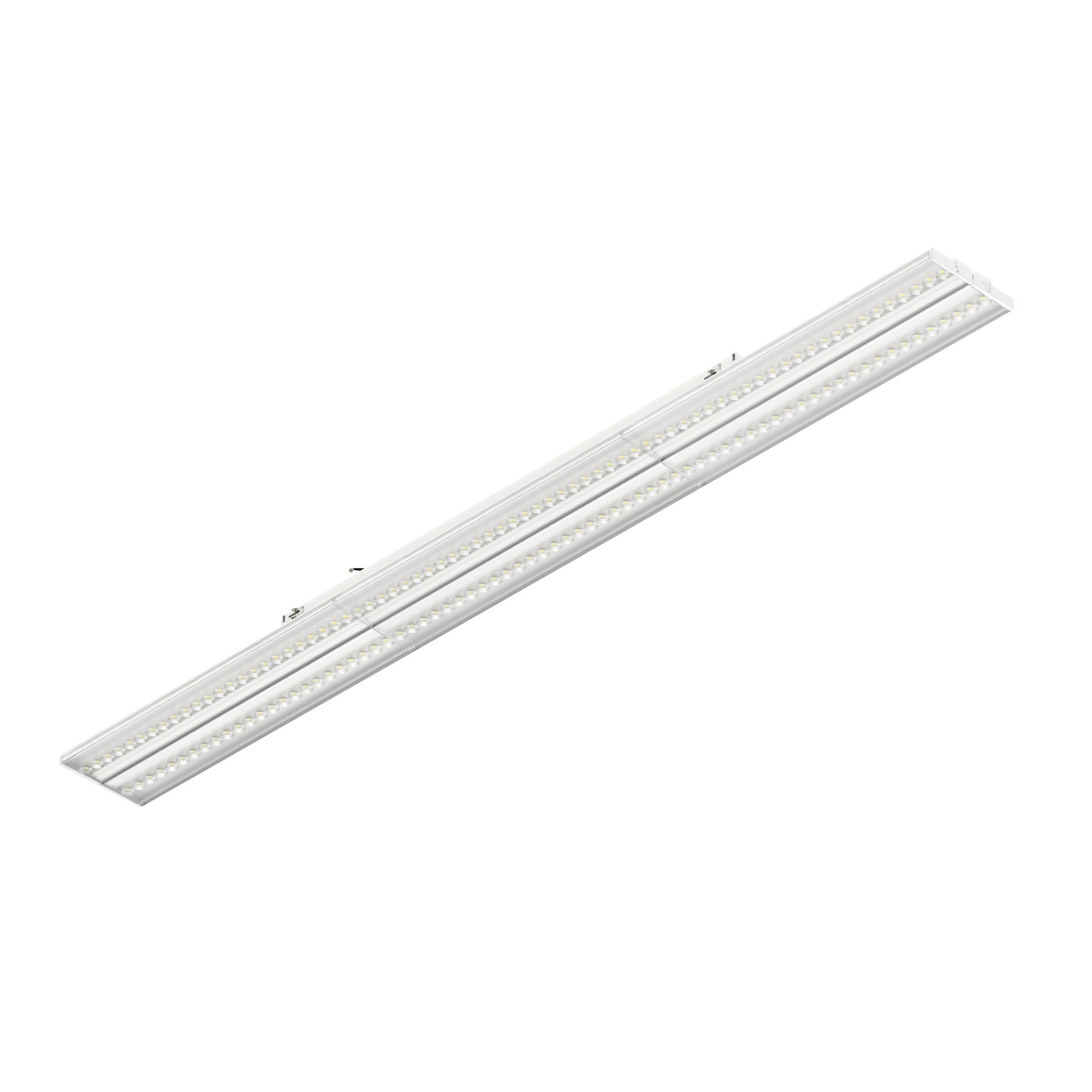

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1500 mm · white · 6000 K cool white · CRI > 80 · 30° × 90°

1500 mmwhiteCRI > 806000 K30° × 90°2 wings 0–30°165 lm/WL80 100,000 h

The LED VU2 linear luminaire is a track spotlight with two separately movable light wings. Both wings tilt independently by up to 30° – inwards, outwards or both in the same direction. A single luminaire can therefore cover opposite shelf rows or concentrate all of its light on one side. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire.	30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill.
Switchable power 60 W / 50 W / 42 W / 34 W selectable at the switch.	High efficiency 165 lm/W – up to 9,900 lm at 60 W.
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

Two separately tiltable light wings, each adjustable 0° to 30°
Beam angle 30° × 90°, 30° × 30° optionally available on request
Colour rendering CRI > 80 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Aluminium housing in white with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:

30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: maximum light per euro

The CRI > 80 version renders colours naturally while running very economically: 165 lm/W means plenty of brightness from little power. For sales floors, warehouses, workshops and offices where large areas are lit for many hours a day, this is the most economical choice.

Long service life – L80 at 100,000 hours

Behind the figure L80 at 100,000 hours lies a simple statement: even after 100,000 operating hours the luminaire still delivers at least 80 % of its initial brightness. LEDs do not fail suddenly like an incandescent bulb; they dim very gradually over a long period. At twelve hours of use per day this value covers more than twenty years.

High-quality LED chips by Sanan

It is worth looking at the LED manufacturer: Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is today the largest producer of LED chips in China as well as one of the top suppliers worldwide. Manufacturing at that scale means strict quality control and very low variation. The VU2 benefits directly: plenty of light per watt, precisely maintained colour temperature and a light output that stays stable over the years.

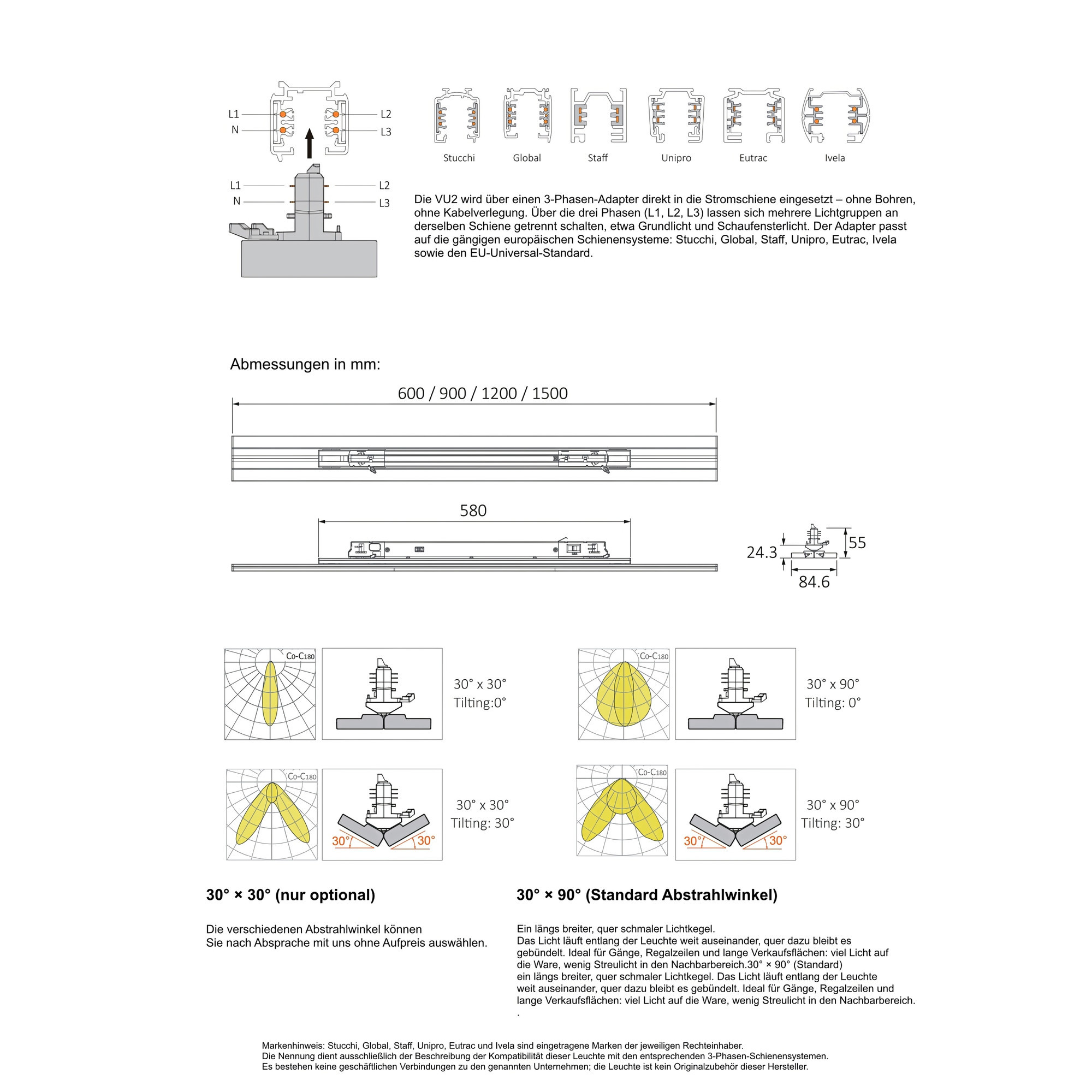

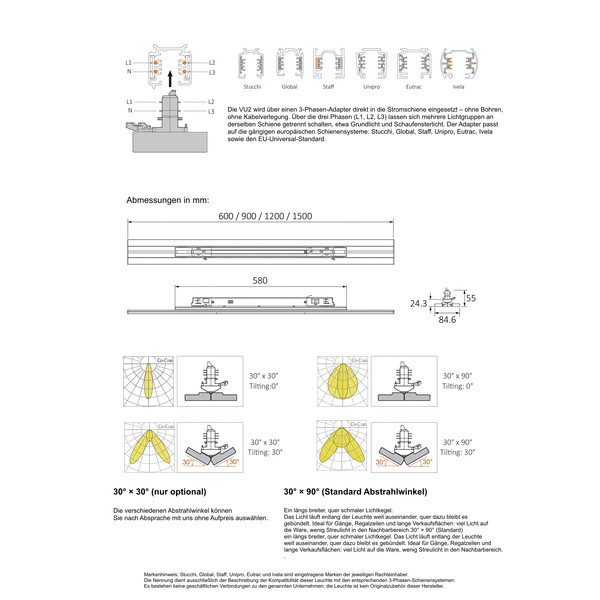

Mounting & track compatibility

All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.

Colour temperature 6000 K – cool white

Cool white light delivers maximum brightness and contrast – proven in warehouses, production and high spaces.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	60 W	9,900 lm
Step 2	50 W	8,250 lm
Step 3	42 W	6,930 lm
Step 4 (minimum)	34 W	5,610 lm

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	1500 mm
Power (switchable)	60 W / 50 W / 42 W / 34 W (by switch)
Luminous flux	9,900 lm / 8,250 lm / 6,930 lm / 5,610 lm
Efficacy	165 lm/W
Colour temperature	6000 K (cool white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (standard); 30° × 30° optionally available on request
Tilt range	two wings, individually tiltable 0° to 30°
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions	1500 × 84.6 × 55 mm (L × W × H)
Weight	2.45 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

1× LED VU2 linear luminaire with 3-phase adapter
Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
