LED VU3 linear light adjustable 90cm white 160lm CRI >80 3K/4K/5K/6K 4000K

Item number: VU39C8W-2

Category: VU3 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

109,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	104,90 €
12	99,90 €

Available

Shipping time: 15 - 16 workdays

Description

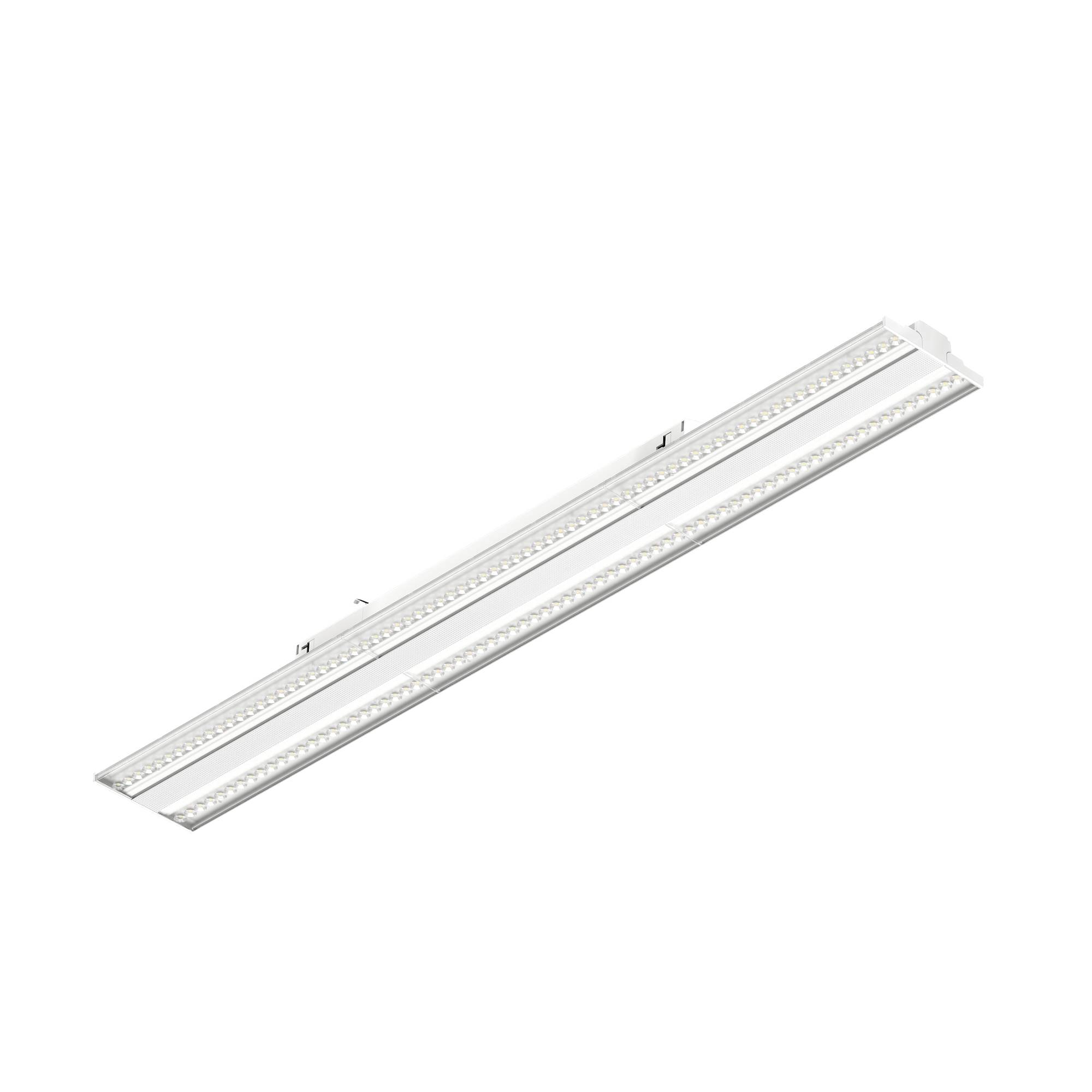

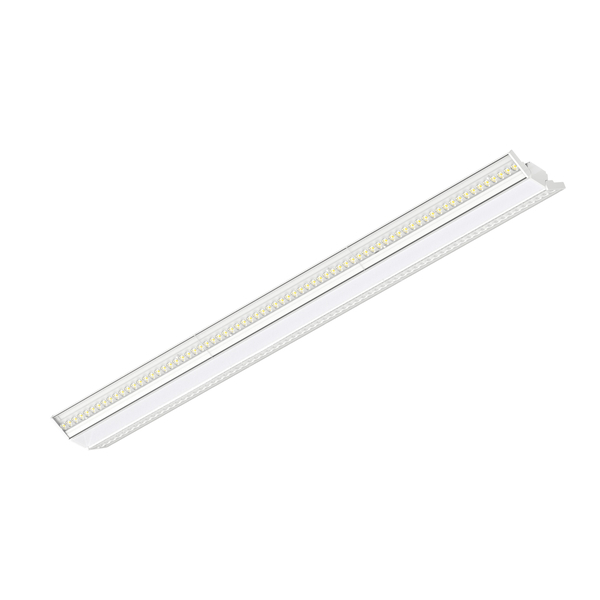

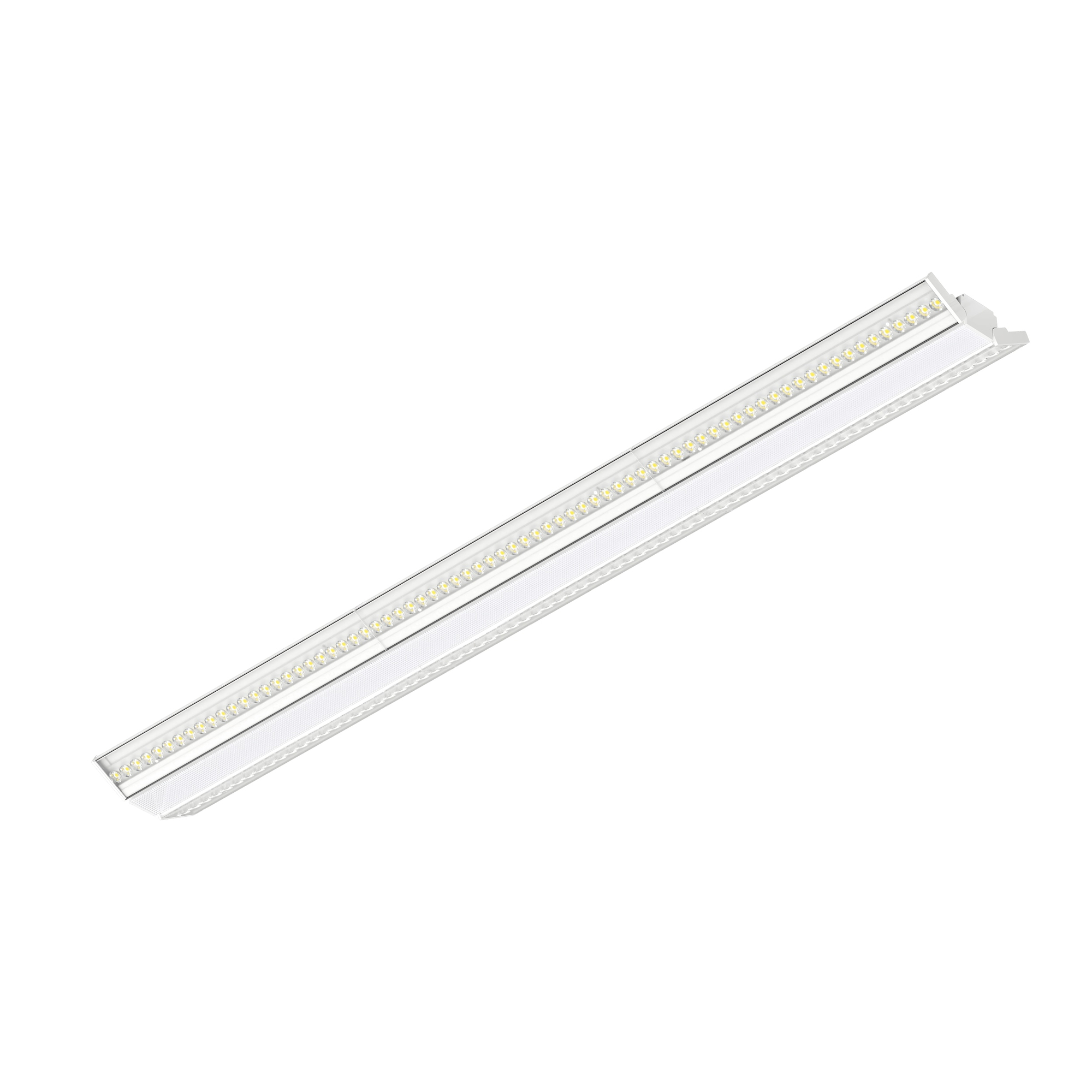

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

900 mm · white · 4000 K neutral white · CRI > 80

900 mmwhiteCRI > 804000 KIP20160 lm/WL80 100,000 h

A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

100° central light Wide beam for even, low-glare base brightness.	Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents.
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch.	High efficiency 160 lm/W – up to 8,800 lm at 55 W.
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision.	Long service life L80 at 100,000 h for long maintenance intervals.

Features in detail

Combined optic: 100° central light + two tiltable 30° × 90° spots
Colour rendering CRI > 80 for natural, rich colours
Switchable power 55 W / 47 W / 39 W / 30 W without tools
Optionally DALI-2 dimmable on request
For 3-phase track – compatible with common track systems
Rugged aluminium housing in white, PMMA lens, IK04

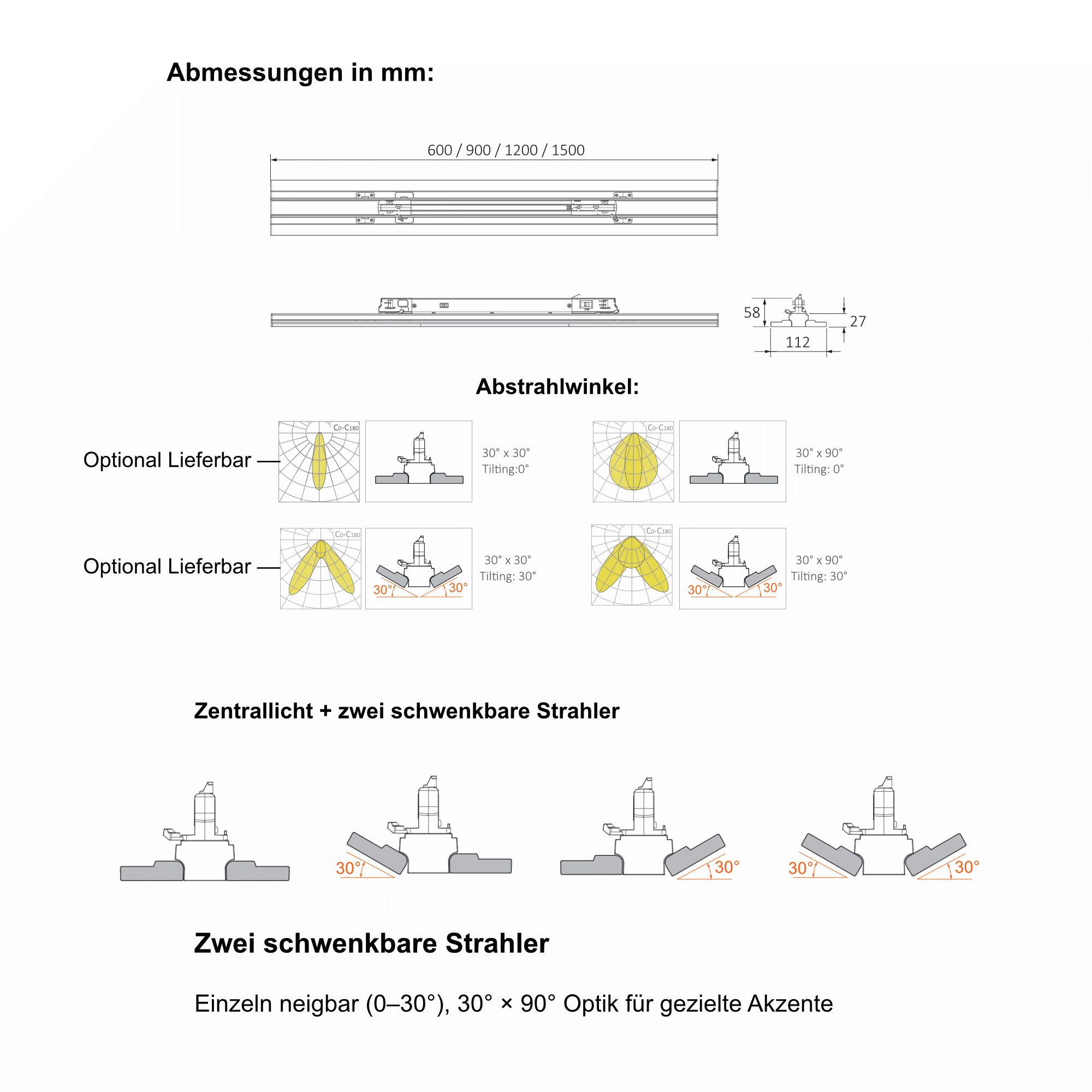

Central light + two tiltable spots

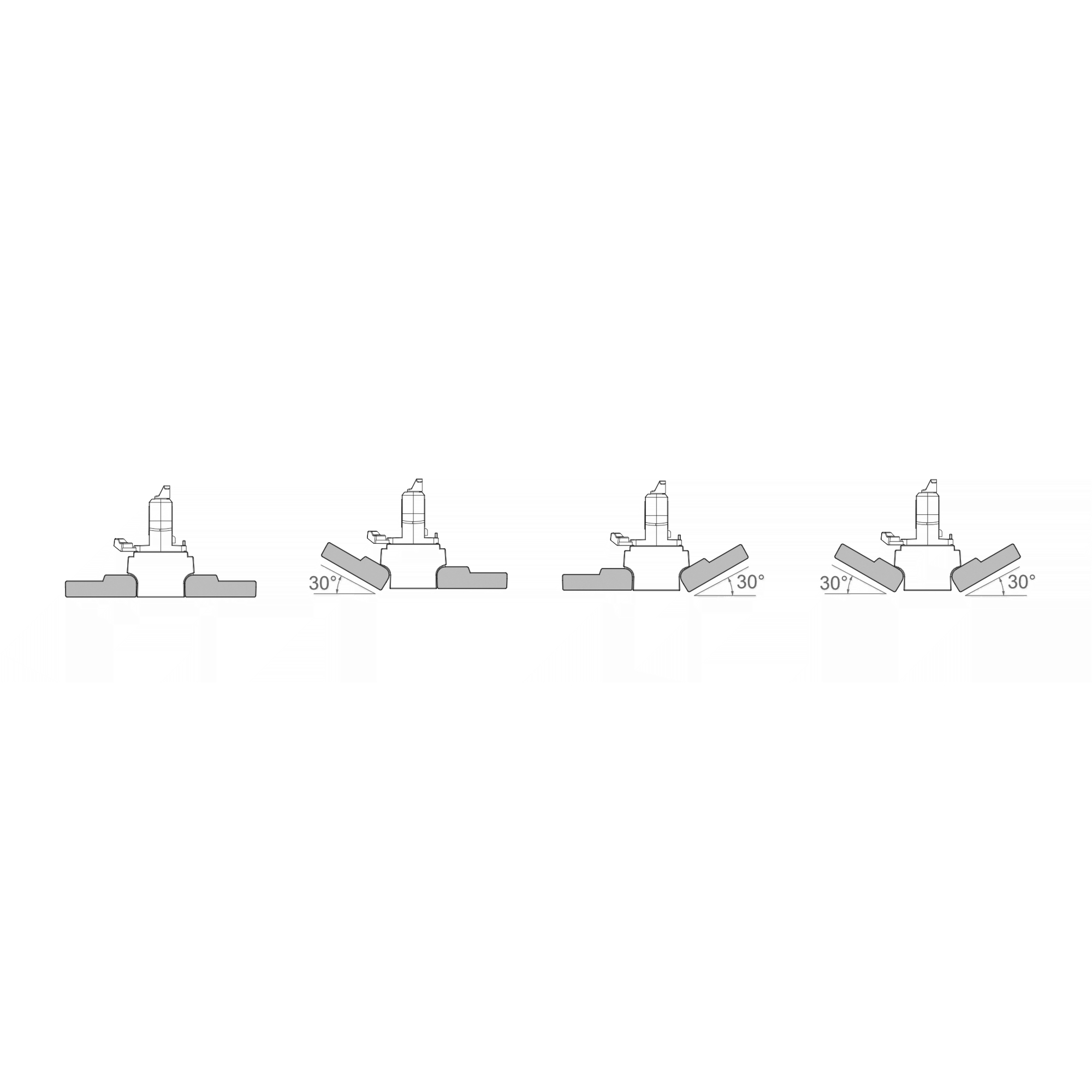

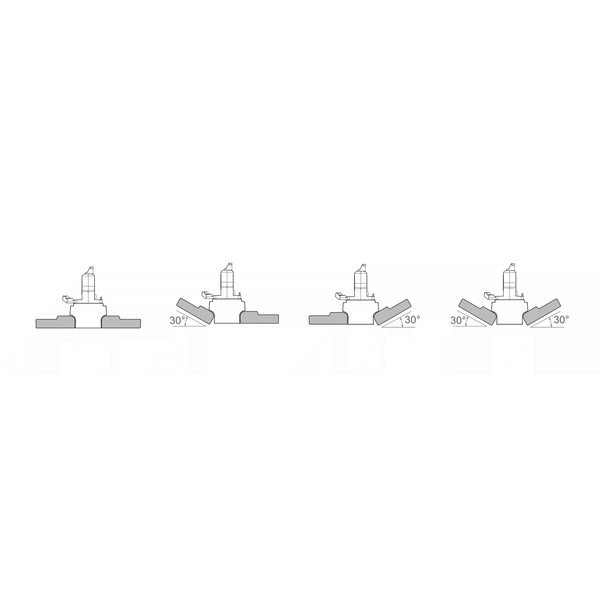

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Efficient & bright

The CRI > 80 variant combines solid colour rendering with especially high efficiency (160 lm/W), making it the economical choice for sales floors, offices, production and storage halls – plenty of light per watt at low running costs.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

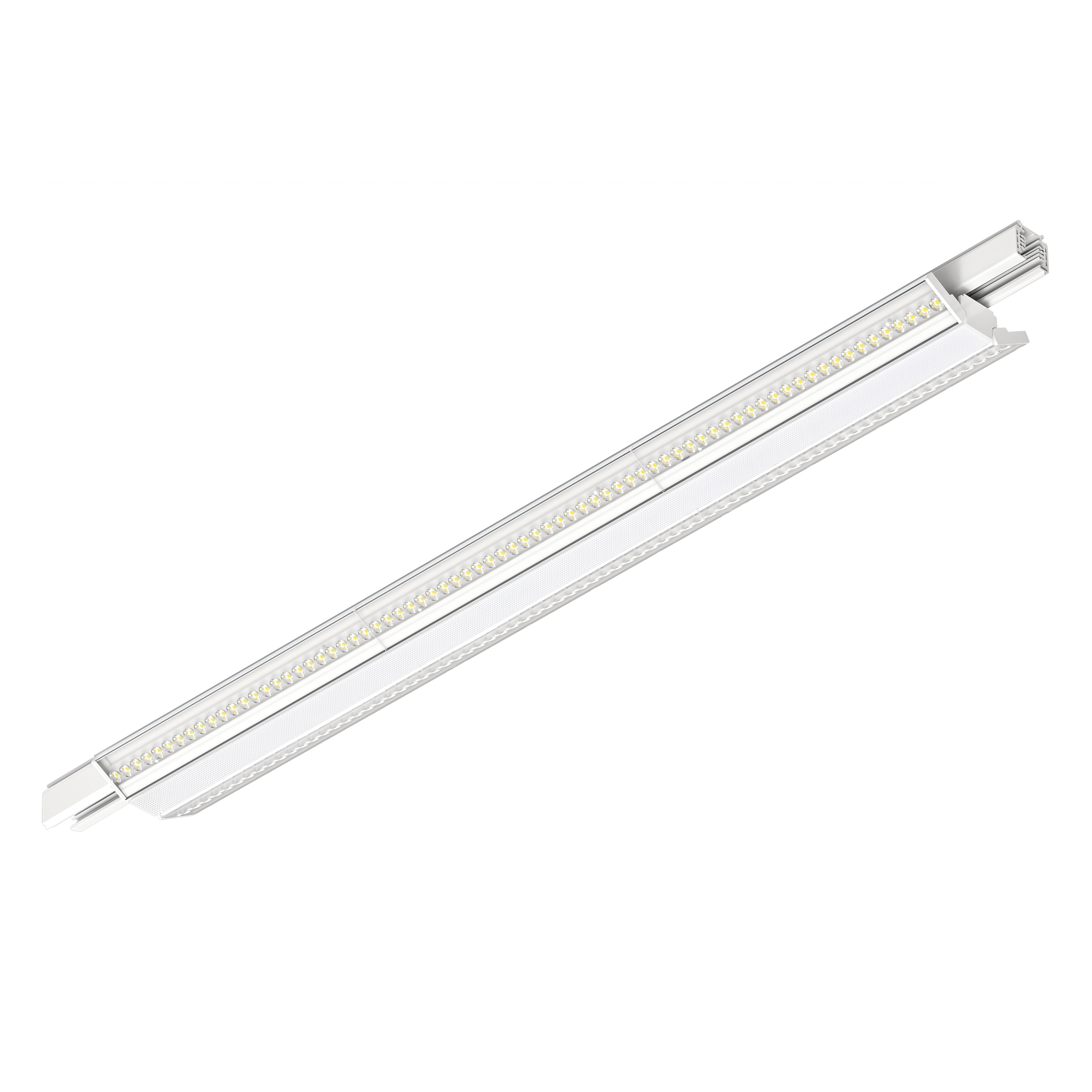

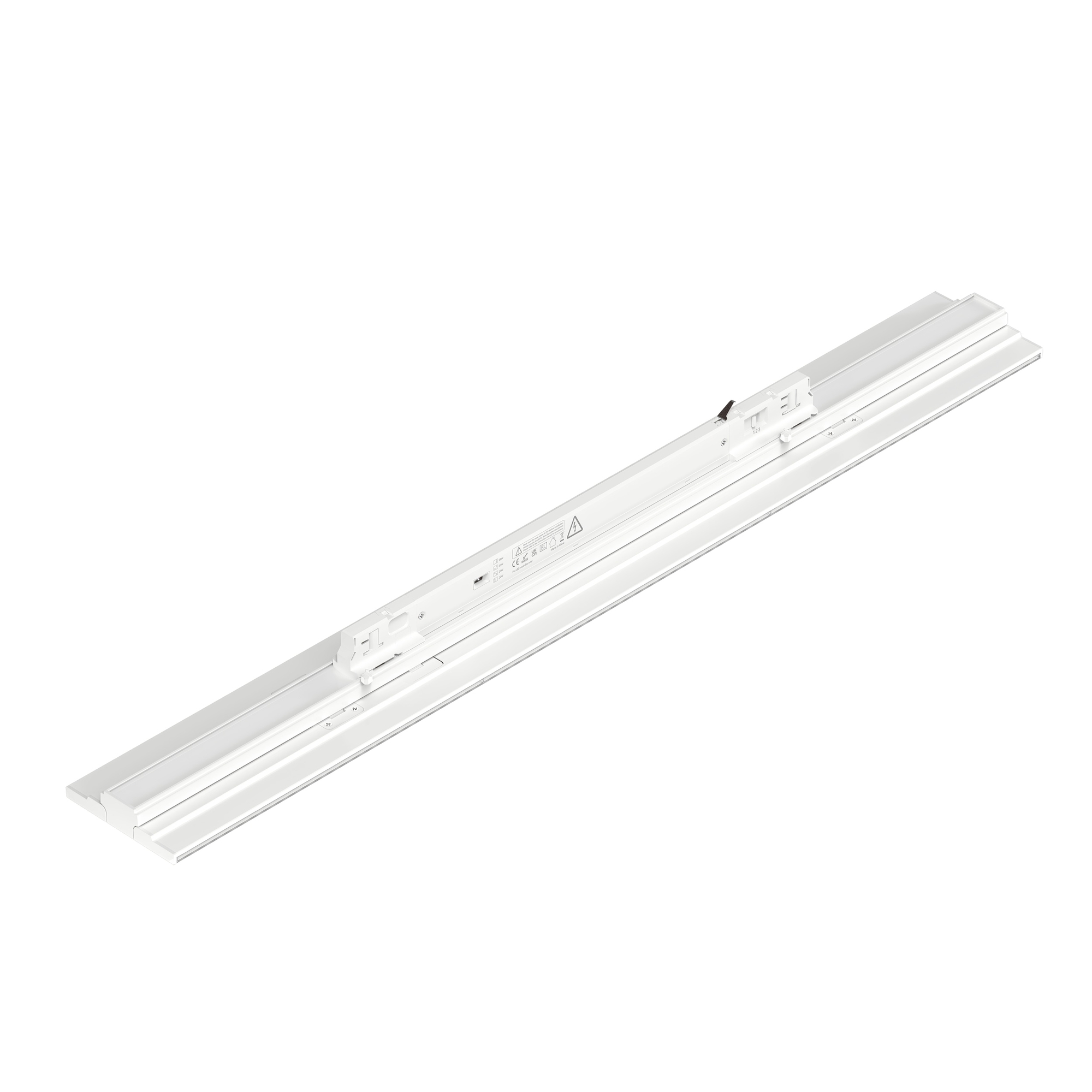

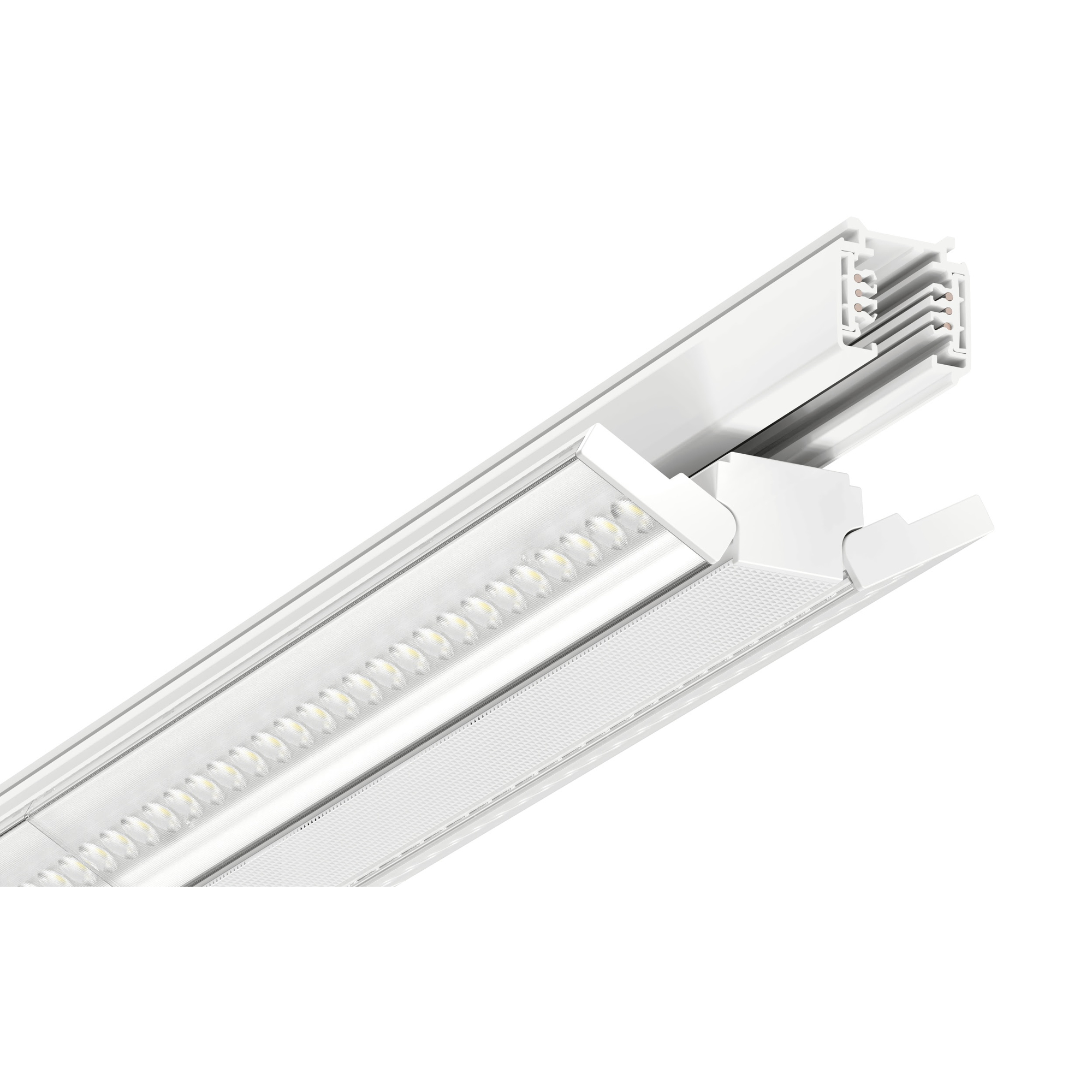

Mounting & track compatibility

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 14 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.

Colour temperature 4000 K – neutral white

Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Technical data

Power (switchable)	55 W / 47 W / 39 W / 30 W (by switch)
Luminous flux	55 W = 8,800 lm / 47 W = 7,520 lm / 39 W = 6,240 lm / 30 W = 4,800 lm
Efficacy	160 lm/W
Colour temperature	4000 K (neutral white)
Colour rendering	CRI > 80
Beam angle	30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request
Side spot tilt	0° to 30°
Mounting	3-phase track (via adapter)
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC 200–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions (L×W×H)	888 × 112 × 58 mm
Ambient temperature	−20 °C to +40 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Scope of delivery

1× LED VU3 linear luminaire
Mounting and connection accessories
Installation instructions
