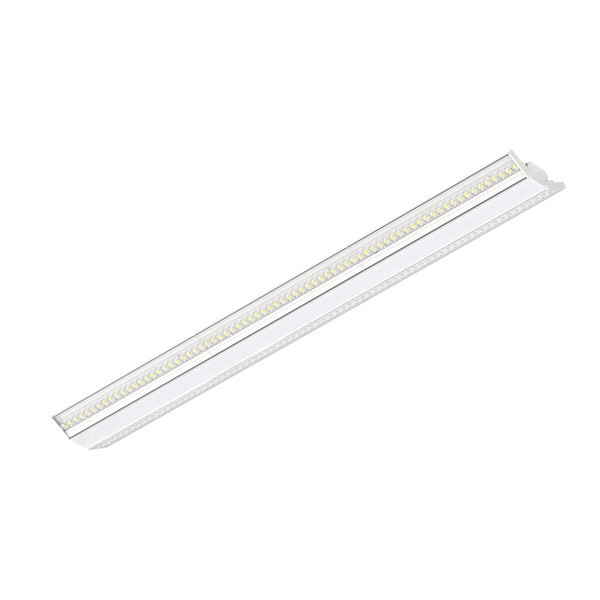

LED VU3 linear light adjustable 90cm white 160lm CRI >80 3K/4K/5K/6K 6000K

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

900 mm · white · 6000 K cool white · CRI > 80

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 80 for natural, rich colours
• Switchable power 55 W / 47 W / 39 W / 30 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

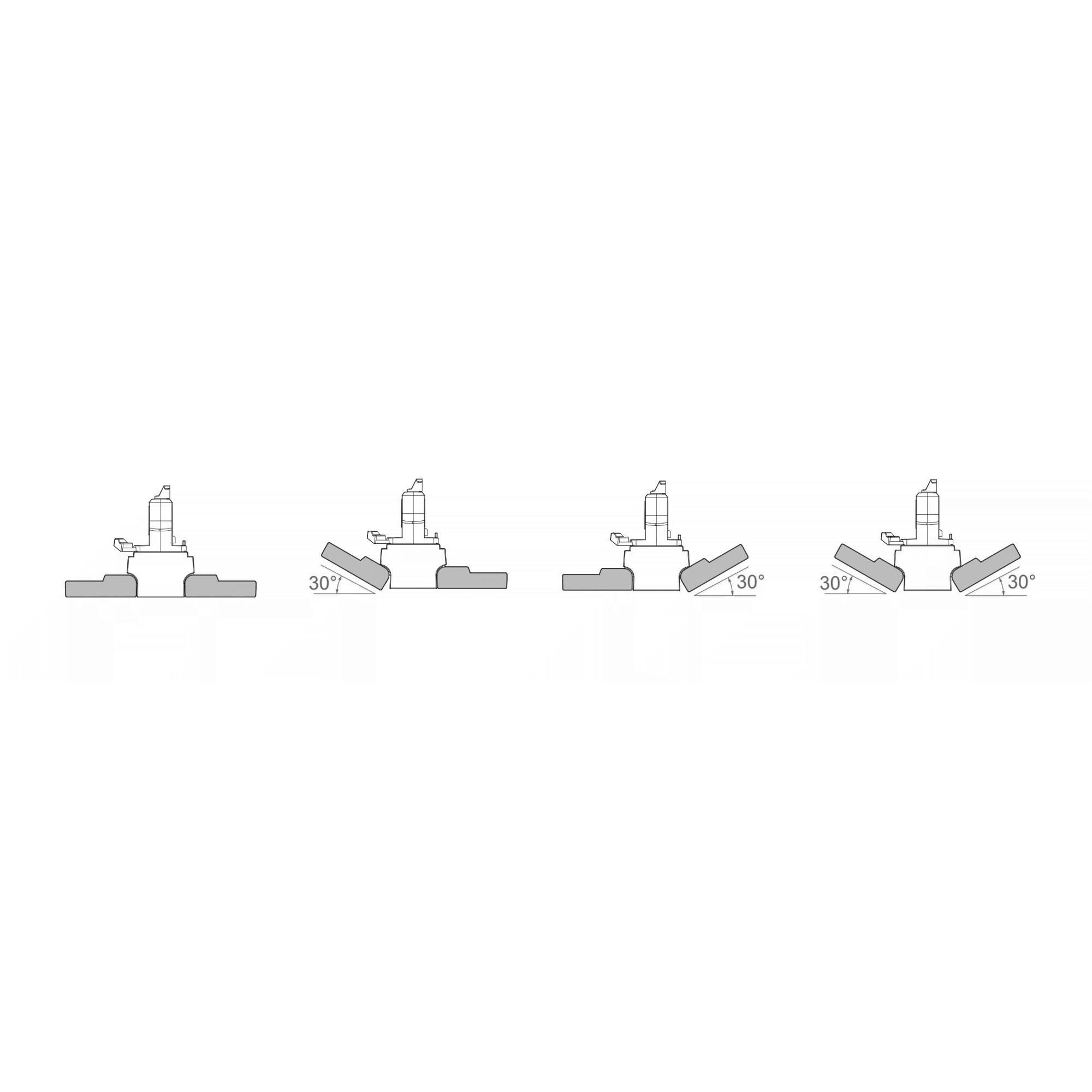

At its core is the mix of a 100° central module for flat illumination and two tiltable 30° × 90° spots. The 0° to 30° tilt directs light onto walls, displays or work surfaces – variable and adjustable at any time.

The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 160 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.

High-quality LED chips by Sanan

This luminaire uses high-quality LED chips from Sanan. Founded in 2000 and headquartered in Xiamen, China, Sanan Optoelectronics is China's largest LED chip producer and ranks among the world's leading LED chip manufacturers. Its chips are known for high efficacy, excellent colour consistency and reliable long-term stability – qualities relied upon by many renowned lighting brands worldwide. This forms the basis for the high efficiency and long service life of the VU3 luminaire.

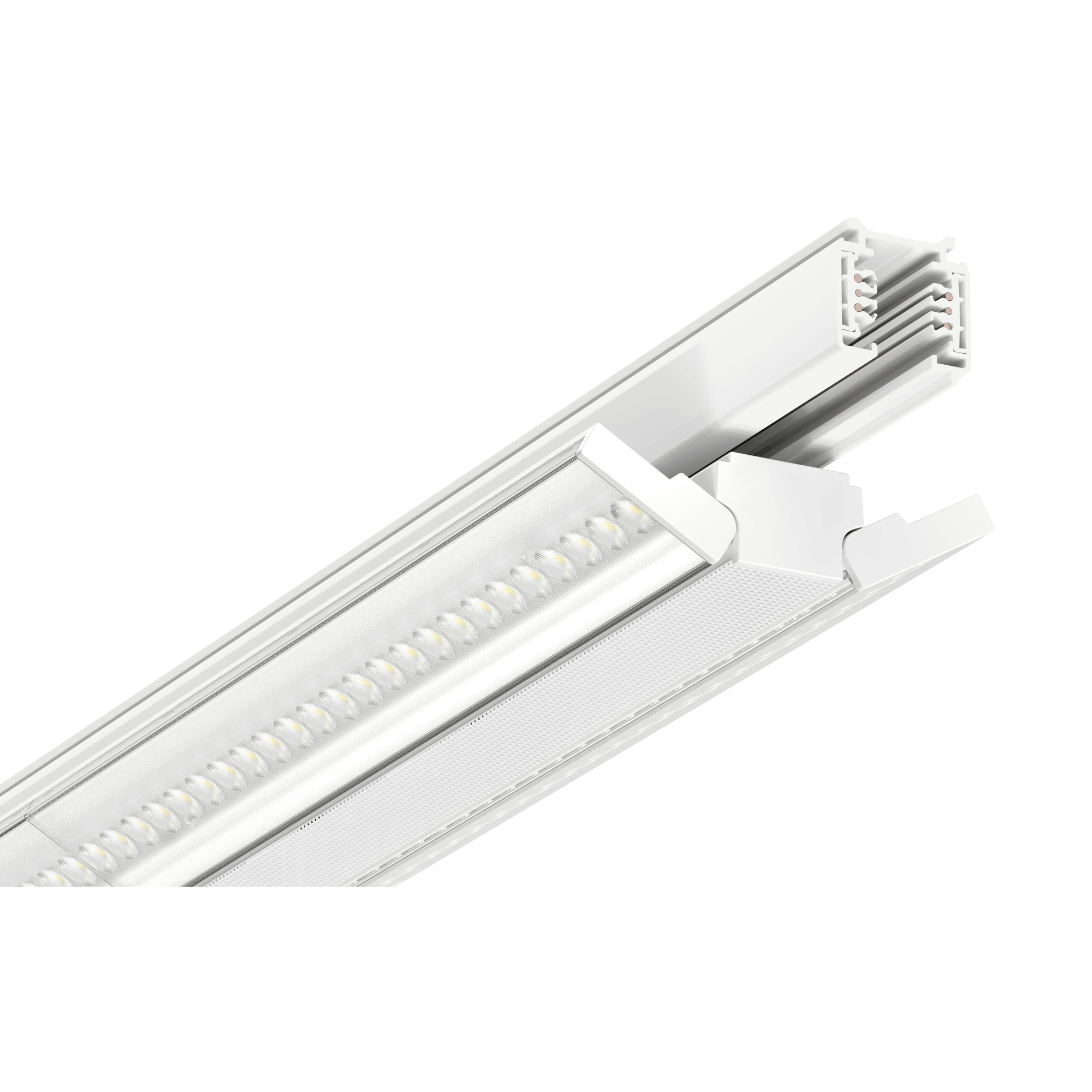

Mounting & track compatibility

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 14 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.

Colour temperature 6000 K – cool white

Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Technical data

Applications

At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
