UFO LED High Bay Extreme X1 150W 6000K | 210 lm/W

LED high-bay light Extreme X1 150W 210 lm 90° Xitanium NT 6000K

Description

UFO LED High Bay Extreme X1 – 150 W | 210 lm/W | 6000 K Cool White

UFO High Bay Extreme X1 – 150 W, 31,500 lm, 6000 K Cool White.

210 lm/W

Efficiency

31,500 lm

Luminous Flux

150 W

Wattage

50,000 h

Lifespan

IP65

Protection

6000 K · Cool White

Cool White

Cool white high-output light for shift and storage operations: the Extreme X1 150 W in 6000 K produces 31,500 lumens of crisp cool white – for maximum alertness and signal effect in continuous operation. 210 lm/W, Philips Xitanium driver, three output levels.

Brand Quality

Philips Xitanium LED Driver – Why the Driver Determines Luminaire Lifespan

In practice, the LED driver is the component most responsible for premature luminaire failure. The Philips Xitanium addresses this: efficiency ≥94%, power factor ≥0.95, full IP65 encapsulation, and built-in protection against short circuit, overcurrent, overvoltage and overtemperature – for lowest maintenance costs and maximum uptime.

Power Factor ≥ 0.95 Efficiency ≥ 94% 0–10 V Dimming IP65 Encapsulated 4x Protection Built-in

Output Control

Flexible Output Adjustment Without External Controls

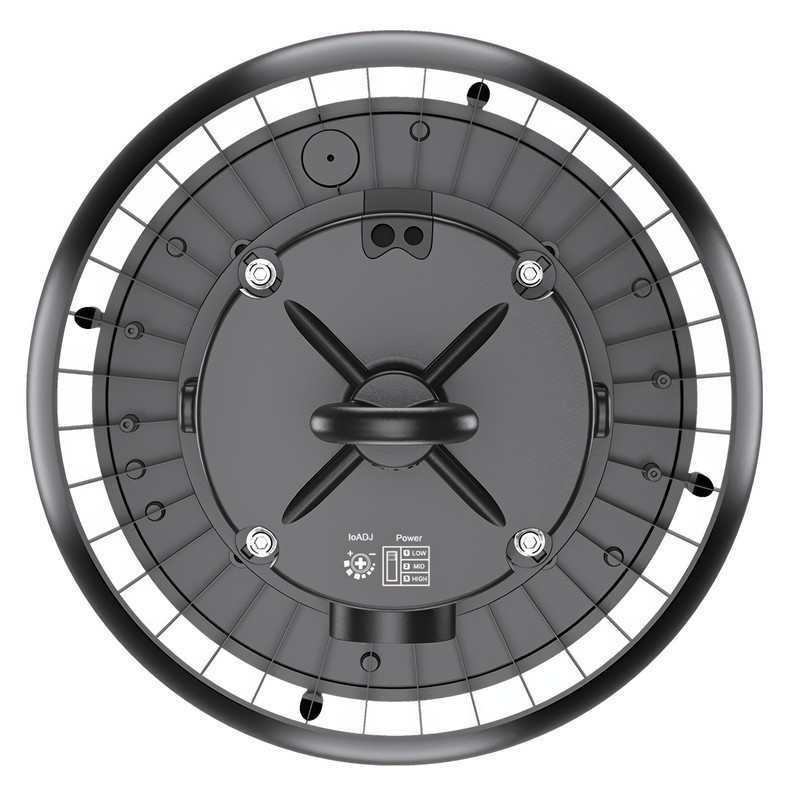

The 150 W model offers three levels – 90 W, 120 W and 150 W – adjustable with a screwdriver directly on the fixture. Ideal for operations that want to switch between energy-saving mode and full output by shift or time of day, without installing a separate dimming system.

Model	Default	? LOW	? MID	? HIGH
150 W Model	150 W	90 W	120 W	150 W

Your Benefits

Built for Industrial Use

lm/W

Peak Efficiency – 210 lm/W at System Level

The Extreme X1 150 W delivers 31,500 lumens at just 150 watts – more than twice as efficient as older high bay luminaires. Lower electricity costs, equal or better brightness.

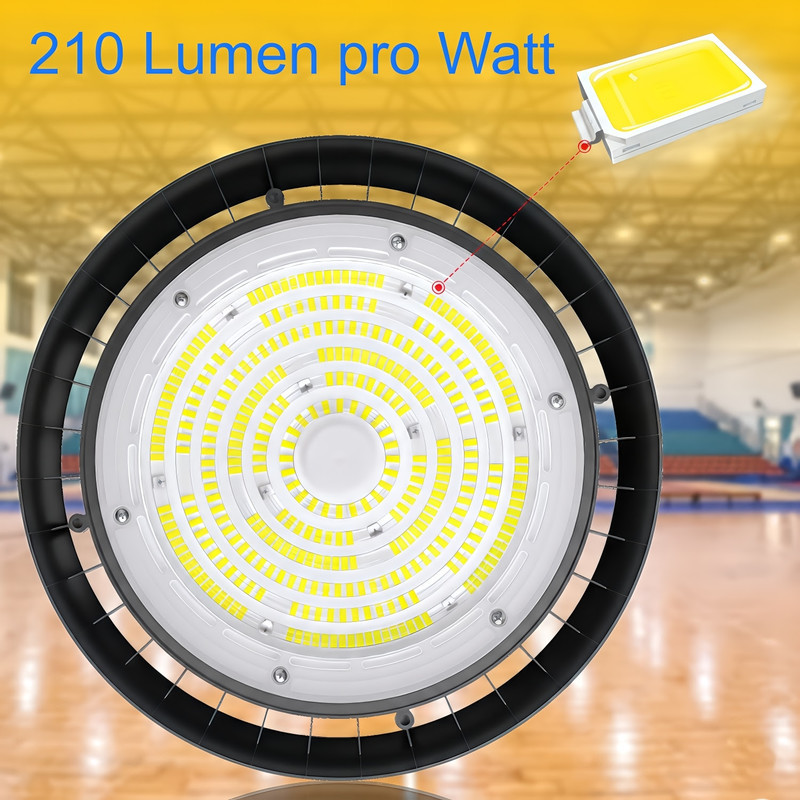

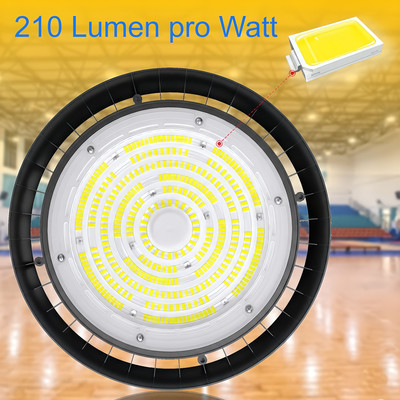

SMD 2835 High-Efficiency LEDs

IP65

Industry-Tested – IP65 & IK09 Protection

IP65 protection and IK09 impact resistance make the Extreme X1 150 W the right choice for high-bay racking, manufacturing and workshops – even where dust, moisture or mechanical impacts are part of daily operation.

DIM

0–10 V Dimming

The Philips Xitanium supports 0–10 V dimming: steplessly adjustable via control wire – compatible with motion detectors, daylight sensors and building automation systems.

50Th

Maintenance-Free Operation – 50,000 Hours

In 16-hour shift operation, the Extreme X1 150 W runs for over 8 years without lamp replacement – predictable operating costs and minimal maintenance effort.

CRI

Good Colour Rendering for Safe Working Environments

CRI ≥ 70 ensures colour markings, warning signs and material differences are reliably identified under artificial light – a key factor for workplace safety in storage and production environments.

90°

Precise 90° Downlight Effect

At mounting heights of 8–12 m, the 90° beam angle delivers standard-compliant illuminance on the floor without scattering light – efficiently focused, glare-reduced.

Optional: PC reflector available

Specifications

Technical Data

Parameter	Value
Power Consumption	150 W (switchable 90/120/150 W)
Luminous Flux	31,500 lm
Luminous Efficacy	210 lm/W
Colour Temperature	6,000 K (Cool White)
Colour Rendering (CRI)	Ra ≥ 70
Beam Angle	90°
Protection / Impact Rating	IP65 · IK09
Energy Efficiency Class	C (EU Scale A–G) The EU formula rates directional luminaires (90°) more strictly than omnidirectional sources. ? therefore Class C instead of A, even though the actual system efficiency with 210 lm/W is in the top range.
LED Driver	Philips Xitanium · 0–10 V dimmable
LED Type	SMD 2835
Operating Voltage	AC 200–240 V · 50/60 Hz
Housing Diameter	Φ300 mm
Height	110 mm
Weight	1.88 kg
Lifespan	50,000 hours
Certificates	CE · RoHS

Applications

Recommended Mounting Height: 8–12 m

Industry & Production Manufacturing halls, assembly areas and production floors requiring maximum brightness and reliability during shift operations.	Warehouses & Logistics High-bay racking, picking areas and logistics centres requiring uniform, shadow-free illumination across large floor areas.	Sports Halls & Arenas Sports halls, riding arenas and covered venues requiring uniform, glare-free area illumination.
Petrol Stations & Canopies IP65-rated for covered outdoor areas, carports and petrol station forecourt canopies.	Supermarkets & Trade Large-format retail and exhibition floors with high ceiling clearance.	Workshops & Automotive Automotive workshops and bodyshops where precise colour rendering and high illuminance are critical.

FAQ

Frequently Asked Questions

What illuminance level does the Extreme X1 150 W achieve?

At 10 m mounting height and a grid spacing of approx. 5×5 m, you achieve around 300–500 lux on the floor – standard-compliant per EN 12464 for general work areas. For a customised lighting plan, please contact us.

Which output level is recommended for my operation?

HIGH (150 W / 31,500 lm) for high-bay racking and production. MID (120 W / 25,200 lm) for storage and circulation areas. LOW (90 W / 18,900 lm) for off-peak hours or daylit areas. Adjustment via screwdriver directly on the fixture – with the luminaire switched off.

Can the luminaire be dimmed?

Yes – the Philips Xitanium driver supports 0–10 V dimming, making it compatible with building automation systems, presence sensors and daylight-responsive controls.

Is the Extreme X1 suitable for outdoor use?

Thanks to its IP65 rating, the Extreme X1 is suitable for covered outdoor areas (canopies, carports, petrol stations). For unprotected outdoor use with direct rainfall, we recommend a luminaire rated IP66 or higher.

What optional accessories are available?

Optional accessories include a mounting bracket for wall or ceiling installation and a PC reflector to optimise the beam angle. Both are available specifically for the 150 W version.

Package Contents

1× UFO LED High Bay Extreme X1 150 W · 1× Philips Xitanium LED driver · 1× Suspension hook
Optional: Mounting bracket · PC reflector
